|Product Name:||Wall Mounted H2S Gas Detector||Sensor:||Electrochemical|
|Type:||Fixed Wall Mounted Type||Measuring Range:||0-100ppm;0-200ppm|
|Signal Output:||4-20mA ;||Voltage:||12-24V DC|
h2s gas monitors,
h2s portable gas detector

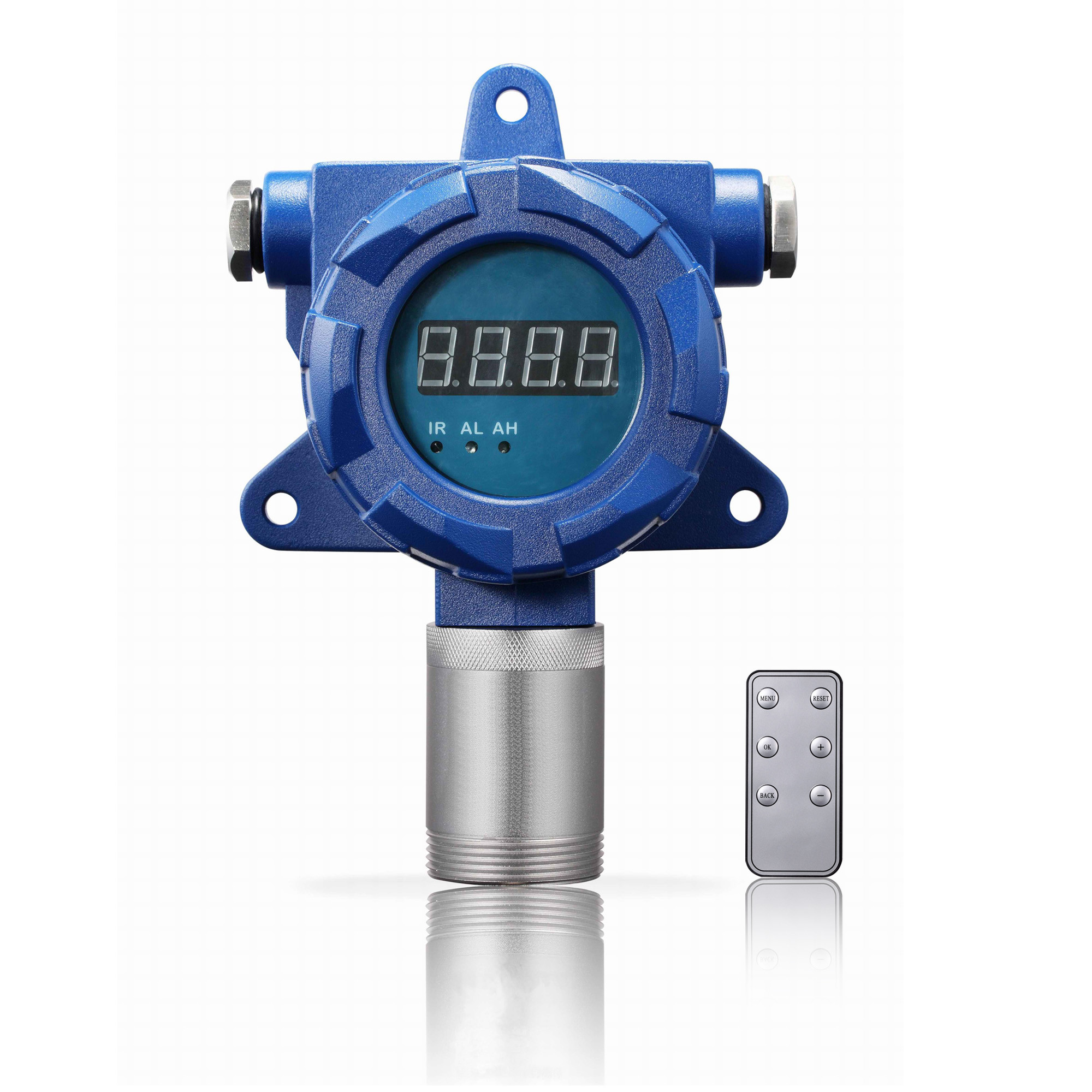

Digital Display Wall Mounted 4-20mA Output H2S Gas Detector with Controller
|Install method||Wall-mounted, piping type, flow-type (according to the detected environment)|
|Measure range||0-100ppm; 0-200ppm etc|
|Resolution||0.01ppm ; 0.1 ppm|
|Precision||≤± 1% FS or ± 2-3% FS|
|Signal output||4-20mA, 0-5V, RS485, relay(optional)|
|Response time||≤10S||Recovery time||≤10S|
|Zero shift||≤±1%(FS/year)||Display||High-light nixie tube display|
|Connection mode||G1/2 external thread explosion-proof flexible pipe||Unit||ppm|
|Temperature||-20 to 50°C||Humidity||0-95%RH|
|Explosion-proof||Ex dⅡCT6||Degree of protection||IP65|
|Alarm||Sound, light||Operating time||24H|
(1) YT-95H-A gas detector * 1pc
(2) Infrared remote controller *1pc
(3) User manual
(4) Certificate, warranty card
(5) Instrument case
1. Could you please tell me the Warranty Period of your product?
Our warranty period is one year free and lifelong maintenance, and if the product we sell is damaged (if not man-made damage), in the first year,we will send free parts for replacement.
Over the warranty,maintenance is paid service.
2. What kind of Certificate can you provide?
We can provide the CE mark,ISO 9001 quality certificate,the third party calibration certificate(CNAS),factory test report.
3. Do you have Technical Backup to all customers from different countries?
To be surely,our technical support is always available and quick response.
We are manufacturer of so much on site testing experience and understand how to deal with your problems. Moreover, our engineers can go to your country to support if need.
