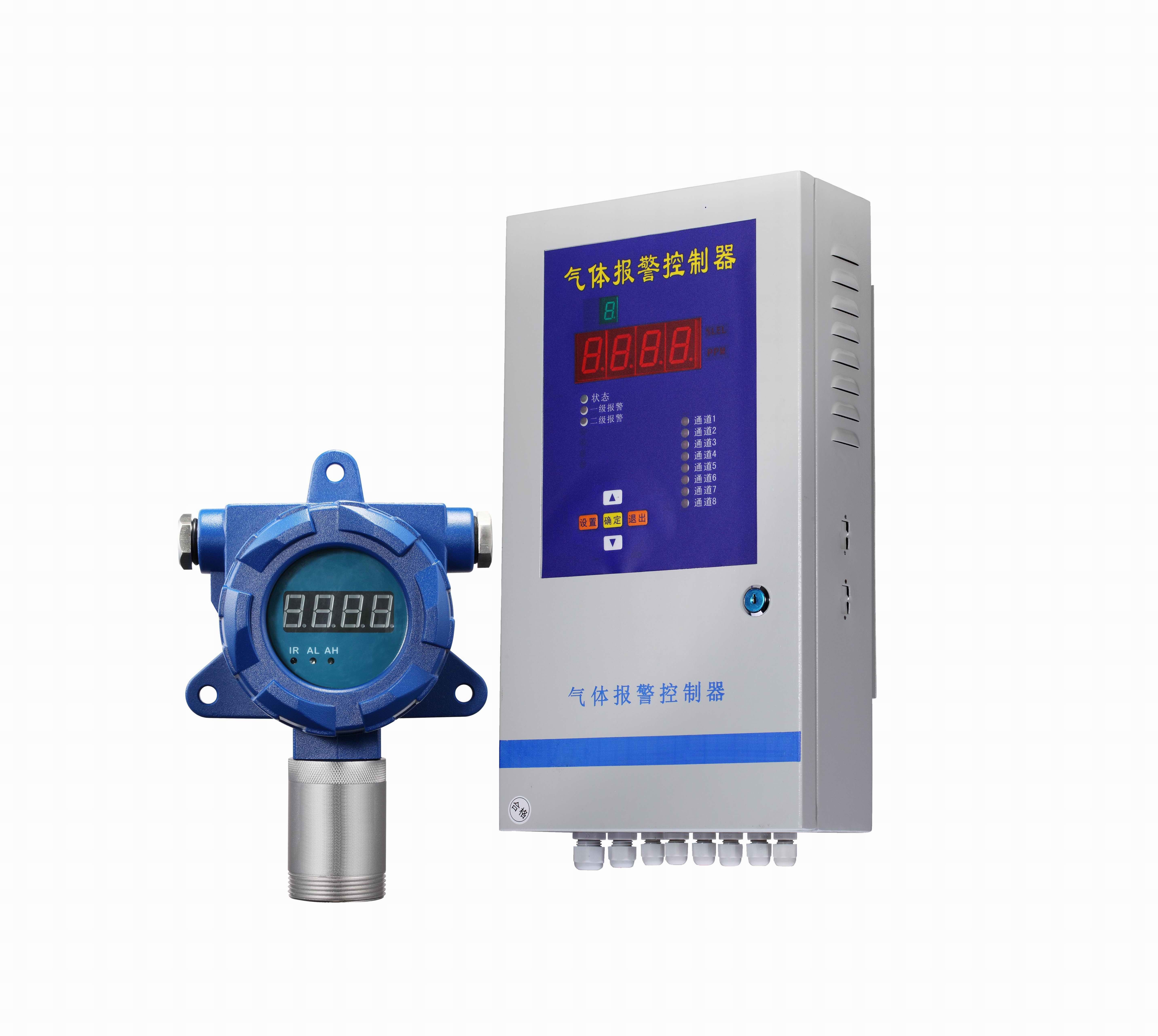

Wall Mounted Fixed CO Gas Detector Control System Multi Channel 4-20mA Output

Basic Information
Place of Origin: China
Brand Name: YuanTe
Certification: CE CNEX ISO9001:2015 ATEX
Model Number: YT-95H-CO
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton Box
Delivery Time: 3-7 days
Payment Terms: T/T
Supply Ability: 1000 units/week
Detail Information
Product Name: Wall Mounted Fixed CO Gas Detector Sensor: Electrochemical
Type: Fixed Wall Mounted Type Measuring Range: 0-1000ppm;0-2000ppm
Signal Output: 4-20mA ; RS485 ;Relay Gas Type: Carbon Monoxide CO
High Light:

carbon monoxide sensor

,

carbon monoxide meter


Product Description

Control System Multi Channel 4-20mA Output Wall Mounted Fixed CO Gas Detector



Features:

1. Being compatible with all kinds of controlled alarms, PLC, DCS and other control system, can be remote monitored.
2. Explosion-proof design, fast, reliable and stable. Explosion-proof grade: Ex dⅡCT6
3. With self-calibration function, and three standard keys will be used to realize on-site maintenance.
4. Monitor gas concentration in environment or pipeline and alarm.
5. Two-stage alarm with sound and light, alarm point is settable.
6. Infrared ray controller can remote control alarm point settings, zero calibration, and address modification.
7. Can output one or two on-off signals, can drive ventilator or solenoid valve and other external device










Gas TypeCO Carbon Monoxide
Detection principleElectrochemical
Install methodWall-mounted, piping type, flow-type (according to the detected environment)
Measure range0-1000ppm; 0-2000ppm etc
Resolution0.1ppm ; 1 ppm
Precision≤± 1% FS or ± 2-3% FS
Signal output4-20mA, 0-5V, RS485, relay(optional)
Response time≤10SRecovery time≤10S
Repeatability≤±1%Linearity error≤±1%
Zero shift≤±1%(FS/year)DisplayHigh-light nixie tube display
Connection modeG1/2 external thread explosion-proof flexible pipeUnitppm
Temperature-20 to 50°CHumidity0-95%RH
Explosion-proofEx dⅡCT6Degree of protectionIP65
AlarmSound, lightOperating time24H
Dimensions180*150*90mmWeight≤2kg



Wall Mounted Fixed CO Gas Detector Control System Multi Channel 4-20mA Output 0

Applications:

  1. Petrochemical industry, industrial manufacture, smelting, electricity, coal mining, tunneling, environment monitoring, waste water treatment.
  2. Bio-pharmaceutical plant, green household, livestock breeding, green house cultivating, warehouse logistics, brewing and fermentation, agricultural production.
  3. Fire control, fuel gas, building, municipal enterprise, school lab, research centre


Standard accessories:

(1) YT-95H gas detector * 1pc
(2) Infrared remote controller *1pc
(3) User manual
(4) Certificate, warranty card
(5) Instrument case


FAQ:
1. Could you please tell me the Warranty Period of your product?
Our warranty period is one year free and lifelong maintenance, and if the product we sell is damaged (if not man-made damage), in the first year,we will send free parts for replacement.
Over the warranty,maintenance is paid service.
2. What kind of Certificate can you provide?
We can provide the CE mark,ISO 9001 quality certificate,the third party calibration certificate(CNAS),factory test report.
3. Do you have Technical Backup to all customers from different countries?
To be surely,our technical support is always available and quick response.
We are manufacturer of so much on site testing experience and understand how to deal with your problems. Moreover, our engineers can go to your country to support if need.
