| Place of Origin: | China |
|---|---|
| Brand Name: | Safegas |
| Certification: | ATEX/CE |
| Model Number: | YT-95H-O2 |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Color box and carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, Western Union, Master card, VISA |
| Supply Ability: | 3000 pieces/month |
| Model Number: | YT-95H-O2 | Measure Range: | 0-25%VOL, 0-30%VOL, 0-100%VOL |
|---|---|---|---|
| Resolution: | 0.01%VOL | Sensor Principle: | Electrochemistry |
| Install Method: | Wall-mounted, Piping Type, Flow-type | Application: | Power Plant, Petrochemical, Pharmaceutical, Building, Mine, Metallurgical Coking |
| Certificate: | ATEX/CE | Alarm Type: | Sound, Light, Vibration |
| High Light: | oxygen gas tester,oxygen gas meter |
||

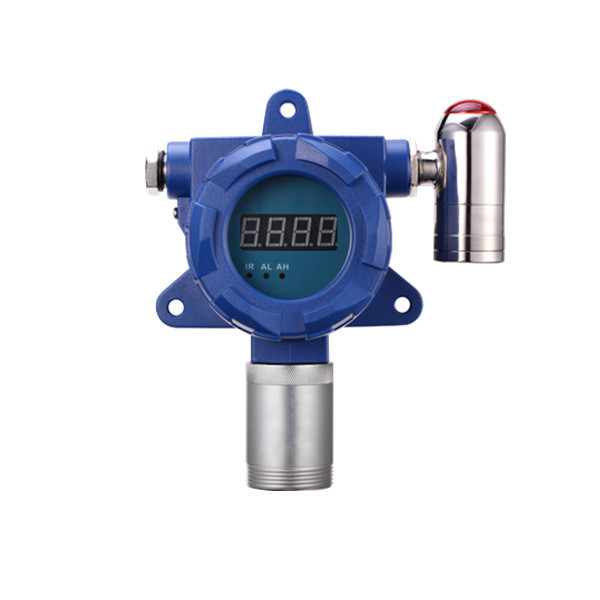

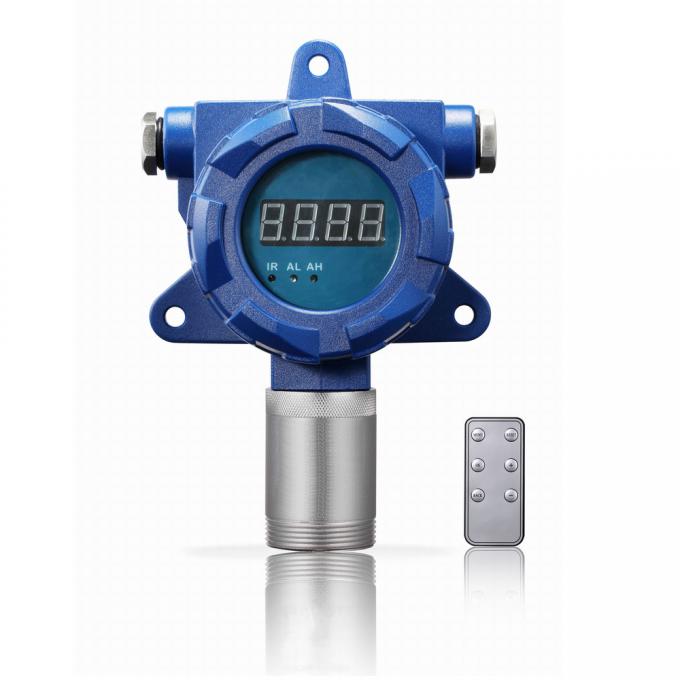

0.01% VOL Resolution Oxygen O2 Gas Detector With Electrochemistry Sensor
With alarm Without alarm
YT-95H is a fixed continuous detection instrument of the concentration of flammable gas, oxygen concentration or the concentration of toxic gases in the operating environment. Diffusion sample test, use imported electrochemical sensor or catalytic combustion sensor, with excellent sensitivity and repeatability; large-screen LCD real-time display concentration of leakage gas, exceeds a preset alarm point immediately start audible and visual alarm signals; Solid relay output can be connected with drive exhaust system; international standard 4-20mA can directly connect DCS system. There are also 0-5V, RS485, relay for your option.
Product advantages
Specification
| Gas detected | O2 | ||
| Detection principle | Electrochemistry | ||
| Install method | Wall-mounted, piping type, flow-type (according to the detected environment) | ||
| Measure range | 0-25%VOL, 0-30%VOL, 0-100%VOL | ||
| Resolution | 0.01%VOL | ||
| Precision | ± 2-3% FS | ||
| Signal output | 4-20mA, 0-5V, RS485, relay(optional) | ||
| Response time | ≤10S | Recovery time | ≤10S |
| Repeatability | ≤±1% | Linearity error | ≤±1% |
| Zero shift | ≤±1%(FS/year) | Display | High-light nixie tube display |
| Connection mode | G1/2 external thread explosion-proof flexible pipe | Unit | ppm, mg/m³, %vol |
| Temperature | -20 to 50°C | Humidity | 0-95%RH |
| Explosion-proof | Ex dⅡCT6 | Degree of protection | IP65 |
| Alarm | Sound, light | Operating time | 24H |
| Dimensions | 180*150*90mm | Weight | ≤2kg |
FAQ:
1. Could you please tell me the Warranty Period of your product?
Our warranty period is one year free and lifelong maintenance, and if the product we sell is damaged (if not man-made damage), in the first year,we will send free parts for replacement.
Over the warranty,maintenance is paid service.
2. What kind of Certificate can you provide?
We can provide the CE mark,ISO 9001 quality certificate,the third party calibration certificate(CNAS),factory test report.
3. Do you have Technical Backup to all customers from different countries?
To be surely,our technical support is always available and quick response.
We are manufacturer of so much on site testing experience and understand how to deal with your problems. Moreover, our engineers can go to your country to support if need.
