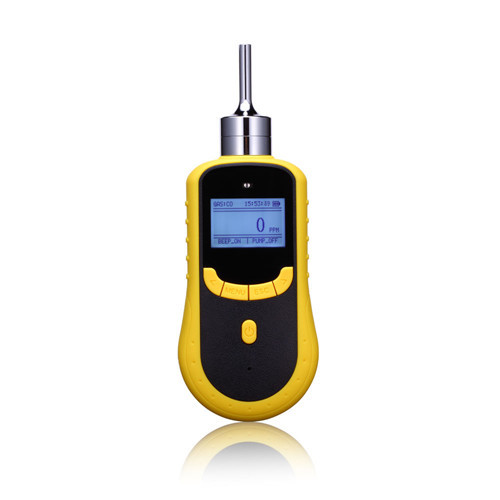

ATEX CE Certificated O3 Ozone 0.001ppm Single Gas Detector

Basic Information
Place of Origin: China
Brand Name: YuanTe
Certification: ISO9001,CE,CNEX,ATEX
Model Number: SKY2000-O3
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase package
Delivery Time: 3-5 days
Payment Terms: T/T, Western Union
Supply Ability: 1000 pieces/Week
Detail Information
Detected Gas: O3 Ozone Measure Range: 0-1,5,10,20,100ppm
Sampling Method: Pumping Suction Alarm Type: Sound, Light, Vibration
Size: 205*75*32mm Weight: 300g
Charging Method: Power Adapter, USB Cable Packing: Aluminum Suitcase
High Light:

0.001ppm Gas Analyzer


O3 Ozone Portable Tester

Product Description


0.001ppm High Resolution O3 Ozone Single Gas Detector For O3 Air Purifier




Ozone is kind of broad-spectrum fungicide, it can kill bacterial reproduction, germ, virus, fungus, and it can damage the botulinus toxin. Because ozone molecule is not stable, so it will not pollute the air and water after disinfection. So, most pharmaceutical factories,food factories,Ozone generate companyt use ozone for sterilization in recent years. YuanTe’s Ozone gas detector can help the customers to detect the leak and the sterilization process of ozone gas in hospital,house.




Gas Detected Ozone/O3
Detection principle Electrochemistry
Sampling Method Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection.
Measure Range 0-1ppm,0-5ppm,0-10ppm,0-20ppm,0-50ppm,0-100ppm,0-200ppm,0-500ppm,0-1000ppm
Resolution 0.001ppm,0.01ppm,0.1ppm,1ppm
Precision ≤± 3% F.S.
Signal Output

High-speed data transmission by USB, available for data downloading and

printing (optional)

Response Time ≤10S Recovery Time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%(F.S/year) Display LCD dot matrix display
Operating language Chinese/English Gas unit ppm, mg/m3
Temperature -20℃~50℃ Humidity 0-95%RH
Explosion-Proof ExiaⅡCT4 Degree of protection IP66
Alarm mode Sound, light, vibration Operating time 12h
Dimensions 205*75*32mm Weight 300g





1. LCD dot matrix display, the gas type, unit, concentration, local time, temperature and max measure value (optional) can be showed on the screen.

2. Support Chinese and English operation, easy to shift.

3. The gas concentration unit PPM and mg/m3 can be shifted quickly.

4. Explosion-proof certification, explosion-proof grade: ExiaⅡCT4.

5. Monitor the O3 ozone gas concentration in environment and enclosed space and alarm.

6. With Self-calibration and zero calibration functions, makes the detection more accurate and reliable.

7. One press to restore factory setting, free from the bother of mis-operation.

8. With temperature and pressure compensation, to realize gas concentration compensation under conditions of different temperatures or pressures.

9. Two stages alarm with sound and light, alarm point is settable.

10. Rechargeable lithium polymer battery of large capacity.
