Pumping Suction Lithium Polymer Battery SF6 Gas Leak Detector

Basic Information
Place of Origin: China
Brand Name: Yuante
Certification: ATEX/CE
Model Number: SKY2000-SF6
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: Western Union, T/T, Visa, Master Card
Supply Ability: 100 pieces/week
Detail Information
Model Number:: SKY2000-SF6 Sampling Method:: Pumping Suction
Measure Range: 0-1000ppm, 0-2000ppm Resolution: 1PPM
Alarm Type: Sound, Light, Vibration Sensor Principle: Electrochemical
Color: Yellow, Customized Package: Aluminum Suitcase
High Light:

Pumping Suction SF6 Gas Monitor

,

SF6 Gas Analyzer


Product Description

CE certificated Portable Type Single Gas Detector SF6 gas detector



  • Characteristics:
  • Employing original imported first-class brand sensor.

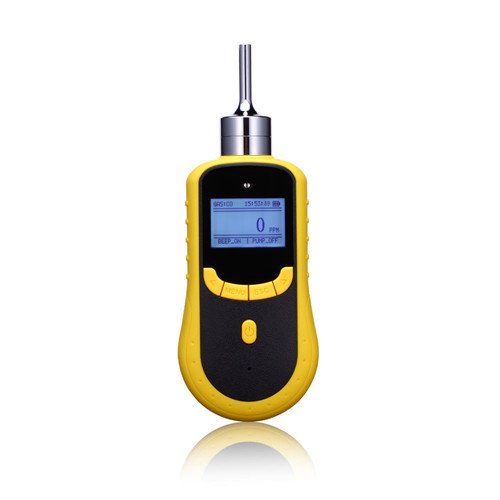

  • LCD dot matrix display, the gas type, unit, concentration,

local time can be showed on the screen.

  • Support Chinese and English operation, easy to shift.

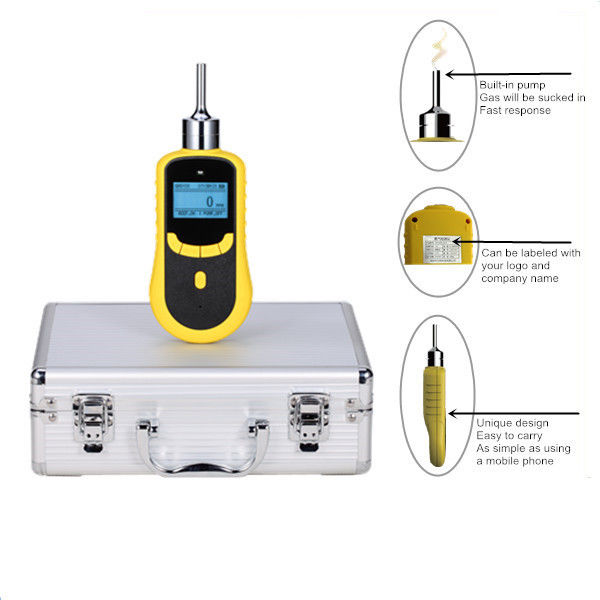

  • Built-in micro sampling pump.
  • Explosion-proof certification, explosion-proof grade: ExibⅡCT4





Specifications

Gas Detected SF6
Detection principle Electrochemical
Sampling Method Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection.
Measure Range 1000PPM,0-2000ppm
Resolution 1PPM
Precision 3% F.S.
Response Time ≤10S Recovery Time ≤10S
Repeatability ≤±1% Linearity error ≤±1%
Zero shift ≤±1%F.S/year Display LCD dot matrix display
Operating language Chinese/English Gas unit Units are switchable
Temperature -20℃-50℃ Humidity 0-95%RH
Explosion-Proof ExiaⅡCT4 Degree of protection IP66
Alarm mode Sound, light, vibration Operating time

100h

pump off

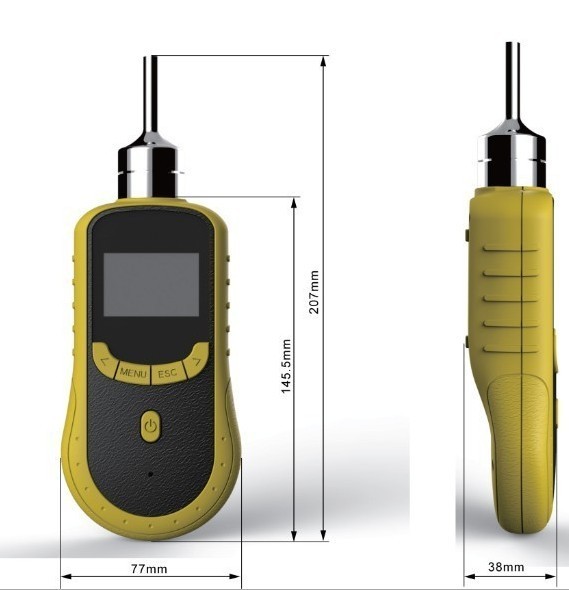

Dimensions 205*75*32mm Weight 300g






Characteristics & Functions

1. LCD dot matrix display, the gas type, unit, concentration, local time can be showed on the screen.

2. Support Chinese and English operation, easy to shift.

3. The gas concentration unit PPM and mg/m3 can be shifted quickly.

4. Explosion-proof certification, explosion-proof grade: ExiaCT4.

5. Monitor gas concentration in environment and enclosed space and alarm.

6. With Self-calibration and zero calibration functions, makes the detection more accurate and reliable.

7. One press to restore factory setting, free from the bother of mis-operation.

8. With temperature and pressure compensation, to realize gas concentration compensation under conditions of different temperatures or pressures.

9. Two stages alarm with sound and light, alarm point is settable.

10. Rechargeable lithium polymer battery of large capacity.

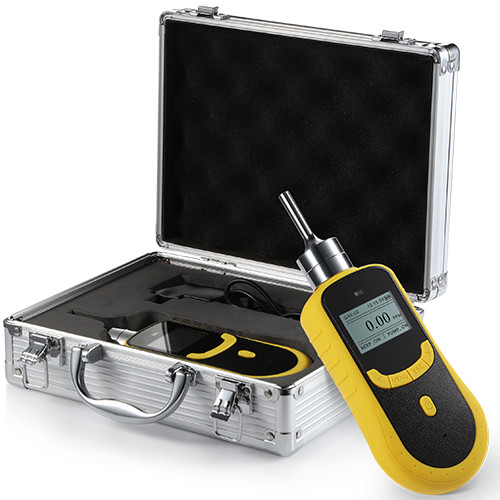

Package: Aluminum suitcase plus outside carton, very good protection







Pumping Suction Lithium Polymer Battery SF6 Gas Leak Detector 0

Services:

  • 1. One year free warranty.
  • 2. All machines are debugged before shipment.
  • 3. Lifetime technical support and service.
  • 4. 24 hours on line or phone or by email technical support.
  • 5. We offer detailed machine manual and software manual.
  • 6. Our factory make a vivid training CD.
  • 7. Life-long free maintenance.
  • 8. Free training in our factory.
  • Welcome to visit our factory, learn machine face to face.
