| Place of Origin: | China |
|---|---|
| Brand Name: | SZYUANTE |
| Certification: | ATEX/CE |
| Model Number: | SKY2000-N2 |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, T/T, Visa, Master Card |
| Supply Ability: | 100 pieces/week |
| Model Number:: | SKY2000-N2 | Sampling Method:: | Pumping Suction |
|---|---|---|---|
| Measure Range: | 0-100%VOL | Resolution: | 0.01% VOL |
| Alarm Type: | Sound, Light, Vibration | Sensor Principle: | Electrochemical |
| Color: | Yellow, Customized | Package: | Aluminum Suitcase |
| High Light: | Nitrogen N2 Purity Tester,0.01% VOL Nitrogen Monitor |
||

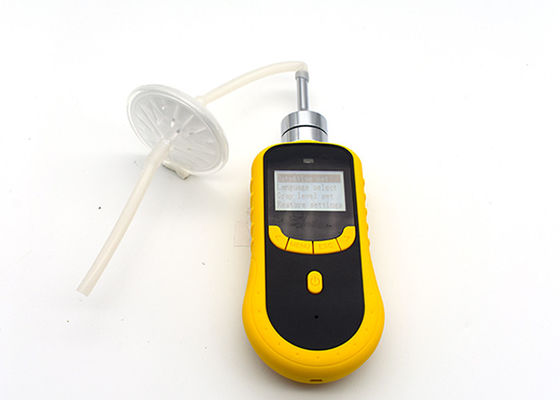

Extended Probe N2 Purity 99.99%VOL Nitrogen Gas Monitor For Gas Cylinder
Why choose us?
Specifications
| Gas Detected | N2 | ||
| Detection principle | Electrochemical | ||
| Sampling Method | Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection. | ||
| Measure Range | 0-100% VOL | ||
| Resolution | 0..01% VOL | ||
| Precision | 3% F.S. | ||
| Response Time | ≤10S | Recovery Time | ≤10S |
| Repeatability | ≤±1% | Linearity error | ≤±1% |
| Zero shift | ≤±1%F.S/year | Display | LCD dot matrix display |
| Operating language | Chinese/English | Gas unit | Units are switchable |
| Temperature | -20℃-50℃ | Humidity | 0-95%RH |
| Explosion-Proof | ExiaⅡCT4 | Degree of protection | IP66 |
| Alarm mode | Sound, light, vibration | Operating time |
100h pump off |
| Dimensions | 205*75*32mm | Weight | 300g |
Characteristics & Functions
1. LCD dot matrix display, the gas type, unit, concentration, local time can be showed on the screen.
2. Support Chinese and English operation, easy to shift.
3. The gas concentration unit PPM and mg/m3 can be shifted quickly.
4. Explosion-proof certification, explosion-proof grade: ExiaⅡCT4.
5. Monitor gas concentration in environment and enclosed space and alarm.
6. With Self-calibration and zero calibration functions, makes the detection more accurate and reliable.
7. One press to restore factory setting, free from the bother of mis-operation.
8. With temperature and pressure compensation, to realize gas concentration compensation under conditions of different temperatures or pressures.
9. Two stages alarm with sound and light, alarm point is settable.
10. Rechargeable lithium polymer battery of large capacity.
Package: Aluminum suitcase plus outside carton, very good protection
