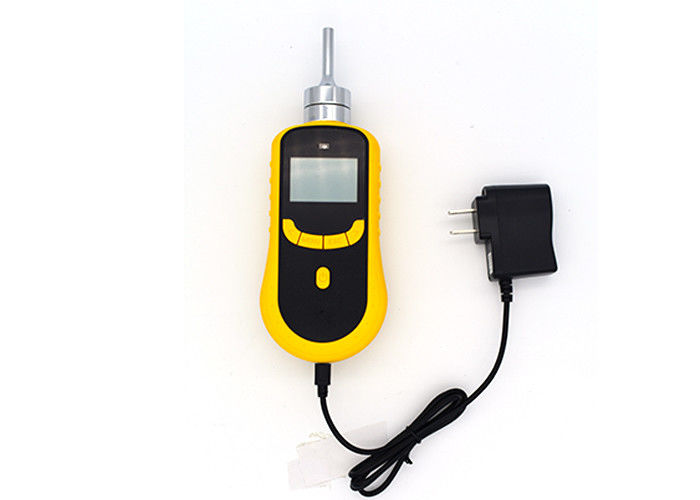

Handheld Pumping PID Sensor VOC Single Gas Detector

Basic Information
Place of Origin: China
Brand Name: YuanTe
Certification: CNEX,ISO9001,CE
Model Number: SKY2000-H2S
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: Western Union, T/T
Supply Ability: 1000 pieces/week
Detail Information
Detected Gas: VOC Measure Range: 0-10、50、100、1000ppm
Sampling Method: Pumping Suction Alarm Type: Sound, Light, Vibration
Size: 270*75*41mm Weight: 400g
Charging Method: Power Adapter, USB Cable Packing: Corrosion Resistant Suitcase
Warranty: 1 Year Sensor: Electrochemistry
Certificates: CE ATEX EMC ISO9001
High Light:

Handheld Pumping VOC Detector

,

PID Sensor Single Gas Detector


Product Description

Handheld Pumping Type VOC Gas Detector Volatile Organic Compounds wtih Imported PID Sensor

  • Characteristics:
  • Employing original imported first-class brand sensor.
  • LCD dot matrix display, the gas type, unit, concentration,

local time can be showed on the screen.

  • Support Chinese and English operation, easy to shift.
  • Built-in micro sampling pump.
  • Explosion-proof certification, explosion-proof grade: ExibⅡCT4


Specifications


Gas Detected VOC
Detection principle PID
Sampling Method Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection.
Measure Range 0-10,50,100,1000ppm,2000ppm
Resolution 0.01ppm, 1ppm
Precision ≤± 2% F.S.
Signal Output High-speed data transmission by USB, available for data downloading and
printing (optional function)
Response Time ≤10S Recovery Time ≤10S
Network frequency 2.4G high frequency Pressure measurement 0.5-2.0 bar (optional)
Zero shift ≤±1%(F.S/year) Display LCD dot matrix display
Operating language Chinese/English Gas unit Units are switchable
Temperature -20℃~50℃ Humidity 0-95%RH
Explosion-Proof Ex ic IIC T3 Gc Degree of protection IP65
Alarm mode Sound, light, vibration Operating time 100h(pump off)
Dimensions 270*75*32mm Weight 300g




Product Advantages
1. LCD dot matrix display, the gas type, unit, concentration, local time, temperature and max measure value (optional) can be showed on the screen.
2. Support Chinese and English operation, easy to shift.
3. The gas concentration unit PPM and mg/m3 can be shifted quickly.
4. Explosion-proof certification, explosion-proof grade: ExiaⅡCT4.
5. Monitor the VOC gas concentration in environment and enclosed space and alarm.
6. With Self-calibration and zero calibration functions, makes the detection more accurate and reliable.
7. One press to restore factory setting, free from the bother of mis-operation.
8. With temperature and pressure compensation, to realize gas concentration compensation under conditions of different temperatures or pressures.
9. Two stages alarm with sound and light, alarm point is settable.
10. Rechargeable lithium polymer battery of large capacity.


Services:

  • 1. One year free warranty.
  • 2. All machines are debugged before shipment.
  • 3. Lifetime technical support and service.
  • 4. 24 hours on line or phone or by email technical support.
  • 5. We offer detailed machine manual and software manual.
  • 6. Our factory make a vivid training CD.
  • 7. Life-long free maintenance.
  • 8. Free training in our factory.
  • Welcome to visit our factory, learn machine face to face.
