| Place of Origin: | China |
|---|---|
| Brand Name: | YuanTe |
| Certification: | CE ATEX CNEX ISO9001-2015 |
| Model Number: | YT-95H-O3-WH |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton Box |
| Delivery Time: | 2-3 days |
| Payment Terms: | T/T, Western Union, Credit Card |
| Supply Ability: | 500PCS/DAY |
| Detected Gas: | O3 Ozone | Measure Range: | 0-1, 0-5, 0-20, 0-50, 0-100, 0-500, 0-1000, 0-2000, 0-3000ppm |
|---|---|---|---|
| IP: | IP65 | Package: | Paper Box |
| Installment: | Wall-mounted, Piping-type, Flow-type | Power: | 12VDC~36VDC |
| Materials: | Cast Aluminum | Signal Output: | 4-20mA, RS485 MODBUS, Relay |
| Calibrate: | Yes | Brand: | Safegas |
| High Light: | IP65 Gas Leak Monitor,12VDC Gas Leak Monitor,IP65 Combustible Gas Meter |
||

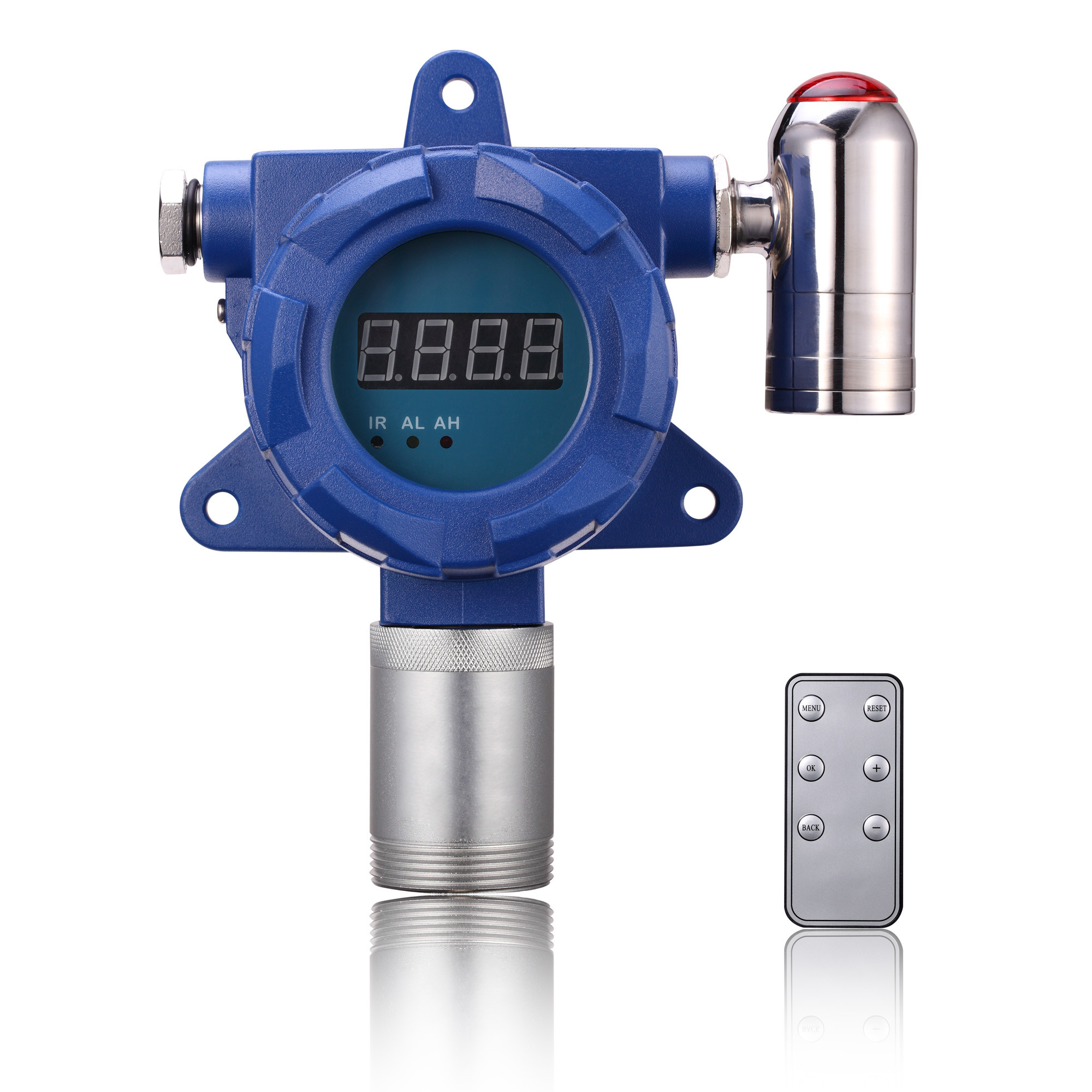

Industrial Display Ozone Gas Leak Monitor Alarm with Relay O3 Sensor Control O3 Generator
To detect the Ozone O3 is very important in hospital, research institute or different disinfection environments. It’s very necessary to detect the Ozone level after disinfection and disinfection process. This ozone gas sensor is accurate and can be trusted for different applications.
Ozone gas sensor is a single gas detector with high performance-price ratio. And this ozone gas sensor adopts high quality imported sensors and embedded MCU micro-control technology. It has fast response speed, high measurement accuracy, good stability and repeatability. Meanwhile, we will calibrate the ozone gas sensor with O3 generator to keep its high precision, the lowest detection data is 0.001ppm for ozone gas sensor.
O3 Sensor Specification
|
Gas detected |
O3 Ozone |
||
|
Detection principle |
Electrochemistry, sensor and ic are imported from UK |
||
|
Install method |
Wall-mounted, piping type, flow-type (according to the detected environment) |
||
|
Measure range |
0-1, 0-5, 0-20, 0-50, 0-100, 0-500, 0-1000, 0-2000, 0-3000ppm |
||
|
Resolution |
0.001PPM, 0.01PPM, 0.1PPM, 1PPM |
||
|
Precision |
≤± 2-3% FS for normal sensor, ≤± 1% FS for high precision sensor |
||
|
Signal output |
4-20mA, 0-5V, RS485, relay(optional) |
||
|
Response time |
≤10S |
Recovery time |
≤10S |
|
Repeatability |
≤±1% |
Linearity error |
≤±1% |
|
Zero shift |
≤±1%(FS/year) |
Display |
High-light nixie tube display |
|
Connection mode |
G1/2 external thread explosion-proof flexible pipe |
Unit |
PPM, MG/M3 |
|
Temperature |
-20 to 50°C |
Humidity |
0-95%RH |
|
Explosion-proof |
II 2G Ex db IIC T6 Gb IP65 |
Degree of protection |
IP65 |
|
Alarm |
Sound, light |
Operating time |
24H |
|
Dimensions |
180*150*90mm |
Weight |
≤2kg |
O3 Sensor Characteristics:
1. Standard equipped with three-wire system 4-20mA analog output; relay output which can controller your O3 generator's readings; RS485 Modbus output.
2. Unique infrared ray control function, which can non-contacted control the device.
3. Being compatible with all kinds of controlled alarms, PLC, DCS and other control system, can be remote monitored.
4. Explosion-proof design, fast, reliable and stable.
5. Explosion-proof grade: II 2G Ex db IIC T6 Gb IP65
6. With self-calibration function, and three standard keys will be used to realize on-site maintenance.
7. Detachable probe/gas cell: It is very easy to calibrate and replace sensor
O3 Sensor Funtions:
1. O3 sensor can monitor the O3 Ozone gas concentration in different environment or pipeline.
2. With self-calibration and zero calibration function, makes the readings more accurate and reliable.
3. With temperature compensation, this is able to realize gas concentration compensation under conditions of different temperatures.
4. Infrared ray controller can remote control alarm point settings, zero calibration, and address modification. (optional)
5. Can output one or two on-off signals, can drive ventilator or solenoid valve and other external devices. (optional)
6. Working Voltage: 12-36VDC
7. Case: die-cast aluminum
Factory information
Shenzhen YuanTe is gathered by a group of industry experts who are experienced in gas detectors R&D, manufacturing and investment. Every year, 5% of Shenzhen YuanTe’s income will be invested as R&D fund. To select out these new product, new technology and new services which will meet market demand is the most important task for R&D team.
For manufacturing, we have independent production workshop, modern production equipment, aging room, calibration room and professional staff.
For marketing, we implement flexible and competitive price and diversified sales strategy. We penetrate the market by various methods such as OEM, ODM, agent and direct selling, and ensure profit of every partner.
For service, we provide 24h/day service to users, rapid in response, technical guidance in place, convenience in repair and maintenance. At present, detectors are with ATEX CE EMC international certifications, Company has got ISO9001-2015 Quality management system certificate.
FAQ
Q1: Are you factory or trade company?
A1: We are factory for O3 sensor.
Q2: What about the payment method?
A2: Credit card, T/T, Western Union are available for O3 sensor orders.
Q3: Does your company accept customization?
A3: We do customizing service for customers for O3 sensors.
Q4: What about the Shipment?
A4: We’ll choose proper transportation mode based on the weight of O3 sensors, usually arrange shipment byair express such as DHL,FEDEX,TNT or UPS.
Q5: What about after-sale service?
A5: 12 months warranty or 24 months warranty for all kinds of products, included O3 sensors.
Q6: What is your delivery time?
A6: We have all materials in stock, so the delivery time is 1-2 days on receipt of payment.
Q7: How about the calibration?
A7: We will calibrate each O3 sensors well with O3 generator and provide you a calibration certification.
