Date Storage Gas Analyzer Combustible Gas Detector Port Flammable Natural Gas Leak Location Determine Meter Test

Basic Information
Place of Origin: China
Brand Name: YuanTe
Certification: CNEX,ISO9001,CE
Model Number: SKY3000
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: Western Union, T/T
Supply Ability: 1000 pieces/week
Detail Information
Function: Date Storage Test Gas: Combustible Gas
Product Name: Natural Gas Leak Gas Detector Certificate: IECE
Response Time: ≤30 Seconds Precsiion: ≤±2%F.S
Highlight:

CNEX Combustible Gas Detector

,

IP67 Combustible Gas Detector

,

CNEX Natural Gas Meter


Product Description

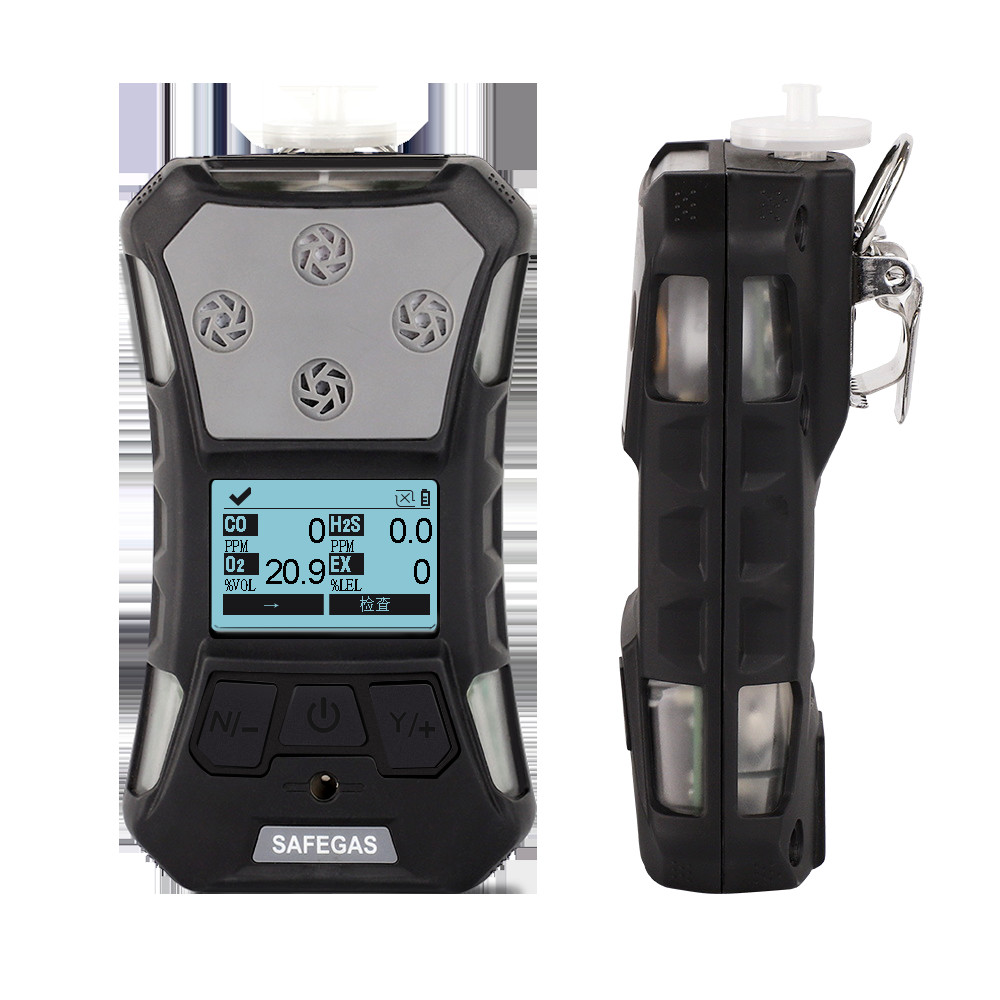

Date Storage Gas Analyzer Combustible Gas Detector Port Flammable Natural Gas Leak Location Determine Meter Test



Yuante portable multi gas detector adopt advanced gas sensor and micro control technical, has quick response, high accuracy, great stability and repeatability, it's easy to operate, performance is in the leading level of gas detection industry.



SKY3000 can detect a variety of combustible gases, such as methane, ethane, propane, etc., and is widely used in petroleum exploration, coal mines, and liquefied petroleum gas and natural gas environments



Portable gas detector with a large LCD. It can monitor multi combustible gas simultaneously. The instrument features two instant alarms with audio/visual and vibratory indicators, rechargeable battery, and simple use.


Product specifications

Gas type Combustible Gas Detector
Measure range Optional
Resolution Optional
Response time ≤30 seconds
Precsiion ≤±2%F.S
Automatically test and calibrate after power-on Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit PPM and mg/m³ can be switched
Data record Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported
Alarm 95dB buzzer (@30cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man down alarm, with early warning and optional real-time remote Bluetooth notification function
Battery 3.7V rechargeable lithium battery, battery capacity 2200mA
Working hours More than 15 hours in continuous pumping mode
Charger Travel charger with DC interface, charging time ≥ 4 hours
Explosion-proof grade IECEX/ATEX(II IG Ex ia IIC T4
CNEX:Ex ia IIC T4 Ga
Certification
(EU regulations)
2004/108/EC(EMC)
1995/5/EC(Radio)
94/9/EC(ATEX)
Protection grade IP67
Working temperature -20ºC~+50ºC
Humidity 0~90%RH(no condensation)
Environmental pressure 86~106Kpa

Date Storage Gas Analyzer Combustible Gas Detector Port Flammable Natural Gas Leak Location Determine Meter Test 0
Date Storage Gas Analyzer Combustible Gas Detector Port Flammable Natural Gas Leak Location Determine Meter Test 1





The measuring instrument detector alarm monitors gas leak density by natural diffusion and adopts imported electro-chemical sensor, PID sensor, featuring good sensibility and excellent repeat ability.

The device has embedded micro control technique and simple signal display and English instruction menu, making the operation easy.Complete function and dependability makes the whole device a leader in the nation.

The cover of the detector is refined from high-intensive engineering material (compound elastic rubber), which made the detector touches well, waterproof and explosion-protection

Date Storage Gas Analyzer Combustible Gas Detector Port Flammable Natural Gas Leak Location Determine Meter Test 2

1. Astigmatic design is applied to rugged surroundings;
2. Continuously gas concentration and composition colorful LCD real-time display;
3. Rechargeable lithium battery (continuous working period can be 16~18 hours);
4. Concentration units ppm and mg/m3 can be switched
5. Built-in vibration alarm which is applied for noisy environment;
6. Two stage alarm threshold: the low alarm and high alarm point can be adjusted based on actual needs;
7. Simple automatic calibration program and plug-in replaceable sensor;
8. Fully functional self-testing: sensor, integrity of battery and circuit, acoustic & visual & vibration three-stage alarm;
9. Small figure and light weight;
10. Password protection capability: only the authorized user can modify the preset parameter.


Date Storage Gas Analyzer Combustible Gas Detector Port Flammable Natural Gas Leak Location Determine Meter Test 3

Company Information

Date Storage Gas Analyzer Combustible Gas Detector Port Flammable Natural Gas Leak Location Determine Meter Test 4





We are a production-oriented high-tech enterprise focusing on R & D,R & D department as the core department,Responsible for the core technology design, function upgrading and development, equipment installation technical support, maintenance and testing of the company's products, currently composed of 6 senior engineers.
Date Storage Gas Analyzer Combustible Gas Detector Port Flammable Natural Gas Leak Location Determine Meter Test 5



Why Choose US?

  • We are China Leading portable hydrogen gas leak detector Manufacturer.
  • Inspected by the Inspection Institution of Bureau Veritas Certification.
  • 100% QC inspection Before Shipping.
  • Cases in many countries.
