IECEx Approval 0-100%Vol Nitrogen Gas Detector N2 Tester Meter Leakage Analyzer Device

Basic Information
Place of Origin: China
Brand Name: YuanTe
Certification: CNEX,ISO9001,CE
Model Number: SKY3000
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: Western Union, T/T
Supply Ability: 1000 pieces/week
Detail Information
Product Name: IECEx Approval 0-100%Vol Nitrogen Gas Detector Text Gas: N2, NItrogen
Measure Range: 0-100%Vol Sampling Type: Pump And Diffusion
Color: Black Certificate: IECEx
High Light:

IECEx Nitrogen Gas Detector

,

CNEX Nitrogen Gas Detector

,

IECEx N2 Gas Detector


Product Description

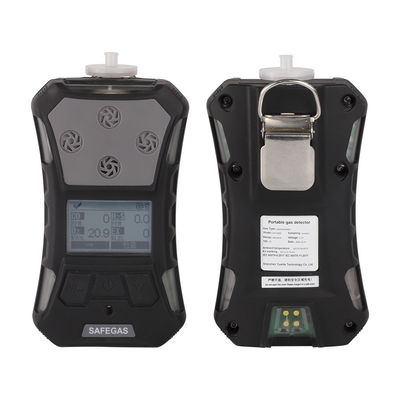

Handheld IECEx Approval 0-100%Vol Nitrogen Gas Detector N2 Tester Meter Leakage Analyzer Device



SKY3000 series is a high-performance portable gas detector that can detect multiple gases (Oxygen compounds VOC, combustible gas and toxic gas) at the same time and has man down alarm function. The device has humanized operation functions such as one-key security detection, one key storage, automatic image flipping, as well as the man down alarm function; With optionalBluetooth transmission function, allowing safety personnel to obtain real-time data and the alarm status. It has obtained international IECEX, ATEX explosion-proof certification and Chinese explosion-proof certification; As it passed the antistatic test, and the protection level reaches IP67; With safer product design and the module designwhich makes the detection faster, and the compact ergonomic designmakes the device easy carrying; What’s more, the device is also a suction and diffusion dual-purpose instrument. The instrument is mainly working in suction mode. When the air pump fails or in special emergency situations, it can automatically switch to the diffusion sampling method, thereby improving the protection to a new Level.



Yuante portable multi gas detector adopt advanced gas sensor and micro control technical, has quick response, high accuracy, great stability and repeatability, it's easy to operate, performance is in the leading level of gas detection industry.


Product specifications

Gas type Food Packaging Filling Gas
Measure range N2, Nitrogen
Resolution 0-100%Vol
Response time ≤30 seconds
Precsiion ≤±2%F.S
Automatically test and calibrate after power-on Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit PPM and mg/m³ can be switched
Data record Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported
Alarm 95dB buzzer (@30cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man down alarm, with early warning and optional real-time remote Bluetooth notification function
Battery 3.7V rechargeable lithium battery, battery capacity 2200mA
Working hours More than 15 hours in continuous pumping mode
Charger Travel charger with DC interface, charging time ≥ 4 hours
Explosion-proof grade IECEX/ATEX(II IG Ex ia IIC T4
CNEX:Ex ia IIC T4 Ga
Certification
(EU regulations)
2004/108/EC(EMC)
1995/5/EC(Radio)
94/9/EC(ATEX)
Protection grade IP67
Working temperature -20ºC~+50ºC
Humidity 0~90%RH(no condensation)
Environmental pressure 86~106Kpa

IECEx Approval 0-100%Vol Nitrogen Gas Detector N2 Tester Meter Leakage Analyzer Device 0
IECEx Approval 0-100%Vol Nitrogen Gas Detector N2 Tester Meter Leakage Analyzer Device 1

IECEx Approval 0-100%Vol Nitrogen Gas Detector N2 Tester Meter Leakage Analyzer Device 2

1. Astigmatic design is applied to rugged surroundings;
2. Continuously gas concentration and composition colorful LCD real-time display;
3. Rechargeable lithium battery (continuous working period can be 16~18 hours);
4. Concentration units ppm and mg/m3 can be switched
5. Built-in vibration alarm which is applied for noisy environment;
6. Two stage alarm threshold: the low alarm and high alarm point can be adjusted based on actual needs;
7. Simple automatic calibration program and plug-in replaceable sensor;
8. Fully functional self-testing: sensor, integrity of battery and circuit, acoustic & visual & vibration three-stage alarm;
9. Small figure and light weight;
10. Password protection capability: only the authorized user can modify the preset parameter.


IECEx Approval 0-100%Vol Nitrogen Gas Detector N2 Tester Meter Leakage Analyzer Device 3

Company Information

IECEx Approval 0-100%Vol Nitrogen Gas Detector N2 Tester Meter Leakage Analyzer Device 4





We are a production-oriented high-tech enterprise focusing on R & D,R & D department as the core department,Responsible for the core technology design, function upgrading and development, equipment installation technical support, maintenance and testing of the company's products, currently composed of 6 senior engineers.
IECEx Approval 0-100%Vol Nitrogen Gas Detector N2 Tester Meter Leakage Analyzer Device 5



FAQ



Q1:Does the Gas Detector come with the case which includes the charger, calibration gas, and attachment?

A1:It come with the case which includes the charger, instruction and qualification certificate.

Q2:What is the moq?
A2:Usually it is 1 piece.

Q3:Does this Gas Detector come with a clip to attach to my FR shirt?
A4:The detector has installed on its back a belt clip.


Q4:How long is the warranty time of the products?
A5:The warranty period is 1 years from the factory, we also provide lifetime maintenance.
