Multi Exhaust Gas Detector For Emission Gas NOX SO2 PPM With Cooling System

Basic Information
Place of Origin: China
Brand Name: Yuante
Certification: ATEX/CE
Model Number: SKY8000
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 5 - 7 working days
Payment Terms: Western Union, T/T, Visa, Master Card
Supply Ability: 1000 pieces/Month
Detail Information
Detecting Gas: Can Detect Upto 18 Gases Sensor Type: Combustible: Catalytic Combustion Principle Or Infrared Principle; Oxygen: Electrochemical Principle Or Zirconia Principle; Toxic: Electrochemical Principle; CO2: Infrared Principle; VOC: PID Photo Ion Principle; CH4: Catalytic Combustion Principle Or Infr
Measure Range: 0~1、10、100、1000、5000、50000、100000 PPM;0-100mg/L、200mg/L; 0-100%LEL;0-10%、20%、50%、99.999%、100%Vol(Measure Range Is Optional And Customerized) Resolution: 0.001PPM(0-1 PPM);0.01 PPM Or 0.001 PPM(0~10 PPM); 0.1 PPM Or 0.01 PPM(0~100 PPM);1 PPM Or 0.1 PPM(0~1000 PPM); 1 PPM(0~1000 PPM);0.01mg/L(0~200%mg/L);0.1%LEL(0-100%LEL);0.01%(0-100%VOL)
Application: Power Plant, Petrochemical, Pharmaceutical, Building, Mine, Metallurgical Coking Sampling Method: Pumping Suction
Display: Formula, Gas Concentration Data, Measurement Trend Curve, Gas Curve, Battery, Time, Temperature, Humidity, Pressure (optional), Pump Condition, Wireless Status, Printer Status, Screen Shot Status Alarm: Buzzer, Red LED And Alarm Status On The Display, Fault Alarm, Pump Abnormal Alarm, Low Battery Alarm
Language: Chinese/English Warranty: 1 Year
High Light:

NOX SO2 Multi Gas Detector

,

NOX SO2 Flue Gas Detector

,

SKY8000 Flue Gas Detector


Product Description

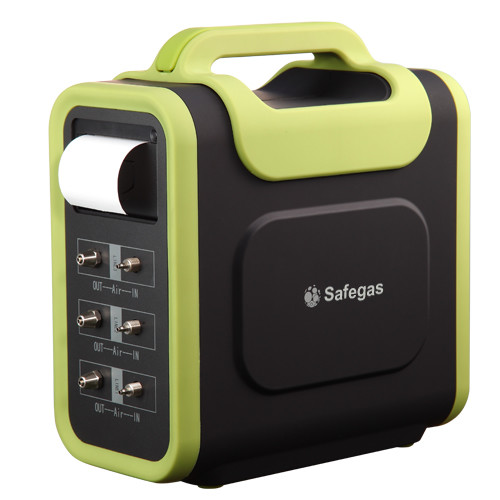

Multi Exhaust Gas Detector For Emission Gas NOX SO2 PPM With Cooling System



Why choose us?

A Professional: have been focused on gas detection devices for more than 10 years and been cooperating with Huawei, Samsung,Panasonic, Lenovo and etc famous company. We are with rich experience to provide you professional solutions.
B Innovation: strong R&D team (invest 5% revenues into research and experienced engineers team) makes our products stand out in the market
C Quality: international top brands sensor and IC /100% production test, make sure a good quality
D Professional technical support: provide detailed pre-sales and after-sales technical support, no need to worry about any problem during usage.
E Completed certifications:ATEX/CE/Rohs/ISO9001/, meet government standard as well guarantee your safety health

Product overview
SKY8000 series gas analyzer is a data collector which can quickly acquire and analyze gas concentration components in scientific research, university and complex working environment. SKY8000 gas analyzer can detect up to 18 gases simultaneously. It can integrate electrochemistry, catalysis, thermal conductivity, infrared, light ion, ultraviolet and other detection principles, focusing on the accuracy of gas detection and user experience.


Product advantage



1. Top brand sensor from UK and Built in micro sampling pump, fast response and high precision.

2. Special structure design and selected aviation wear-resisting material, suitable for various kind of industry environment

3. Up to 18 gases can be detected at the same time, meet many detection demand.

4. 3.5inch high definition color screen, with gas concentration data and real-time curve display switchable, clear and smart

5. With Mini-USB charging interface designm ,makes charging more convenient

6. With independent SD memory card, historical tested data can be viewed and deleted and the storage space can be customized

7.Analyzer can be equipped with internal printer or external Bluetooth printer, to realize the mobile print function(Optional).





Comprehensive Functions



1.Modular internal structure, supporting 1-18 gas detection requirements
2.Simple and quick screenshot settings
3.Monitor the temperature, humidity, pressure at the same time(Optional)
4.Bluetooth, ZIGBEE, WIFI, GPRS and other wireless communication modes are selectable(Optional)
5.Analyzer can be equipped with internal printer or external Bluetooth printer, to realize the mobile print function(Optional)
6.High temperature, high humidity environment measurement(Optional)



        Multi Exhaust Gas Detector For Emission Gas NOX SO2 PPM With Cooling System 0

Specification



Sensors
Various principle sensors can be combined in any number , up to 18 sensors; Combustible: catalytic combustion principle orinfrared principle;
oxygen: electrochemical principle or zirconia principle;
toxic: electrochemical principle;
CO2: infraredprinciple;
VOC: PID photo ion principle;
CH4: catalytic combustion principle or infrared principle;
He: thermal conductivity Principle,
temperature and humidity sensors, pressure sensors (optional) (other principles of the sensor can be customized)
Measure range
0~1,10,100,1000,5000,50000,100000 PPM;0-100mg/L,200mg/L;
0-100%LEL;0-10%,20%,50%,99.999%,100%Vol(Measure range is optional and customerized)
Resolution
0.001 PPM(0-1 PPM);0.01 PPM or 0.001 PPM(0~10 PPM);
0.1 PPM or 0.01 PPM(0~100 PPM);1 PPM or 0.1 PPM(0~1000 PPM);
1 PPM(0~1000 PPM);0.01mg/L(0~200%mg/L);0.1%LEL(0-100%LEL);0.01%(0-100%VOL)

Display
Formula, gas concentration data, measurement trend curve, gas curve, battery, time, temperature, humidity, pressure (optional),
pump condition, wireless status, printer status, screen shot status
Alarm
Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm
Data storage
Independent SD memory card, Max.32G, measurement data can be record automatically, customizable record time interval.
Data transmission and download
RS232,RS485 singnal output, USB interface data transmission, with the upper computer software, can download storage, analyze and
print data
Print function(Optional)
Optional with internal portable printer or external bluetooth printer
Print content(Optional)
Text, graphics, one-dimensional code, two-dimensional code, curves, characters, etc.

Charger
Standard Mini-USB charging port. With 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer )
Language
Chinese/English
Wireless network (optional)
Bluetooth, Zigbee
Network frequency
2.4G high frequency.
wireless transmission distance
Bluetooth is less than 10m, and the ZigBee outdoor single point is less than 500m.



Packing
Standard Accessories
1.Instruction
2.Qualification certificate
3.warranty card
4. a Micro-USB cable
5. a water,vapour,smoke filter
6. an intake sampling rod
7. 600mm tube

8. Non - toxic, tasteless, explosion-proof, waterproof, heat - resistant, high - temperature resistant,



corrosion resistant suitcase (1 set)





Optional Accessories

Printer (built-in printer or external bluetooth printer)

High Temperature Gun
