| Place of Origin: | China |
|---|---|
| Brand Name: | Safegas |
| Certification: | IECEX, ATEX, ISO9001, CE, CNEX, SIL |
| Model Number: | SKY3000 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase |
| Delivery Time: | 1 working days |
| Payment Terms: | Credit Card, T/T |
| Supply Ability: | 1000 pieces/week |
| Detected Gas: | PH3 Phosphine, Etc, Other Gases Are Customized | Measure Range: | 0-5, 0-10, 0-20, 0-50, 0-100, 0-200, 0-500, 0-1000, 0-2000, 0-3000PPM, Other Measure Ranges Are Customized |
|---|---|---|---|
| Sampling: | Inner Suction Pump | Alarm Model: | Sound Light Vibration |
| Resolution: | 0.001ppm, 0.01ppm, 0.1ppm, 1ppm, Other Resolutions Are According To Sensors. | Sensors: | Original Imported From UK |
| Wireless: | (Optioanal)Bluetooth APP | Protect Grade: | IP67 |
| Color: | Black | Certification: | IECEX&ATEX, ISO9001, CE, SIL |
| High Light: | PH3 Phosphine Gas Detector,SKY3000 Phosphine Gas Detector,PH3 Phosphine Gas Monitor |
||

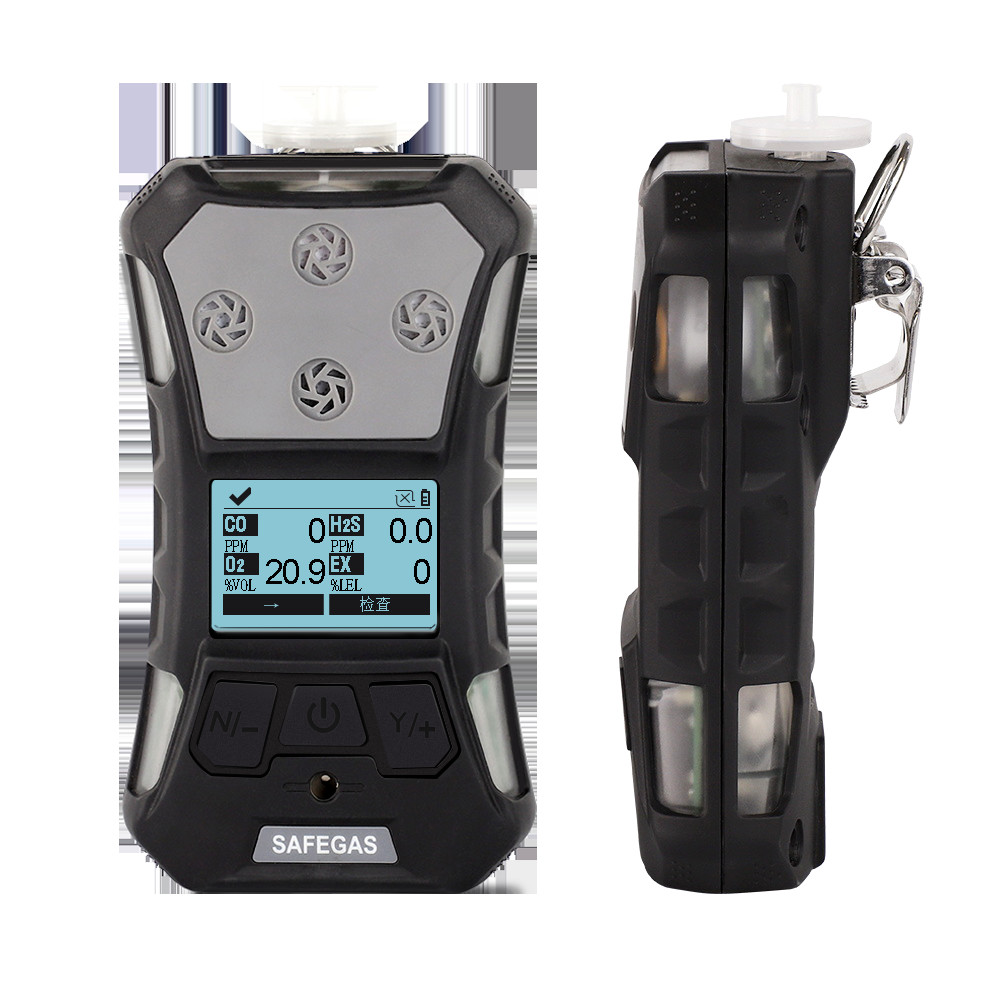

Phosphine Gas Detector Measure PH3 0 to 5ppm 20ppm 100ppm For Pest Control Fumigation
Phosphine Gas Detector Advantage:
Rugged and durable
1. The instrument can effectively resist a three-meter drop
2. The protection level of the instrument reaches IP67
3. The instrument has passed the EMC anti-static interference test and can work normally in the walkie-talkie environment
Explosion-proof circuit design, safe and reliable
The instrument has got IECEX, ATEX, explosion-proof certificates and the explosion-proof level reaches Exia IICT4 Ga
Multiple security protection
1. The man down alarm function has upgraded the safety of underground operators
2. Password protection function prevents non-operators from modifying menu parameters
3. With safety reminder function, sound and light vibration alarm function, let operators work without worries
4. The high and low alarm latched function allows the operator to better capture the sudden change of the gas concentratio value
Simultaneous measurement of multiple gases, multiple numerical display
1. The instrument can detect 1-5 gases at the same time
2. Real-time value, TWA, STEL, MAX, MIN multiple numerical display
Large screen display, flexible detection system, multiple filtering devices
1. The screen can be automatically turned 180 degrees, which is convenient for viewing in specia operating environments
2. Built-in powerful sampling pump, fast detection speed
3. Can be connected 20m sampling tube externally, which is convenient for long-distance or confined space detection
4. Pump suction and diffusion dual use, to provide operators with more reliable protection
5. With a water trap filter, it can effectively filter water, oil, dust and other impurities. It can also be used in harsh industrial environments such as coal mines and petroleum fields
Powerful function, more user-friendly operation
1. Beautiful and friendly user interface, reasonable and easy-to-use interactive mode
2. Optional Bluetooth function, data can be transmitted to the mobile phone or PC in real tim Standard storage function, one-click data export, convenient for users to analyze
3. Unique modifiable ID identification function, convenient for users to allocate and manage the instrument
4. A full range of automatic detection functions, automatic prompts for voltage, pump failure alarms, etc., more comfortable to use 5. One-key security detection
6. one-key open storage, automatic image flip
7. Support PPM and mg/m3 gas unit switch, the concentration value is automatically converted by the system Support each channel sensor to restore the factory setting separately
9. Support multi-language including English.Chinese and etc.
Accessories & Configuration List
Standard Accessories
SKY3000
Aluminum suitcase
A charging adapter
User Manual
Qualification/Calibration certificate
Filter
Storage function(USB cable)
Optional Accessories
Probe
Tube
Bluetooth App
|
Sampling method |
Pump suction |
|
Gas type |
Phosphine, PH3 etc, other gases are customized |
|
Measure range |
0-1ppm, 0-5ppm, 0-10ppm, 0-20ppm, 0-50ppm, 0-100ppm, 0-200ppm, 0-500ppm, 0-1000ppm, 0-2000ppm, 0-3000ppm, other measure ranges are customized |
|
Resolution |
0.001ppm, 0.01ppm, 0.1ppm, 1ppm, other resolutions are customized. |
|
Response time |
≤10 seconds |
|
Precsiion |
≤±1%F.S |
|
Language |
English(Other languages can be customized) |
|
Automatically test and calibrate after power-on |
Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value |
|
Unit |
PPM and mg/m³ can be switched |
|
Disaply |
monochrome graphics (160 x96) ,screen can be automatically flipped |
|
Backlight |
The backlight time can be manually set, and will be turned on automatically when an alarm is issued |
|
Data record |
Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported |
|
Alarm |
95dB buzzer (@30cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man down alarm, with early warning and optional real-time remote Bluetooth notification function |
|
Battery |
3.7V rechargeable lithium battery, battery capacity 2200mA |
|
Working hours |
More than 15 hours in continuous pumping mode |
|
Charger |
Travel charger with DC interface, charging time ≥ 4 hours |
|
Explosion-proof grade |
IECEX/ATEX(II IG Ex ia IIC T4 |
|
Certification |
2004/108/EC(EMC) |
|
Protection grade |
IP67/IP68 |
|
Working temperature |
-20ºC~+50ºC |
|
Humidity |
0~90%RH(no condensation) |
|
Environmental pressure |
86~106Kpa |
|
Size |
157*84.5*59.5mm (including back clip/water trap filter) (length * width * height) |
|
Weight |
365g (including battery, belt clip and filter) |
| Bluetooth function(Optional) | Gas Concentration Meter O2 LEL H2S CO CO2 data can be transmitted to the mobile phone or PC in real time |
Factory Information
A Professional: We have been focused on gas detection devices for more than 10 years and been cooperating with PB group, PetroChina, Sinopec, Huawei, Samsung, Panasonic, etc famous companies. We are with rich experience to provide you professional solutions.
FAQ
Q1: Are you factory or trade company?
A1: We are a professional Phosphine Gas Detector manufacturer with 16 years experiences.
Q2: What about the payment method?
A2: Credit card, T/T, Western Union are available
Q3: Does your company accept customization?
A3: We do customizing service for customers.
Q4: What about the Shipment?
A4: We’ll choose proper transportation mode based on the weight of goods, usually arrange shipment byair express such as DHL,FEDEX,TNT or UPS.
Q5: What about after-sale service?
A5: 12 months warranty or 24 months warranty for Phosphine Gas Detector.
Q6: How about the Calibration?
A6: Before send out, we will calibrate Phosphine Gas Detector well with standard gas.
Q7: What certifications do you have?
A7: ATEX CE ISO9001-2015 for Phosphine Gas Detector.
