Name: Mini Size 0-100ppm Hydrogen Sulfide Gas Detector With Back Clip
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: Minimeta
Price: 2,137.00 USD
Availability: InStock

Detail Information

Model Number:	Minimeta-H2S	Sampling Method:	Diffussion
Gas Type:	H2S	Measure Range:	0-50/100/200PPM
Resolution:	0.1PPM	Response Time:	≤30s(T90)
Principle:	Electrochemical Principle	Alarm Mode:	Sound, Light, Vibration Alarm, High And Low Alarm Values Can Be Set By Yourself
Country Of Original:	China
Highlight:	mini size hydrogen sulfide gas detector , back clip hydrogen sulfide gas detector , 100ppm h2s gas detector

Product Description

Single H2S Hydrogen Sulfide Gas Detector Mini Size 0-100PPM With Back Clip

Company advantage

A Professional: have been focused on gas detection devices for more than 10 years and been cooperating with Huawei, Samsung,Panasonic, Lenovo and etc famous company. We are with rich experience to provide you professional solutions.

B Innovation: strong R&D team (invest 5% revenues into research and experienced engineers team) makes our products stand out in the market

C Quality: international top brands sensor and IC /100% production test, make sure a good quality

D Professional technical support: provide detailed pre-sales and after-sales technical support, no need to worry about any problem during usage.

E Completed certifications:ATEX/CE/Rohs/ISO9001/, meet government standard as well guarantee your safety health

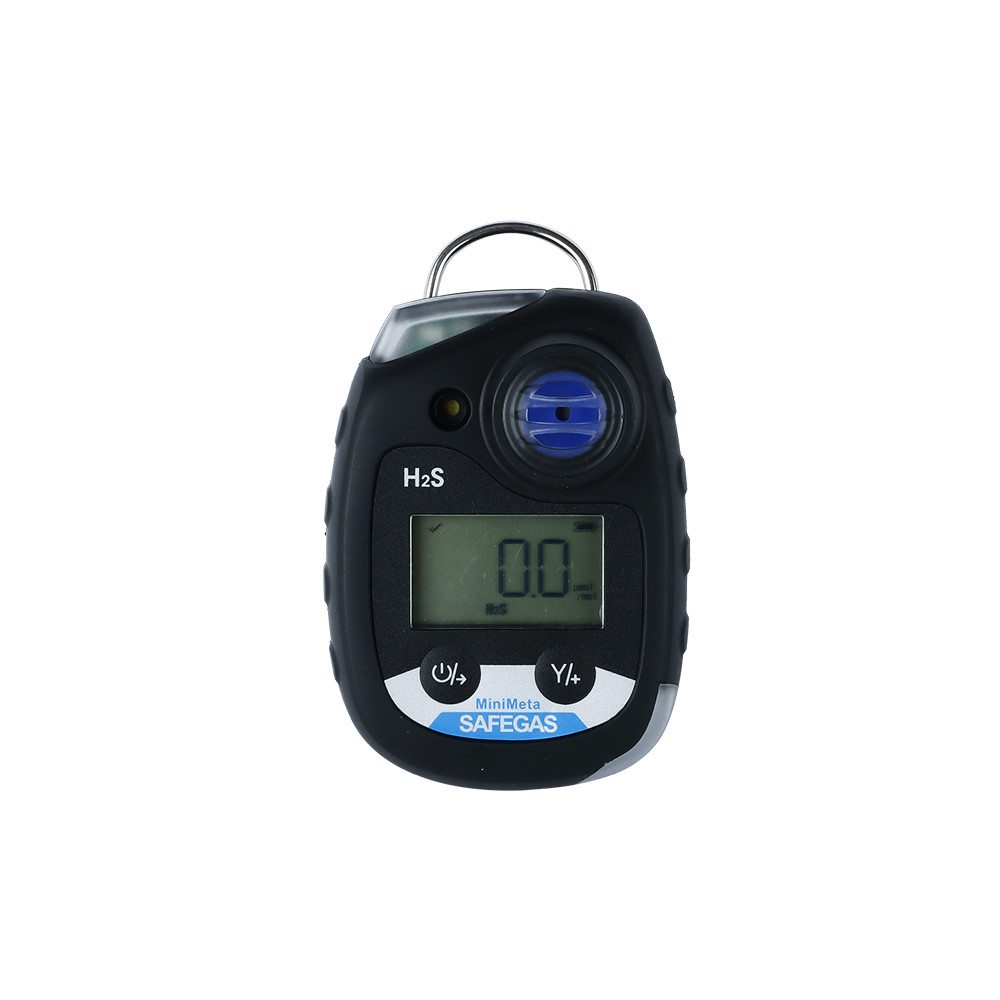

Product overview

MiniMeta is small, sturdy, ergonomic, and can be attached to a work coat or cap with alligator clips for easy carrying. MiniMeta can detect

toxic and harmful gases like: carbon monoxide, hydrogen sulfide, oxygen and sulfur dioxide, other toxic gases can be customized, which is widely used in petroleum, petrochemical, metallurgy, chemical and other industries for gas detection and personnel protection

Specification

Gas Type	H2S
Detection principle	Electrochemisty
Sampling Method	Diffusion
Measure Range	0-50/100/200PPM
Resolution	0.1PPM
Response time	≤30s(T90)
Precision	≤± 3% F.S.
Alarm mode	Sound, light, vibration alarm, high and low alarm values can be set by yourself
Alarm type	Low alarm, high alarm, STEL, TWA, low battery
Power supply mode	3.6V dry battery (non-removable and rechargeable)
Explosion-proof grade	ExiaIICT4Ga
Protection class	IP68
Executive standards	GB 12358-2006, GB 3836.1-2010, GB 3836.4-2010, JJF1421-2013, JJF1363-2019, JJF1364-2012, JJG 365-2008, IEC 60079-0-2017, IEC 60079-11-2
Working temperature	-20℃～55℃
Working humidity	0-95%RH (non-condensing)
Working air pressure	86~106kpa
Dimensions	906033mm
Weight	125g

Product advantage

Low power consumption and long standby time, the standby time is up to 2 years, no need to replace the battery
With self-test function, which can improve safety by automatic self-test
Ultra-high buzzer alarm sound, 2 high-bright red LED up and down alarm, sound, light and vibration triple alarm to remind workers
Protection class IP68, splash-proof, dust-proof, explosion-proof, shock-proof, intrinsically safe circuit design
Compact and lightweight design with two-button operation without extensive training

Industry application

Petrochemical & Chemical Industry, Municipal Engineering & Utilities, Agricultural & Environmental Protection, Electronic, Food & Pharmaceutical Industry, Other Industries

Tag:

Place of Origin:	China
Brand Name:	Safegas
Certification:	ATEX/CE/IECEX
Model Number:	Minimeta

Minimum Order Quantity:	1 piece
Price:	Negotiable
Packaging Details:	Color box and carton
Delivery Time:	3 working days
Payment Terms:	Western Union, T/T, credit card
Supply Ability:	3000 pieces/month
