Mining Single Gas Detector Honeywell Sensor H2S ATEX IECEX CE IP68

Basic Information
Place of Origin: China
Brand Name: Safegas
Certification: IECEX, ATEX, ISO9001, CE
Model Number: MiniMeta
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 1 working days
Payment Terms: Credit Card, T/T
Supply Ability: 1000 pieces/week
Detail Information
Product: Mining Single Gas Detector Sampling Method: Diffusion Type
Alarm: Sound&Light&Vibration Resolution: 0.01ppm, 0.1ppm, 0.01%VOL. Resolutions Are According To Sensors.
Sensors Brand: City And Honeywell Warranty: 2 Years For H2S CO O2
Water-proof Protection: IP68 Response Time: T90<15S
Certifications: IECEX And ATEX
High Light:

Mining H2S Single Gas Detector

,

Honeywell Sensor H2S Gas Detector

,

H2S Gas Detector IP68


Product Description



Mining Single Gas Detector Honeywell Sensor H2S ATEX IECEX CE IP68 Single Gas Detector





Mining Single Gas Detector Product overview



REAL ATEX(from TUV) IECEX CE certifications;
Two years warranty
After 2 years, you can replace new sensor, battery and re-calibration, then you can use the detector again.
IP68
Sensor and ic are imported from US/UK, Honeywell/City
1-2 days delivery time
Optional dock station

Mining Single Gas Detector Product Advantages
  • Low power consumption and long standby time, the standby time is up to 2 years, no need to replace the battery.

After 2 years, you can replace new sensor, battery and re-calibration, then you can use the detector again.

  • With self-test function, which can improve safety b automatic self-test.
  • Ultra-high buzzer alarm sound, 2 high-bright red LED up and down alarm, sound, light and vibration triple alarm to remind workers.
  • ​High point alarm, low point alarm, TWA, STEL multiple alarm types, the user can adjus the alarm set point as needed throughout the life cycle.
  • Protection class IP68, splash-proof, dust-proof, explosion-proof, shock-proof, intrinsically safe circuit design.
  • Compact and lightweight design with two-button operation without extensive training.
  • Affordable, with low cost of ownership.
  • Small size, light weight, easy to carry.
  • The shell is made of high-strength materials, designed for a variety of harsh environments, comfortable and durable.
  • Optional docking station, pump test function

Mining Single Gas Detector Specificiation

Detected gas:
H2S, CO, O2, SO2, NH3, H2, CL2 etc different single gases. According to customers' requirements.
Detection principle:
Electrochemical, according to gas, sensor and measure range.
Measure range:
Carbon Monoxide(CO): 0-500ppm/1000ppm/2000ppm, Hydrogen Sulfide(H2S): 0-100ppm/200ppm, Oxygen(O2): 0-25%VOL/30%VOL, SO2: 0-20ppm/0-50ppm/0-100ppm, H2: 0-1000ppm, CL2: 0-10ppm/0-20ppm/0-50ppm/0-100ppm, etc, according to customer's requirements.
Resolution:
Carbon Monoxide(CO): 1ppm, Hydrogen Sulfide(H2S): 0.01ppm, Oxygen(O2): 0.01%VOL, SO2: 0.01ppm/0.1ppm, CL2: 0.01ppm/ 0.1ppm, according to sensor and measure ranges.
Accuracy:
≤±3%F.S. (higher precision can be customized)
Response time:
≤30 seconds (T90)
Power Model:
3.6V dry battery (non-removable and rechargeable)
Display:
Gas name, concentration unit, measured value, electricity
Concentration unit:
ppm, mg/m3, %VOL, etc
Alarm mode:
Sound, light, vibration alarm, high and low alarm values can be set by yourself.
Explosion-proof grade:
IECEX ATEX(from TUV)
Protection Class:
IP68
Executive standards:
GB 12358-2006, GB 3836.1-2010, GB 3836.4-2010, JJF1421-2013, JJF1363-2019, JJF1364-2012, JJG 365-2008, IEC 60079-0-2017, IEC
60079-11-2
Working temperature:
-20℃~55℃
Working humidity:
0-95%RH (non-condensing
Working air pressure:
86~106kpa
Language:
English
Dimensions:
90*60*33mm (length*width*thickness)
Weight:
125g

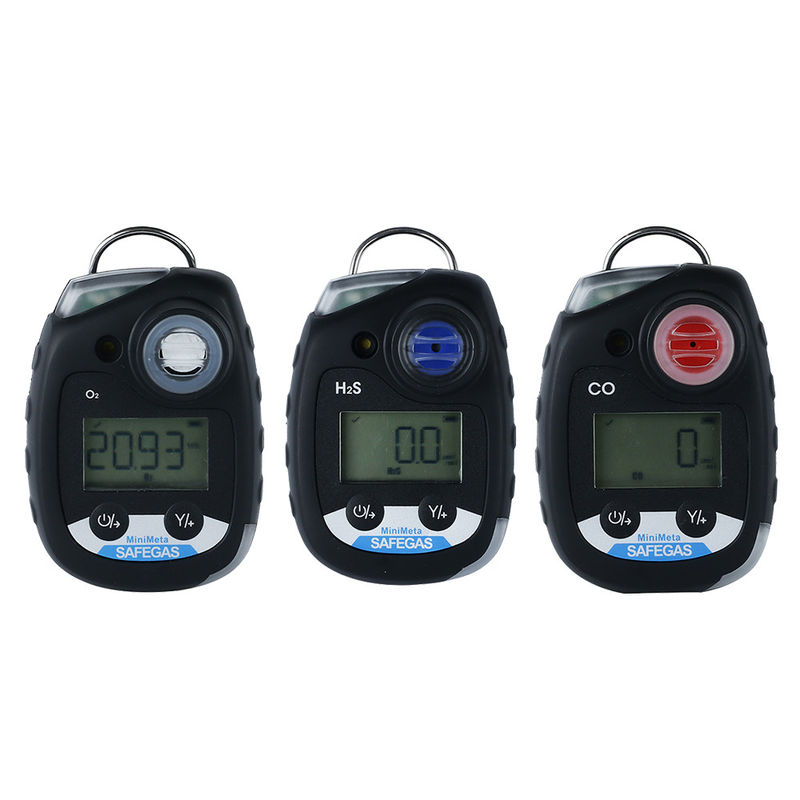

Mining Single Gas Detector Honeywell Sensor H2S ATEX IECEX CE IP68 0
Mining Single Gas Detector factory advantages:


A Professional: We have been focused on gas detection devices for more than 10 years and been cooperating with PB group, PetroChina, Sinopec, Huawei, Samsung, Panasonic, etc famous companies. We are with rich experience to provide you professional solutions.

B Innovation: Strong R&D team (invest 40% revenues into research and experienced engineers team) makes our products stand out in the market.
C Quality: International top brands sensor and IC /100% production test, make sure a good quality.
D Professional technical support: Provide detailed pre-sales and after-sales technical support, no need to worry about any problem during usage.
E Completed certifications: ATEX / IECEX / SIL / CE / CNEX / ISO9001/, meet government standard as well guarantee your safety health.
F Services: We provide 24*7 hours service, if there have any question, Celia will reply you in 1 hours. Meanwhile, we can provide OEM services.
G Delivery: We can ship it out in 2-3 days. For some mass production and special customised gas analyzer, we can ship it out in 7 days.
