Durable HCL Single Gas Detector Hydrogen Chloride Gas Monitor With British Sensor

Basic Information
Place of Origin: China
Brand Name: Safegas
Certification: ATEX/EMC/IECEX
Model Number: Minimeta
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3 working days
Payment Terms: Western Union, T/T, credit card
Supply Ability: 3000 pieces/month
Detail Information
Gas Type: HCL Model Number: Minimeta-HCL-X
Sampling Method: Diffussion Measure Range: 0-20PPM
Resolution: 0.1PPM Response Time: ≤30s(T90)
Principle: Electrochemical Principle Alarm Mode: Sound, Light, Vibration Alarm, High And Low Alarm Values Can Be Set By Yourself
Country Of Original: China
High Light:

Durable hydrogen chloride gas monitor

,

HCL Single Gas Detector

,

0.1PPM hydrogen chloride gas monitor


Product Description

Durable HCL Single Gas Detector Hydrogen Chloride Gas Monitoring With British Sensor​



Company profile

We mainly focus on the design, production, and sales of high-end gas detection equipment and system. There are portable and fixed detectors for oxygen, toxic gas, explosive gas, and etc, mainly for industrial use. All sensor(main parts of detector) we use are imported from USA, Japan, Korea and Europe, there are brands like Alpha, City, Ion, Honeywell and etc, which is same level to BW, Drager, RAE, MSA.

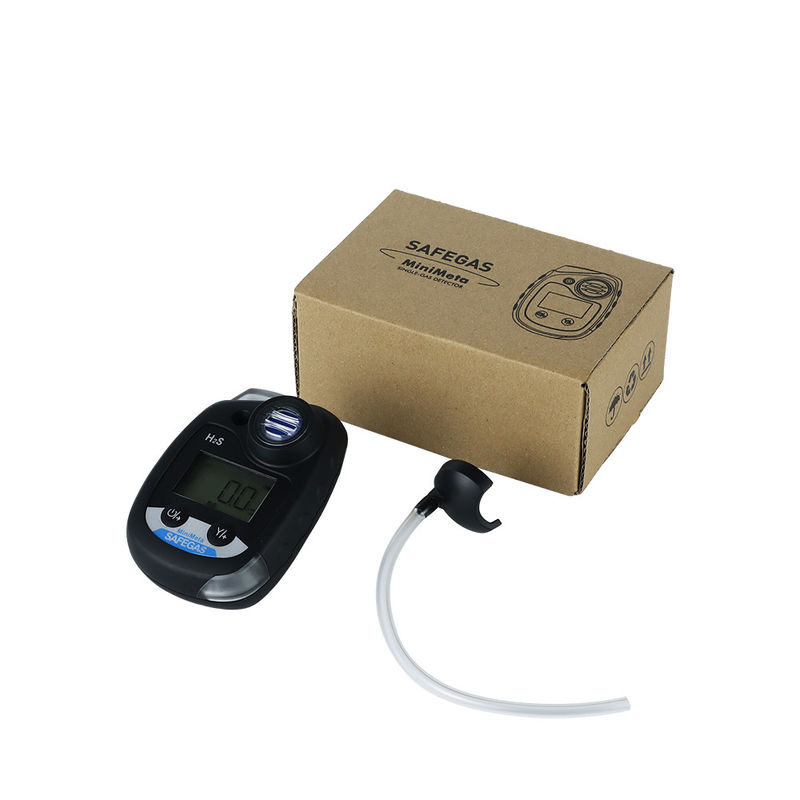

Durable HCL Single Gas Detector Hydrogen Chloride Gas Monitor With British Sensor 0

Product overview

MiniMeta is an IECEX/ATEX/EMC certified single-gas detector. It Can detect hundreds of user-selected toxic gases, user friendly and easy for operation. The battery and sensor is replaceable to provide user a long-term protection. It is d esigned to offer a low long-term ownership cost of a gas monitoring system.



Specification

Gas Type HCL
Detection principle Electrochemisty
Sampling Method Diffusion
Measure Range 0-20PPM
Resolution 0.1PPM
Response time ≤30s(T90)
Precision ≤± 3% F.S.
Alarm mode
Sound, light, vibration alarm, high and low alarm values can be set by yourself
Alarm type Low alarm, high alarm, STEL, TWA, low battery
Power supply mode 3.6V dry battery (non-rechargeable)
Explosion-proof grade ExiaIICT4Ga
Protection class IP68
Executive standards GB 12358-2006, GB 3836.1-2010, GB 3836.4-2010, JJF1421-2013, JJF1363-2019, JJF1364-2012, JJG 365-2008, IEC 60079-0-2017, IEC 60079-11-2
Working temperature -20℃~55℃
Working humidity 0-95%RH (non-condensing)
Working air pressure 86~106kpa
Dimensions 90*60*33mm
Weight 125g





Product advantage

  • IP68 water- and dust-resistant case

  • Low power consumption with 2 years standby time, no need battery charge and calibration

  • With Single /multi unit docking station to perform daily bump test and calibration (Optional)

  • With event and data logging function (optional)

  • With self-test function, which can improve safety by automatic self-test

  • Small size, light weight and with back clip for easily carry

  • 95db@30cm buzzer alarm, 2 high-bright red LED light alarm and vibration alarm

  • Real time value, TWA, STE L, MAX,MIN multiple numerical display

Standard accessories

1 Calibration cap, 1 user manual, 1 calibration certificate, 1 device.



FAQS



1. Can I have a sample order? Yes, we welcome sample order for to test and check quality
2. Do you have a MOQ limit? No, we don't, one piece is also welcomed
3. Do you offer guarantee for the gas detector? Yes, we offer one year of guarantee, we also offer life-long paid service, As an experienece manufacturer, you can rest assured of the quality and after-sales service.
4. What is the payment terms? Visa,Mastercard, e-checking, T/T, Western Union, Alipay.
5. What certificate do you have? ATEX, IECEX, CE, ISO, CNEX explosion proof, CMC, if you have any other requirement with certification, we also would like to help you.
6. How about packing? Aluminum suitcase, carton box
