0-1000PPM Hydrogen H2 Gas Detector Durable For Battery Leakage Detection

Basic Information
Place of Origin: China
Brand Name: Safegas
Certification: ATEX/EMC/IECEX
Model Number: Minimeta
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3 working days
Payment Terms: Western Union, T/T, credit card
Supply Ability: 3000 pieces/month
Detail Information
Gas Type: H2 Model Number: Minimeta-H2-X
Sampling Method: Diffussion Measure Range: 0-1000PPM
Resolution: 1PPM Response Time: ≤30s(T90)
Principle: Electrochemical Principle Alarm Mode: Sound, Light, Vibration Alarm, High And Low Alarm Values Can Be Set By Yourself
Country Of Original: China
High Light:

Battery Leakage Hydrogen Gas Detector

,

Durable H2 Gas Detector

,

1000PPM H2 Gas Detector


Product Description

Durable H2 Hydrogen Single Gas Detector 0-1000PPM For Battery Leakage Detection



Our advantage



1. All the sensors are first-class brand sensors and imported from Europe, faster response and higher accuracy

2. For all our customers, we gurantee one year warranty, and life-long maintenance.

3. All inquiries will be replied in 24 hours.

4. We can provide OEM service, fast delivery. Goods can be sent in 3 days

5. We are manufacturer with own factory and specialized in gas detection for about 16 years, welcome to visit our factory.



0-1000PPM Hydrogen H2 Gas Detector Durable For Battery Leakage Detection 0

Product overview

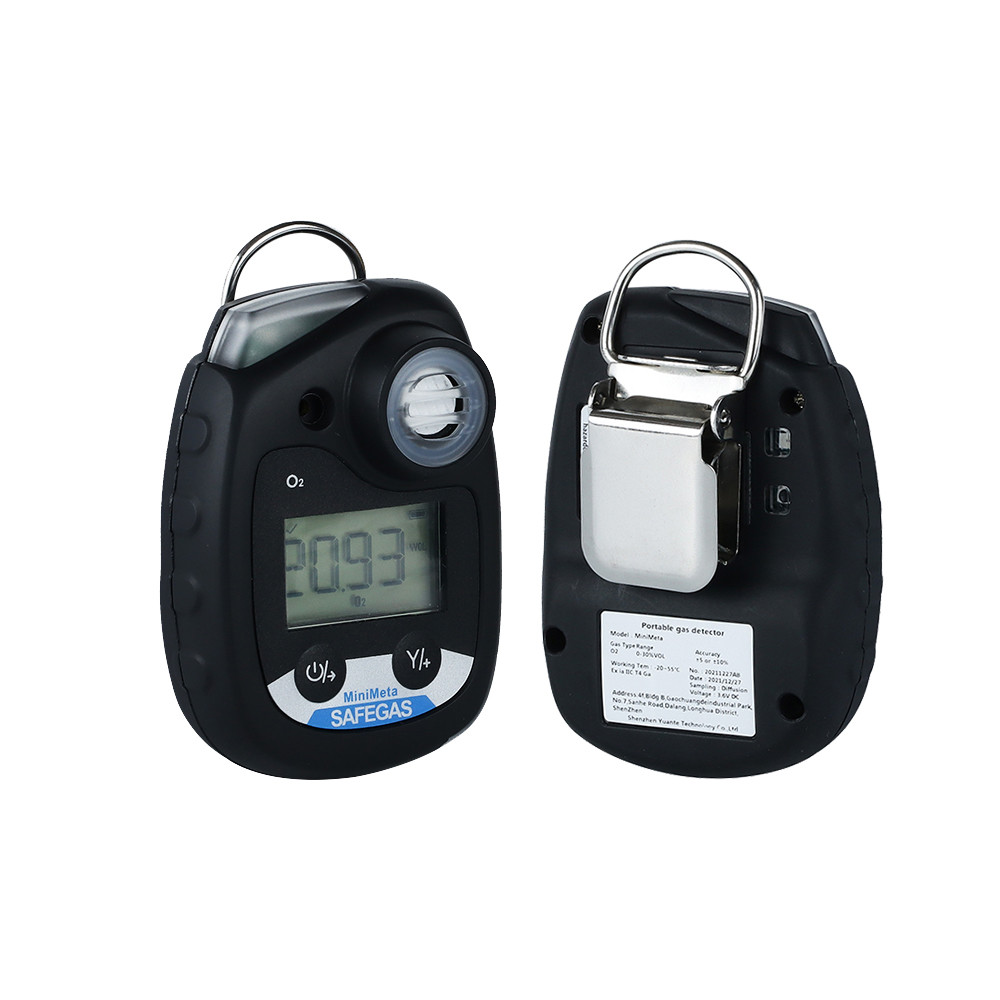

MiniMeta is an IECEX/ATEX/EMC certified single-gas detector. It Can detect hundreds of user-selected toxic gases, user friendly and easy for operation. The battery and sensor is replaceable to provide user a long-term protection. It is d esigned to offer a low long-term ownership cost of a gas monitoring system.



Specification

Gas Type H2
Detection principle Electrochemisty
Sampling Method Diffusion
Measure Range 0-1000PPM
Resolution 1PPM
Response time ≤30s(T90)
Precision ≤± 3% F.S.
Alarm mode
Sound, light, vibration alarm, high and low alarm values can be set by yourself
Alarm type Low alarm, high alarm, STEL, TWA, low battery
Power supply mode 3.6V dry battery (non-rechargeable)
Explosion-proof grade ExiaIICT4Ga
Protection class IP68
Executive standards GB 12358-2006, GB 3836.1-2010, GB 3836.4-2010, JJF1421-2013, JJF1363-2019, JJF1364-2012, JJG 365-2008, IEC 60079-0-2017, IEC 60079-11-2
Working temperature -20℃~55℃
Working humidity 0-95%RH (non-condensing)
Working air pressure 86~106kpa
Dimensions 90*60*33mm
Weight 125g





Product advantage

  • IP68 water- and dust-resistant case

  • Low power consumption with 2 years standby time, no need battery charge and calibration

  • With Single /multi unit docking station to perform daily bump test and calibration (Optional)

  • With event and data logging function (optional)

  • With self-test function, which can improve safety by automatic self-test

  • 95db@30cm buzzer alarm, 2 high-bright red LED light alarm and vibration alarm

  • Real time value, TWA, STE L, MAX,MIN multiple numerical display

Standard accessories

1 Calibration cap, 1 user manual, 1 calibration certificate, 1 device.



Other normal gas types (Gases are not listed can be customized):

Oxygen(O2)
Carbon monoxide(CO)
Hydrogen sulfide(H2S)


Why choose us?

A Professional: have been focused on gas detection devices for more than 10 years and been cooperating with Huawei, Samsung,Panasonic, Lenovo and etc famous company. We are with rich experience to provide you professional solutions.
B Innovation: strong R&D team (invest 5% revenues into research and experienced engineers team) makes our products stand out in the market
C Quality: international top brands sensor and IC /100% production test, make sure a good quality
D Professional technical support: provide detailed pre-sales and after-sales technical support, no need to worry about any problem during usage.
E Completed certifications:ATEX/CE/Rohs/ISO9001/, meet government standard as well guarantee your safety health
