Portable Single NO2 Nitrogen Dioxide Gas Detector IP68 Water And Dust Proof

Basic Information
Place of Origin: China
Brand Name: Safegas
Certification: ATEX/EMC/IECEX
Model Number: Minimeta
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3 working days
Payment Terms: Western Union, T/T, credit card
Supply Ability: 3000 pieces/month
Detail Information
Gas Type: NO2 Model Number: Minimeta-NO2
Sampling Method: Diffussion Measure Range: 0-50/100PPM
Resolution: 0.1PPM Response Time: ≤30s(T90)
Principle: Electrochemical Principle Alarm Mode: Sound, Light, Vibration Alarm, High And Low Alarm Values Can Be Set By Yourself
Country Of Original: China
High Light:

NO2 Nitrogen Dioxide Gas Detector

,

Portable Nitrogen Dioxide Gas Detector

,

IP68 Waterproof Single Gas Detector


Product Description

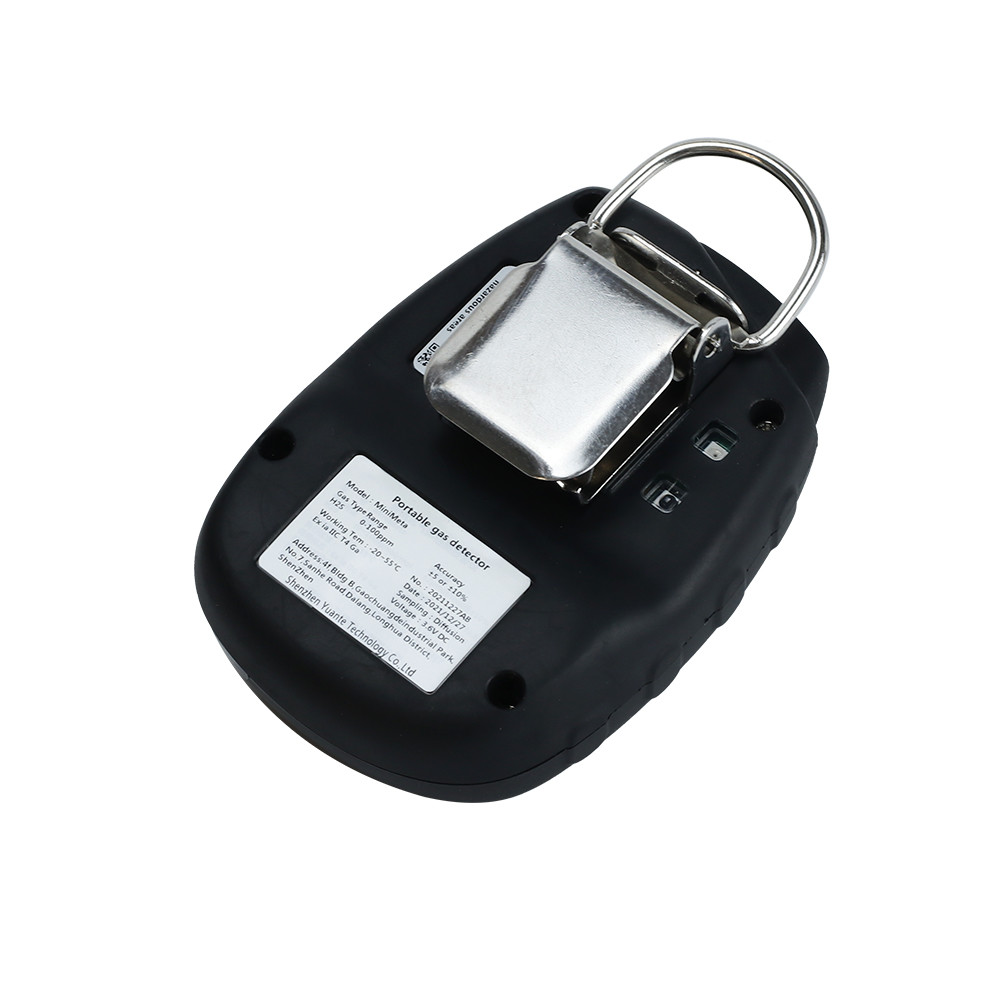

Portable Single NO2 Nitrogen Dioxide Gas Detector IP68 Water And Dust Proof Design



Company profile

We mainly focus on the design, production, and sales of high-end gas detection equipment and systems. There are portable and fixed oxygen, toxic gas, explosive gas and other detectors, mainly used for industrial purposes. All sensors (the main components of the detector) we use are imported from the United States, Japan, South Korea, and Europe, including brands such as Alpha, City, Ion, Honeywell, and are at the same level as brands such as BW, Drager, RAE, MSA, etc.

Our Advantage
Professional technical support: Provide detailed pre-sales and after-sales technical support, without worrying about any issues during use.
Professional: Focusing on gas detection equipment for more than ten years, we have collaborated with well-known enterprises such as Huawei, Samsung, Panasonic, and Lenovo. We provide you with professional solutions with rich experience.
Supply: ATEX/CE/Rohs/ISO9001/certified and meets government standards to ensure your safety and health
Quality: sensors and ICs from top international brands/100% production testing to ensure good quality
Innovation: A strong R&D team (investing 5% of revenue in research and an experienced engineering team) makes our products stand out in the market


Product overview

MiniMeta is an IECEx/ATEX/EMC certified single gas detector. It can detect hundreds of toxic gases selected by users, making it user-friendly and easy to operate. The battery and sensor are replaceable, providing long-term protection for users. It aims to provide a lower long-term cost of ownership for gas monitoring systems.






Handheld SO2 Single Gas Detector Fast Respond Minimeta IP68 EX Ia II CT4 0

Specification

Gas Type NO2
Detection principle Electrochemisty
Sampling Method Diffusion
Measure Range 0-100PPM
Resolution 0.1/0.01PPM
Response time ≤30s(T90)
Precision ≤± 3% F.S.
Alarm mode
Sound, light, vibration alarm, high and low alarm values can be set by yourself
Alarm type Low alarm, high alarm, STEL, TWA, low battery
Power supply mode 3.6V dry battery (non-rechargeable)
Explosion-proof grade ExiaIICT4Ga
Protection class IP68
Executive standards GB 12358-2006, GB 3836.1-2010, GB 3836.4-2010, JJF1421-2013, JJF1363-2019, JJF1364-2012, JJG 365-2008, IEC 60079-0-2017, IEC 60079-11-2
Working temperature -20℃~55℃
Working humidity 0-95%RH (non-condensing)
Working air pressure 86~106kpa
Dimensions 90*60*33mm
Weight 125g





Product advantage

  • IP68 waterproof and dustproof shell
    Low power consumption, 2-year standby time, no need for charging and calibration
    With single/multi unit docking station, it can be used for daily collision testing and calibration (optional)
    With event and data recording function (optional)
    Equipped with self checking function, automatic self checking, improving safety
    Small size, light weight, and convenient carrying with a back clip
    95db@30cm Buzzer alarm, 2 bright red LED lights for alarm and vibration alarm
    Real time value, TWA, stl, MAX, MIN multiple digital display


Standard accessories
1 Calibration certificate,1 calibration cap,1 device,1 user manual.

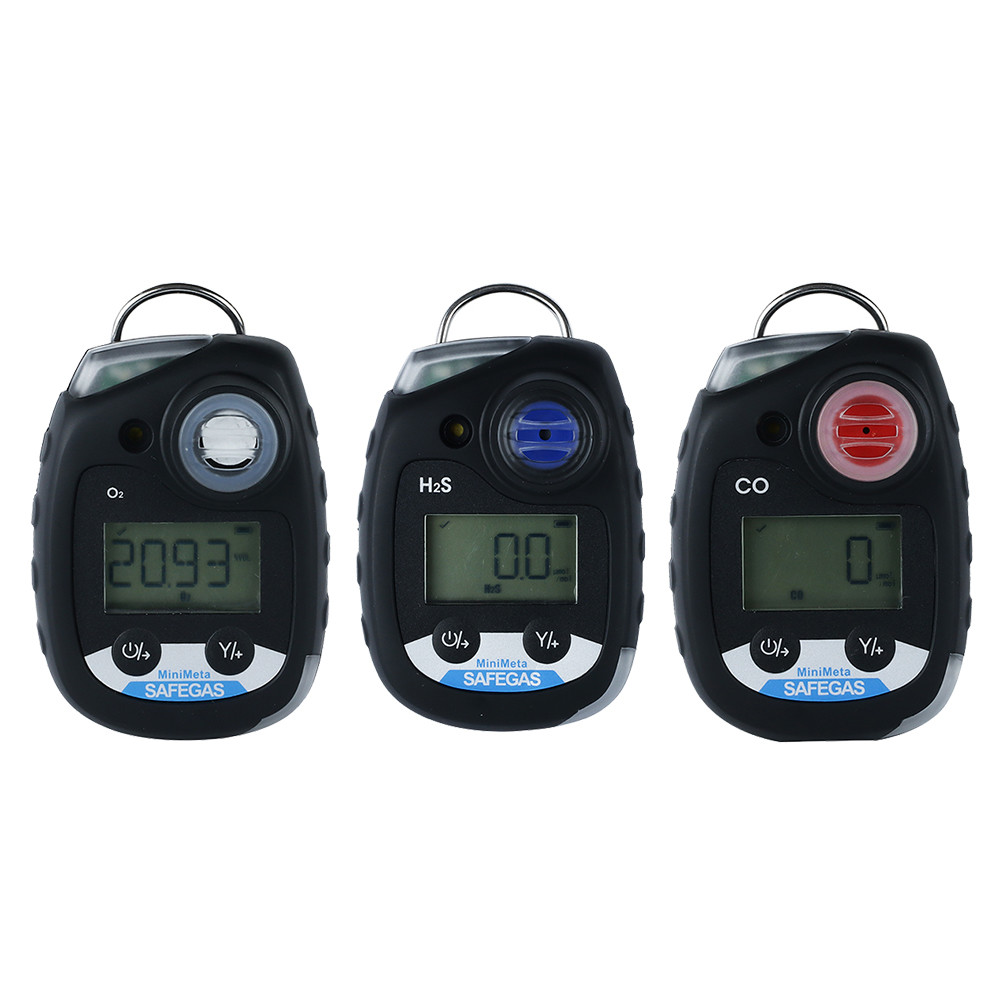

Other normal gas types (Gases are not listed can be customized):

Chlorine(CL2)
Carbon dioxide(CO2)
Ozone(O3)
Formaldehyde(CH2O)
Sulfur dioxide(SO2)
Nitric oxide(NO)

Hydrogen Chloride (HCL)
