| Place of Origin: | China |
|---|---|
| Brand Name: | YuanTe |
| Certification: | SIL CE ATEX IECEX ISO9001-2015 |
| Model Number: | YT-98H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton Box |
| Delivery Time: | 2-3 days |
| Payment Terms: | T/T, Western Union, Credit Card |
| Supply Ability: | 500PCS/DAY |
| Detected Gas: | NH3, Ammonia | Measure Range: | 0-100ppm, 0-500ppm |
|---|---|---|---|
| Sampling Method: | Built In Pump | Detection Principle: | Electrochemical |
| Install Method: | Wall Mounted, Pipe, Confined Space | Display: | Color Screen |
| Power Supply: | 12-36Vdc | Signal Output: | 4-20mA And RS485 |
| Material: | Die-cast Aluminum Case And Stainless Steel Air Chamber | Explosion Proof Construction: | Ex D IIC T6 Gb, IP67 |
| High Light: | Medical Ammonia Gas Monitor,Fixed NH3 Gas Detector,MODBUS Ammonia Gas Monitor |
||
IECEX ATEX Medical Ammonia Gas Monitor Fixed NH3 Gas Detector RS485 MODBUS 4
Supply:
Service: We provide 24 * 7 hour service. If you have any questions, Celia will reply to you within 1 hour. At the same time, we can provide OEM services.
Professional: Focusing on gas detection equipment for more than ten years, we have successively cooperated with well-known enterprises such as PB Group, PetroChina, Sinopec, Huawei, Samsung, Panasonic, etc. We provide you with professional solutions with rich experience.
Certification:Has passed ATEX/IECEX/SIL/CE/CNEX/ISO9001/certification, meets government standards, and ensures your safety and health.
Professional technical support: Provide detailed pre-sales and after-sales technical support, without worrying about any issues during use.
Quality: sensors and ICs from top international brands are produced and tested at 100% to ensure good quality.
Shipping: We can ship within 2-3 days. For some mass-produced and specially customized gas analyzers, we can ship them within 7 days.
Innovation: Our strong R&D team (investing 40% of our revenue in research and an experienced engineering team) sets our products apart in the market.
Advantages:
Overview:

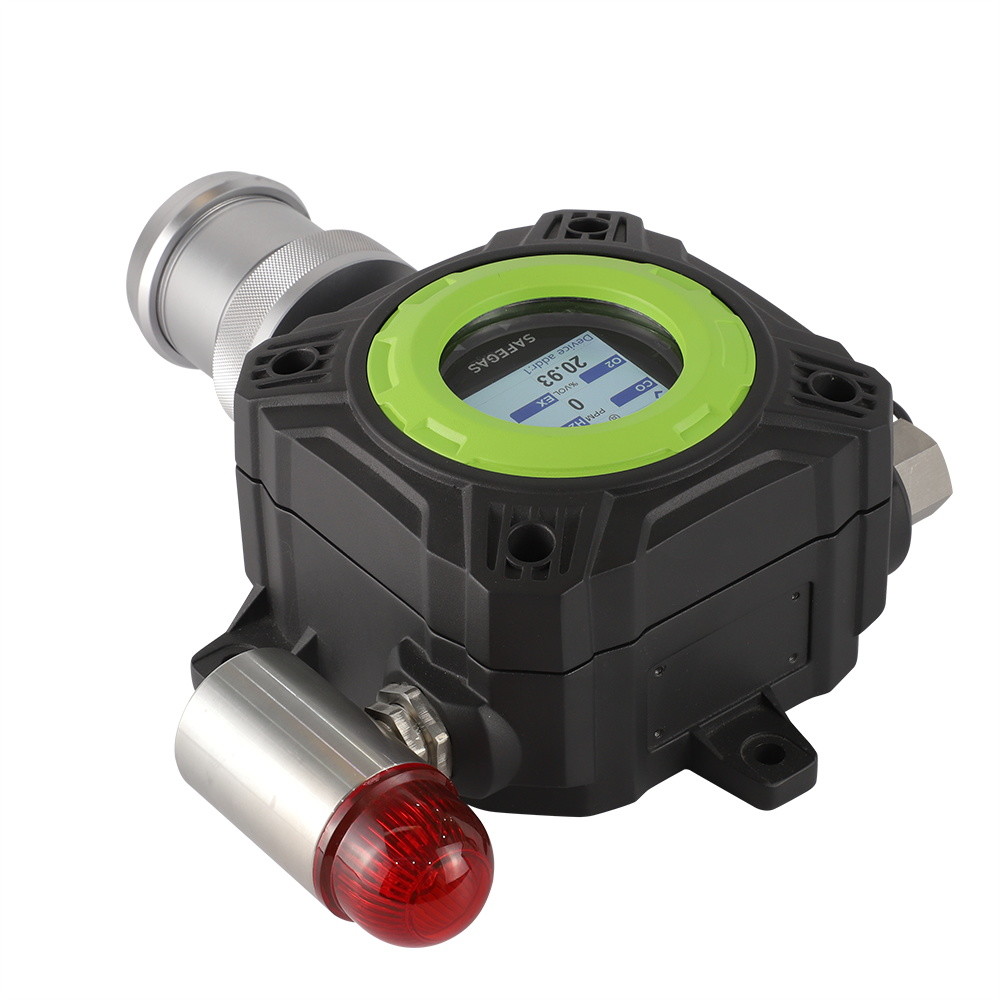

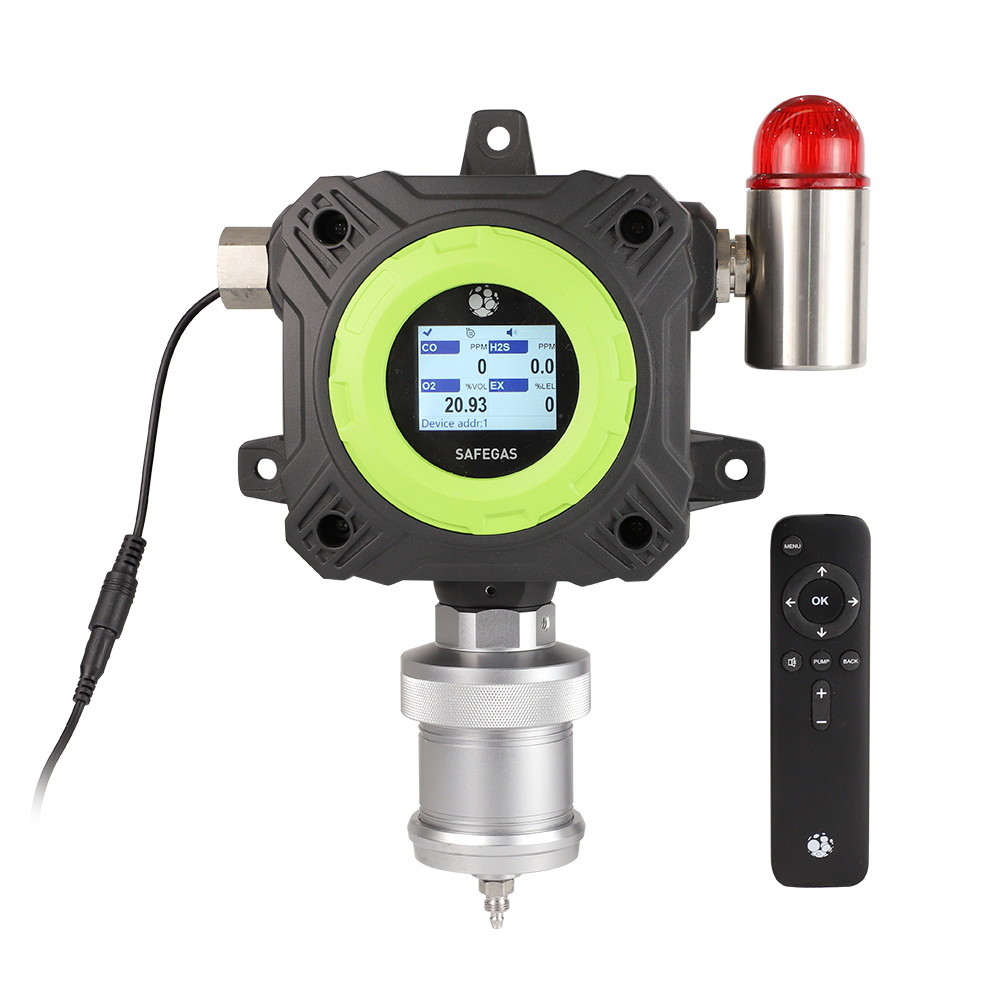

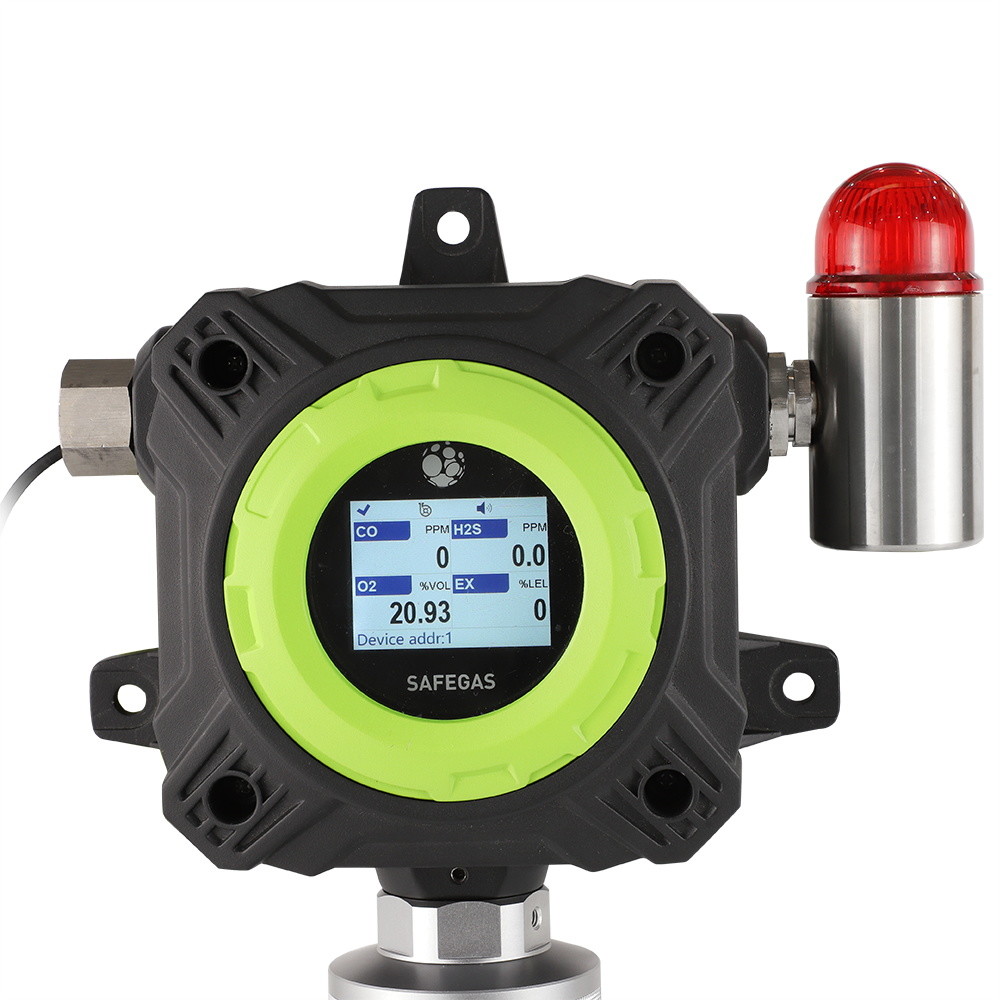

The YT-98H-WH/YT-98H-WH series is a built-in pump suction single and multiple gas detector that can continuously detect 1-6 types of gases simultaneously. With IECEx, ATEX certification (in progress), and non-contact magnetic rod design, it can be installed and operated in explosion-proof areas in the oil and gas industry. In addition to the 3-wire 4-20mA output relay, it also provides Modbus protocol, making it compatible with most control systems. Optional wireless function allows operators to remotely view data on laptops, mobile phones, or cloud systems.
Specification
| Sampling method | Built in pump | ||
| Pump flow rate | 0.35-0.5 L/Min | ||
|
Gas detected |
Ammonia(NH3), Combustible gases(EX/LEL), Carbon monoxide(CO), Hydrogen sulfide(H2S), according to customer's requirements |
||
|
Detection principle |
Catalytic combustion/Infrared Ray(LEL), Electrochemistry(O2 CO H2S), sensor and ic are imported from UK, fast response and high precision |
||
|
Install method |
Wall-mounted, piping type, flow-type (according to the detected environment) |
||
|
Measure range |
NH3:0-100/500ppm,O2: 0-30%VOL/0-25%VOL, EX: 0-100%LEL/0-100%VOL, CO: 0-500ppm/0-1000PPM/0-2000ppm, H2S: 0-100ppm/0-200PPM(Measure range is optional) |
||
|
Resolution |
NH3:0.01ppm, 0.1ppm,VOC: 0.001ppm, 0.01ppm, 0.1ppm, 1ppm; O2: 0.01%VOL, EX: 1%LEL/0.01%VOL, CO: 0.1ppm/1PPM/1ppm, H2S: 0.01ppm/0.1PPM |
||
|
Precision |
≤± 2% FS |
||
|
Signal output |
4-20mA, RS485, 1 set of relay output; 1-5VDC(optional), 2 sets of relay output(optional) |
||
|
Response time |
≤10S |
Recovery time |
≤10S |
|
Repeatability |
≤±1% |
Linearity error |
≤±1% |
|
Zero shift |
≤±1%(FS/year) |
Display |
High-light nixie tube display |
|
Connection mode |
G1/2 external thread explosion-proof flexible pipe |
Unit |
ppm, mg/m3, g/m3, %LEL, %VOL |
|
Temperature |
-20 to 50°C |
Humidity |
0-95%RH |
|
Explosion-proof |
Ex d IIC T6 Gb |
Degree of protection |
IP65 |
|
Alarm |
Sound, light |
Operating time |
24H |
|
Dimensions |
286*202*96mm (H x W x D) |
Weight |
3.4kg (3.8kg with alarm light) |
Detail
