| Place of Origin: | China |
|---|---|
| Brand Name: | Safegas |
| Certification: | IECEX, ATEX, ISO9001, CE, CNEX, SIL |
| Model Number: | SKY3000 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase |
| Delivery Time: | 1 working days |
| Payment Terms: | Credit Card, T/T |
| Supply Ability: | 1000 pieces/week |
| Detected Gas: | SO2, Sulfide Dioxide | Measure Range: | 0-10ppm, 0-20ppm, 0-100ppm, 0-1000ppm, 0-5000ppm |
|---|---|---|---|
| Sampling Method: | Built In Pump Suction | Alarm: | Sound&Light&Vibration |
| Resolution: | 0.01ppm, 0.1ppm And 1ppm | Sensors: | Imported From UK, Fast Response And High Precision |
| Wireless: | Bluetooth(Optional Function) | Protection Level: | IP67/68 |
| Response: | T90<10S | Certifications: | IECEX&ATEX&ISO9001&CE&CNEX&SIL |
| Weight: | 365g | Alarm Type: | Alarm, Light, Vabration |
| Size: | 157*84.5*59.5mm | Humidity: | 0-95%RH |
| Warranty: | 1 Year | ||
| High Light: | 0.01ppm Air Quality Gas Monitor,SO2 Air Quality Gas Monitor,Single Gas Detector IP67 |
||

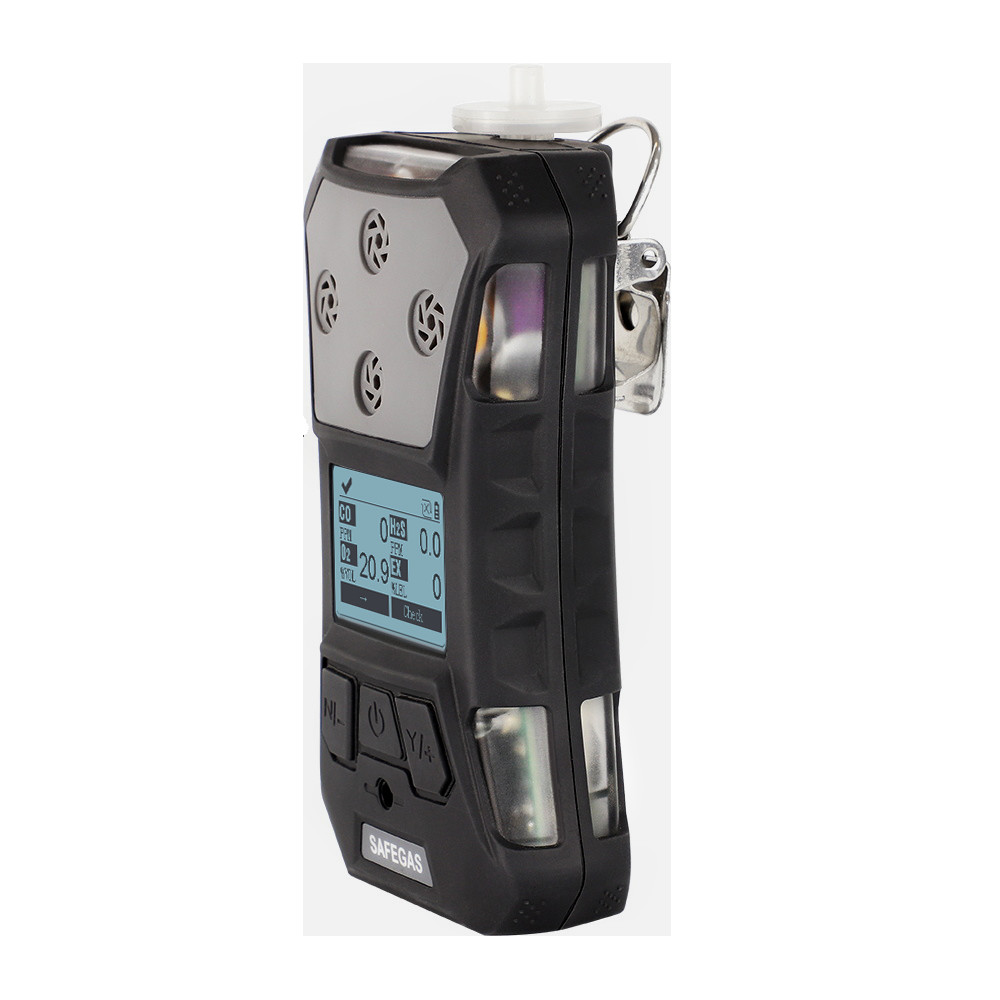

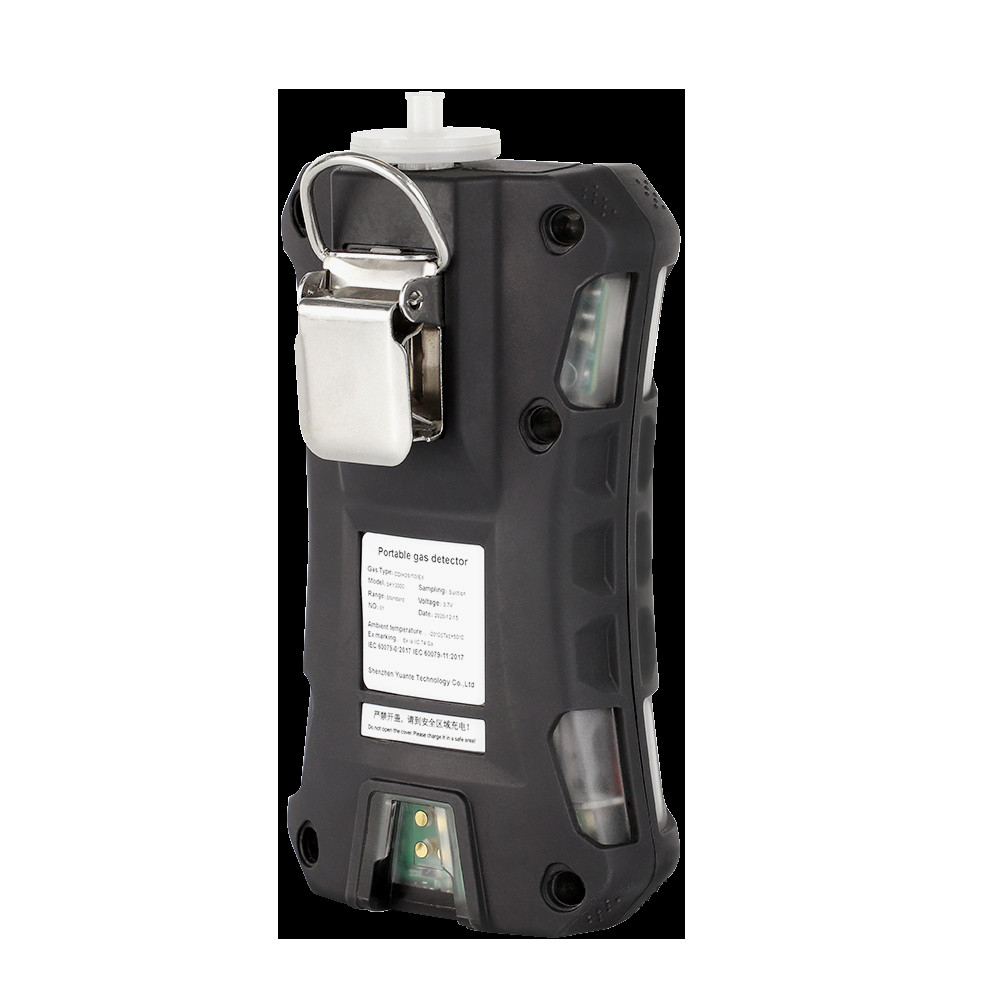

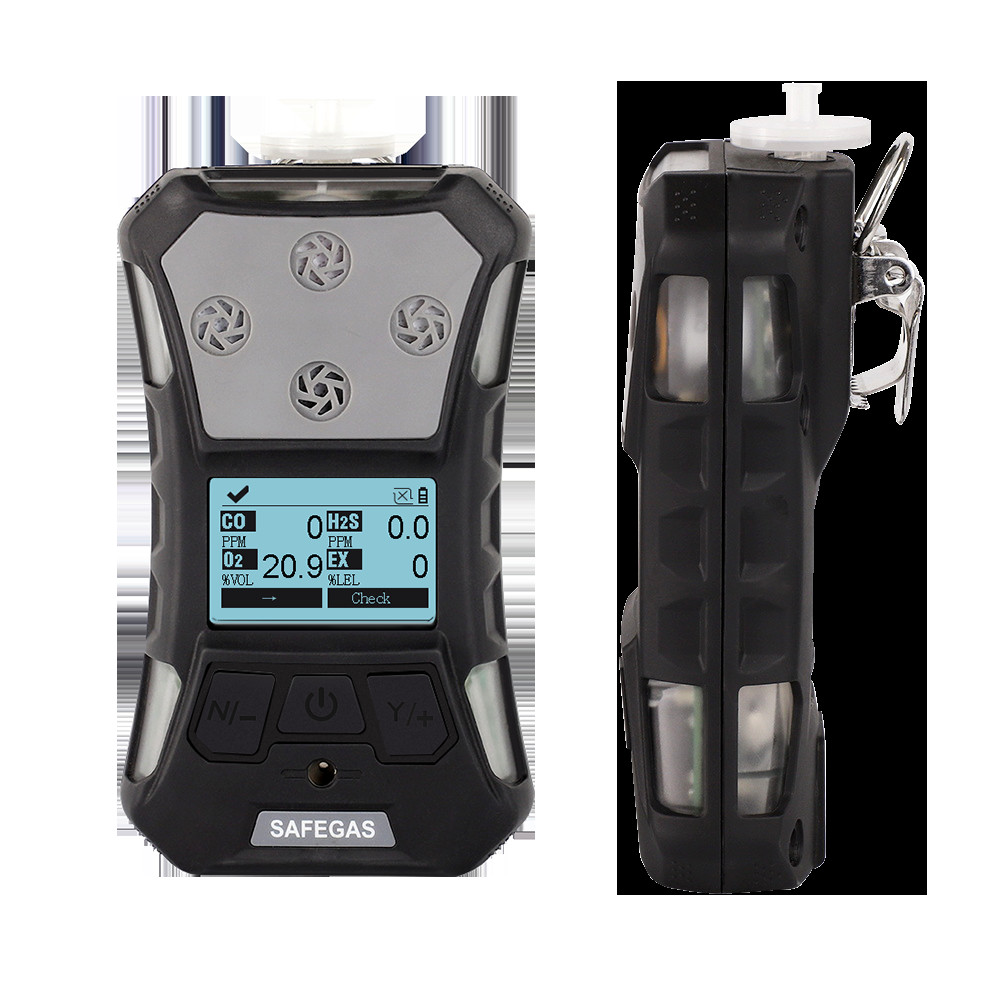

Sampling Pump method fast response 0.01ppm SO2 air quality gas monitor
0.01 SO2 Air quality Detector Advantage:
1. Multiple numerical display including real-time data, TWA, STEL, MAX, MIN multiple numerical.
2. The screen can be automatically turned 180 degrees, which is convenient for viewing in special operating environments
3. Pump suction and diffusion dual use, to provide operators with more reliable protection
4. With a water trap filter, it can effectively filter water, oil, dust and other impurities. It can also be used in harsh industrial environments such as coal mines and petroleum fields.
5. Optional Bluetooth function, data can be transmitted to the mobile phone or PC in real time
6. Storage function, one-click data export, convenient for users to analyze
7. Automatic prompts for voltage and pump failure alarms makes it more user friendly.
8. PPM and mg/m³ gas unit switch, the concentration value is automatically converted by the system.
|
Sampling method |
Pump suction |
|
Gas type |
SO2, other gases are customized |
|
Measure range |
0-10ppm, 0-20ppm, 0-100ppm, 0-1000ppm, 0-5000ppm, other measure ranges are customized |
|
Resolution |
0.01ppm, 0.1ppm and 1ppm,other resolutions are according to sensors. |
|
Response time |
≤10 seconds |
|
Precsiion |
≤±2%F.S |
|
Language |
English(Other languages can be customized) |
|
Automatically test and calibrate after power-on |
Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value |
|
Unit |
PPM and mg/m³ can be switched |
|
Disaply |
monochrome graphics (160 x96) ,screen can be automatically flipped |
|
Backlight |
The backlight time can be manually set, and will be turned on automatically when an alarm is issued |
|
Data record |
Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported |
|
Alarm |
95dB buzzer (@30cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man down alarm, with early warning and optional real-time remote Bluetooth notification function |
|
Battery |
3.7V rechargeable lithium battery, battery capacity 2200mA |
|
Working hours |
More than 15 hours in continuous pumping mode |
|
Charger |
Travel charger with DC interface, charging time ≥ 4 hours |
|
Explosion-proof grade |
IECEX/ATEX(II IG Ex ia IIC T4 |
|
Certification |
2004/108/EC(EMC) |
|
Protection grade |
IP67/IP68 |
|
Working temperature |
-20ºC~+50ºC |
|
Humidity |
0~95%RH(no condensation) |
|
Environmental pressure |
86~106Kpa |
|
Size |
157*84.5*59.5mm (including back clip/water trap filter) (length * width * height) |
|
Weight |
365g (including battery, belt clip and filter) |
| Bluetooth function(Optional) | Detection data can be transmitted to the mobile phone or PC in real time |
Accessories & Configuration List
Standard Accessories
SKY3000
Aluminum suitcase
A charging adapter
User Manual
Qualification/Calibration certificate
Filter
Storage function(USB cable)
Optional Accessories
Probe
Tube
Bluetooth App
Factory Information
A Professional: We have been focused on gas detection devices for more than 10 years and been cooperating with PB group, PetroChina, Sinopec, Huawei, Samsung, Panasonic, etc famous companies. We are with rich experience to provide you professional solutions.
