Detail Information

Detected Gas:	NH3 CH4 H2S	Measure Range:	0-100PPM, 0-100%LEL, 0-100PPM
Ampling Method:	Pumping Suction	Alarm Type:	Sound, Light
Resolution:	0.1PPM, 1%LEL	Packing:	Aluminum Suitcase
Material:	PC + ABS	USB Port:	Micro USB Port
Warranty:	12 Months	Calibration:	Yes
Highlight:	H2S Air Emission Gas Monitor , Sampling Pump H2S Gas Monitor , ABS Exhaust Gas Detector

Product Description

CAFD air emission gas monitor multiple NH3 CH4 H2S detector with built-in sampling pump

Company advantage

A Professional: have been focused on gas detection devices for more than 10 years and been cooperating with Huawei, Samsung,Panasonic, Lenovo and etc famous company. We are with rich experience to provide you professional solutions.

B Innovation: strong R&D team (invest 5% revenues into research and experienced engineers team) makes our products stand out in the market

C Quality: international top brands sensor and IC /100% production test, make sure a good quality

Company profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 16 years. With “gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Pro- tection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc. Through about 10 years of rapid development, Yuante becomes the influential supplier.

Air Emission Gas Monitor Multiple NH3 CH4 H2S Detector With Built In Sampling Pump 0

Product Overview

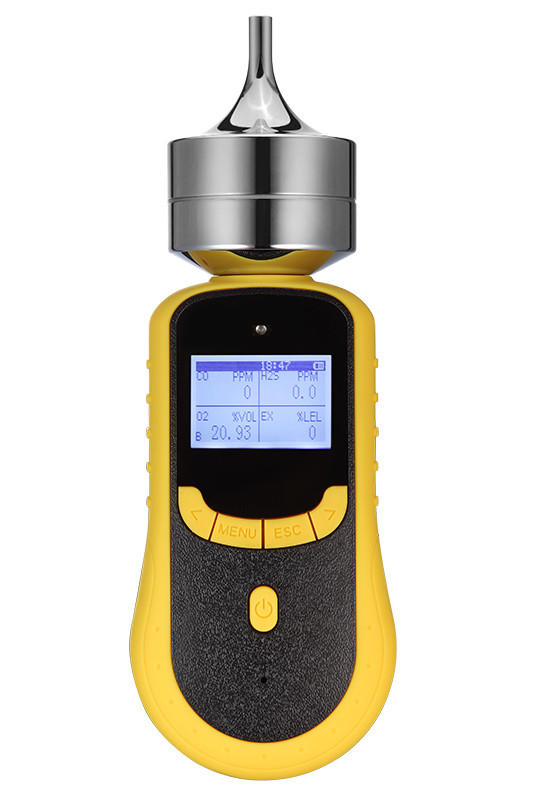

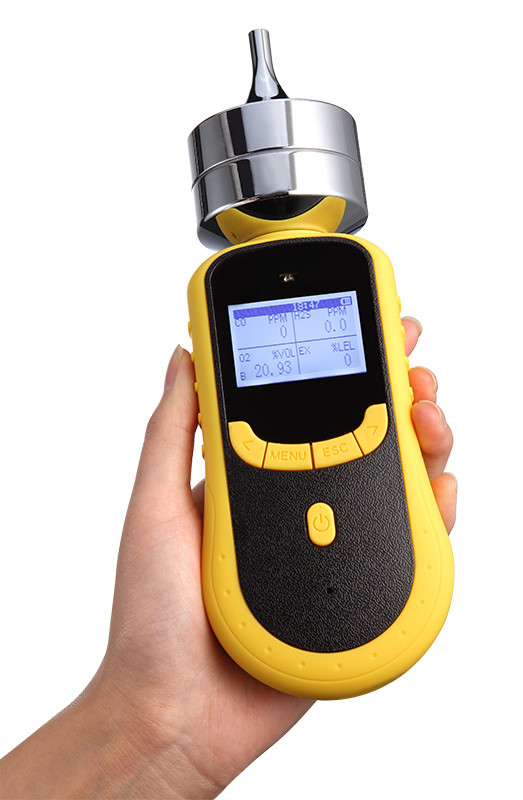

SKY2000 series gas detector is a kind of fast response and high accuracy gas measurement device. With internal sampling pump, fast sampling speed and high flow rate, ensuring the response time of the detector. Unique design, small size and easy to carry with. Special high intensity engineering plastics housing, suitable for different kinds of situation and environment. We dedicate to provide you the most reliable, accurate and the safest solution of gas detection.

Specifications

Gas Detected	NH3 CH4 H2S
Detection principle	Eletrochemistry, catalytic combustion
Sampling Method	Pumping Suction
Measure Range	0-100PPM, 0-100%LEL, 0-100PPM
Resolution	0.1PPM, 1%LEL
Precision	≤± 2-3% F.S for normal sensor, ≤± 1% F.S for high precision sensor
Signal Output	High-speed data transmission by USB, available for data downloading and printing (optional function)
Charging Time	4~6h	Working Time	14h
Battery	3.7V	Capacity	2300mAh
Zero shift	≤±1%(F.S/year)	Display	LCD dot matrix display
Operating language	English	Gas unit	Units are switchable
Temperature	-20℃~50℃	Humidity	0-95%RH
Explosion-Proof	II 2G Ex ia IIC T4 Ga IP66	Degree of protection	IP66
Alarm mode	Sound, light, vibration	Housing Material	ABS+ leather case
Dimensions	1318335mm	Weight	240g

Air Emission Gas Monitor Multiple NH3 CH4 H2S Detector With Built In Sampling Pump 1

Product advantage

Employing original imported first-class brand sensor, for example Alpha, CITY, ION, Dynament, Honeywell and etc.
(optional) High speed data transmission by USB, which can download and print data.
LCD dot matrix display, the gas type, unit, concentration, local time can be showed on the screen.
Support Chinese and English operation, easy to shift.
The gas concentration unit PPM and mg/m3 can be shifted quickly.
Built-in micro sampling pump, 10 grades of suction are available.
Explosion-proof certification, explosion-proof grade: Ex ia IIC T4 G

Other normal gas types (Gases are not listed can be customized)

Flammable gas(EX)

Oxygen(O2)

Carbon monoxide(CO)

Hydrogen sulfide(H2S)

Ammonia(NH3)

Chlorine(CL2)

Hydrogen Chloride (HCL)

Air Emission Gas Monitor Multiple NH3 CH4 H2S Detector With Built In Sampling Pump 2

Air Emission Gas Monitor Multiple NH3 CH4 H2S Detector With Built In Sampling Pump 3

Services:

1. One year free warranty.
2. All machines are debugged before shipment.
3. Lifetime technical support and service.
4. 24 hours on line or phone or by email technical support.
5. We offer detailed machine manual and software manual.
6. Our factory make a vivid training CD.
7. Life-long free maintenance.
8. Free training in our factory.

Tag:

Place of Origin:	China
Brand Name:	Safegas
Certification:	ATEX, ISO9001, CE, CNEX
Model Number:	SKY2000-M3

Minimum Order Quantity:	1pcs
Price:	Negotiable

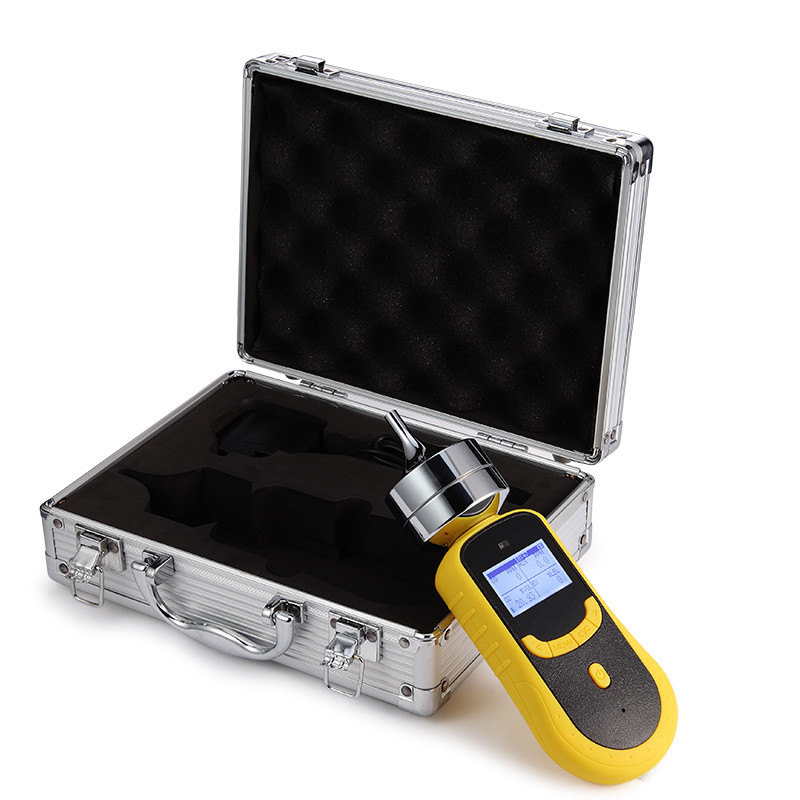

Packaging Details:	Aluminum Suitcase
Delivery Time:	1 working days
Payment Terms:	Credit Card, Western Union, T/T
Supply Ability:	1000 pieces/week
