| Place of Origin: | China |
|---|---|
| Brand Name: | Safegas |
| Certification: | ATEX, ISO9001, CE, CNEX |
| Model Number: | SKY2000-HCHO |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase |
| Delivery Time: | 1 working days |
| Payment Terms: | Credit Card, Western Union, T/T |
| Supply Ability: | 1000 pieces/week |
| Detected Gas: | HCHO Formaldehyde | Measure Range: | 0-10ppm, 0-50ppm |
|---|---|---|---|
| Type: | Pumping Suction | Alarm Type: | Sound & Light |
| Resolution: | 1ppm For Ppm Ranges, 0.01%VOL For %VOL Ranges | Package: | With Aluminum Suitcase |
| Sensors: | British Sensors (Imported) | Signal Output: | Micro USB Port |
| Humidity: | 0-95%RH | Accuracy: | 3%FS Or 1%FS |
| High Light: | HCHO Emission Gas Detector,0.001PPM Emission Gas Analyzer,High Precision Single Gas Detector |
||

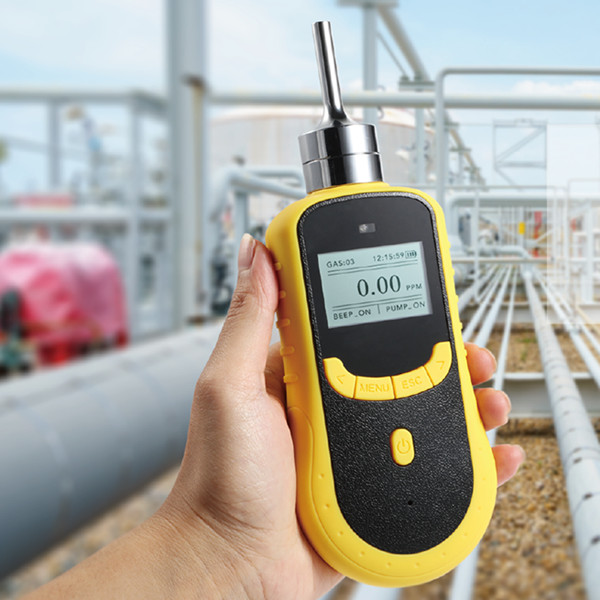

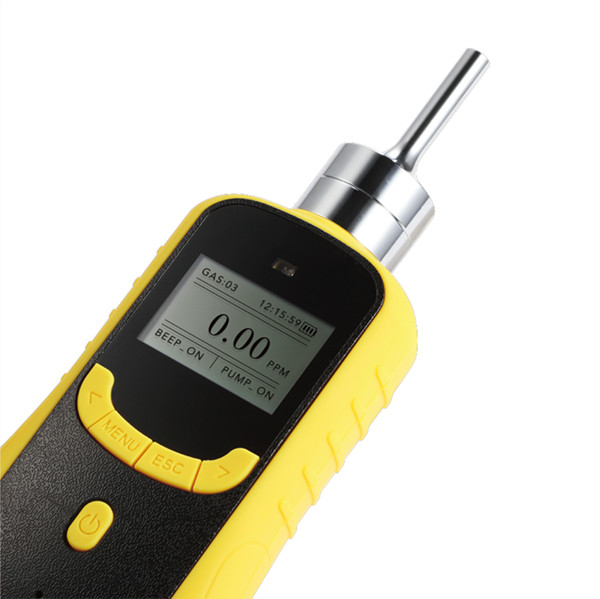

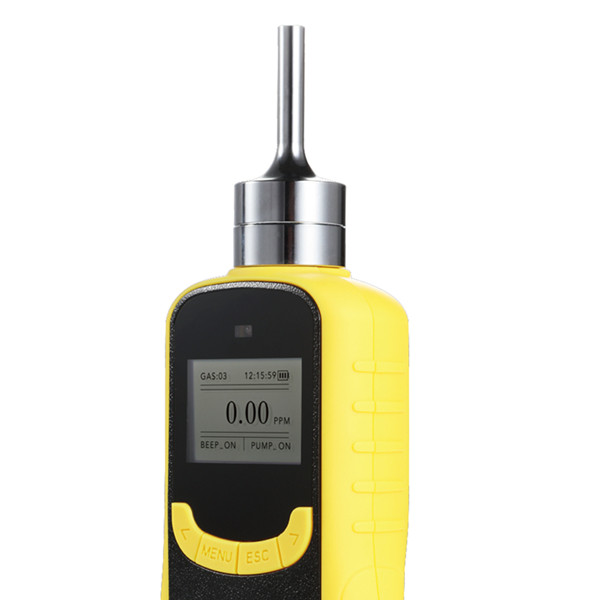

0.001PPM high precision HCHO emission gas detector with pump sampling IP66
Product Overview
Specifications
| Gas Detected | HCHO Formaldehyde | ||
| Detection principle | Eletrochemistry | ||
| Sampling Method | Pumping Suction | ||
| Measure Range | 0-10ppm, 0-50ppm | ||
| Resolution | 0.001ppm | ||
| Precision | ≤± 1% F.S for high precision sensor, ≤± 2-3% F.S for normal sensor | ||
| Signal Output | High-speed data transmission by USB, available for data downloading and printing (optional function) |
||
| Charging Time |
4~6h |
Working Time | 14h |
|
Battery |
3.7V |
Capacity |
2300mAh |
| Zero shift | ≤±1%(F.S/year) | Display | LCD dot matrix display |
| Operating language | English | Gas unit | Units are switchable |
| Temperature | -20℃~50℃ | Humidity | 0-95%RH |
| Explosion-Proof | II 2G Ex ia IIC T4 Ga IP66 | Degree of protection | IP66 |
| Alarm mode | Sound, light, vibration |
Housing Material |
ABS+ leather case |
| Dimensions | 131*83*35mm | Weight |
240g |
Product Characteristics
1. Employing original imported first-class brand sensor.
2. (optional) High speed data transmission by USB, which can download and print data.
3. LCD dot matrix display, the gas type, unit, concentration,
4. Local time can be showed on the screen.
5. Support Chinese and English operation, easy to shift.
6. The gas concentration unit PPM and mg/m3 can be shifted quickly. Built-in micro sampling pump, 10 grades of suction are available.
7. Explosion-proof certification, explosion-proof grade: II 2G Ex ia IIC T4 Ga IP66.
8. Monitor the specified gas concentration in environment and enclosed space and alarm.
9. With Self-calibration and zero calibration functions, makes the detection more accurate and reliable.
10. One press to restore factory setting, free from the bother of mis-operation With temperature and pressure compensation, this is able to realize gas concentration compensation under conditions of different temperatures or pressures.
11. Two-stage alarm with sound and light, alarm point is settable.
12. Rechargeable lithium polymer battery of large capacity.
13. Employing pumping sampling method and the pumping suction is adjustable.
14. Special engineering plastics housing of high intensity, anti-skipping,
15. Water-proof, dust-proof, explosion-proof.
16. Elegant and exquisite aluminum alloy suitcase
