Non Rechargeable Battery Single 0 - 100PPM H2S Gas Detector With IP68 Explosion Proof

Basic Information
Place of Origin: China
Brand Name: Safegas
Certification: ATEX,CE,IECEX
Model Number: Minimeta
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Color box and carton
Delivery Time: 3 working days
Payment Terms: Western Union, T/T, credit card
Supply Ability: 3000 pieces/month
Detail Information
Gas Type: H2S Model Number: Minimeta-H2S-X
Sampling Method: Diffussion Measure Range: 0-100PPM
Resolution: 0.1PPM, 0.001PPM Response Time: ≤30s(T90)
Principle: Electrochemical Principle Alarm Mode: Sound, Light, Vibration Alarm, High And Low Alarm Values Can Be Set By Yourself
Country Of Original: China
High Light:

Single H2S Gas Detector

,

Explosion Proof H2S Gas Detector

,

Non Rechargeable Battery Single Gas Detector


Product Description

Non Rechargeable Battery Single -0-100PPM H2S Gas Detector With IP68 Explosion Proof



Company advantage



1.All inquiries will be replied within 24 hours.



2. We will provide technical support, and our engineers will help solve the problems you encounter.



3. All sensors are imported from Europe with first-class brand sensors, which have faster response speed and higher accuracy



4. For all customers, we guarantee a one-year warranty and lifelong maintenance.



5. All products must be inspected for packaging and issued with a certificate of conformity before shipment.



6. We can provide OEM services for fast delivery. The goods can be shipped within 3 days



We are a manufacturer with our own factory, specializing in gas detection for about 16 years. Welcome to visit our factory.




Non Rechargeable Battery Single 0 - 100PPM H2S Gas Detector With IP68 Explosion Proof 0

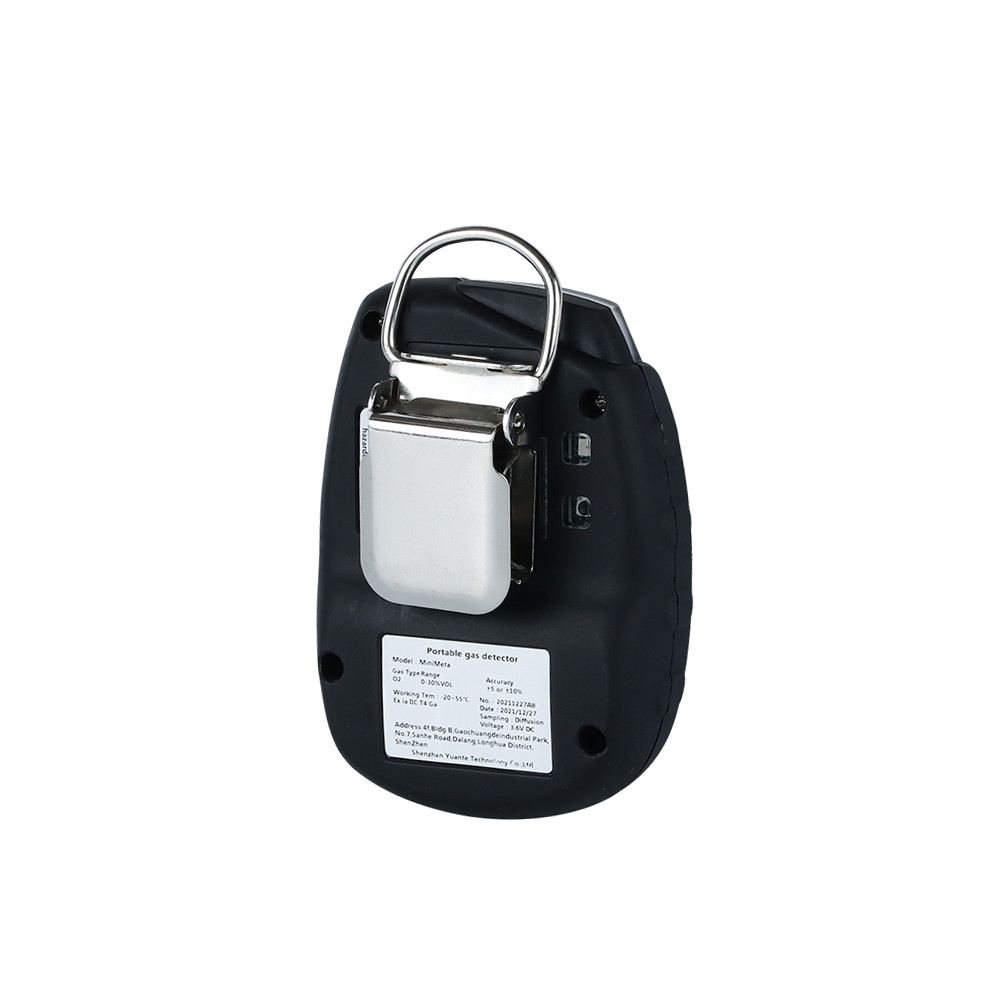

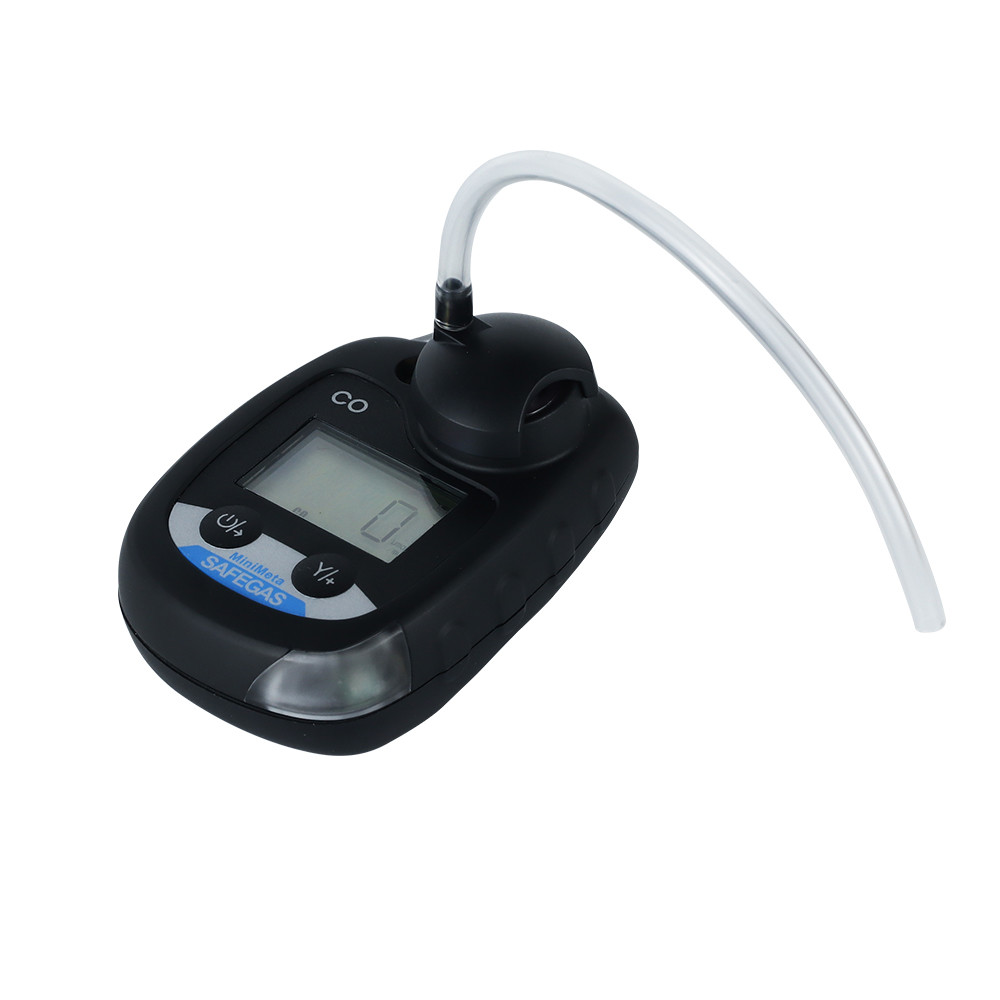

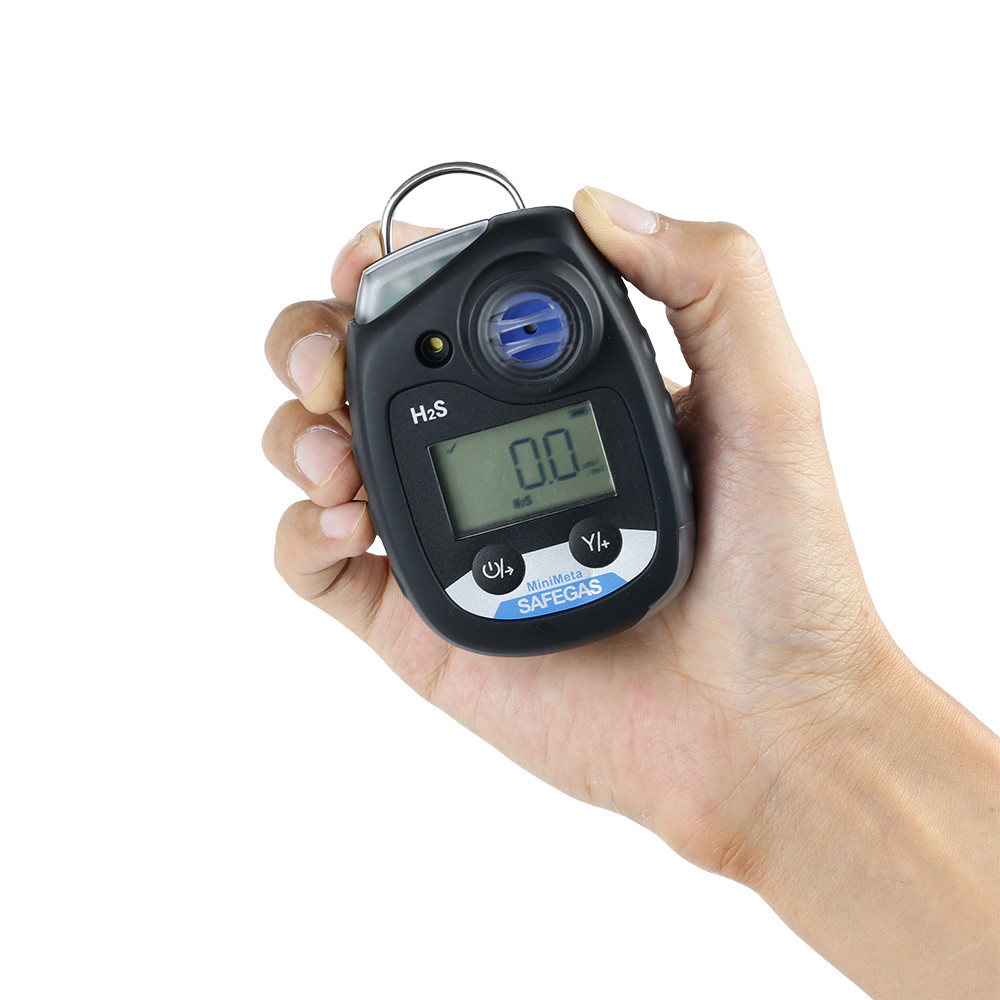

Product overview

MiniMeta is a maintenance free single gas detector that is the most reliable, user-friendly, and cost-effective detection solution to ensure worker safety and operational compliance. It provides up to 2 years of protection without the need for calibration, sensor replacement, battery replacement, or battery charging. It is IECEx, ATEX, and CNEX explosion-proof certified and meets the highest quality and reliability standards to ensure worker safety and compliance. MiniMeta is compact, sturdy, and ergonomic. It can be connected to work clothes or hats with crocodile clips, making it easy to carry. MiniMeta can detect toxic and harmful gases such as carbon monoxide, hydrogen sulfide, oxygen, and sulfur dioxide. Other toxic gases can be customized and are widely used for gas detection and personnel protection in industries such as petroleum, petrochemical, metallurgical, and chemical industries





Specification

Gas Type H2S
Detection principle Electrochemisty
Sampling Method Diffusion
Measure Range 0-100ppm
Resolution 0.1ppm, 0.001ppm
Response time ≤30s(T90)
Precision ≤± 3% F.S.
Alarm mode
Sound, light, vibration alarm, high and low alarm values can be set by yourself
Alarm type Low alarm, high alarm, STEL, TWA, low battery
Power supply mode 3.6V dry battery (non-removable and rechargeable)
Explosion-proof grade ExiaIICT4Ga
Protection class IP68
Executive standards GB 12358-2006, GB 3836.1-2010, GB 3836.4-2010, JJF1421-2013, JJF1363-2019, JJF1364-2012, JJG 365-2008, IEC 60079-0-2017, IEC 60079-11-2
Working temperature -20℃~55℃
Working humidity 0-95%RH (non-condensing)
Working air pressure 86~106kpa
Dimensions 90*60*33mm
Weight 125g





Product advantage



  • High point alarm, low point alarm, TWA, STEL multiple alarm types, users can adjust alarm setpoints as needed throughout the entire lifecycle
  • Protection level IP68, splash proof, dustproof, explosion-proof, shockproof, intrinsically safe circuit design
  • Automatically record 10 sets of recent alarm events for convenient and accurate record keeping
  • Super high buzzer alarm sound, 2 bright red LED up and down alarms, triple alarm of sound, light, and vibration to remind workers



Standard accessories


One Calibration cap
One user manual
One calibration certificate
One device

Industry Application
Community, school,Ports, warehousing,Railway tunnel, Municipal Engineering, airports,  hospital, Park, woodland, other urban construction
