Detail Information

Detected Gas:	SO2, Sulfide Dioxide	Measure Range:	0-10ppm, 0-20ppm, 0-100ppm, 0-1000ppm, 0-5000ppm
Sampling Method:	Built In Pump Suction	Alarm:	Sound&Light&Vibration
Resolution:	0.01ppm, 0.1ppm And 1ppm	Sensors:	Imported From UK, Fast Response And High Precision
Wireless:	Bluetooth(Optional Function)	Protection Level:	IP67/68
Response:	T90<10S	Certifications:	IECEX&ATEX&ISO9001&CE&CNEX&SIL
Weight:	365g	Alarm Type:	Alarm, Light, Vabration
Size:	15784.559.5mm	Humidity:	0-95%RH
Warranty:	1 Year
Highlight:	ATEX Certified Gas Leak Detector , Explosion Proof Gas Leak Detector , Gas Leak Detector IP67

Product Description

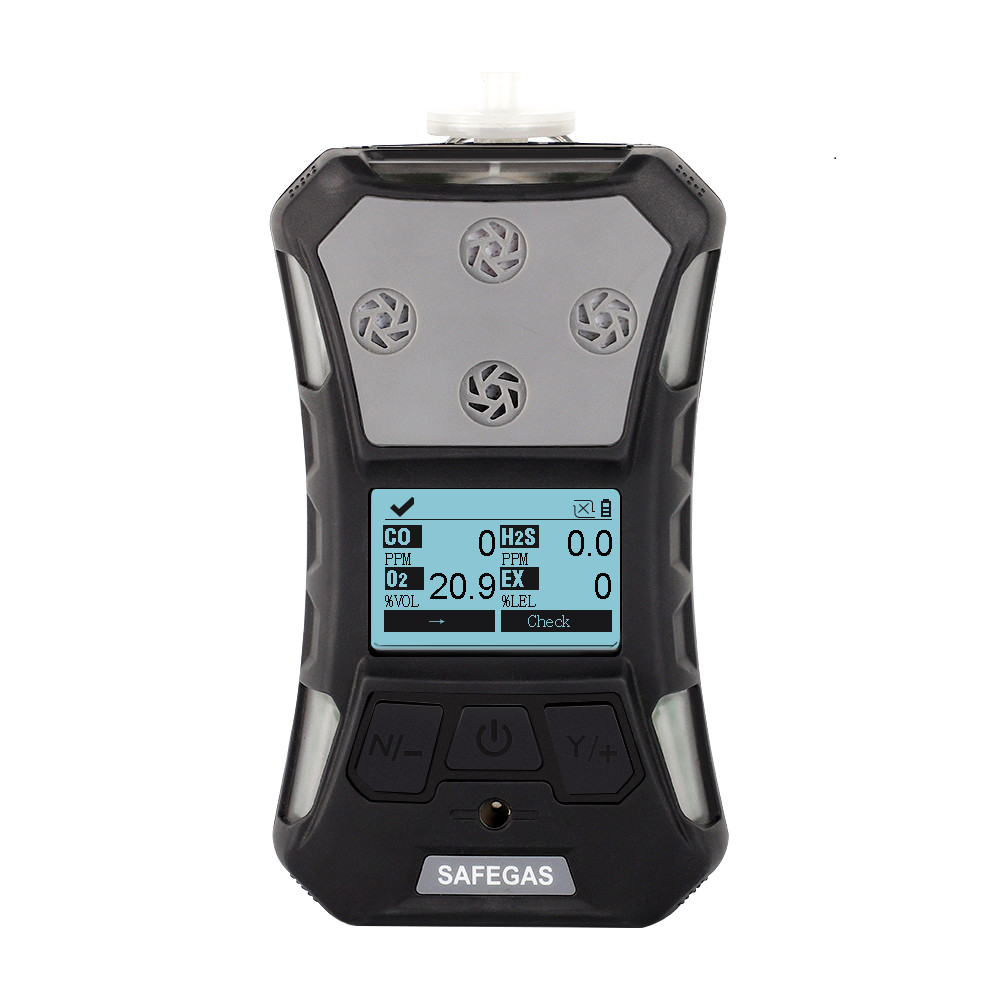

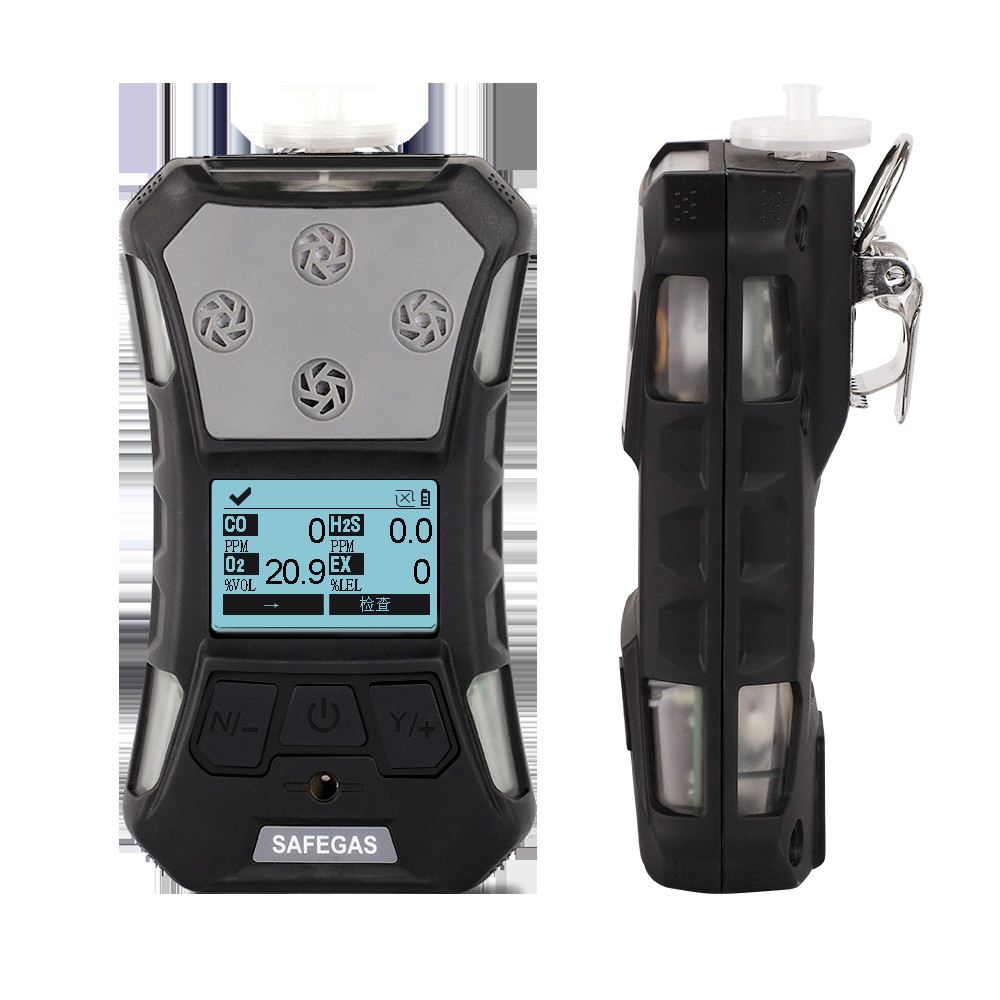

Data Logger Pump Sampling Gas Leak Detector IP67 with explosion-proof certificate

Company information

YuanTe Technology, established in 2010 and located its headquarter in Shenzhen, is a high-tech enterprise integrated research and development, manufacturing and service. The enterprise mission of "Identify everything harmful to protect the well-being of living beings" is deep in our minds. We have, according to the national standard and the market demand, developed various batches of first-rate gas devices such as detectors and alarms.

ATEX Certified Gas Leak Detector IP67 Explosion Proof with Data Logger 0

0.01 SO2 Air quality Detector Specifications:

Sampling method	Pump suction
Gas type	SO2, other gases are customized
Measure range	0-10ppm, 0-20ppm, 0-100ppm, 0-1000ppm, 0-5000ppm, other measure ranges are customized
Resolution	0.01ppm, 0.1ppm and 1ppm,other resolutions are according to sensors.
Response time	≤10 seconds
Precsiion	≤±2%F.S
Language	English(Other languages can be customized)
Automatically test and calibrate after power-on	Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit	PPM and mg/m³ can be switched
Disaply	monochrome graphics (160 x96) ,screen can be automatically flipped
Backlight	The backlight time can be manually set, and will be turned on automatically when an alarm is issued
Data record	Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported
Alarm	95dB buzzer (@30cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man down alarm, with early warning and optional real-time remote Bluetooth notification function
Battery	3.7V rechargeable lithium battery, battery capacity 2200mA
Working hours	More than 15 hours in continuous pumping mode
Charger	Travel charger with DC interface, charging time ≥ 4 hours
Explosion-proof grade	IECEX/ATEX(II IG Ex ia IIC T4 CNEX:Ex ia IIC T4 Ga
Certification (EU regulations)	2004/108/EC(EMC) 1995/5/EC(Radio) 94/9/EC(ATEX)
Protection grade	IP67/IP68
Working temperature	-20ºC~+50ºC
Humidity	0~95%RH(no condensation)
Environmental pressure	86~106Kpa
Size	15784.559.5mm (including back clip/water trap filter) (length * width * height)
Weight	365g (including battery, belt clip and filter)
Bluetooth function(Optional)	Detection data can be transmitted to the mobile phone or PC in real time

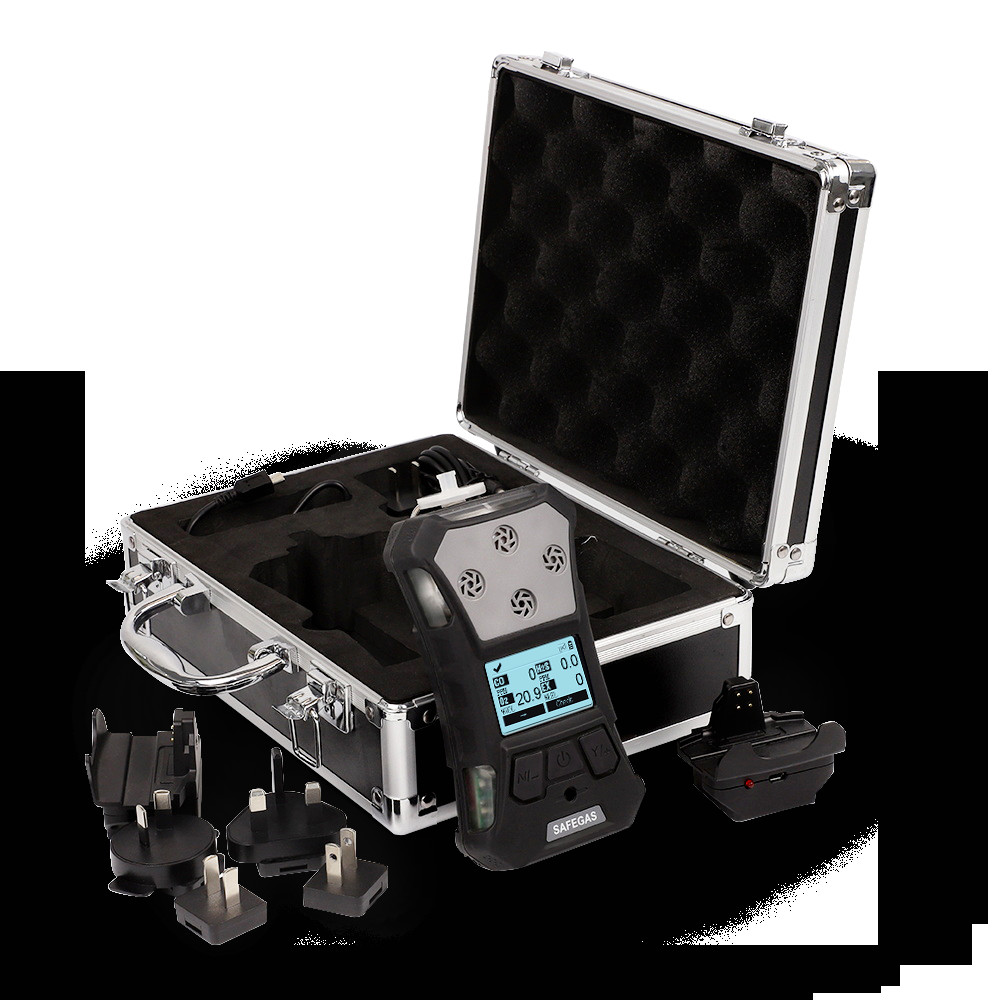

Packing

Standard Accessories

1.Instruction

2.Qualification certificate

3.warranty card

4. a Micro-USB cable

5. a water,vapour,smoke filter

6. an intake sampling rod

7. Non - toxic, tasteless, explosion-proof, waterproof, heat - resistant, high - temperature resistant,

corrosion resistant suitcase (1 set)

Why choose us?

A Professional: have been focused on gas detection devices for more than 10 years and been cooperating with Huawei, Samsung,Panasonic, Lenovo and etc famous company. We are with rich experience to provide you professional solutions.

B Innovation: strong R&D team (invest 5% revenues into research and experienced engineers team) makes our products stand out in the market

C Quality: international top brands sensor and IC /100% production test, make sure a good quality

D Professional technical support: provide detailed pre-sales and after-sales technical support, no need to worry about any problem during usage.

E Completed certifications:ATEX/CE/Rohs/ISO9001/, meet government standard as well guarantee your safety health

Tag:

Place of Origin:	China
Brand Name:	Safegas
Certification:	IECEX, ATEX, ISO9001, CE, CNEX, SIL
Model Number:	SKY3000

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	Aluminum Suitcase
Delivery Time:	1 working days
Payment Terms:	Credit Card, T/T
Supply Ability:	1000 pieces/week
