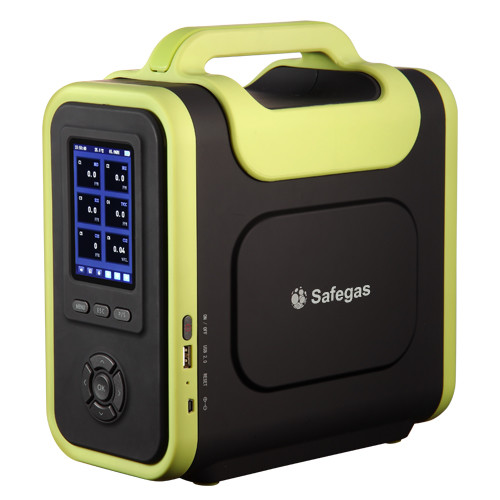

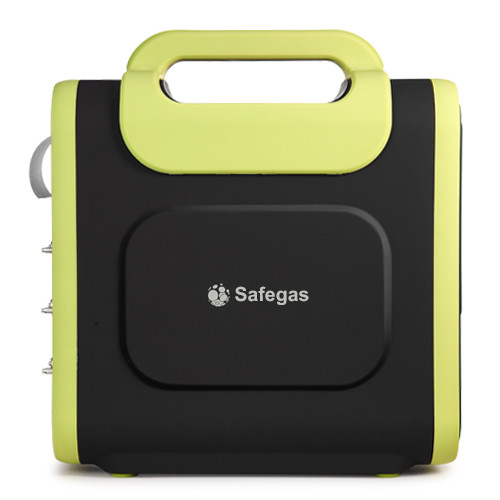

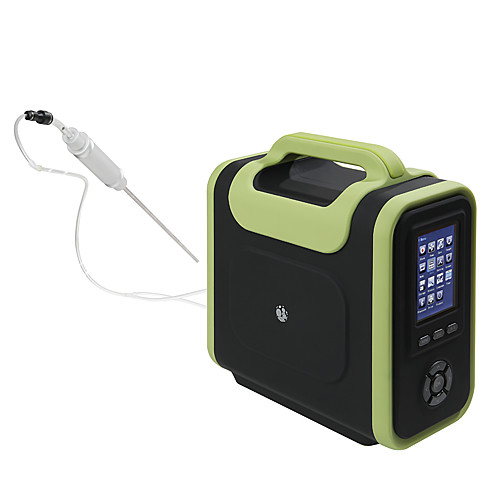

Emission Gas Sampling Analyzer High Precision Multiple Flue Gas Detector With Printer

Emission Gas Sampling Analyzer High Precision Multiple Flue Gas Detector With Printer
Emission Gas Sampling Analyzer High Precision Multiple Flue Gas Detector With Printer Emission Gas Sampling Analyzer High Precision Multiple Flue Gas Detector With Printer Emission Gas Sampling Analyzer High Precision Multiple Flue Gas Detector With Printer Emission Gas Sampling Analyzer High Precision Multiple Flue Gas Detector With Printer Emission Gas Sampling Analyzer High Precision Multiple Flue Gas Detector With Printer
Basic Information
Place of Origin: China
Brand Name: Safegas
Certification: ATEX, CNEX, ISO9001,CE
Model Number: SKY8000
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 3-5 working days
Payment Terms: Western Union, T/T
Supply Ability: 100 pieces/week
Get Best Price Contact Now
Detail Information
Detected Gas: Customized Poduct Name: Portable Multigas Emission Analyzer
Sampling Method: Pumping Alarm Type: Sound And Light
Size: 260*230*120cm Weight: 3700g
Charging Method: Charger And USB Cable Packing: Aluminum Suitcase
Warranty: 1 Year Detection Principle: Catalysis, Electrochemical, Infrared
High Light:

5V Emission Gas Sampling Analyzer

,

High Precision Multiple Flue Gas Detector

,

Aluminum Suitcase Multiple Flue Gas Detector

Product Description

Emission Gas Sampling Analyzer High Precision Mutiple Flue Gas Detector with Built-in Printer





SKY8000 Product profile

The SKY8000 series gas analyzer is a data collector that can quickly collect and analyze gas concentration components in scientific research, universities, and complex working environments. The SKY8000 gas analyzer can simultaneously detect up to 18 types of gases. It can integrate detection principles such as electrochemistry, catalysis, thermal conductivity, infrared, photoionization, and ultraviolet, emphasizing the accuracy and user experience of gas detection.
Emission Gas Sampling Analyzer High Precision Multiple Flue Gas Detector With Printer 0


Comprehensive Functions

Modular internal structure, supporting 1-18 gas detection requirements
Simple and fast screenshot settings
Measurement in high temperature and humidity environments (optional)
Simultaneously monitoring temperature, humidity, and pressure (optional)
Bluetooth, ZIGBEE, WIFI, GPRS and other wireless communication methods are optional (optional)

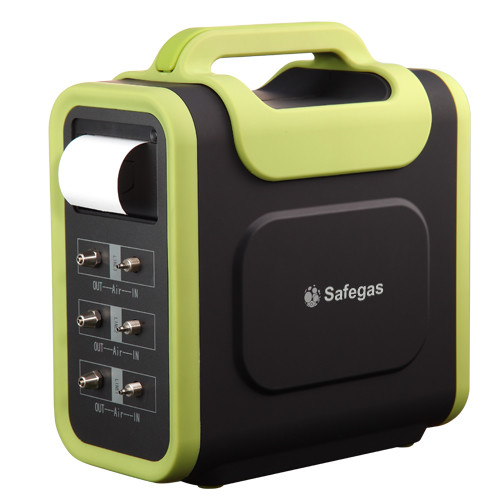

The analyzer can be equipped with a built-in printer or an external Bluetooth printer to achieve mobile printing function (optional)






Portable Multigas Emission Analyzer​ Specification

Sensors
Various principle sensors can be combined in any number , up to 18 sensors; Combustible: catalytic combustion principle orinfrared principle;
oxygen: electrochemical principle or zirconia principle;
toxic: electrochemical principle;
CO2: infraredprinciple;
VOC: PID photo ion principle;
CH4: catalytic combustion principle or infrared principle;
He: thermal conductivity Principle,
temperature and humidity sensors, pressure sensors (optional) (other principles of the sensor can be customized)
Measure range
0~1,10,100,1000,5000,50000,100000 PPM;0-100mg/L,200mg/L;
0-100%LEL;0-10%,20%,50%,99.999%,100%Vol(Measure range is optional and customerized)
Resolution
0.001 PPM(0-1 PPM);0.01 PPM or 0.001 PPM(0~10 PPM);
0.1 PPM or 0.01 PPM(0~100 PPM);1 PPM or 0.1 PPM(0~1000 PPM);
1 PPM(0~1000 PPM);0.01mg/L(0~200%mg/L);0.1%LEL(0-100%LEL);0.01%(0-100%VOL)

Display
Formula, gas concentration data, measurement trend curve, gas curve, battery, time, temperature, humidity, pressure (optional),
pump condition, wireless status, printer status, screen shot status
Alarm
Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm
Data storage
Independent SD memory card, Max.32G, measurement data can be record automatically, customizable record time interval.
Data transmission and download
RS232,RS485 singnal output, USB interface data transmission, with the upper computer software, can download storage, analyze and
print data
Print function(Optional)
Optional with internal portable printer or external bluetooth printer
Print content(Optional)
Text, graphics, one-dimensional code, two-dimensional code, curves, characters, etc.

Charger
Standard Mini-USB charging port. With 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer )
Language
Chinese/English
Wireless network (optional)
Bluetooth, Zigbee
Network frequency
2.4G high frequency.
wireless transmission distance
Bluetooth is less than 10m, and the ZigBee outdoor single point is less than 500m.



Emission Gas Sampling Analyzer High Precision Multiple Flue Gas Detector With Printer 1



Portable Multigas Emission Analyzer​ Features



Accurate and reliable

Multi-display mode

Comprehensive functions

Data logging

Mobile recharging and long operation time

High quality material

Application
- Confined space, research and high standard test environment,
- Complex environment of multiple gases





Industry Application
Park, woodland, Municipal Engineering, Ports, warehousing, airports, Railway tunnel, Community, school, hospital, other urban construction
