| Place of Origin: | China |
|---|---|
| Brand Name: | SZYUANTE |
| Certification: | ATEX/CE |
| Model Number: | YT-95H-C2H4 |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 pieces/week |
| Model Number: | YT-95H-A | Detected Gas: | C2H4 |
|---|---|---|---|
| Sensor Principle: | Electrochemistry, PID | Measure Range: | 0-10,50,100,500,1000ppm |
| Resolution: | 0.01,0.1,1ppm | Install Method: | Wall-mounted, Piping Type, Flow-type |
| Power Supply: | 24V DC | Gross Weight: | 3 KG |
| Product Size: | 180*150*90mm | Warranty: | 1 Year |
| High Light: | Alarm Light Ethylene Gas Detector,C2H4 Ethylene Single Gas Detector,Fruit Vegetable Catalysis Single Gas Detector |
||

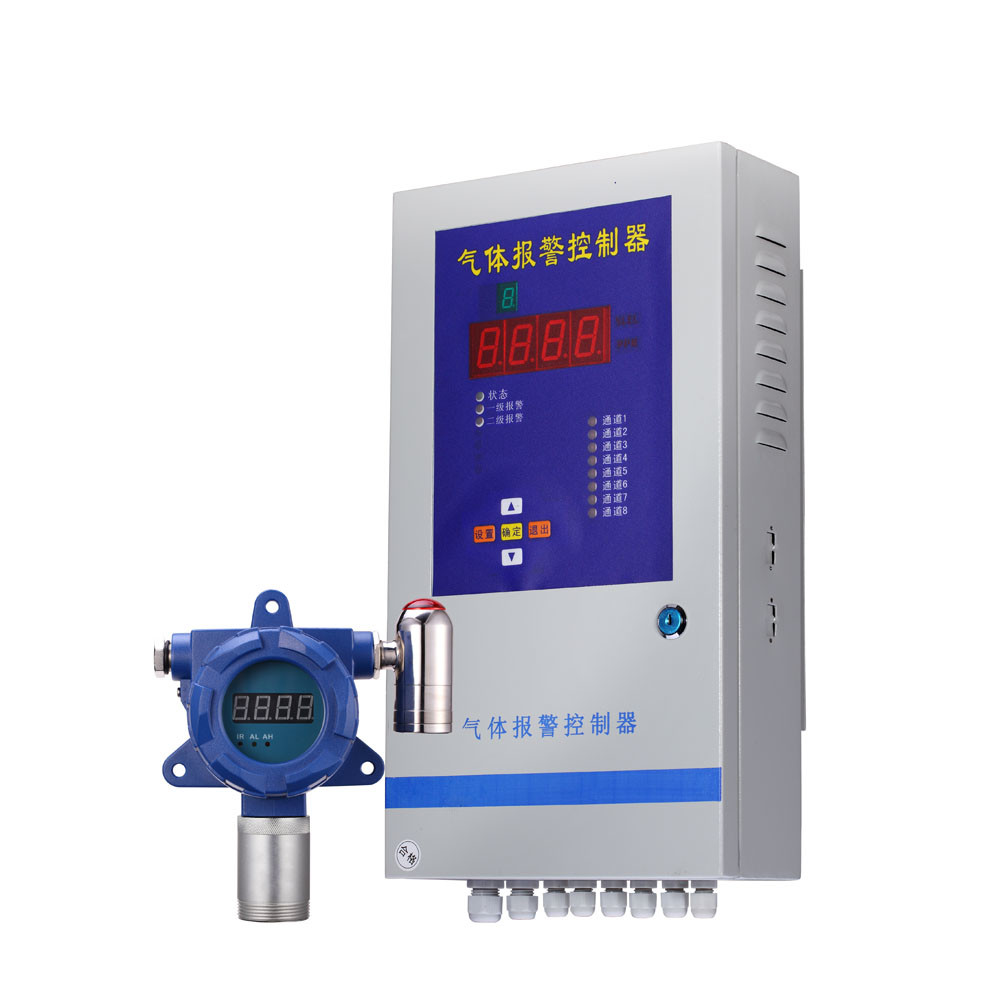

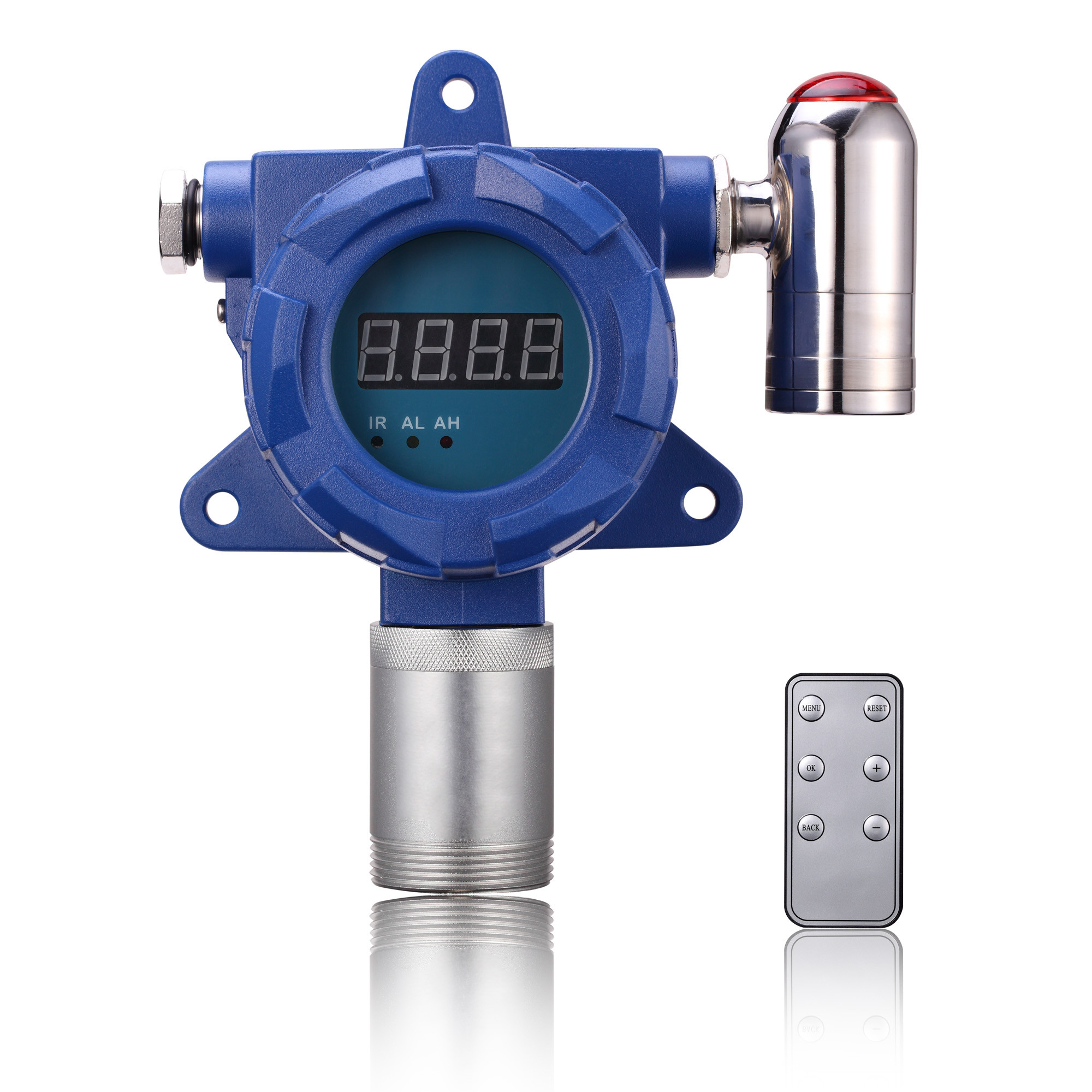

Fixed single gas C2H4 Ethylene gas detector with Alarm light for Fruit and vegetable catalysis
Product Overview
Product Features
1. Infrared ray control function, which can non-contacted control the detector. Being compatible with all kinds of controlled alarms, PLC, DCS and other control system
2. an output one or two on-off signals, can drive ventilator or solenoid valve and other external devices
3. Two-stage alarm with sound and light, alarm point is settable
4. Use imported US/UK original sensors to keep the high precision and fast response
5. Working Voltage:12-36V DC
6. With temperature compensation, this is able to realize gas concentration compensation under conditions of different temperatures
7. Explosion-proof grade: II 2G Ex db IIC T6 Gb IP65
8. Monitor the CH4 Methane gas concentration in environment or pipeline and alarm
9. Case:die-cast aluminum + stainless steel (alarm light)
Specification
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
The picture provided from our clients
