| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | Safegas |
| Certification: | CPA |
| Model Number: | YT-1100H |
| Minimum Order Quantity: | 1 Pcs |
| Price: | Negotiable |
| Packaging Details: | Standard carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, T/T,Credit card |
| Supply Ability: | 1000pcs/week |
| Model Number:: | YT-1100H | Alarm Type: | Sound, Light, Vibration |
|---|---|---|---|
| Alarm Set: | Low Alarm, High Alarm | Install Method: | Wall Mounted |
| Product Weight:: | ≤1.7kg | ||
| High Light: | 4 Channels Gas Alarm Controller,Wall Mounted Gas Alarm Controller |
||
Wall-Mounted 1-4 Channels Gas Alarm Controller Support 4-20mA Signal Acquisition
Company Profile
Established in 2010, Shenzhen YuanTe Technology Co., Limited is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 16 years. With gas detector as the core p roduct, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and
Forestry, Household Appliances, etc. Through about 10 years of rapid development, Yuante becomes the influential supp lier.
Product Overview
YT-1100H is a wall-mounted gas control panel. This model is mini size, flexible and convenient to install. Support 1-4 channels 4-20MA signal acquisition and with sound and light alarm function. Relying on accurate gas detection and monitoring, the panel can control solenoid valves, exhaust fans, motors, water pumps, sound and light alarms, sprinkler systems, machinery and equipment, etc, to achieve automatic operation.
Product Advantage
Product Specification
| Installation method: | Wall-mounted |
| Dimensions: | 73.7x192.5x83.7mm |
| Input channel: | 4~20mA, 1ch, 2ch and 4ch (optional) |
| Relays: | 1, 2, 5 (optional) The number of relays is determined by the number of input channels, and the maximum support for driving AC250V 10A load |
| Channel display: | 1 digit |
| Concentration display: | 4 digits, 0.001~9999 (depending on the sensor) |
| Unit display: | PPM, %VOL, %LEL |
| Inspection interval: | 200ms (data collection time interval) |
| Power input: | AC 100~220V 50/60Hz |
| Power output: | DC 24V, 0.25A/channel |
| Working temperature: | -10℃～50℃ |
| Working humidity: | ≤95%RH, no condensation |
| Product weight: | ≤1.7kg |

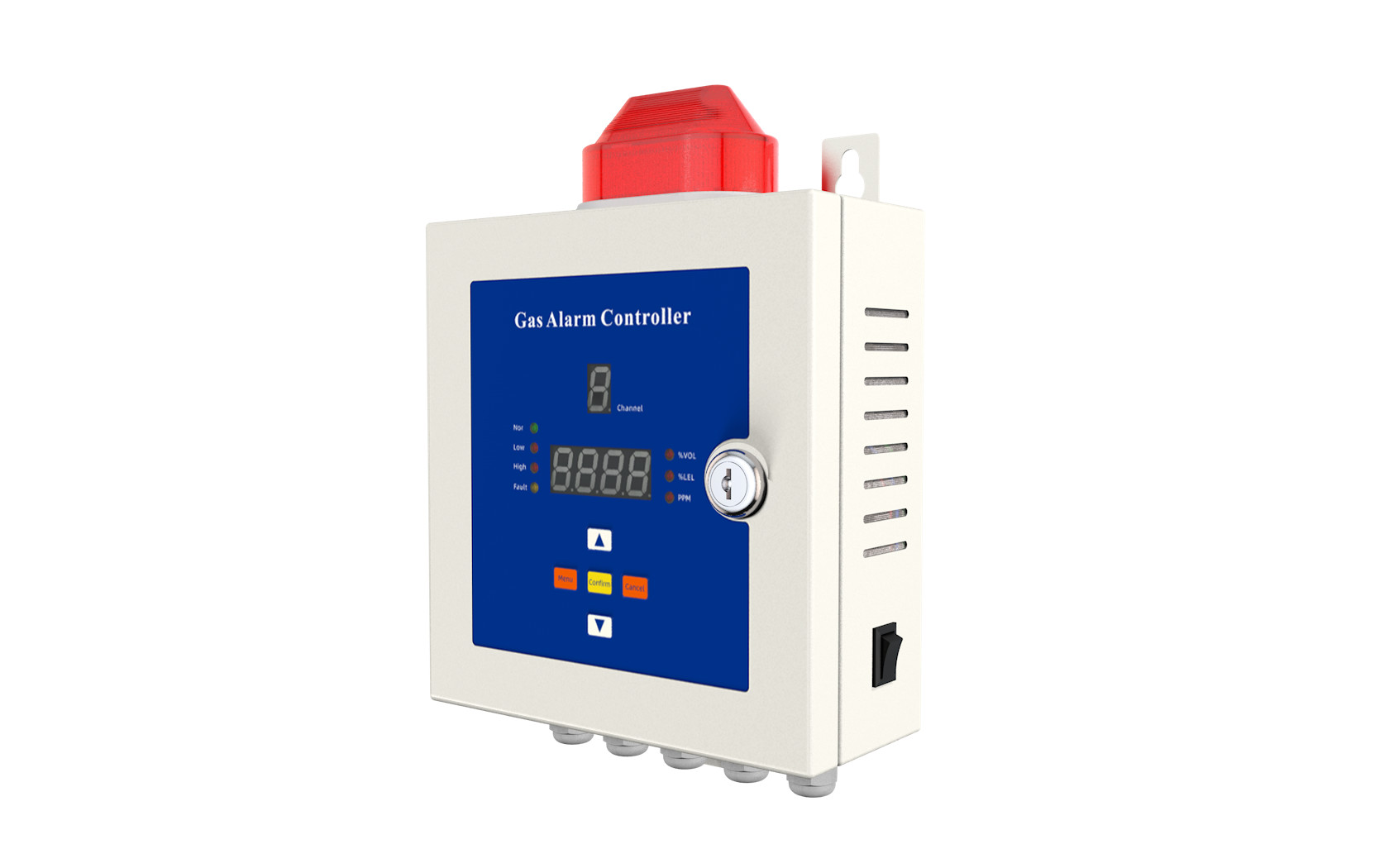

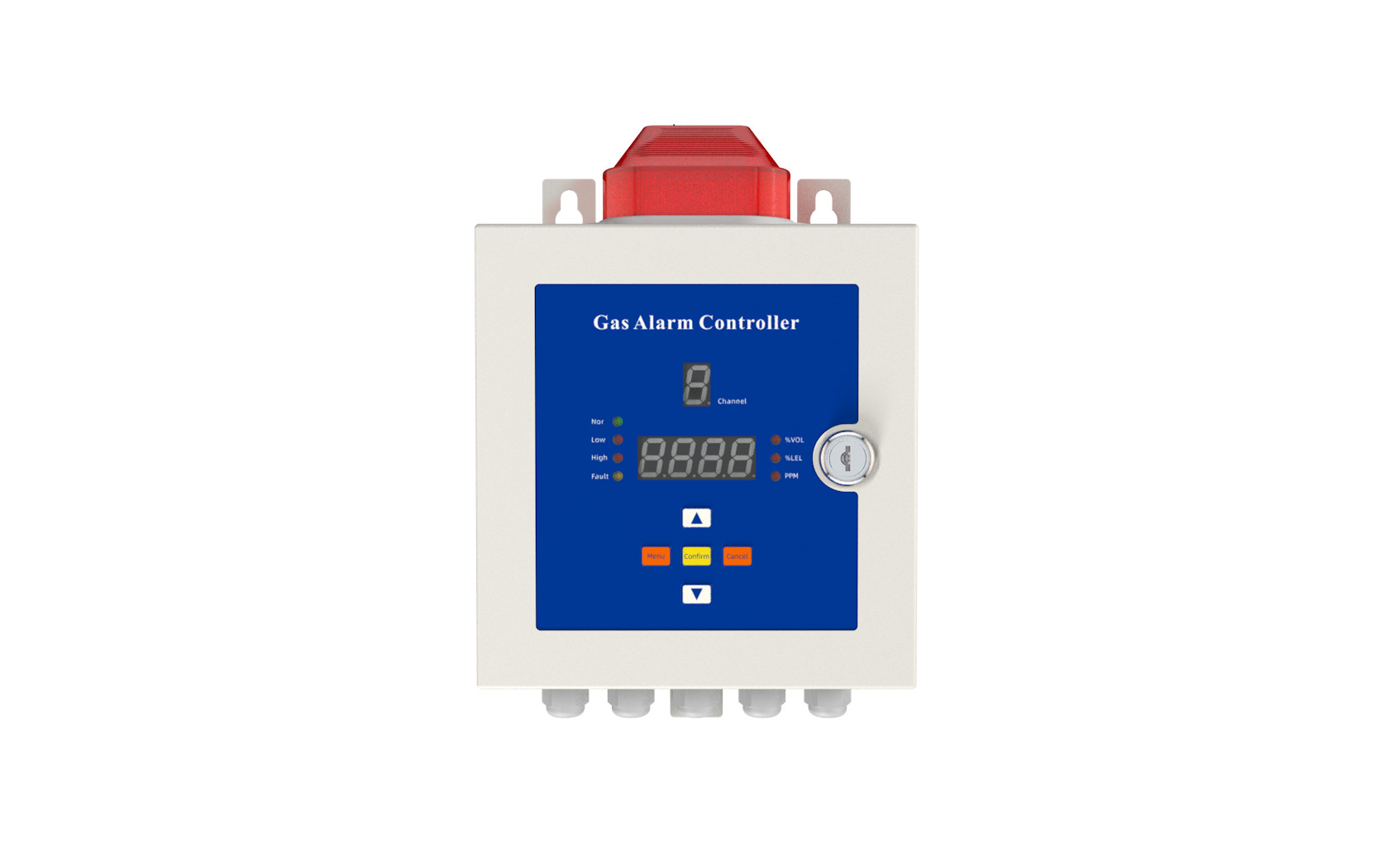

Product Detail
(Control panel size is as small as a phone)
FAQ
1. Do you have a minimum order quantity?
No, we don't. Singles are welcome
2. Can I order a sample?
Yes, we are welcome to order samples for testing and quality check
3. What are the terms of payment?
Visa, mastercard, e-check, Wire transfer, Western Union, Alipay.
4. What about the packing?
Aluminum suitcase, carton
