| Place of Origin: | China |
|---|---|
| Brand Name: | Safegas |
| Certification: | ATEX/IECEX/CE/EMC |
| Model Number: | SKY3000-O2 |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase |
| Delivery Time: | 1-3 working days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 100 pieces/day |
| Model Number:: | SKY3000-O2 | Sensor Principle: | Eletcrochemical |
|---|---|---|---|
| Measure Range: | 0-100%VOL | Resolution: | 0.01%VOL |
| Response Time: | ≤30 Seconds | Precision: | ≤±2%F.S |
| Working Hours: | More Than 15 Hours By Pumping Continuousely | Disaply: | LCD Display (160 X96), Screen Can Be Automatically Flipped |
| Language: | Chinese/English（More Language Can Be Customized) | Backlight: | The Backlight Time Can Be Manually Set, And Will Be Turned On Automatically When An Alarm Is Issued |
| High Light: | 30 Seconds Oxygen Gas Detector,Oxygen Gas Detector With TWA Display,STEL Display Oxygen Gas Detector |
||
Large Range Oxygen Gas Detector 0-100%VOL With TWA STEL Display
Product Overview
| Gas Detected | O2 | ||
| Detection principle | Electrochemical | ||
| Sampling Method | Pumping suction | ||
| Measure Range | 0-100%VOL | ||
| Resolution | 0.01%VOL | ||
| Precision | ≤±2%F.S except for special gases | ||
| Response Time | ≤30 seconds | Recovery Time | ≤10S |
| Repeatability | ≤±1% | Linearity error | ≤±1% |
| Zero shift | ≤±1%F.S/year | Display | LCD dot matrix display |
| Operating language | Chinese/English | Gas unit | Units are switchable |
| Temperature | -20℃-50℃ | Humidity | 0-90%RH |
| Explosion-Proof | IECEx: Ex ia IIC T4 Ga ATEX: II 1G Ex ia IIC T4 Ga | Degree of protection | IP67 |
| Alarm mode | Sound, light, vibration | Environmental pressure |
86～106Kpa |
| Dimensions | 157*84.5*59.5mm | Weight | 365g |
Product Advantages
1. Durable and sturdy
2. Multiple security protection
3. Powerful and user-friendly operation
4. Explosion proof circuit design, safe and reliable
5. Large screen display, flexible detection system, and various filtering devices
6. Can measure multiple gases simultaneously, with multiple digital displays
7. Explosion proof certification, explosion-proof industry: IECEx: Ex ia IIC T4 Ga ATEX: II Ex ia IIC T4 Ga

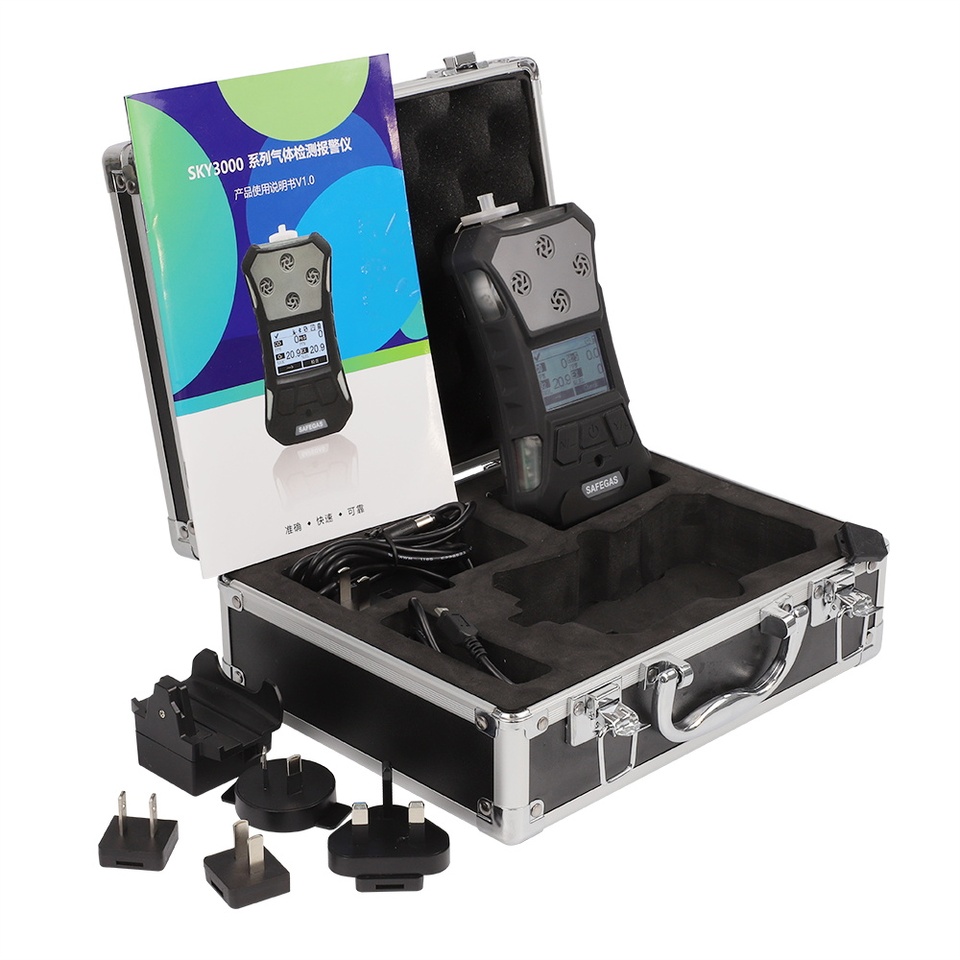

Product Package
Certifications
