Safety Protection Single So2 Gas Leakage Detector With Eletrochemistry Sensor 0-100ppm For Factory

Basic Information
Place of Origin: China
Brand Name: Safegas
Certification: ATEX/EMC/IECE
Model Number: Minimeta
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton
Delivery Time: 3 work days
Payment Terms: T/T, Western Union
Supply Ability: 3000 pieces per month
Detail Information
Gas Type: SO2 Weight: 125g
Alarm Type: Sound, Light, Vibration Alarm, High And Low Alarm Values Can Be Set By Yourself Measure Range: 0-100ppm
Size: 90*60*33mm Humidity: 0-95%RH
Sampling Method: Diffussion Operating Temperature: -20℃~50℃
Zero Drift: 0.1ppm Response Time: ≤30s(T90)
Protection Class: IP68 Detection Principle: Electrochemical Principle
Warranty: One Year Warranty
High Light:

Single So2 Gas Leakage Detector

,

Eletrochemistry Sensor So2 Gas Leakage Detector

,

100ppm So2 Gas Leakage Detector


Product Description



Safety Protection Single So2 Gas Leakage Detector with Eletrochemistry Sensor 0-100ppm for Factory Use





Company profile

Established in 2010, Shenzhen YuanTe Technology Co., Limited is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 16 years. With gas detector as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc. Through about 10 years of rapid development, Yuante becomes the influential supplier.



Product overview

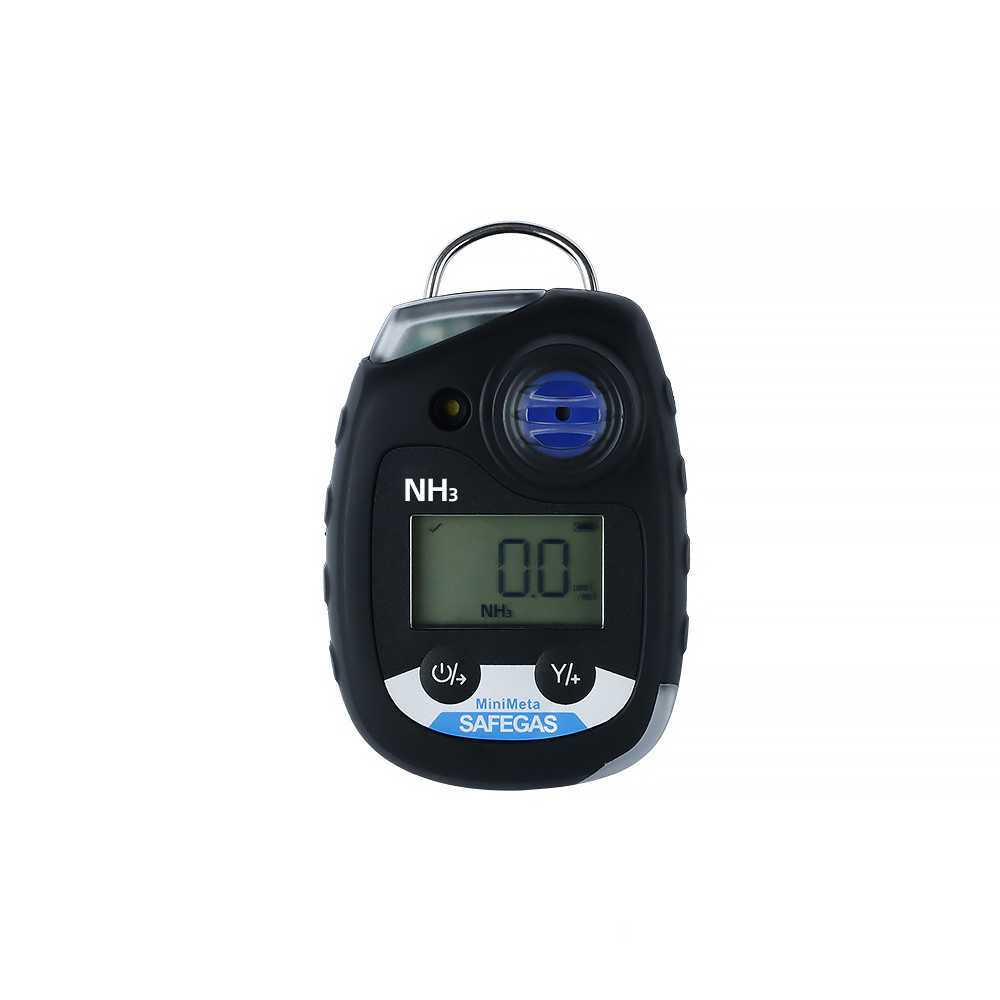

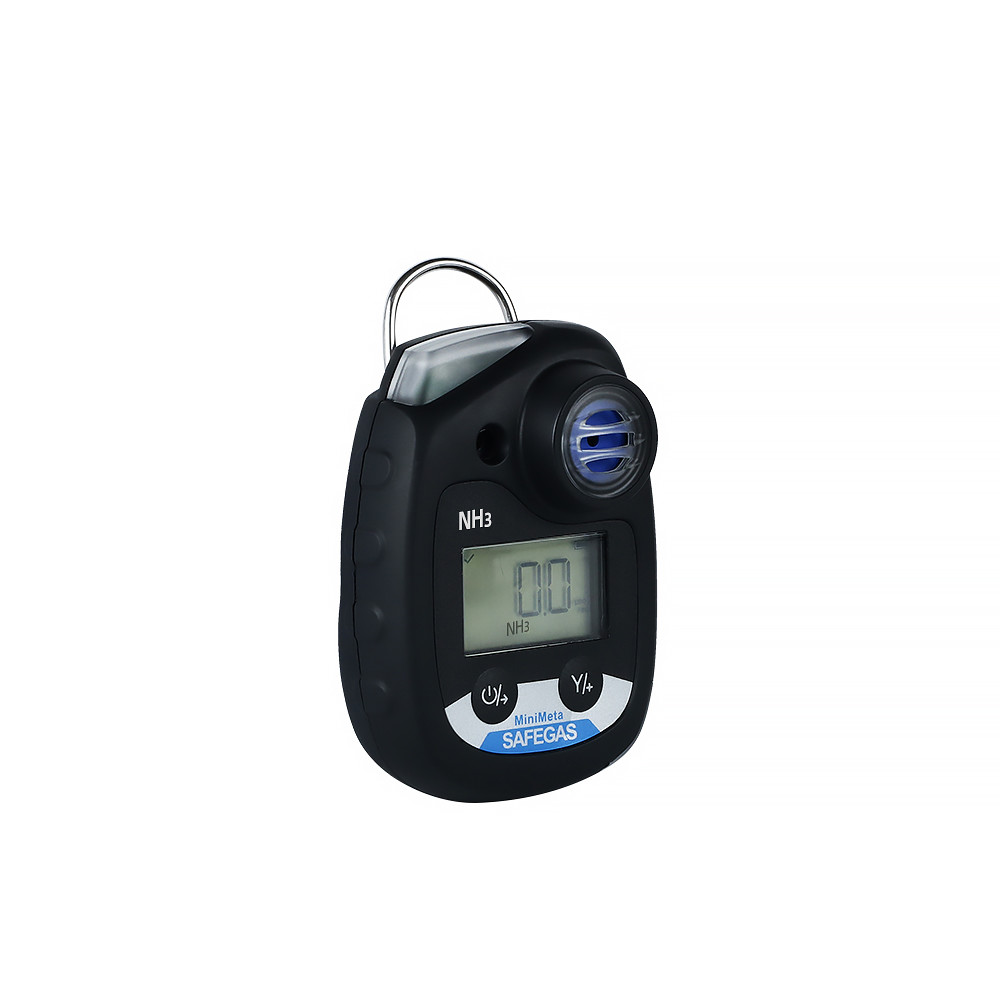

MiniMeta is an IECEX/ATEX/EMC certified single-gas detector with a rating of IP68. It is with small size, light weight and with back clip for easily carry. The battery and sensor is replaceable and low power consumption for 2 years standby time, no need battery charge and calibration.



Product advantage

1. The minimeta gas detector has IECEX/ATEX/EMC certificates, which has received international safety certification.

2. Our product is with no need battery charge and calibration, you can use it more than 2 years and then using another replaceable battery,

3. The sensors of minimeta are all imported from international top brands, such as Alpha, City, Icon, Honeywell and so on.



Safety Protection Single So2 Gas Leakage Detector With Eletrochemistry Sensor 0-100ppm For Factory 0





Specification

Gas Type SO2
Detection principle Electrochemistry
Sampling Method Diffusion
Measure Range 0-100PPM
Resolution 0.1PPM
Response time ≤30s(T90)
Precision ≤± 3% F.S.
Alarm mode
Sound, light, vibration alarm, high and low alarm values can be set by yourself
Alarm type Low alarm, high alarm, STEL, TWA, low battery
Power supply mode 3.6V dry battery (non-rechargeable)
Explosion-proof grade ExiaIICT4Ga
Protection class IP68
Executive standards GB 12358-2006, GB 3836.1-2010, GB 3836.4-2010, JJF1421-2013, JJF1363-2019, JJF1364-2012, JJG 365-2008, IEC 60079-0-2017, IEC 60079-11-2
Working temperature -20℃~55℃
Working humidity 0-95%RH (non-condensing)
Working air pressure 86~106kpa
Dimensions 90*60*33mm
Weight 125g





Minimeta worn by worker in factory



Safety Protection Single So2 Gas Leakage Detector With Eletrochemistry Sensor 0-100ppm For Factory 1








Standard accessories

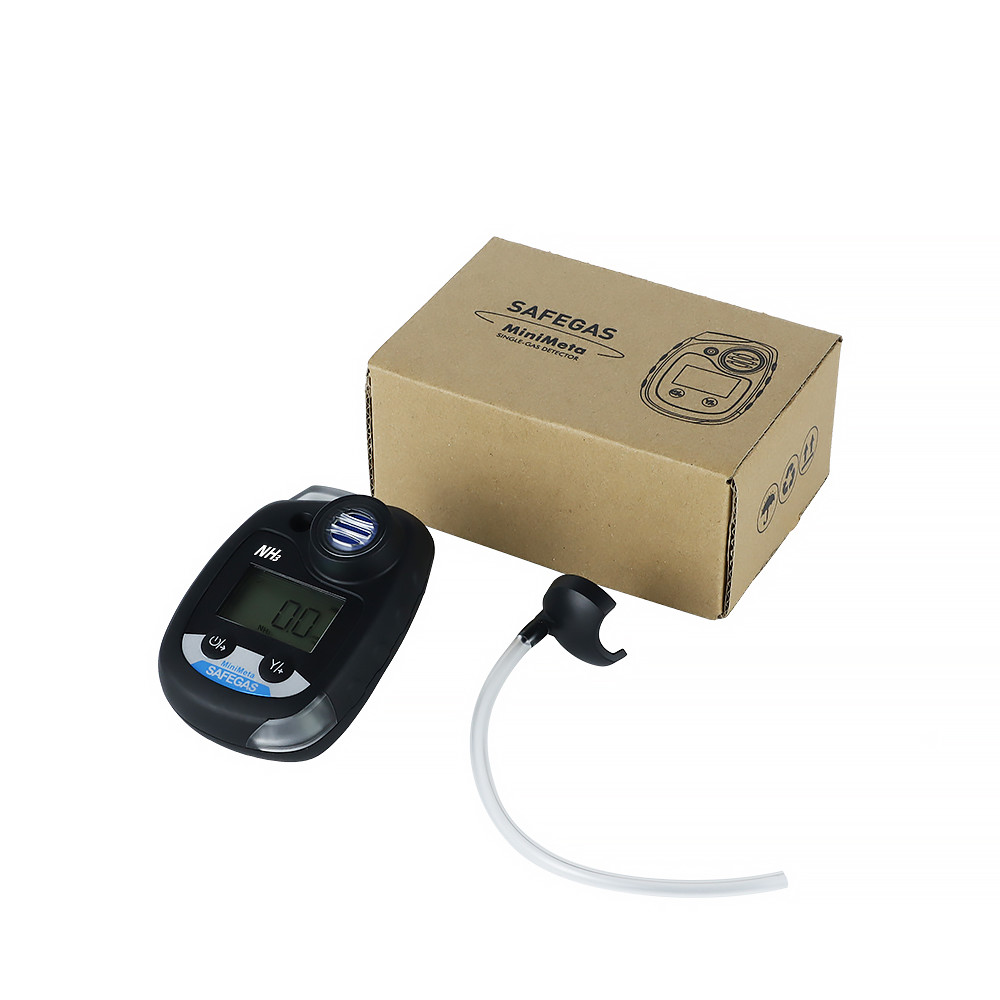

1 Calibration cap, 1 user manual, 1 calibration certificate, 1 device.





FAQ

Q1: Are you factory or trade company?
A1: We are factory.


Q2: What about the payment method?
A2: Credit card, T/T, Western Union are available


Q3: Does your company accept customization?
A3: We do customizing service for customers.


Q4: What about the Shipment?
A4: We’ll choose proper transportation mode based on the weight of goods, usually arrange shipment byair express such as DHL,FEDEX,TNT or UPS.


Q5: What about after-sale service?
A5: 12 months warranty or 24 months warranty for all kinds of products.



Q6: How about the Calibration?

A6: Before send out, we will calibrate each pieces well with standard gas.



Q7: What certifications do you have?

A7: ATEX CE ISO9001-2015.

Industry Application
Chemical industry, environmental protection company, animal husbandry, mining, electric power engineering, municipal
