| Place of Origin: | China |
|---|---|
| Brand Name: | Safegas |
| Certification: | ATEX, CNEX, ISO9001,CE |
| Model Number: | SKY8000 |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 100 pieces/week |
| Detected Gas: | Voc Co So2 O2 H2s Nh3 | Poduct Name: | Portable Multigas Emission Analyzer |
|---|---|---|---|
| Sampling Method: | Inner Pumping Suction | Alarm Type: | Sound And Light |
| Size: | 260*230*120cm | Weight: | 3700g |
| Charging Method: | Charger And USB Cable | Packing: | Aluminum Suitcase |
| Warranty: | 1 Year | Detection Principle: | Catalysis, Electrochemical, Infrared |
| High Light: | VOC Multi Gas Analyzer,Exhaust Multi Gas Analyzer,Portable Exhaust Gas Detector |
||
Flue Gas Exhaust Voc Co So2 O2 H2s Nh3 Multi Gas Analyzer for Mining Use
Factory Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited(Safegas) is a company that focuses on the design, production and sales of gas detection equipment and system for 13 years. With"gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.
Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality, which are comparable to international brand like Honeywell, MSA, RAE, but our products with competitive price.
Product overview
Portable Multigas Emission Analyzer Features
Accurate and reliable
Multi-display mode
Comprehensive functions
Data logging
Mobile recharging and long operation time
High quality material
Application
- Confined space, research and high standard test environment,
- Complex environment of multiple gases
Portable Multigas Emission Analyzer Specification
| Sensors | Professional Flue Sensor, Electrochemistry, PID, IR, Catalytic combustion |
| Measure range | 0-1000ppm, 0-2000ppm, 0-5000ppm, 0-10000ppm, 0-50%VOL (Measure range is optional and customized) |
| Resolution | 1ppm |
| Display |
Formula, gas concentration data, measurement trend curve, gas curve, battery, time, temperature, humidity, pressure (optional), pump condition, wireless status, printer status, screen shot status |
| Alarm | Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm |
| Data storage | Independent SD memory card, Max.32G, measurement data can be record automatically, customizable record time interval. |
| Data transmission and download | RS232,RS485 signal output, USB interface data transmission, with the upper computer software, can download storage, analyze and print data |
| Print function(Optional) | Optional with internal portable printer or external Bluetooth printer |
| Print content(Optional) | Text, graphics, one-dimensional code, two-dimensional code, curves, characters, etc. |
| Charger |
Standard Mini-USB charging port. With 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer ) |
| Language | Chinese/English |
| Wireless network (optional) | Bluetooth, Zigbee |
| Network frequency | 2.4G high frequency. |
| wireless transmission distance | Bluetooth is less than 10m, and the ZigBee outdoor single point is less than 500m. |
Accessories & Configuration List
Standard Accessories
SKY8000 Portable Multigas Emission Analyzer
Aluminum suitcase
A charging adapter
User Manual
Qualification/Calibration certificate
100°C high temperature probe
Filter
USB cable
Optional Accessories
Probe: 600°C, 1200°C imported from Germany
Bluetooth printer

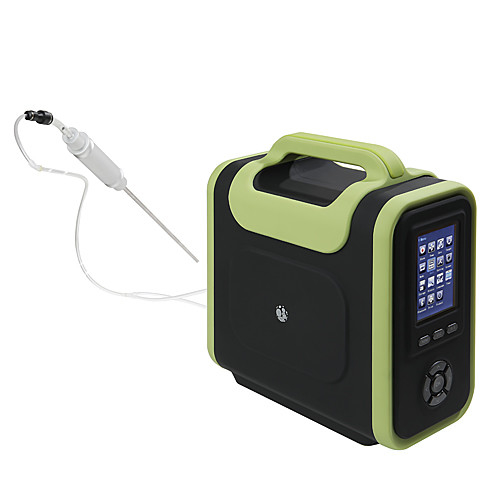

The high temperature probe with SKY8000:
The SKY8000 gas analyzer in the detected environment
