| Place of Origin: | China |
|---|---|
| Brand Name: | YuanTe |
| Certification: | ATEX, CNEX, ISO9001,CE |
| Model Number: | SKY8000 |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 100 pieces/week |
| Detected Gas: | Co CO2 Hc Nox O2, Etc Different Gases | Poduct Name: | Portable Multigas Emission Analyzer |
|---|---|---|---|
| Sampling Method: | Inner Pumping Suction | Alarm Type: | Sound And Light |
| Size: | 260*230*120mm | Weight: | 3700g |
| Charging Method: | Charger And USB Cable | Packing: | Aluminum Suitcase |
| High Light: | Exhaust Multi Gas Analyzer,Inner Pumping Suction Multi Gas Analyzer,Inner Pumping Suction Exhaust Gas Detector |
||

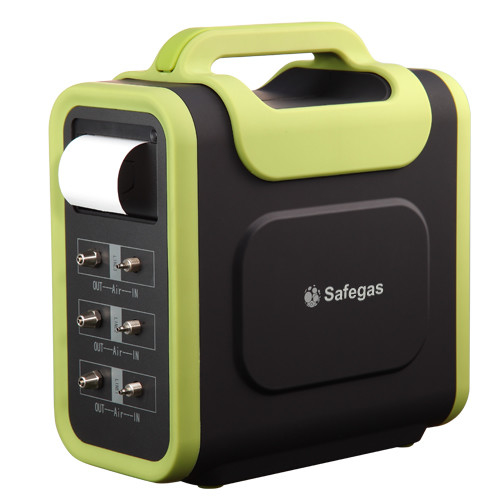

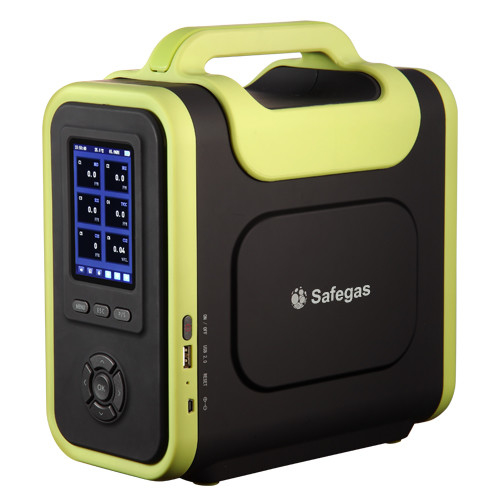

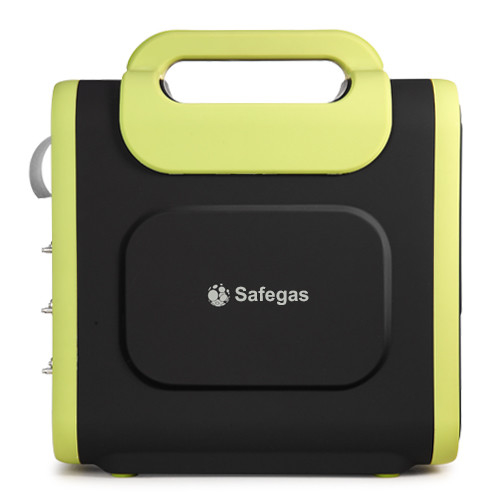

Engine Exhaust Multi Gas Analyzer Co CO2 Hc Nox O2 with 32g Memories Card
Why choose us?
1.Our products have obtained IECEx and ATEX explosion-proof certification, so our detectors can be used in hazardous areas such as mines, underground and oil plants, etc. We are the first and only manufacturer in China to obtain this certification. Products without explosion-proof certification are prohibited to be used in hazardous areas.
2.As our core components, IC or sensors are used imported brands such as Honeywell, CITY and Alpha, etc., which make our products with high precision and stabilize the life of the products. It ensures the accuracy of detection and escorts the life safety of customers.
3. Our complete product line and stable inventory provide customers with fast delivery time. We can ship it out within 3 days for the quantity of less than 10 pieces. Even for the mass production of 100 pieces, we can complete within half a month.
Product overview
Product advantage
1. Top brand sensor from UK and Built in micro sampling pump, fast response and high precision.
2. Special structure design and selected aviation wear-resisting material, suitable for various kind of industry environment
3. Up to 18 gases can be detected at the same time, meet many detection demand.
4. 3.5inch high definition color screen, with gas concentration data and real-time curve display switchable, clear and smart
5. With Mini-USB charging interface designm ,makes charging more convenient
6. With independent SD memory card, historical tested data can be viewed and deleted and the storage space can be customized
7.Analyzer can be equipped with internal printer or external Bluetooth printer, to realize the mobile print function(Optional).
Comprehensive Functions
1.Modular internal structure, supporting 1-18 gas detection requirements
2.Simple and quick screenshot settings
3.Monitor the temperature, humidity, pressure at the same time(Optional)
4.Bluetooth, ZIGBEE, WIFI, GPRS and other wireless communication modes are selectable(Optional)
5.Analyzer can be equipped with internal printer or external Bluetooth printer, to realize the mobile print function(Optional)
6.High temperature, high humidity environment measurement(Optional)
Portable Multigas Emission Analyzer Specification
| Sensors | PID, Electrochemistry, Infrared |
| Measure range | 0-1000ppm, 0-2000ppm, 0-5000ppm, 0-10000ppm(Measure range is optional and customized) |
| Resolution | 1ppm |
| Display |
Formula, gas concentration data, measurement trend curve, gas curve, battery, time, temperature, humidity, pressure (optional), pump condition, wireless status, printer status, screen shot status |
| Alarm | Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm |
| Data storage | Independent SD memory card, Max.32G, measurement data can be record automatically, customizable record time interval. |
| Data transmission and download | RS232,RS485 signal output, USB interface data transmission, with the upper computer software, can download storage, analyze and print data |
| Print function(Optional) | Optional with internal portable printer or external Bluetooth printer |
| Print content(Optional) | Text, graphics, one-dimensional code, two-dimensional code, curves, characters, etc. |
| Charger |
Standard Mini-USB charging port. With 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer ) |
| Language | Chinese/English |
| Wireless network (optional) | Bluetooth, Zigbee |
| Network frequency | 2.4G high frequency. |
| wireless transmission distance | Bluetooth is less than 10m, and the ZigBee outdoor single point is less than 500m. |
Pictures from our customers detecting flue gas with temperature probe in the factory
Accessories & Configuration List
Standard Accessories
SKY8000 Portable Multigas Emission Analyzer
Aluminum suitcase
A charging adapter
User Manual
Qualification/Calibration certificate
100°C high temperature probe
Filter
USB cable
Optional Accessories
Probe: 600°C, 1200°C imported from Germany
Bluetooth printer
