100%Vol N2 Nitrogen diffusion type Gas Detector for Gas Purity Detection
Company profile
We mainly focus on the design, production, and sales of high-end gas detection equipment and system. There are portable and fixed detectors for oxygen, toxic gas, explosive gas, and etc, mainly for industrial use. All sensor(main parts of detector) we use are imported from USA, Japan, Korea and Europe, there are brands like Alpha, City, Ion, Honeywell and etc, which is same level to BW, Drager, RAE, MSA.
Our Advantage
A Professional: have been focused on gas detection devices for more than 10 years and been cooperating with Huawei, Samsung,Panasonic, Lenovo and etc famous company. We are with rich experience to provide you professional solutions.
B Innovation: strong R&D team (invest 5% revenues into research and experienced engineers team) makes our products stand out in the market
C Quality: international top brands sensor and IC /100% production test, make sure a good quality
D Professional technical support: provide detailed pre-sales and after-sales technical support, no need to worry about any problem during usage.
E Completed certifications:ATEX/CE/Rohs/ISO9001/, meet government standard as well guarantee your safety health
Product overview

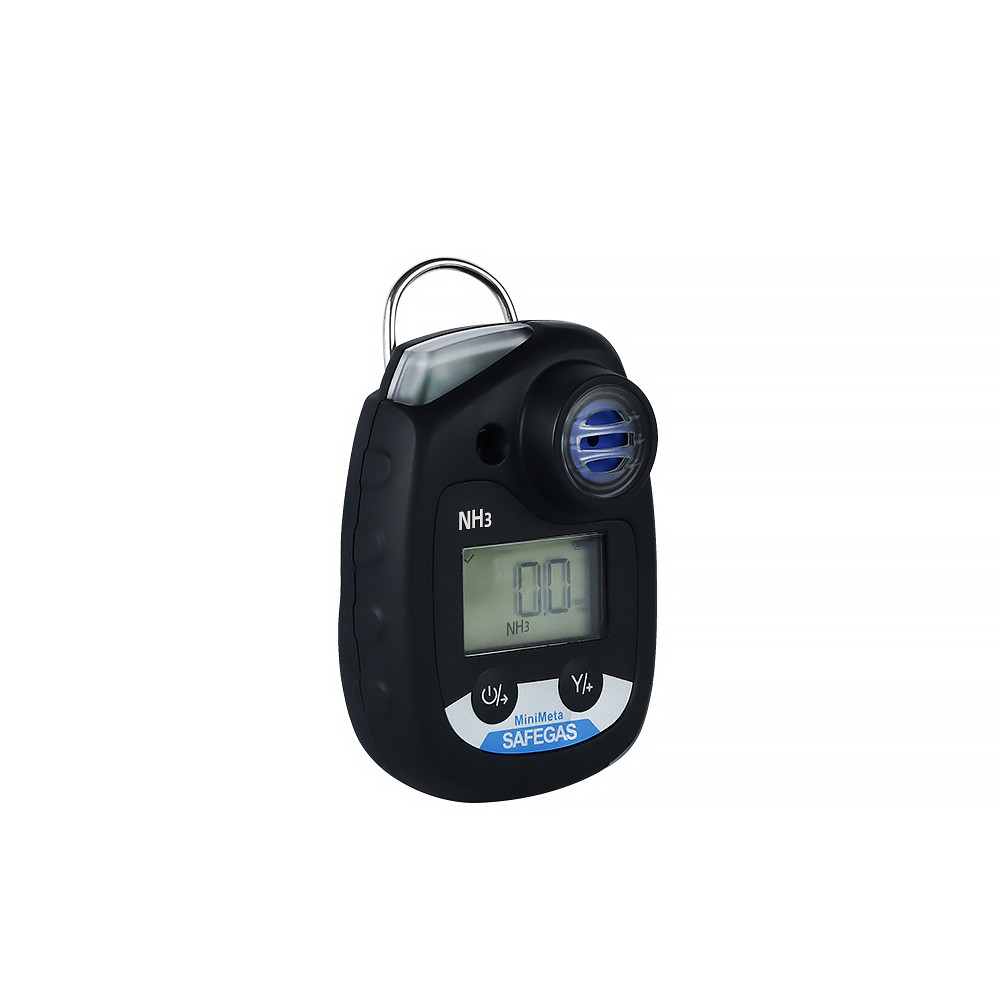

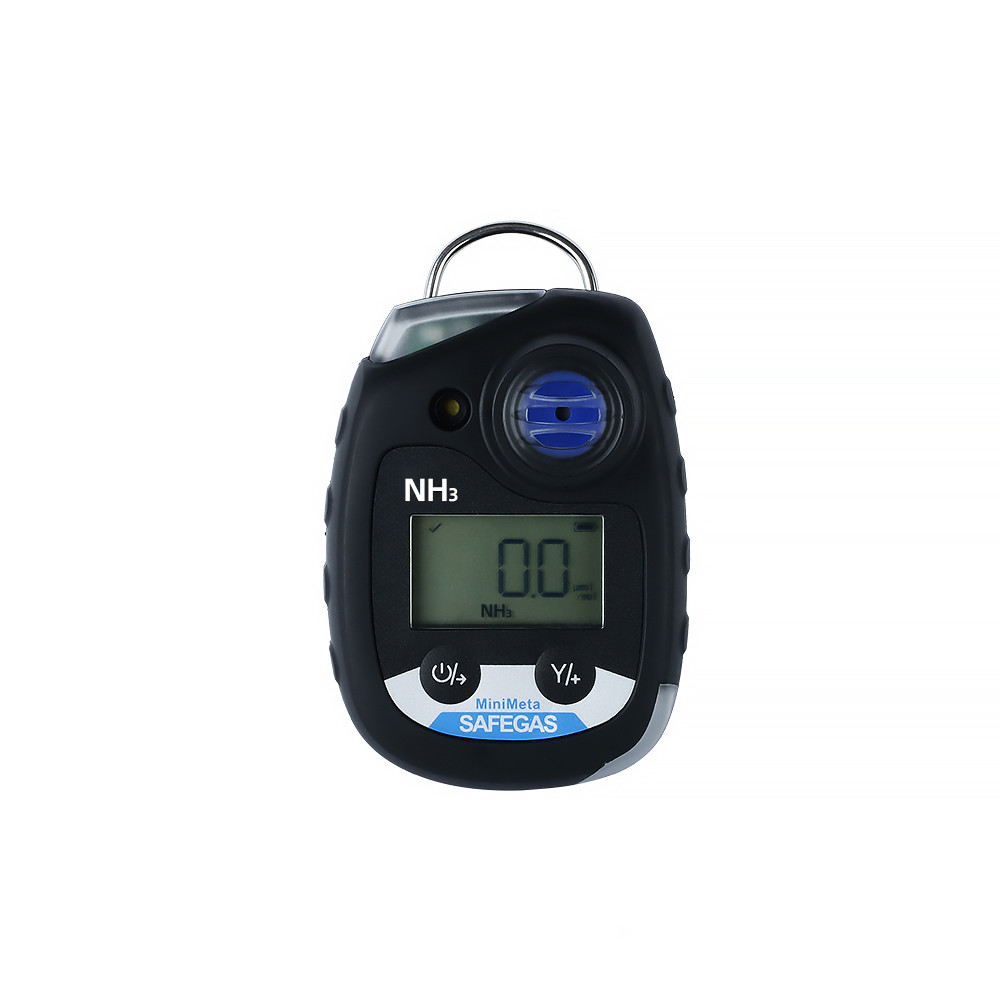

MiniMeta is an IECEX/ATEX/EMC certified single-gas detector with a rating of IP68. It is with small size, light weight and with back clip for easily carry. The battery and sensor is replaceable and low power consumption for 2 years standby time, no need battery charge and calibration.
Product advantage
Its battery is non-rechargeable type, no need charge or replace battery within 2 years.The battery and sensor is replaceable to provide user a long-term protection. Long press the power button to power it on,Its response time and accuracy performance is very good because its sensor and electronic components are imported from world-famous brands.This model is with sound, light and vibration alarm when the gas concentration is higher than alarm value.It is with standard 60 event logging, the data is able to export through IR link and Safegas PC software.
Specification
| Gas Type |
N2 |
| Detection principle |
Electrochemistry |
| Sampling Method |
Diffusion |
| Measure Range |
0-100%VOL |
| Resolution |
0.01%VOL |
| Response time |
≤30s(T90) |
| Precision |
≤± 3% F.S. |
|
Alarm mode
|
Sound, light, vibration alarm, high and low alarm values can be set by yourself
|
| Alarm type |
Low alarm, high alarm, STEL, TWA, low battery |
| Power supply mode |
3.6V dry battery (non-rechargeable) |
| Explosion-proof grade |
ExiaIICT4Ga |
| Protection class |
IP68 |
| Executive standards |
GB 12358-2006, GB 3836.1-2010, GB 3836.4-2010, JJF1421-2013, JJF1363-2019, JJF1364-2012, JJG 365-2008, IEC 60079-0-2017, IEC 60079-11-2 |
| Working temperature |
-20℃～55℃ |
| Working humidity |
0-95%RH (non-condensing) |
| Working air pressure |
86~106kpa |
| Dimensions |
90*60*33mm |
| Weight |
125g |
|
Minimeta worn by worker in factory
Standard accessories

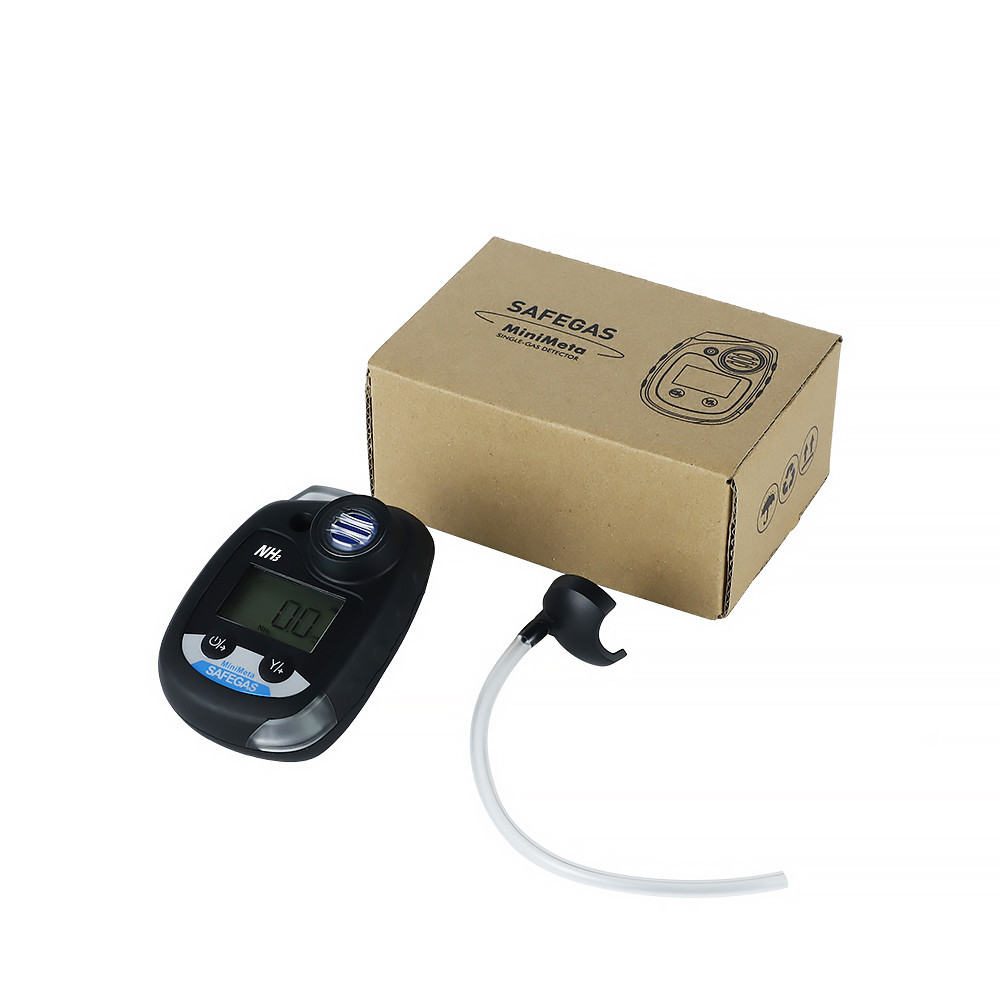

1 Calibration cap, 1 user manual, 1 calibration certificate, 1 device.
FAQ
Q1: Are you factory or trade company?
A1: We are factory.
Q2: What about the payment method?
A2: Credit card, T/T, Western Union are available
Q3: Does your company accept customization?
A3: We do customizing service for customers.
Q4: What about the Shipment?
A4: We’ll choose proper transportation mode based on the weight of goods, usually arrange shipment byair express such as DHL,FEDEX,TNT or UPS.
Q5: What about after-sale service?
A5: 12 months warranty or 24 months warranty for all kinds of products.
Q6: How about the Calibration?
A6: Before send out, we will calibrate each pieces well with standard gas.
Q7: What certifications do you have?
A7: ATEX CE ISO9001-2015.
Industry Application
Chemical industry, environmental protection company, animal husbandry, mining, electric power engineering, municipal
