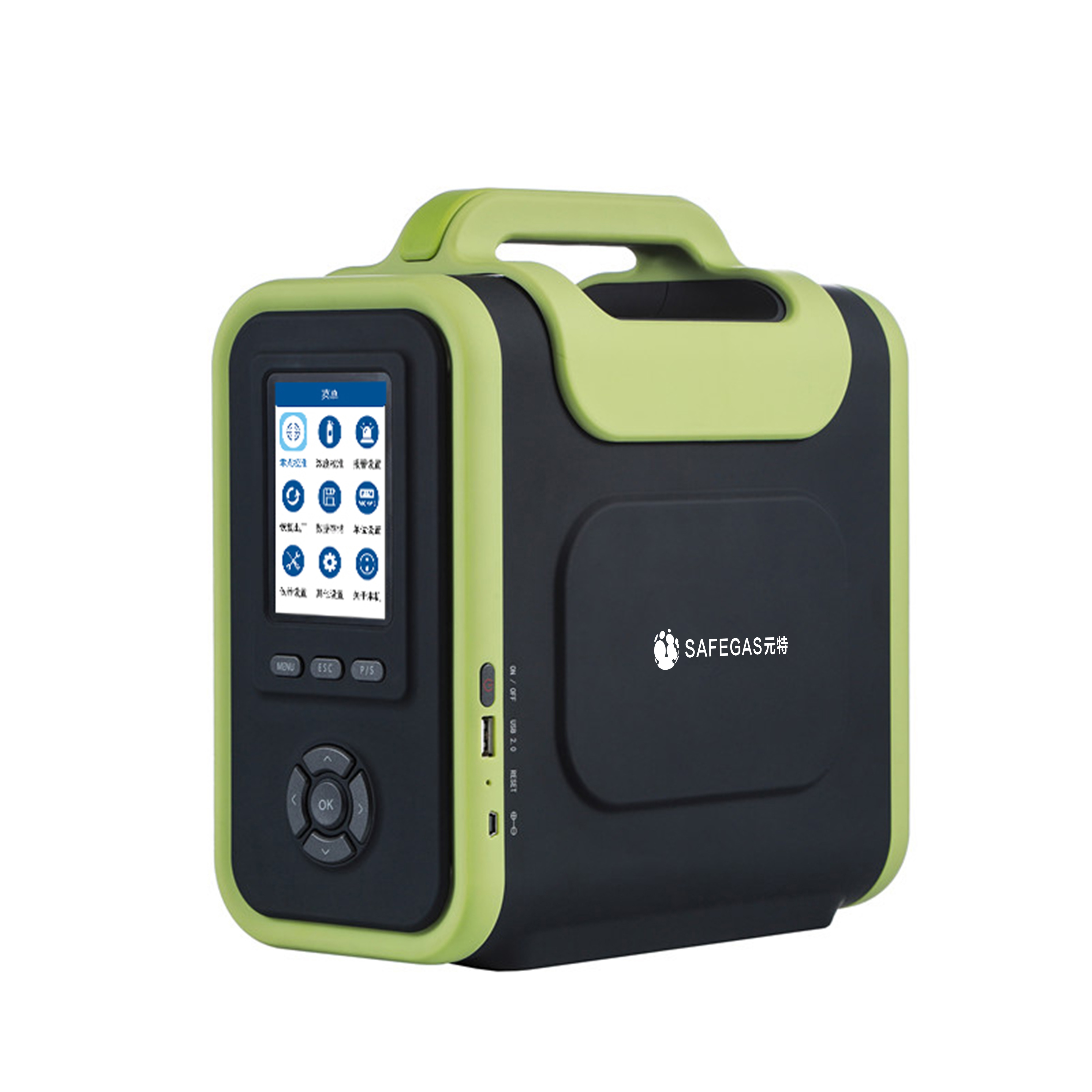

Name: ATEX Multi Gas Analyzer C6h6 CH4 Nox Co Voc Nh3 Toxic Gas Detector With Built-In Printer
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: SKY8000
Price: 2,137.00 USD
Availability: InStock

Detail Information

Detecting Gas:	Can Detect Upto 18 Gases	Sensor Type:	Combustible: Catalytic Combustion Principle Or Infrared Principle; Oxygen: Electrochemical Principle Or Zirconia Principle; Toxic: Electrochemical Principle; CO2: Infrared Principle; VOC: PID Photo Ion Principle; CH4: Catalytic Combustion Principle Or Infr
Measure Range:	0～1、10、100、1000、5000、50000、100000 PPM；0-100mg/L、200mg/L； 0-100%LEL；0-10%、20%、50%、99.999%、100%Vol（Measure Range Is Optional And Customerized）	Resolution:	0.001PPM（0-1 PPM)；0.01 PPM Or 0.001 PPM（0～10 PPM）； 0.1 PPM Or 0.01 PPM（0～100 PPM）；1 PPM Or 0.1 PPM（0～1000 PPM）； 1 PPM（0～1000 PPM）；0.01mg/L（0～200%mg/L）；0.1%LEL（0-100%LEL)；0.01%(0-100%VOL)
Application:	Power Plant, Petrochemical, Pharmaceutical, Building, Mine, Metallurgical Coking	Sampling Method:	Pumping Suction
Display:	Formula, Gas Concentration Data, Measurement Trend Curve, Gas Curve, Battery, Time, Temperature, Humidity, Pressure (optional), Pump Condition, Wireless Status, Printer Status, Screen Shot Status	Alarm:	Buzzer, Red LED And Alarm Status On The Display, Fault Alarm, Pump Abnormal Alarm, Low Battery Alarm
Language:	Chinese/English	Warranty:	1 Year
Highlight:	ATEX Multi Gas Analyzer , Pumping suction Toxic Gas Detector

Product Description

Multi Gas Analyzer C6h6 CH4 Nox Co Voc Nh3 Toxic Gas with Built-in Printer

Company profile

Established in 2010, Shenzhen YuanTe Technology Co., Limited is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 16 years. With gas detector as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc. Through about 10 years of rapid development, Yuante becomes the influential supplier.

Product overview

SKY8000 series gas analyzer is a data collector which can quickly acquire and analyze gas concentration components and support to detect 1-18 types gas at the same time. It is with built-in pump, ensuring fast response. SKY8000 has standard 32G SD memory card to store and export data by U-disk easily. For the flue gas and exhaust gas environment, it can support with optional high temperature probe to detect.
In addition, it has optional built-in printer for real time data printing and with wireless communication so user can access to real-time data and alarm status remotely.

Product advantage

Support to monitor 1-18 gas types
3.5-inch color LCD display support both real time data and chart, user friendly
Built-in pump gas sampling, faster response
Equipped with multi-layer filtering, protect sensor from oil, water vapour, dust
Standard 32G SD memory card to store and export data by U-disk easily
Support Lora and other wireless communication(Optional)
Support built-in printer for real time data printing(Optional)
High temperature, high humidity environment measurement (Optional)

Specification

Sensors	Various principle sensors can be combined in any number , up to 18 sensors; Combustible: catalytic combustion principle orinfrared principle; oxygen: electrochemical principle or zirconia principle; toxic: electrochemical principle; CO2: infraredprinciple; VOC: PID photo ion principle; CH4: catalytic combustion principle or infrared principle; He: thermal conductivity Principle, temperature and humidity sensors, pressure sensors (optional) (other principles of the sensor can be customized)
Measure range	0~1,10,100,1000,5000,50000,100000 PPM;0-100mg/L,200mg/L; 0-100%LEL;0-10%,20%,50%,99.999%,100%Vol(Measure range is optional and customerized)
Resolution	0.001 PPM(0-1 PPM);0.01 PPM or 0.001 PPM(0~10 PPM); 0.1 PPM or 0.01 PPM(0~100 PPM);1 PPM or 0.1 PPM(0~1000 PPM); 1 PPM(0~1000 PPM);0.01mg/L(0~200%mg/L);0.1%LEL(0-100%LEL);0.01%(0-100%VOL)
Display	Formula, gas concentration data, measurement trend curve, gas curve, battery, time, temperature, humidity, pressure (optional), pump condition, wireless status, printer status, screen shot status
Alarm	Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm
Data storage	Independent SD memory card, Max.32G, measurement data can be record automatically, customizable record time interval.
Data transmission and download	RS232,RS485 singnal output, USB interface data transmission, with the upper computer software, can download storage, analyze and print data
Print function(Optional)	Optional with internal portable printer or external bluetooth printer
Print content(Optional)	Text, graphics, one-dimensional code, two-dimensional code, curves, characters, etc.
Charger	Standard Mini-USB charging port. With 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer )
Language	Chinese/English
Wireless network (optional)	Bluetooth, Zigbee
Network frequency	2.4G high frequency.
wireless transmission distance	Bluetooth is less than 10m, and the ZigBee outdoor single point is less than 500m.

ATEX Multi Gas Analyzer C6h6 CH4 Nox Co Voc Nh3 Toxic Gas Detector With Built-In Printer 0

SKY8000 with high temperature probe

ATEX Multi Gas Analyzer C6h6 CH4 Nox Co Voc Nh3 Toxic Gas Detector With Built-In Printer 1

SKY8000 with data Printer

ATEX Multi Gas Analyzer C6h6 CH4 Nox Co Voc Nh3 Toxic Gas Detector With Built-In Printer 2

Packing

Standard Accessories

1.Instruction

2.Qualification certificate

3.warranty card

4. a Micro-USB cable

5. a water,vapour,smoke filter

6. an intake sampling rod

7. 600mm tube

8. Non - toxic, tasteless, explosion-proof, waterproof, heat - resistant, high - temperature resistant,

corrosion resistant suitcase (1 set)

Optional Accessories

Printer (built-in printer or external bluetooth printer)

High Temperature Gun

Tag:

Place of Origin:	China
Brand Name:	Yuante
Certification:	ATEX/CE
Model Number:	SKY8000

Minimum Order Quantity:	1 piece
Price:	Negotiable
Packaging Details:	Aluminum Suitcase
Delivery Time:	5 - 7 working days
Payment Terms:	Western Union, T/T, Visa, Master Card
Supply Ability:	1000 pieces/Month
