| Place of Origin: | Shenzhen China |
|---|---|
| Brand Name: | Safegas |
| Certification: | ATEX, IECEX, CE, SIL |
| Model Number: | SG100 |
| Minimum Order Quantity: | 1 Pcs |
| Price: | Negotiable |
| Packaging Details: | Aluminum Suitcase Packing |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, T/T,Credit card |
| Supply Ability: | 100 pieces/day |
| Product Model: | SG100 | Range: | 0-100%LEL |
|---|---|---|---|
| Resolution: | 1%LEL | Sampling: | Diffusion Mode |
| Testing Principle: | Catalytic Combustion | Instrument Color: | Black |
| Remote: | Infrared Remote Control/ Magnetic Bar | Net Weight: | 1kg |
| Size: | 157.8*128.8*69.6 Mm (L*H*W) | Signal Transmission: | RS485, 4-20mA, And Relay |
| High Light: | Fixed Hydrocarbon Gas Detector,Fixed HC Gas Meter,100%LEL HC Gas Meter |
||
Fixed Hydrocarbon Gas Detector 0-100%LEL HC Gas Meter for Car Testing Environment
Product overview
The SG100 gas detector, a smart and hot-swappable device, ensures effortless maintenance post-installation and provides continuous monitoring of toxic gases, oxygen, and combustible gases. It holds IECEx and ATEX certifications, demonstrating an explosion-proof level of Ex db IIC t6gb/Ex db IIC t6gb/Ex da db IIC t6gb. The device is equipped with a 3-wire 4 to 20 mA analog output relay and is compatible with most control systems, thanks to its support for HART and RS485 Modbus protocols. Moreover, its magnetic rod design facilitates easy menu navigation in explosive areas.
Why did you choose us?
Our service offers 24/7 online monitoring with real-time data display, ensuring constant vigilance.
With 16 years of experience in gas detection, we pride ourselves on our high precision and reliability, using first-brand sensors worldwide for accurate results, recognized by third-party testing institutions.
Maintenance is made easy and convenient with our modular gas chamber design.
This allows for the air chamber part to be quickly and easily replaced without disassembling the entire machine, ensuring convenient on-site maintenance and operation in any explosion-proof area.
Safety and reliability are paramount in our explosion-proof circuit design.
It is of Class A-level safety and reliability, with an explosion-proof level reaching Ex db IIC T6 Gb/Ex db IIC T6 Gb/Ex db IIC T6 Gb. The instrument has obtained three certifications: international IECEx, ATEX, and Chinese explosion-proof.
We offer diverse data transmission options, including a standard 4-20mA current signal, RS485 digital signal, and 1 set of relay signal output. Optional features include 2 sets of relay signals with voltage 1-5V, standard Hart, and optional wireless transmission methods such as LORA and 4G.

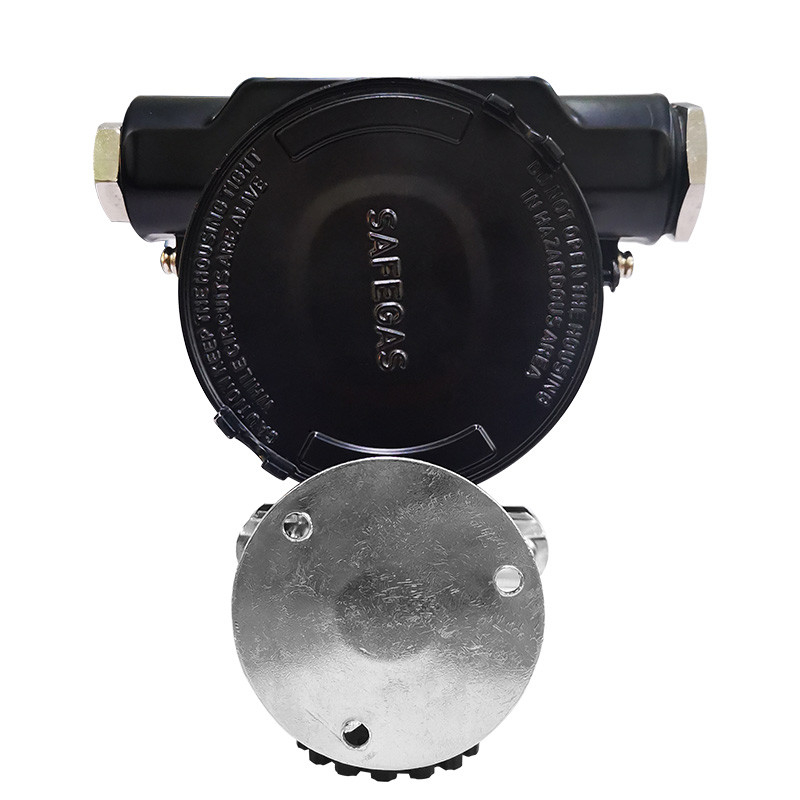

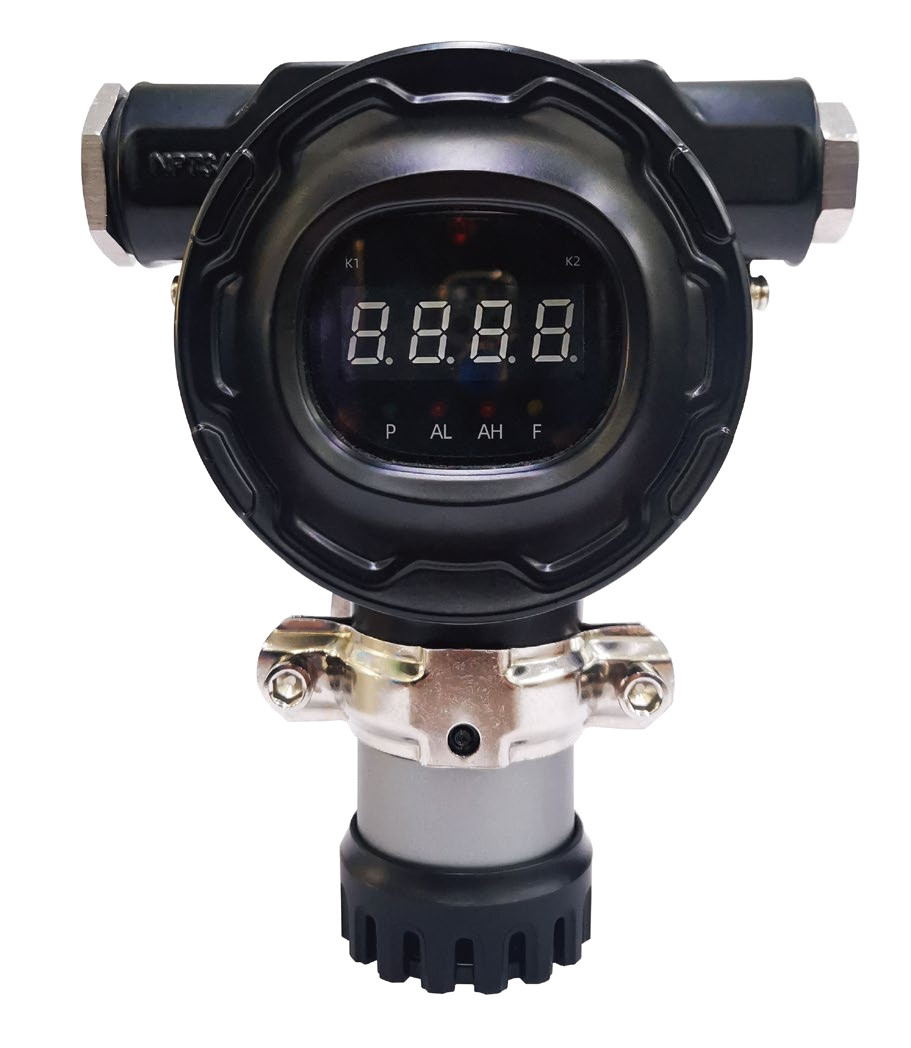

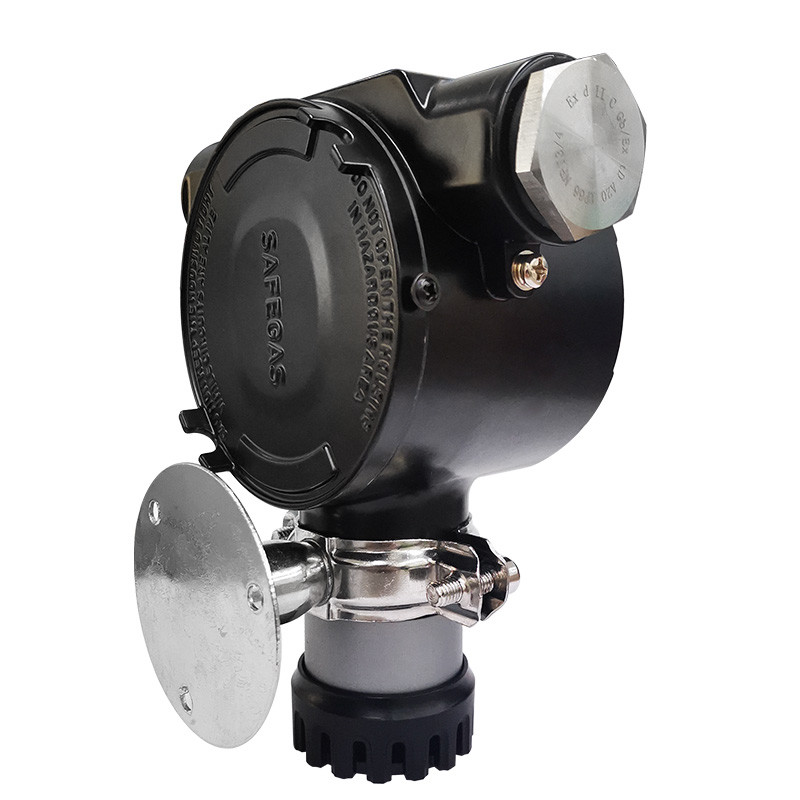

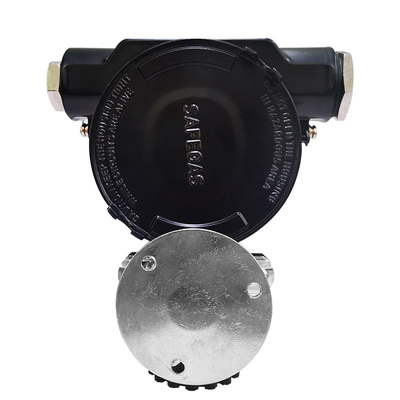

Picture details
Specification
| Detected Gas | HC |
| Measure Range | 0-100%LEL |
| Install Method | Wall-mounted |
| Output signal | 4-20mA, 1-5V, 2-10V, RS485, RS232, relays (optional) |
| Precision | ≤±1%F.S. (to be specialized) |
| Zero shift | ≤±1%(F.S./year) |
| Display | 4 digits Nixie tube display. |
| Connection mode | G3/4 external thread explosion-proof flexible pipe |
| Thread Size | Standard M20*1.5, 3/4NPT |
| Temperature | –20℃～50℃ (electrochemistry principle), –40℃～70℃ (catalytic combustion principle) |
| Humidity | 10-95%RH (non-condensing) |
| Explosion-Proof | Ex db ⅡC T6/ Ex db ia IIC T6 Gb/ Ex da db ia IIC T6 Gb |
| Degree of protection | IP66/IP67 |
| Material | Sensor housing: aluminum alloy or 316 stainless steel |
| Power | 12-24V DC |
| Dimensions | 158×129×70mm |
| Weight | ≤1kg |
| Approval | CE, CNEX explosion proof certificate, CMC(China Metrology Certification), IECEx, ATEX |
| Warranty | 12 months |
