Anti - Water Dust Gas Analyzer For Power Plant With Temperature Humidity Display

Basic Information
Place of Origin: China
Brand Name: Yuante
Certification: ATEX/CE
Model Number: SKY8000
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Aluminum Suitcase
Delivery Time: 5 - 7 working days
Payment Terms: Western Union, T/T, Visa, Master Card
Supply Ability: 1000 pieces/Month
Detail Information
Detecting Gas: Can Detect Upto 18 Gases Sensor Type: Combustible: Catalytic Combustion Principle Or Infrared Principle; Oxygen: Electrochemical Principle Or Zirconia Principle; Toxic: Electrochemical Principle; CO2: Infrared Principle; VOC: PID Photo Ion Principle; CH4: Catalytic Combustion Principle Or Infr
Measure Range: 0~1、10、100、1000、5000、50000、100000 PPM;0-100mg/L、200mg/L; 0-100%LEL;0-10%、20%、50%、99.999%、100%Vol(Measure Range Is Optional And Customerized) Resolution: 0.001PPM(0-1 PPM);0.01 PPM Or 0.001 PPM(0~10 PPM); 0.1 PPM Or 0.01 PPM(0~100 PPM);1 PPM Or 0.1 PPM(0~1000 PPM); 1 PPM(0~1000 PPM);0.01mg/L(0~200%mg/L);0.1%LEL(0-100%LEL);0.01%(0-100%VOL)
Application: Power Plant, Petrochemical, Pharmaceutical, Building, Mine, Metallurgical Coking Sampling Method: Pumping Suction
Display: Formula, Gas Concentration Data, Measurement Trend Curve, Gas Curve, Battery, Time, Temperature, Humidity, Pressure (optional), Pump Condition, Wireless Status, Printer Status, Screen Shot Status Alarm: Buzzer, Red LED And Alarm Status On The Display, Fault Alarm, Pump Abnormal Alarm, Low Battery Alarm
Language: Chinese/English Warranty: 1 Year
High Light:

Anti Water Dust Gas Analyzer

,

Dust Gas Analyzer For Power Plant


Product Description

Anti-Water&Dust Gas Analyzer for Power Plant with Temperature&Humidity Display





Company profile

Established in 2010, Shenzhen YuanTe Technology Co., Limited is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 13 years. With gas detector as the core product, we have completed production line and solutions according to different industries.



We supply portable and fixed detectors for oxygen, toxic gas, explosive gas, and etc, mainly for industrial use. All sensor(main parts of detector) we use are imported from USA, Japan, Korea and Europe, there are brands like Alpha, City, Ion, Honeywell and etc, which is same level to BW, Drager, RAE, MSA.



Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality, which are comparable to international brand like Honeywell, MSA, RAE, but our products with competitive price.


Product overview
SKY8000 series gas analyzer is a data collector which can quickly acquire and analyze gas concentration components in factory, scientific research, university and complex working environment. There are 4 different version to support different applications including SKY8000-M gas analyzer to monitor gases in ambient environment; SKY8000-AQ air quality gas analyzer to monitor gases, particle counter, dew point, temperature and humidity; SKY8000-OU odor gas analyzer to monitor H2S, NH3, odor; SKY8000-EM emission gas analyzer to monitor high gas concentration gases in flue gas environment.


Product advantage



  1. Support to monitor 1-18 gas types
  2. 3.5-inch color LCD display support both real time data and chart, user friendly
  3. Built-in pump gas sampling, faster response
  4. Equipped with multi-layer filtering, protect sensor from oil, water vapour, dust
  5. Standard 32G SD memory card to store and export data by U-disk easily
  6. Support Lora and other wireless communication(Optional)
  7. Support built-in printer for real time data printing(Optional)
  8. High temperature, high humidity environment measurement (Optional)



Specification



Sensors
Various principle sensors can be combined in any number , up to 18 sensors; Combustible: catalytic combustion principle orinfrared principle;
oxygen: electrochemical principle or zirconia principle;
toxic: electrochemical principle;
CO2: infraredprinciple;
VOC: PID photo ion principle;
CH4: catalytic combustion principle or infrared principle;
He: thermal conductivity Principle,
temperature and humidity sensors, pressure sensors (optional) (other principles of the sensor can be customized)
Measure range
0~1,10,100,1000,5000,50000,100000 PPM;0-100mg/L,200mg/L;
0-100%LEL;0-10%,20%,50%,99.999%,100%Vol(Measure range is optional and customerized)
Resolution
0.001 PPM(0-1 PPM);0.01 PPM or 0.001 PPM(0~10 PPM);
0.1 PPM or 0.01 PPM(0~100 PPM);1 PPM or 0.1 PPM(0~1000 PPM);
1 PPM(0~1000 PPM);0.01mg/L(0~200%mg/L);0.1%LEL(0-100%LEL);0.01%(0-100%VOL)

Display
Formula, gas concentration data, measurement trend curve, gas curve, battery, time, temperature, humidity, pressure (optional),
pump condition, wireless status, printer status, screen shot status
Alarm
Buzzer, red LED and alarm status on the display, fault alarm, pump abnormal alarm, low battery alarm
Data storage
Independent SD memory card, Max.32G, measurement data can be record automatically, customizable record time interval.
Data transmission and download
RS232,RS485 singnal output, USB interface data transmission, with the upper computer software, can download storage, analyze and
print data
Print function(Optional)
Optional with internal portable printer or external bluetooth printer
Print content(Optional)
Text, graphics, one-dimensional code, two-dimensional code, curves, characters, etc.

Charger
Standard Mini-USB charging port. With 13V/2A special charger (built-in printer) or 5V/2A universal charger (external printer )
Language
Chinese/English
Wireless network (optional)
Bluetooth, Zigbee
Network frequency
2.4G high frequency.
wireless transmission distance
Bluetooth is less than 10m, and the ZigBee outdoor single point is less than 500m.



Anti - Water Dust Gas Analyzer For Power Plant With Temperature Humidity Display 0

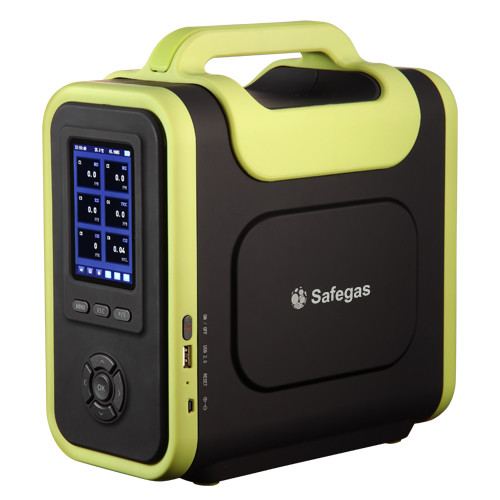

SKY8000 with high temperature probe

Anti - Water Dust Gas Analyzer For Power Plant With Temperature Humidity Display 1

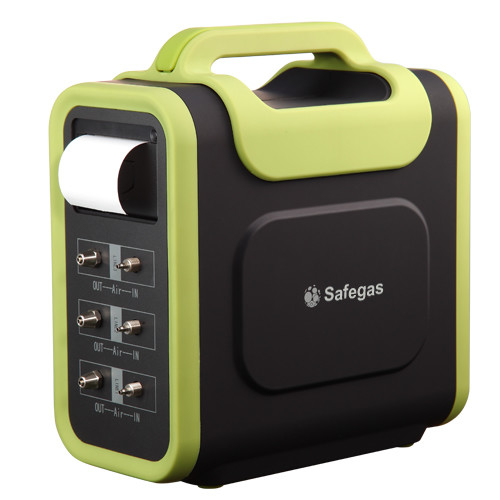

SKY8000 with data Printer

Anti - Water Dust Gas Analyzer For Power Plant With Temperature Humidity Display 2







Packing
Standard Accessories
1.Instruction
2.Qualification certificate
3.warranty card
4. a Micro-USB cable
5. a water,vapour,smoke filter
6. an intake sampling rod
7. 600mm tube

8. Non - toxic, tasteless, explosion-proof, waterproof, heat - resistant, high - temperature resistant,



corrosion resistant suitcase (1 set)







More Application:



  • Furniture, Floor, Wallpaper, Coating, Gardening, Interior Decoration and Renovation, Dyestuff, Papermaking, Pharmacy,
  • Health Care, Foodstuff, Antiseptic.
  • Disinfection, Chemical Fertilizer, Resin, Adhesive, Pesticide, Raw Material, Sample, Technological Process,
  • Livestock Farm, Refuse Processing Plant, Perm Place.
  • Bio-pharmaceutical Plant, Green Household, Livestock Breeding, Green House Cultivating, Warehouse Logistics,
  • Brewing And Fermentation, Agricultural Production.
