| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Safegas |
| Certification: | IECEX, EMC, ATEX ，CE |
| Model Number: | Micmeta-CO |
| Minimum Order Quantity: | 1 Piece |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 1-3 working days |
| Payment Terms: | Western Union, T/T,Credit card |
| Supply Ability: | 1000 pieces/month |
| Model Number: | Micmeta-CO | Sampling Mode: | Diffusion |
|---|---|---|---|
| Sampling Principle: | Electrochemistry | Measuring Range: | 0-1000ppm |
| Resolution: | 1ppm | Alarm Type: | Sound, Vibration, Light |
| Instrument Size: | 113*60*32mm (L*H*W) | Color: | RED & BLACK |
| Weight: | 200g (with Battery) | ||
| High Light: | 1000ppm Portable CO Gas Detector,Mining Industry Portable CO Gas Detector |
||
IP68 Protection Grade Portable CO Gas Detector with H2 Compensated Sensor for Mining Industry
Product overview
MicMeta, a multi-gas detector, holds certifications from IECEx, ATEX, and EMC etc, and carries an impressive IP68 rating. Its explosion-proof rating of Ex ia I Ma and Ex ia IIC T4 makes it particularly suitable for use in coal mines. The device’s design is compact and lightweight, featuring two intuitive buttons for ease of use. It is capable of detecting standard gases such as CO, H2S, O2, and LEL, and can be customized to detect hundreds of other gases. The MicMeta detector also offers wireless capabilities for accessing data remotely. Additionally, its built-in data logger enables the direct transfer of real-time data and alarm events to a PC software.
Product specification
| Sampling method | Diffusion |
| Gas type | CO |
| Measure range | 0-1000ppm |
| Resolution | 1ppm |
| Response time | ≤60S (T90) |
| Precision | ≤±5%FS or ±10% (depends on the specific sensor |
| Language | Chinese/English |
| Automatically test and calibrate after power-on | Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit | PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system |
| Disaply | Segment code LCD display |
| Calibration platform | Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional) |
| Data record | 1000 sets data records and 100 sets events records |
| Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red bars and alarm status indication on the screen, alarm latched; diagnostic alarm and battery under voltage alarm, man down alarm, alarm set points for all sensors are user adjustable. |
| Battery | 3.7V rechargeable lithium battery, battery capacity 2300mA |
| Working hours | Standby time 18h, charging time <6h |
| Wireless transmission | Bluetooth transmission function (optional), Lora transmission function (optional) |
| Explosion-proof grade | CNEX:Ex ia IIC T4 Ga |
| (EU regulations) | 2004/108/EC(EMC), 94/9/EC(ATEX), CE |
| Protection grade | IP66/IP68 |
| Working temperature | -20°C~55°C |
| Humidity | 0-95%RH (non-condensing) |
| Environmental pressure | 86～106Kpa |
| Size | 113*60*32mm (length * width * height) |
| Weight | 200g (with lithium battery) |

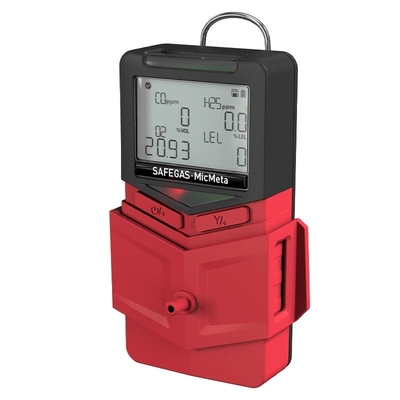

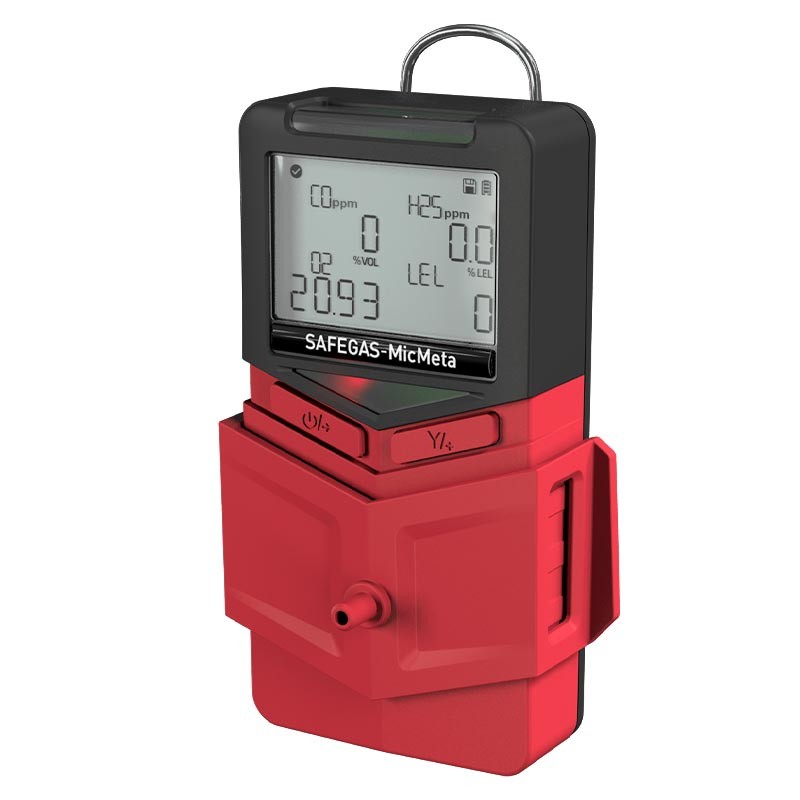

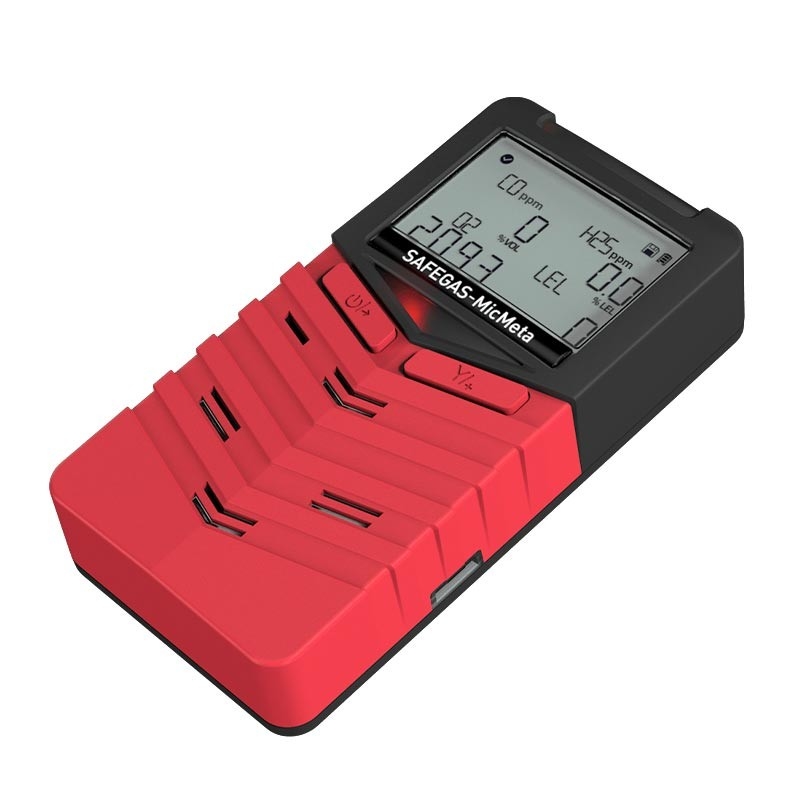

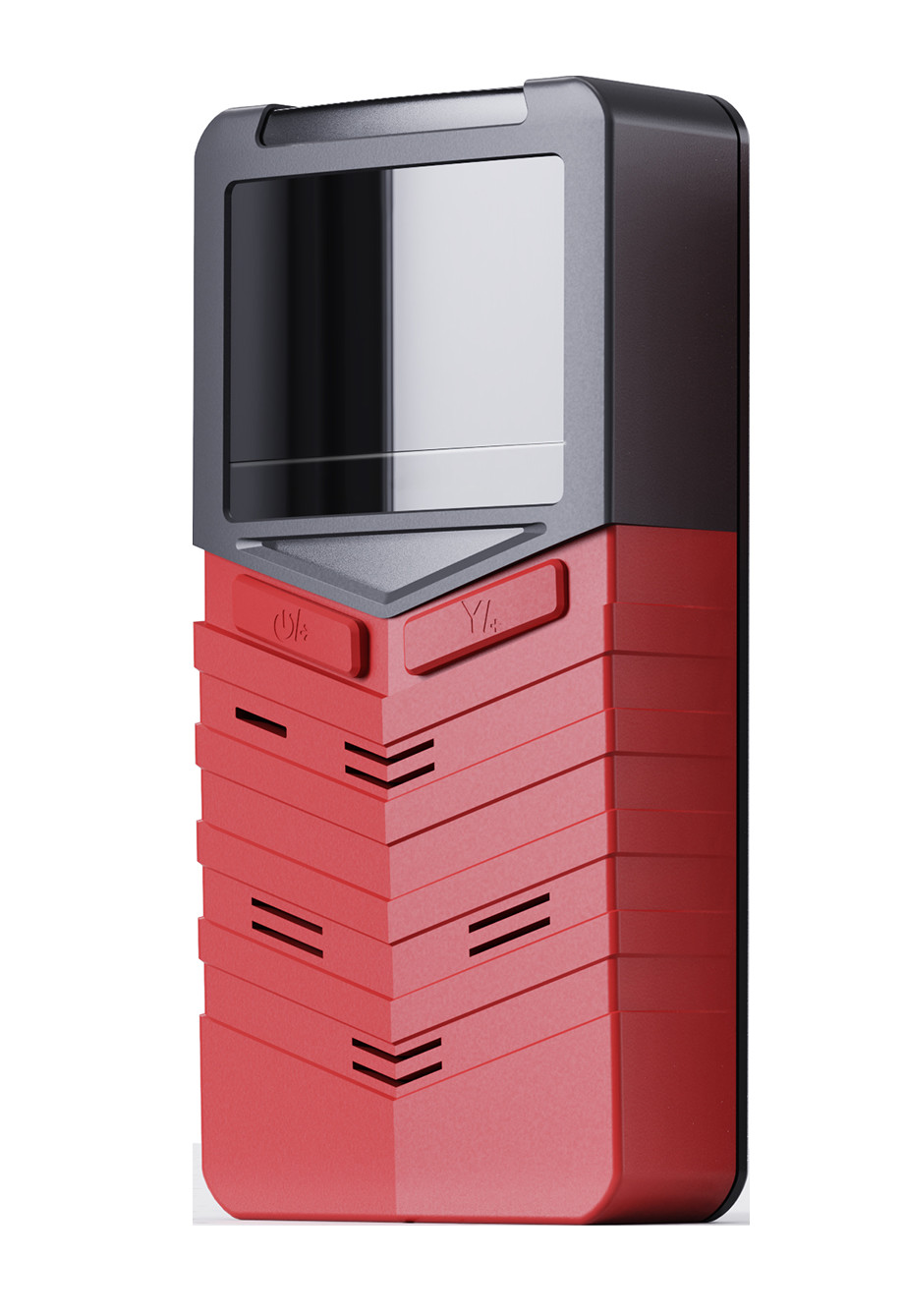

Product picture
Product advantages
Product application
Ensuring Industrial Safety: This product ensures a safe and secure industrial environment, protecting workers and equipment.
Environmental Monitoring: It keeps track of environmental changes and anomalies, aiding in understanding and mitigating environmental impacts.
Healthcare Innovations: This product contributes to the advancement of medical technologies and patient care, enhancing the delivery of healthcare services.
Automotive Excellence: It enhances vehicle performance and safety, ensuring a smoother driving experience.
Mining Efficiency: It ensures the safety and efficiency of mining activities, optimizing operations and reducing risks.
Food and Beverage Compliance: It maintains quality and safety standards in food production, ensuring that products reach consumers safely.
Chemical Processing Assistance: It facilitates safe and efficient chemical processing and handling, reducing risks associated with these industries.
Greenhouse Gas Management: It monitors and manages greenhouse gas emissions, supporting efforts to mitigate climate change.
Oil and Gas Extraction Support: It aids in the exploration and extraction of oil and gas resources, enhancing production efficiency.
Wastewater Treatment Aid: It aids in the treatment and management of wastewater, contributing to water conservation and environmental cleanup.
And Beyond: This product has a wide range of other applications across various sectors, addressing diverse needs and challenges.
