Safegas Single Gas Detector Portable Small NH3 Ammonia Detect IECEx ATEX CNEX

Basic Information

Get Best Price Contact Now

Detail Information

Gas Type:	NH3(single Test)	Measure Range:	0-100/200ppm;0-500/1000ppm
Sampling Method:	Diffusion	Response Time:	≤30s(T90)
Alarm Mode:	Sound, Light, Vibration Alarm	Certification:	IECEx, ATEX, CNEX Explosion Proof Certificated
Explosion-proof Grade:	ExiaIICT4Ga	Protection Class:	IP68
Power:	Non-removable And Non-rechargeable Dry Battery	Battery Life:	About 2 Years
Weight:	125g	Dimensions:	906033mm (lengthwidththickness)
Working Air Pressure:	86~106kpa	Working Humidity:	0-95%RH (non-condensing)
Highlight:	Portable Single Gas Detector , NH3 Single Gas Detector , Ammonia Detect Single Gas Detector

Product Description

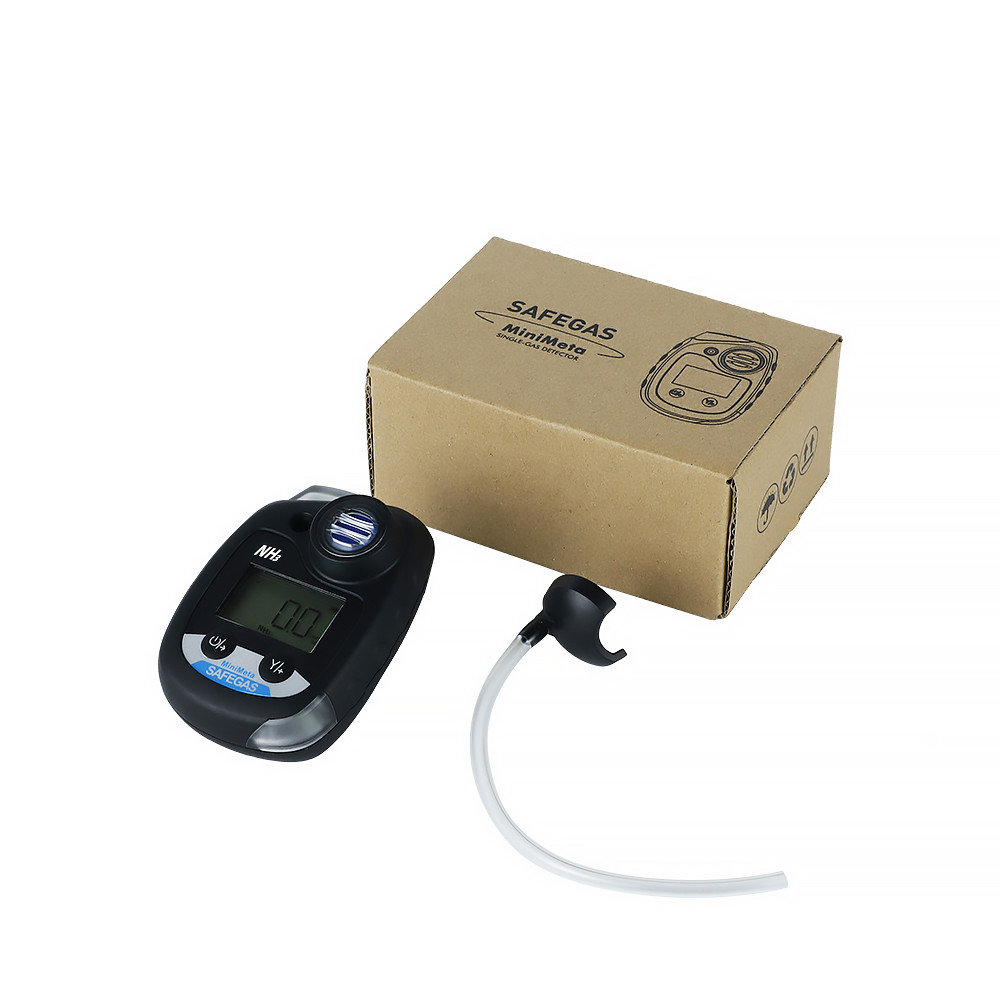

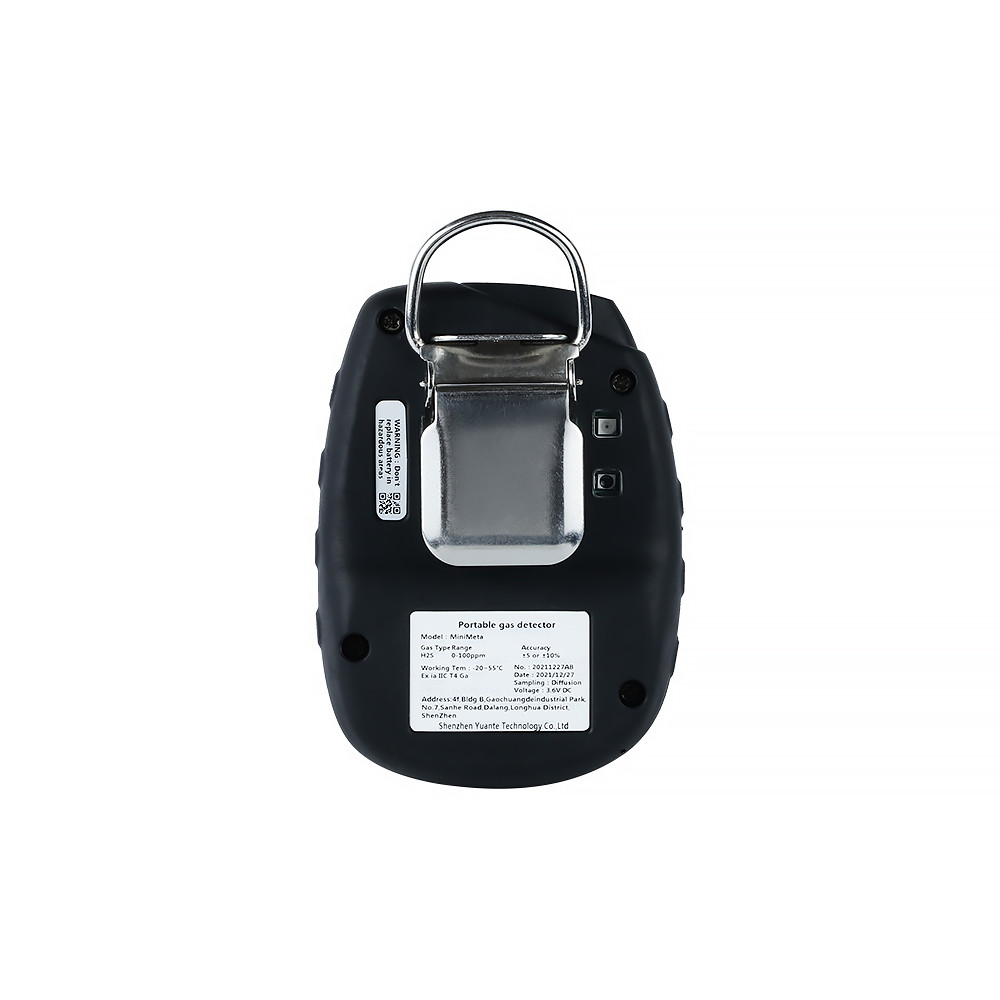

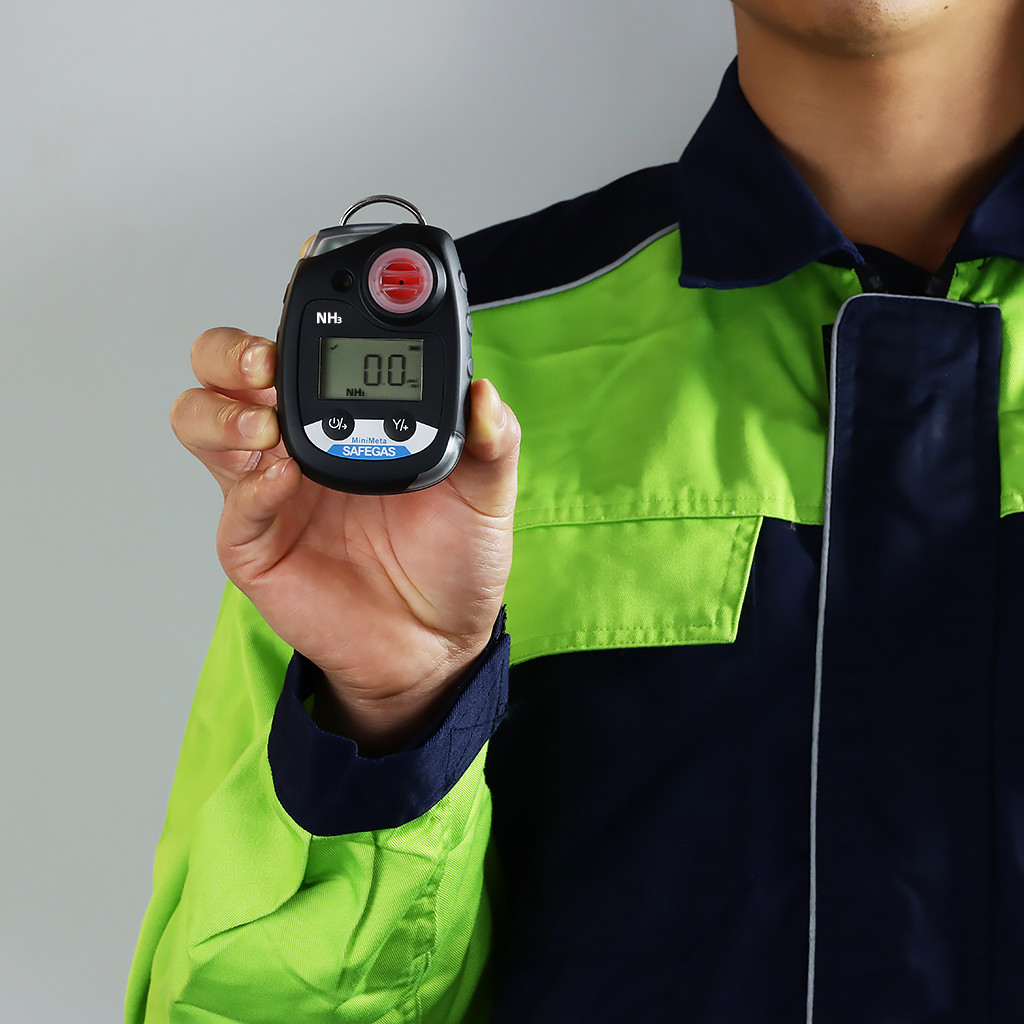

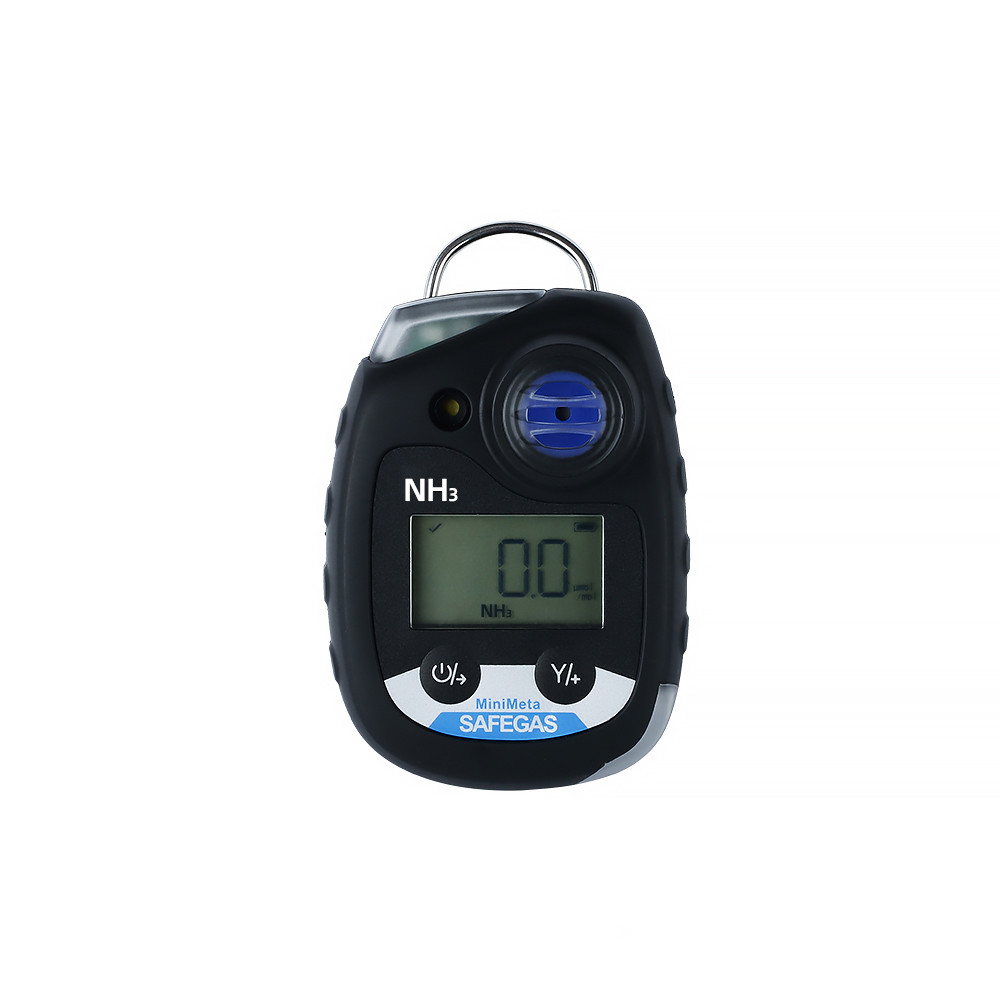

Safegas Single Gas Detector Portable Small NH3 Ammonia Detect IECEx ATEX CNEX 0

Specification

Gas Type	NH3(ammonia)
Detection principle	Electrochemistry
Sampling Method	Diffusion
Measure Range	0-100/200ppm;0-500/1000ppm
Resolution	0.01ppm, 0.1ppm
Response time	≤30s(T90)
Precision	≤± 3% F.S.
Alarm mode	Sound, light, vibration alarm, high and low alarm values can be set by yourself
Alarm type	Low alarm, high alarm, STEL, TWA, low battery
Power supply mode	3.6V dry battery (non-rechargeable)
Explosion-proof grade	ExiaIICT4Ga
Protection class	IP68
Executive standards	GB 12358-2006, GB 3836.1-2010, GB 3836.4-2010, JJF1421-2013, JJF1363-2019, JJF1364-2012, JJG 365-2008, IEC 60079-0-2017, IEC 60079-11-2
Working temperature	-20℃～55℃
Working humidity	0-95%RH (non-condensing)
Working air pressure	86~106kpa
Dimensions	906033mm
Weight	125g

Tag:

Portable Single Gas Detector
