Name: High Accuracy Fast Response Explosion Proof Fixed Gas Detector for H2 Hydrogen Leak Detection
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: YT-95H
Price: 1,037.00 USD
Availability: InStock

Detail Information

Response Time(T90):	15-30s	Repeatability:	≤±1%
Zero Shift:	≤±1%（F.S./year）	Display:	4 Digits Nixie Tube Display
Connection Mode:	G1/2 External Thread Explosion-proof Flexible Pipe	Thread Size:	M45*2mm
Explosion-proof Grade:	Ex D IIC T6 Gb	Dimensions:	180×150×90mm
Weight:	≤1.6kg	H.S Code:	9027100090
Highlight:	Fast Response Fixed Gas Detector , High Accuracy Fixed Gas Detector , Gas Detector for H2

Product Description

High Accuracy Fixed Gas Detector Fast Response For H2 Hydrogen Leak Detection

Product Overview

Some industries require detection of hydrogen H2 leaks or explosions to ensure safety. For PPM leakage testing, we recommend measuring ranges of 0-1000 ppm, 2000 ppm, or 5000 ppm. For hydrogen explosion testing, we recommend the 0-100%VOL range.

The YT-95H/YT-95H-A series is a cost-effective explosion-proof transmitter for detecting flammable and toxic gases. Featuring 3-wire 4-20 mA analog output with relays and RS485 Modbus protocol, it's compatible with most control systems. Third-party components like horns, warning lights, and fans can be integrated. Optional wireless functionality allows operators to view data remotely on laptops, mobile phones, or cloud systems.

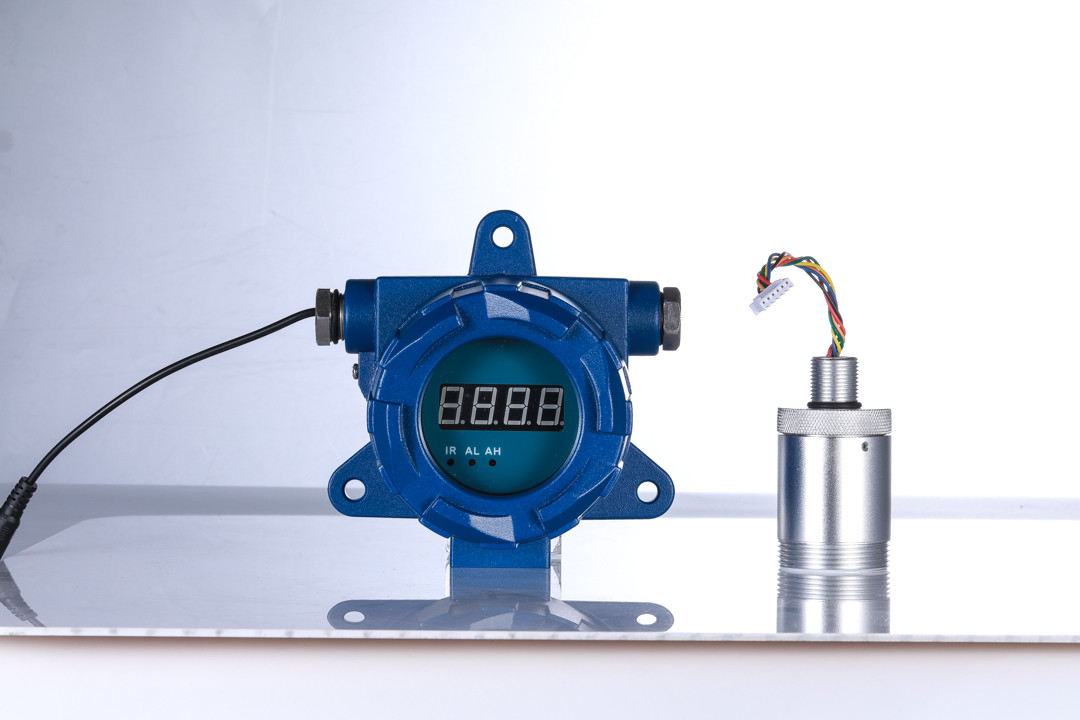

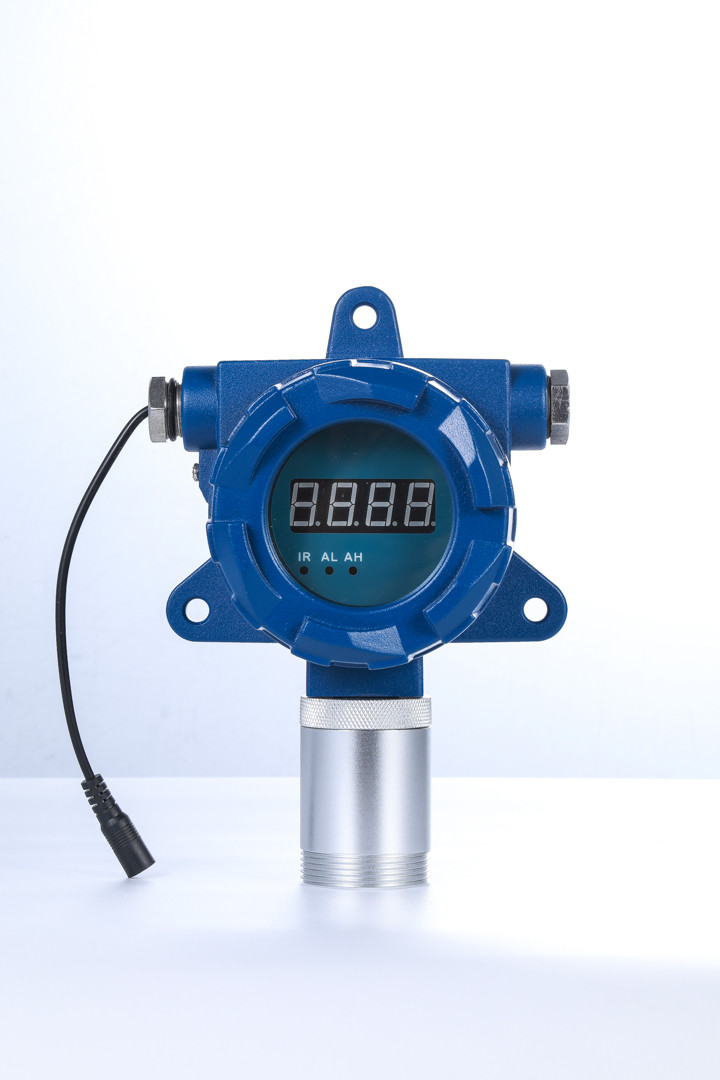

YT-95H Product Images

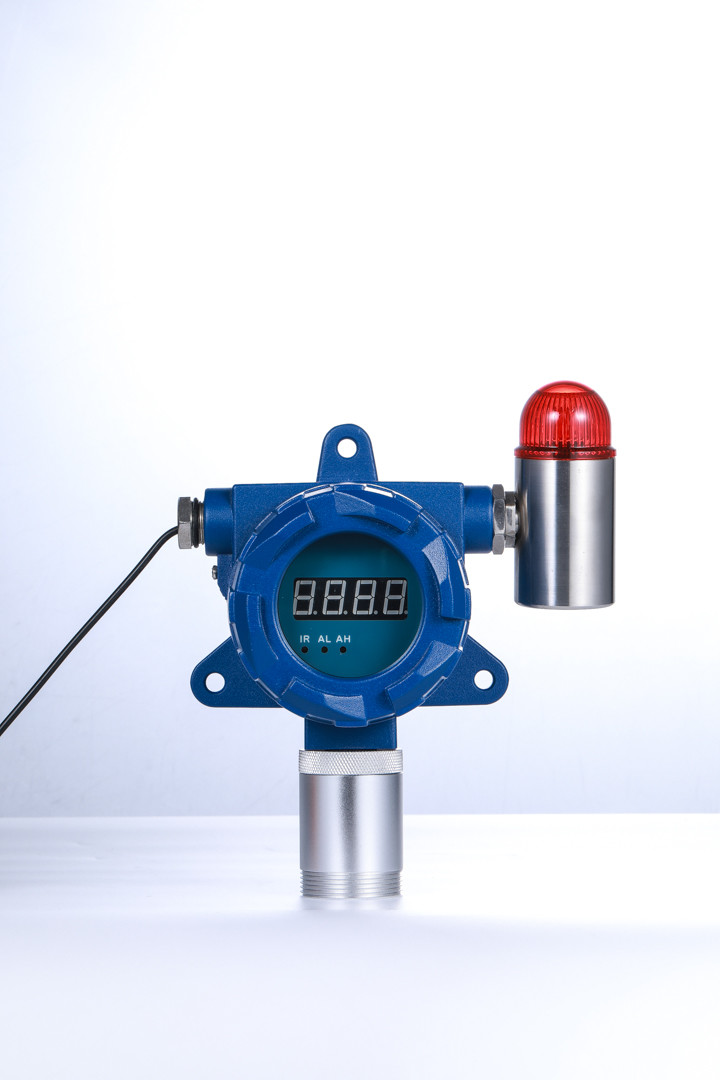

YT-95H-A Product Images

Product Advantages

Online Monitoring with Sound/Light Alarm (Optional)

24-hour continuous monitoring with real-time data display. High/low alarm with sound (>90dB) and light, with settable alarm points.

Non-Contacted Device Control

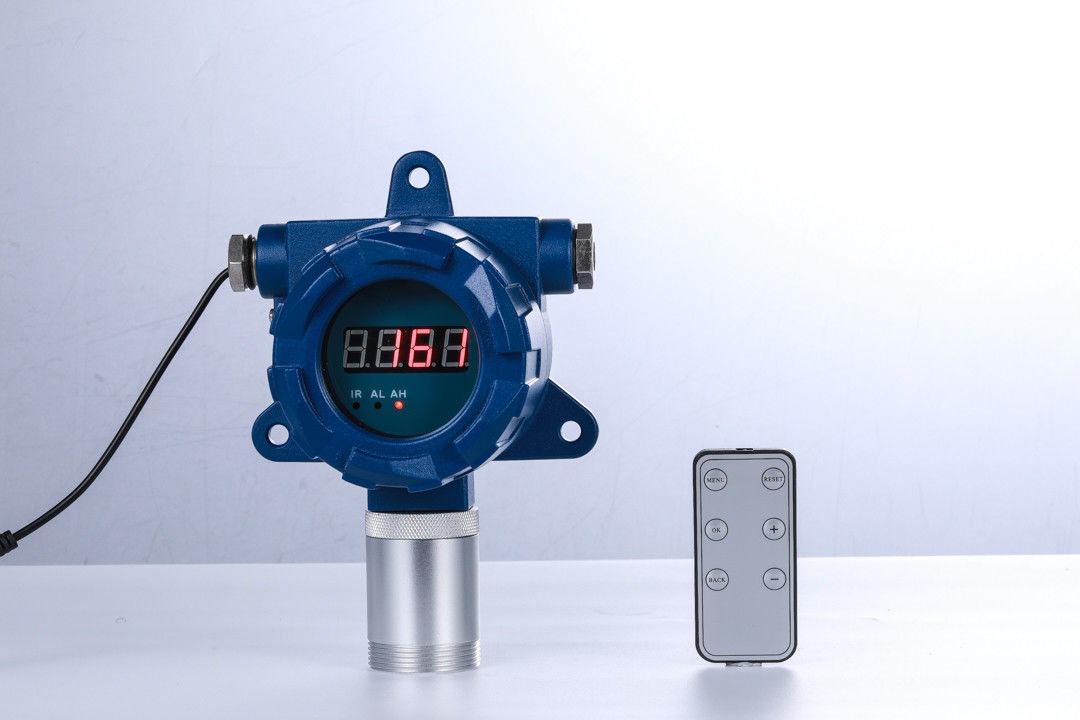

Infrared ray controller enables remote control of alarm point settings, zero calibration, and address modification.

Variety of Installation Methods

4-20mA current signal output compatible with various controllers. RS485 MODBUS signal output. Relay signal output for controlling ventilators, generators, or other external devices.

Data Transmission

PC software installation enables data transmission to computers for remote monitoring. Optional wireless data transmission including Lora and 4G.

High Quality Case

Die-cast aluminum case, strong and durable. Optional stainless steel case for different situations. IP65 protection degree - water-proof, dust-proof, explosion-proof.

Technical Specifications

Gas detected	H2
Install method	Wall-mounted, piping type, flow-type (according to detected environment)
Measure range	0-10/20/1000/10000ppm, 0-100%VOL
Resolution	0.01ppm, 0.01ppm, 0.1ppm, 1ppm, 1%VOL
Precision	± 2-5% FS
Signal output	4-20mA, 0-5V, RS485, relay (optional)
Response time	≤10S
Recovery time	≤10S
Repeatability	≤±1%
Linearity error	≤±1%
Zero shift	≤±1%(FS/year)
Display	High-light nixie tube display
Connection mode	G1/2 external thread explosion-proof flexible pipe
Unit	ppm, mg/m³, %vol
Temperature	-20 to 50°C
Humidity	0-95%RH
Explosion-proof	Ex dⅡCT6
Degree of protection	IP65
Alarm	Sound, light
Operating time	24H
Dimensions	18015090mm
Weight	≤2kg

Standard Configuration

Gas detector: 1 piece
Instruction Manual: 1 piece
Product certificate: 1 piece
Remote controller: 1 piece
Label: 1 piece
Packing box: 1 piece

Why Choose SAFEGAS?

R&D team experience: over 25 years
Company certification: ISO9001, ISO45001
Product certification: IECEx (the only one in China), ATEX, CE
Delivery: 5-7 days
Yearly capacity: 80,000 units
Service: Professional sales staff provide 7*24 hours service

SAFEGAS is a certified manufacturer of high-quality gas detectors. We control the entire process from design to sales, ensuring product quality.

Our team holds 100+ patents and has 16 years of industry experience with gas detectors. Our products, certified by IECEx and ATEX (TUV), are safe for hazardous areas. We use top-tier components ensuring precision and stability.

We promise fast delivery times, with orders of less than 10 items shipped within 3 days. For larger orders like over 50 items, we guarantee delivery within half a month.

Tag:

Place of Origin:	China
Brand Name:	SAFEGAS
Certification:	Chinese EX certificate
Model Number:	YT-95H

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Carton
Delivery Time:	3 work days
Payment Terms:	T/T,Western Union
Supply Ability:	300 pieces per month
