Product Description
SKY3000 Portable gas detector
SKY3000 series is a high-performance portable gas detector that can detect multiple gases (Oxygen compounds VOC, combustible gas and toxic gas) at the same time and has man down alarm function.The device has humanized operation functions such as one-key security detection, one-key storage, automatic image flipping, as well as the man down alarm function; With optionalBluetooth transmission function, allowing safety personnel to obtain real-time data and the alarm status.
It has obtained international IECEX, ATEX explosion-proof certification and Chinese explosion-proof certification; As it passed the antistatic test, and the protection level reaches IP67; With safer product design and the module designwhich makes the detection faster, and the compact ergonomic design makes the device easy carrying; The instrument is mainly working in suction mode. When the air pump fails or in special emergency situations , it can automatically switch to the diffusion sampling method, thereby improving the protection to a new Level.
The explosion-proof Grade of the SKY3000 series is Ex ia IIC T4 Ga,which is applicable to the explosive gas mixture zone 0, zone 1, and zone 2 of the factory with grades ⅡA, ⅡB, and ⅡC and temperature group T1~T4.
VOC detectors can be used to detect VOC concentrations in workshops and factory boundaries, emergency monitoring of safety accidents, and rapid detection of exhaust gas emission concentrations.
There are more range and resolution can be select, please contact us and show us your demand, we can customize for you.
Range: 0-1,3,5,10,50,100,200,1000,2000,5000ppm
Resolution: 0.5ppb, 0.001ppm, 0.1ppm, 1ppm

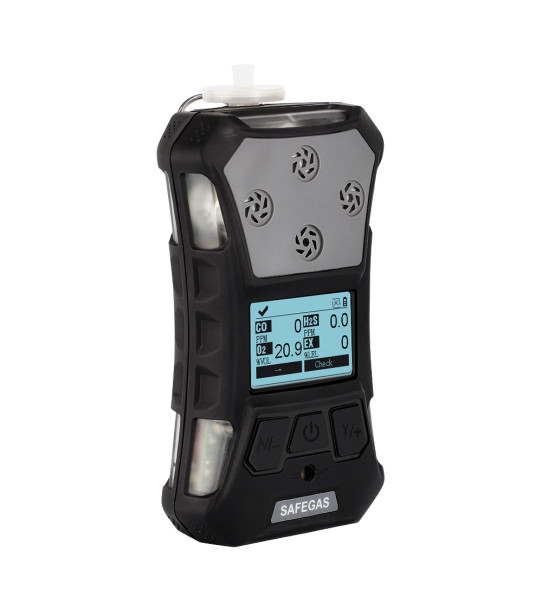

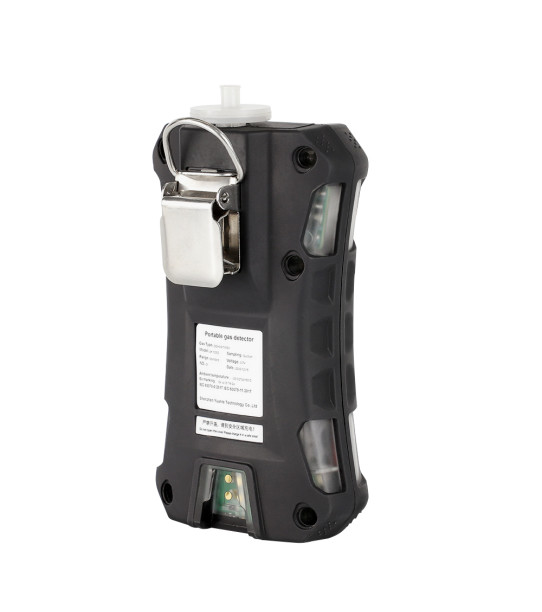

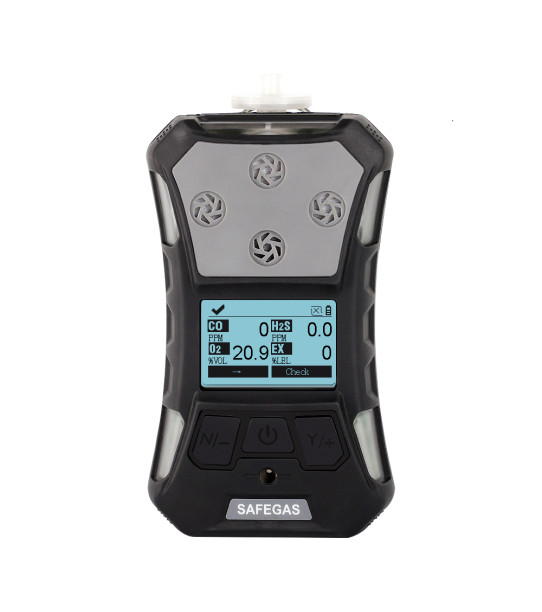

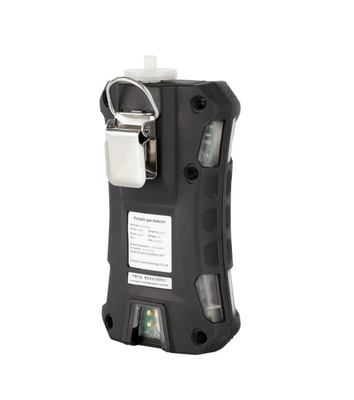

Product Picture
Product Advantage
Rugged and durable
Explosion-proof circuit design, safe and reliable
Multiple security protection
Simultaneous measurement of multiple gases, multiple numerical display
Large screen display, flexible detection system, multiple filtering devices
Specifications
| Sampling method |
Pump suction |
| Gas type |
TVOC/VOC |
| Measure range |
0-1,3,5,10,50,100,200,1000,2000,5000ppm
|
| Resolution |
0.5ppb, 0.001ppm, 0.1ppm, 1ppm |
| Response time |
Less than 10 seconds |
| Precsiion |
Less than ±1%F.S |
| Language |
English/Chinese(More labguage please contact us) |
| Automatically test and calibrate after power-on |
Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value |
| Unit |
PPM and mg/m³ can be switched |
| Disaply |
monochrome graphics (160 x96) ,screen can be automatically flipped |
| Backlight |
The backlight time can be manually set, and will be turned on automatically when an alarm is issued |
| Data record |
Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported |
| Alarm |
95dB buzzer (@30cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man down alarm, with early warning and optional real-time remote Bluetooth notification function |
| Battery |
3.7V rechargeable lithium battery, battery capacity 2200mA |
| Working hours |
More than 15 hours in continuous pumping mode |
| Charger |
Travel charger with DC interface, charging time ≥ 4 hours |
| Explosion-proof grade |
IECEX/ATEX(II IG Ex ia IIC T4
CNEX:Ex ia IIC T4 Ga |
Certification
(EU regulations) |
2004/108/EC(EMC)
1995/5/EC(Radio)
94/9/EC(ATEX) |
| Protection grade |
IP67/IP68 |
| Working temperature |
-20ºC~+50ºC |
| Humidity |
0~90%RH(no condensation) |
| Environmental pressure |
86~106Kpa |
| Size |
157*84.5*59.5mm (including back clip/water trap filter) (length * width * height) |
| Weight |
365g (including battery, belt clip and filter) |
| Bluetooth function(Optional) |
Gas Concentration Meter O2 LEL H2S CO CO2 data can be transmitted to the mobile phone or PC in real time
|

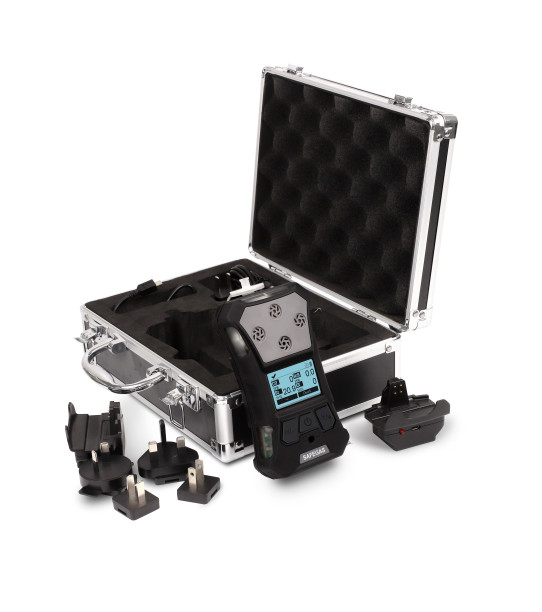

Product configuration
Standard accessories:
●Gas detector 1 piece
●12V/1A DC power adapter 1 piece
●USB cable 1 piece
●User manual 1 piece
●Warranty card 1 piece
●Filter 1 piece
●Aluminum suitcase 1 piece
Why choose us?
1. R&D team experience: over 25 years.
2. Company certification: ISO9001, ISO45001
3. Product certification: IECEx (the only one in China), ATEX, CE
4. Delivery: 5-7 days
5. Yearly capacity: 80,000 units
6. Service: Professional sales staff provide 7*24 hours service
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited(Safegas)is a company that focuses on the design, production and sales of gas detection equipment and system for 16 years. With"gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.
Product line
Our products contain portable types, fixed types and controller panels.
Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H
Certifications
IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001
Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality, which are comparable to international brand like Honeywell, MSA, RAE, but our products with competitive price.
Company we cooperated
Huawei, Cocacola, Samsung, Nestel and so on.
FAQs
Q1: What is a gas detector?
A1: Gas detector is an instrument for gas leakage concentration detection, including a portable gas detector, fixed gas detector, etc.
Q2: What does a gas detector detect?
A2: Combustible gases: Natural gas (methane), liquefied gas, coal gas, acetylene, pentane, alkynes, toluene, etc.
Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.
Q3: What is the ppm unit of the gas detector?
A3: ppm represents the volume concentration of the gas, that is, the volume of pollutants contained in one million volumes of air. For example, if the concentration of ammonia is 30ppm, it means that the volume of ammonia in one million volumes of air is 30.
