Pump-Type Multi Gas Detector for Granary Detection of PH3/CO/CO2/O2 Concentration

Basic Information
Place of Origin: China
Brand Name: SAFEGAS
Certification: ATEX/IECEX
Model Number: YT-98H
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton(43*27*15cm)
Delivery Time: 3 work days
Payment Terms: T/T, Western Union
Supply Ability: 3000 pieces per month
Detail Information
Gas Detected: PH3, CO, CO2, O2 Detection Principle: Electrochemical AND IR
Power: 12-24V DC Accuracy: ≤±2-5%FS
Response Time(T90): 15-30s Repeatability: ≤±1%
Pump Flow: 0.35-0.5 L/Min Temperature: –20℃~55℃
Humidity(no Condensation): 0-95%RH Optional Alarm: Buzzer, Alarm Status Display, Alarm Values Is Settable
Sampling Way: Pump Suction
Highlight:

Granary Multi Gas Detector

,

PH3 Multi Gas Detector

,

CO2 Multi Gas Detector


Product Description

Gas info
Phosphine (PH3) has shown excellent performance in killing pests. Its principle is that it has a strong toxic effect on the enzymes of insect and rodent cells. Therefore, it is often used in grain depots for fumigation and killing insects, but it can only play a disinfection role when the concentration reaches a certain standard.

Phosphine (PH3) is confirmed as a highly toxic gas. This strong biological activity also acts on the human body. Therefore, when using phosphine (PH3) for disinfection, personnel cannot enter to observe the concentration changes. At this time, a gas detector is needed to achieve real-time detection of phosphine (PH3) concentration without entering the grain depot.

YT-98H is a composite gas detector that can detect the concentration of up to 6 gases at the same time. We can increase the concentration of gases to be detected in addition to PH3 according to customer needs, such as CO, CO2 and O2 concentrations.

Product Description
YT-98H/YT-98H-A Fixed Gas Detector
YT-98H is a built-in pump-suction single & multi gas detector,with IECEx, ATEX certificate and non-contact magnetic wand design, it can be installed and operated in explosion proof areas, Oil & Gas industry. In addition to a 3-wire 4 to 20-mA output with relays, it also offers HART, Modbus protocols, making it compatible with most control systems. With optional wireless function, operator can view data on laptop, mobile phone or cloud system remotely.

Product Advantage

1.Up to 6 kinds of gases can be detected at the same time.

2.In complex and multi-gas environments, multiple installations can be reduced, saving time and effort 2.4-inch industrial-grade high-definition color screen
with a resolution of 320*240 and a wide viewing angle of 120 degrees

3.With wireless module, data can be uploaded to the cloud platform, environmental protection bureau or other platforms, providing SMS reminder function, the transmission signal is not limited by distance, and can be viewed in real time on mobile phones and computers.(optional)

4.With internal suction pump, fast response

5.With full software automatic verification function and zero calibration function, making gas monitoring more accurate and more reliable

6.Standard 4-20mA current signal, RS485 modbus signal, 1 set of relay signal output

7.Standard infrared remote control, which can remotely control the detector and modify the detector settings

8.With sound and light alarm function, there is sound and light alarm when reaching the alarm point.(optional)

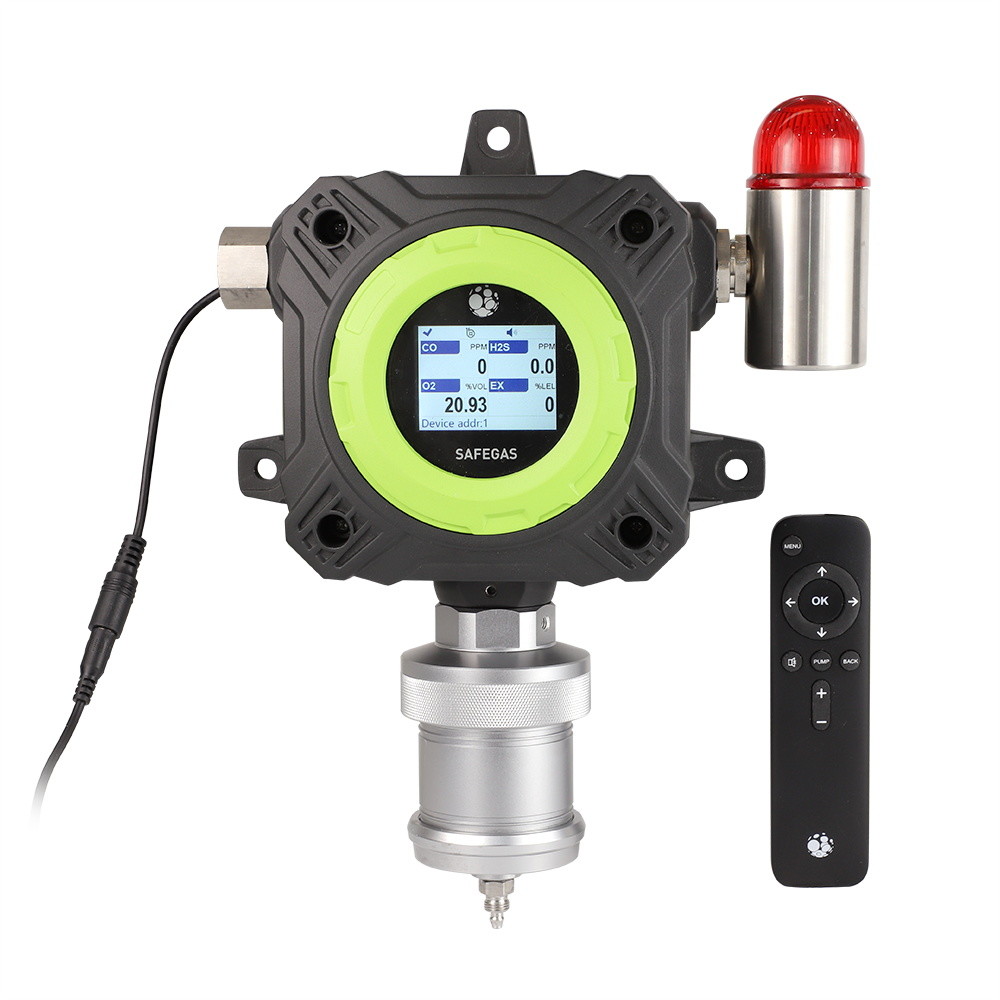

Product Picture--YT-98H(with display)



Pump-Type Multi Gas Detector for Granary Detection of PH3/CO/CO2/O2 Concentration 0Pump-Type Multi Gas Detector for Granary Detection of PH3/CO/CO2/O2 Concentration 1Pump-Type Multi Gas Detector for Granary Detection of PH3/CO/CO2/O2 Concentration 2

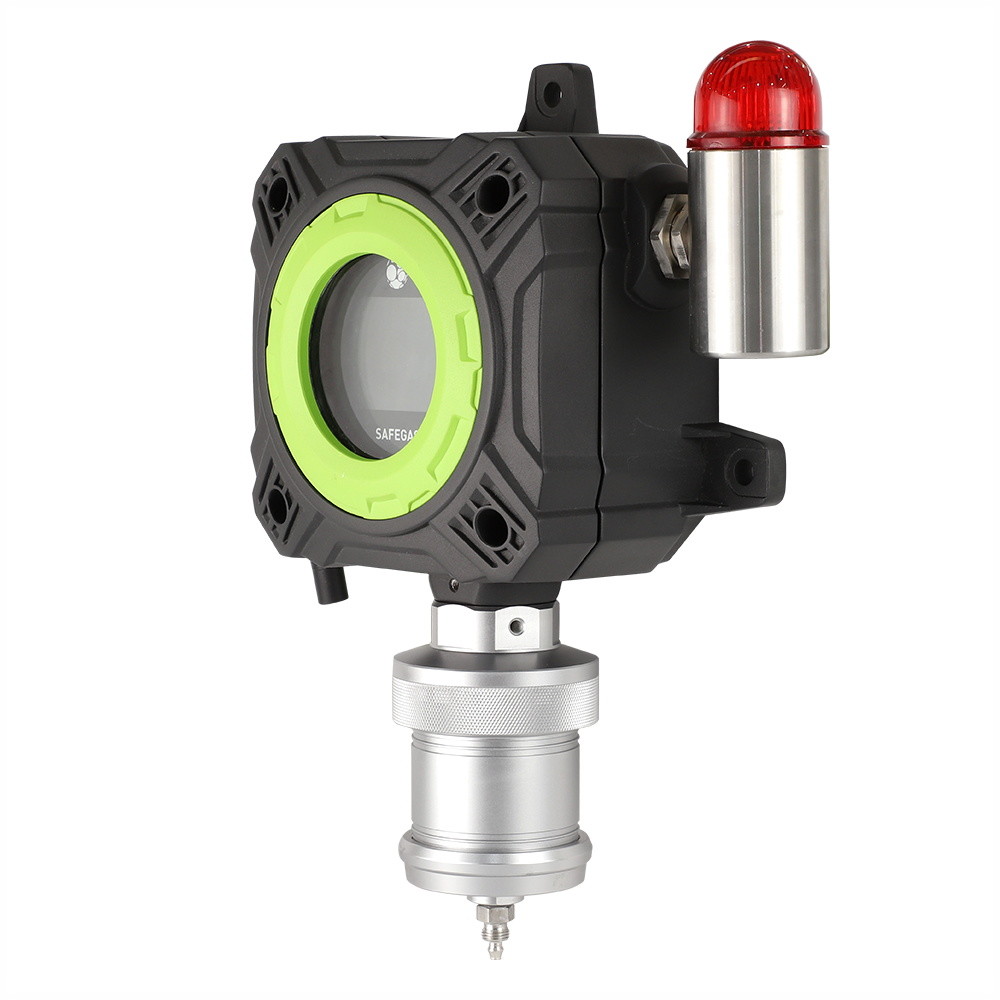

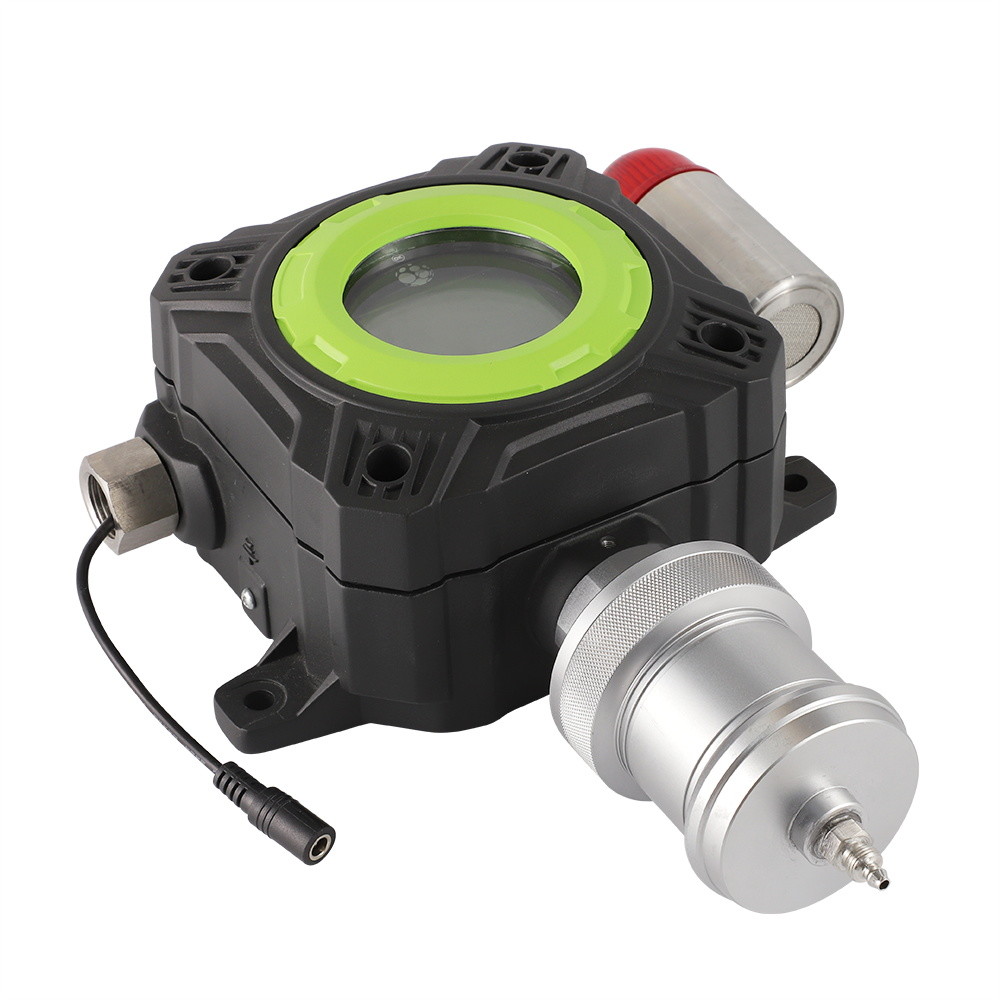

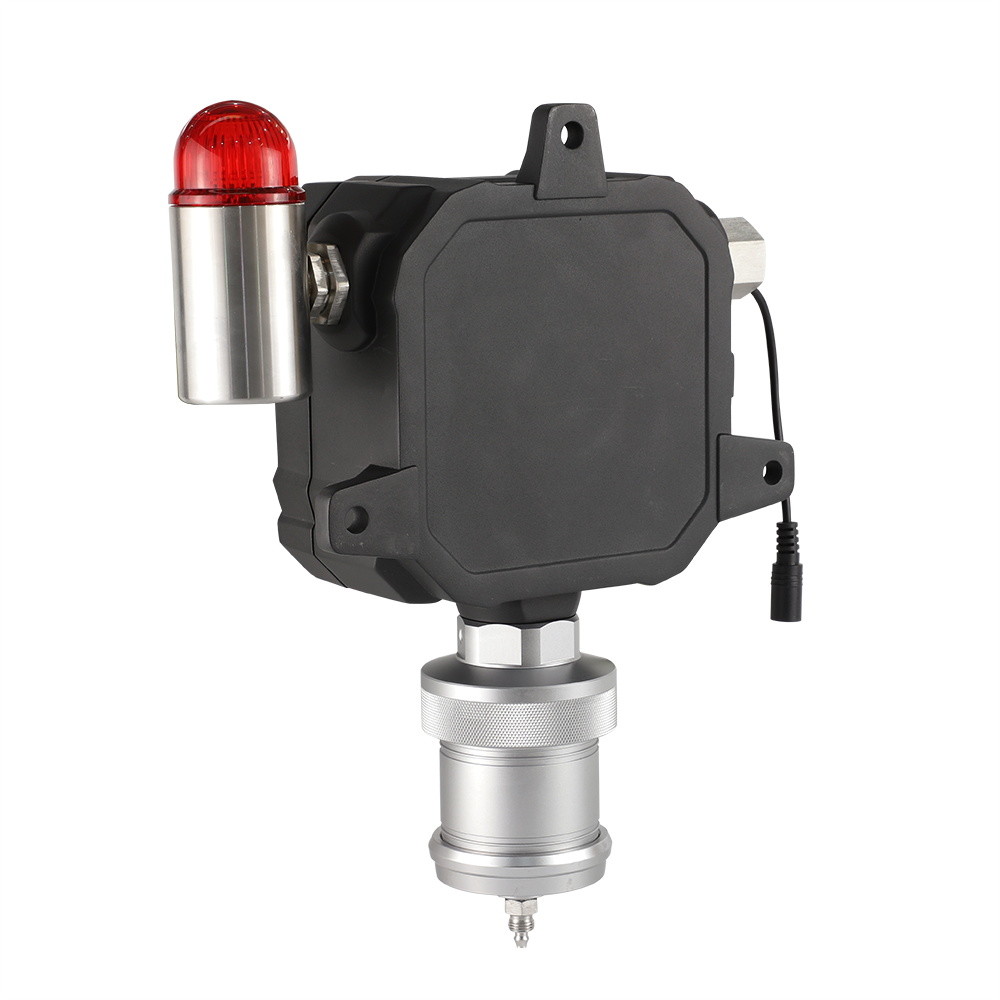

Product Picture--YT-98H-A(with display and alarm light)




Pump-Type Multi Gas Detector for Granary Detection of PH3/CO/CO2/O2 Concentration 3Pump-Type Multi Gas Detector for Granary Detection of PH3/CO/CO2/O2 Concentration 4Pump-Type Multi Gas Detector for Granary Detection of PH3/CO/CO2/O2 Concentration 5Pump-Type Multi Gas Detector for Granary Detection of PH3/CO/CO2/O2 Concentration 6



Specificiation


Gas DetectedPH3, CO, CO2, O2
Detection principleElectrochemical and IR
Install methodeWall-mounted, piping type, flow-type(according to the detected environment)
Measure RangePH3 0-1000PPM, CO 0-500PPM, C02 0-5000PPM, 02 0-30%VOL
Resolution1PPM, 0.1%VOL
Accuracy≤±2-5%FS (depending on the specific sensor)
Signal Output4-20MA, RS485, relay
Response Time(T90)15-30s(depending on the specific sensor)Recovery Time≤10S
Repeatability≤±1%Display2.4-inch color display, resolution 320*240
Operating languageEnglish/ChineseDisplay contentgas molecular formula, concentration, unit, pump
status, etc
Temperature-20ºC~55ºCHumidity0-95%RH
Explosion-ProofIECEX:Ex db IIC T6 Gb
ATEX :Ex db IIC T6 Gb
Degree of protectionIP66
Alarm modeSound, lightOperating time24h
Dimensions43*27*15cmWeight4.6kg




Why choose us?
1. R&D team experience: over 25 years.
2. Company certification: ISO9001, ISO45001
3. Product certification: IECEx (the only one in China), ATEX, CE
4. Delivery: 5-7 days
5. Yearly capacity: 80,000 units
6. Service: Professional sales staff provide 7*24 hours service


Company Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited(Safegas)is a company that focuses on the design, production and sales of gas detection equipment and system for 16 years. With"gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.





Product line

Our products contain portable types, fixed types and controller panels.

Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000

Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200

Controller panels: YT-1100H, YT-1600H

Pump-Type Multi Gas Detector for Granary Detection of PH3/CO/CO2/O2 Concentration 7



Certifications

IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001

Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality, which are comparable to international brand like Honeywell, MSA, RAE, but our products with competitive price.

Pump-Type Multi Gas Detector for Granary Detection of PH3/CO/CO2/O2 Concentration 8



Company we cooperated

Huawei, Cocacola, Samsung, Nestel and so on.

Pump-Type Multi Gas Detector for Granary Detection of PH3/CO/CO2/O2 Concentration 9
