Fixed Gas Detector VOC High Resolution 0.001ppm PID Sensor Ideal for Paint Manufacturers
Gas Information
VOC (Volatile Organic Compounds) significantly impact human health. When VOC concentrations reach certain levels, people may experience headaches, nausea, vomiting, and fatigue. Severe exposure can lead to convulsions, coma, and damage to the liver, kidneys, brain, and nervous system, potentially causing memory loss.
Paints used in home decoration are primary sources of indoor VOCs. China regulates VOC content in paints and decorative materials, with TVL TWA limits of 0.6mg/m³ (0.24ppm). Portable gas detectors are suitable for residential detection.
Paint manufacturers continuously generate VOCs during production. To protect worker safety, continuous VOC concentration monitoring is essential in factory environments.
Product Description

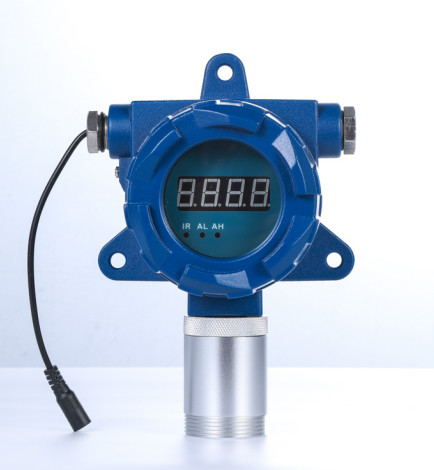

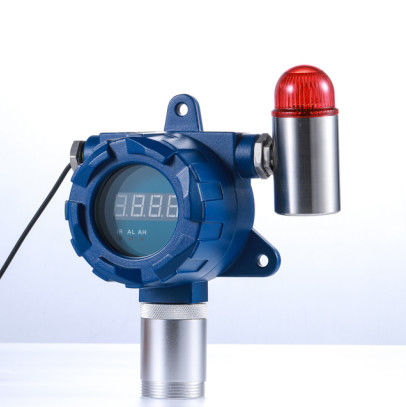

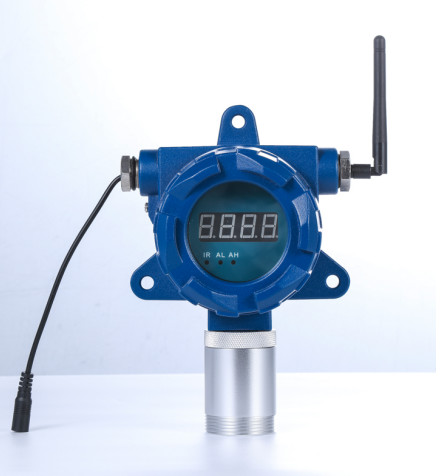

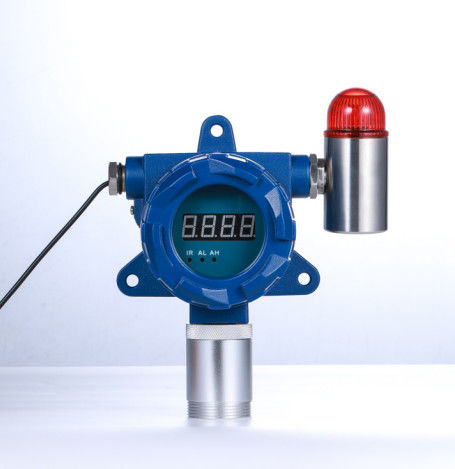

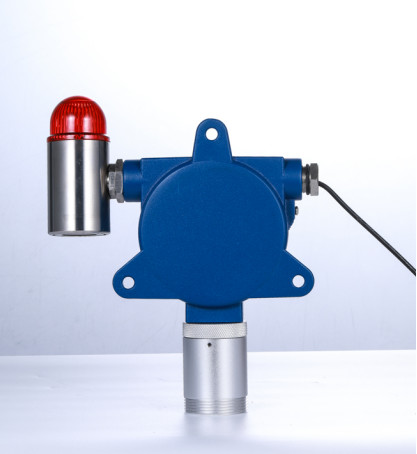

YT-95H/YT-95H-A Fixed Gas Detector
The YT-95H/YT-95H-A series provides cost-effective explosion-proof transmitters for detecting flammable and toxic gases. Featuring 3-wire 4-20mA analog output with relays and RS485 Modbus protocol, these detectors integrate seamlessly with most control systems. Third-party components including horns, warning lights, and fans can be integrated. Optional wireless functionality enables remote data monitoring via laptop, mobile phone, or cloud systems.
Product Advantages
- Online monitoring with sound/light alarm (Optional): 24-hour continuous monitoring with real-time data display. High/low alarm with sound (>90dB) and light, with settable alarm points.
- Non-contact device control: Infrared remote controller for alarm point settings, zero calibration, and address modification.
- Variety of installation methods: 4-20mA current signal output compatible with various controllers. RS485 MODBUS signal output. Relay signal output for controlling ventilators, generators, and external devices.
- Data transmission: PC software integration for computer data transmission and remote monitoring. Optional wireless data transmission including Lora and 4G.
- High quality case: Die-cast aluminum construction, strong and durable. Optional stainless steel case for different environments. IP65 protection rating, waterproof, dustproof, and explosion-proof.
Specifications
| Parameter |
Specification |
| Gas detected |
VOC |
| Install method |
Wall-mounted, piping type, flow-type |
| Measure range |
0-1,3,10,50,100,200,1000,2000,5000ppm |
| Resolution |
0.5ppb, 0.001ppm, 0.1ppm, 1ppm |
| Precision |
± 2-5% FS |
| Signal output |
4-20mA, 0-5V, RS485, relay (optional) |
| Response time |
≤10S |
| Recovery time |
≤10S |
| Repeatability |
≤±1% |
| Linearity error |
≤±1% |
| Zero shift |
≤±1%(FS/year) |
| Display |
High-light nixie tube display |
| Connection mode |
G1/2 external thread explosion-proof flexible pipe |
| Unit |
ppm, mg/m³, %vol |
| Temperature |
-20 to 50°C |
| Humidity |
0-95%RH |
| Explosion-proof |
Ex dⅡCT6 |
| Degree of protection |
IP65 |
| Alarm |
Sound, light |
| Operating time |
24H |
| Dimensions |
180*150*90mm |
| Weight |
≤2kg |
Standard Configuration
- Gas detector: 1 piece
- Instruction Manual: 1 piece
- Product certificate: 1 piece
- Remote controller: 1 piece
- Label: 1 piece
- Packing box: 1 piece
Why Choose Us?
- R&D team experience: over 25 years
- Company certification: ISO9001, ISO45001
- Product certification: IECEx (the only one in China), ATEX, CE
- Delivery: 5-7 days
- Yearly capacity: 80,000 units
- Service: Professional sales staff provide 7*24 hours service
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems for 16 years. With gas detectors as our core product, we provide complete production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, and Household Appliances.
Product Line
Our product portfolio includes portable types, fixed types, and controller panels.
Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H
Certifications
IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001
Corporate Partners
Huawei, Coca-Cola, Samsung, Nestlé and more
Frequently Asked Questions
Q1: Are you a manufacturer or trading company?
A1: We are a professional manufacturer specializing in gas detectors for more than 10 years.
Q2: What is the MOQ?
A2: Usually it is 1 piece.
Q3: How about the quality of your products?
A3: Our products use imported sensors and components, and are fully certified.
Q4: How long is the warranty time of the products?
A4: The warranty period is 1 year from factory date, and we provide lifetime maintenance service.
