| Place of Origin: | China |
|---|---|
| Brand Name: | SAFEGAS |
| Certification: | ATEX/IECEX |
| Model Number: | YT-98H-A |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton(43*27*15cm) |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 3000 pieces per month |
| Gas Detected: | NH3, CO2 | Detection Principle: | Electrochemical AND IR |
|---|---|---|---|
| Power: | 12-24V DC | Accuracy: | ≤±2-5%FS |
| Response Time(T90): | 15 To 30s | Repeatability: | ≤±1% |
| Pump Flow: | 0.35 To 0.5 L/Min | Temperature: | –20℃ To 55℃ |
| Humidity(no Condensation): | 0-95%RH | Alarm(Optional): | Buzzer, Alarm Status Prompt On The Display Screen, High And Low Alarm Values Can Be Set By Customer |
Product Description
YT-98H/YT-98H-A Fixed Gas Detector
YT-98H is a built-in pump-suction single & multi gas detector,with IECEx, ATEX certificate and non-contact magnetic wand design, it can be installed and operated in explosion proof areas, Oil & Gas industry. In addition to a 3-wire 4 to 20-mA output with relays, it also offers HART, Modbus protocols, making it compatible with most control systems. With optional wireless function, operator can view data on laptop, mobile phone or cloud system remotely.
YT-98H can detect the concentration of CO2 and NH3 at the same time. It can be installed in an environment of -20°C-50°C. It is suitable for installation in freezers, cold storage and other environments to detect ammonia leaks.
Product Picture--YT-98H(with display)

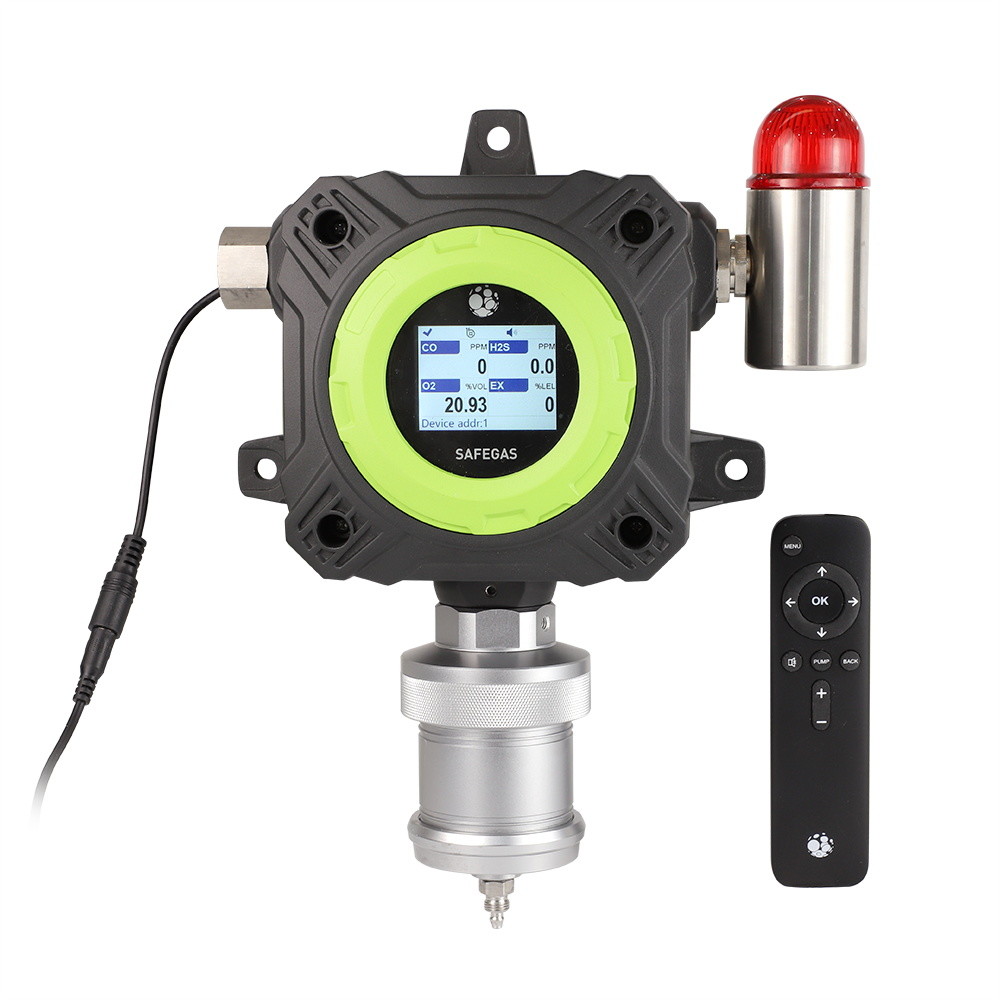

Product Picture--YT-98H-A(with display and alarm light)
Product Advantage
1.Up to 6 kinds of gases can be detected at the same time.
2.In complex and multi-gas environments, multiple installations can be reduced, saving time and effort 2.4-inch industrial-grade high-definition color screen
with a resolution of 320*240 and a wide viewing angle of 120 degrees
3.With wireless module, data can be uploaded to the cloud platform, environmental protection bureau or other platforms, providing SMS reminder function, the transmission signal is not limited by distance, and can be viewed in real time on mobile phones and computers.(optional)
4.With internal suction pump, fast response
5.With full software automatic verification function and zero calibration function, making gas monitoring more accurate and more reliable
6.Standard 4-20mA current signal, RS485 modbus signal, 1 set of relay signal output
7.Standard infrared remote control, which can remotely control the detector and modify the detector settings
8.With sound and light alarm function, there is sound and light alarm when reaching the alarm point.(optional)
Specificiation
| Gas Detected | NH3, CO2 | ||
| Detection principle | Electrochemical AND IR | ||
| Install methode | Wall-mounted, piping type, flow-type(according to the detected environment) | ||
| Measure Range | Can be customized | ||
| Resolution | Can be customized | ||
| Accuracy | ≤±2-5%FS (depending on the specific sensor) | ||
| Signal Output | 4-20MA, RS485, relay | ||
| Response Time(T90) | 15-30s(depending on the specific sensor) | Recovery Time | ≤10S |
| Repeatability | ≤±1% | Display | 2.4-inch color display, resolution 320*240 |
| Operating language | English/Chinese | Display content | gas molecular formula, concentration, unit, pump status, etc |
| Temperature | -20ºC~55ºC | Humidity | 0-95%RH |
| Explosion-Proof | IECEX:Ex db IIC T6 Gb ATEX :Ex db IIC T6 Gb |
Degree of protection | IP66 |
| Alarm mode | Sound, light | Operating time | 24h |
| Dimensions | 43*27*15cm | Weight | 4.6kg |
Why choose us?
1. R&D team experience: over 25 years.
2. Company certification: ISO9001, ISO45001
3. Product certification: IECEx (the only one in China), ATEX, CE
4. Delivery: 5-7 days
5. Yearly capacity: 80,000 units
6. Service: Professional sales staff provide 7*24 hours service
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited(Safegas)is a company that focuses on the design, production and sales of gas detection equipment and system for 16 years. With"gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.
Product line
Our products contain portable types, fixed types and controller panels.
Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H
Certifications
IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001
Our products have obtained international explosion-proof certifications from IECEX and ATEX, ensuring product quality, which are comparable to international brand like Honeywell, MSA, RAE, but our products with competitive price.
Company we cooperated
Huawei, Cocacola, Samsung, Nestel and so on.
FAQ
Q1:Are you manufacture or trading company?
A1:We are a professional manufacture specialize in the gas detector for more than 10 years.
Q2:What is the MOQ?
A2:Usually it is 1 piece.
Q3:How about the quality of your products?
A3:Our product is made of imported sensors and components, the products are certified.
Q4:How long is the warranty time of the products?
A4:The warranty period is 1 years from the factory, we also provide lifetime maintenance.
