Gas Type: | To Be Specificated | Sampling Method: | With Pump Or Diffusion |
---|---|---|---|
Measure Range: | To Be Specificated | Resolution: | To Be Specificated |
Certification: | CE,ATEX,IECEx,ISO | Language: | Chinese/English/ Customized |
Alarm: | Buzzer , LED And Vibration Alarm | Power: | With 3.7V Rechargeable Lithium Battery |
Working Hour: | More Than 15 Hours(with Pump Running) | Response Time: | Less Than 30 Seconds |
Data Record: | Can Store 1 Hundred Thousand Sets Data | Single Package Size:: | 34cmX24cmX14cm |
Single Gross Weight:: | 1.64kg | ||
Highlight: | IECEX Explosion Proof Portable Gas Detector,Imported Sensor Portable Gas Detector |
Product Description
SKY3000 Portable gas detector
SKY3000 series is a high-performance portable gas detector that can detect multiple gases (Oxygen compounds VOC, combustible gas and toxic gas) at the same time and has man down alarm function.The device has humanized operation functions such as one-key security detection, one-key storage, automatic image flipping, as well as the man down alarm function; With optionalBluetooth transmission function, allowing safety personnel to obtain real-time data and the alarm status.
It has obtained international IECEX, ATEX explosion-proof certification and Chinese explosion-proof certification; As it passed the antistatic test, and the protection level reaches IP67; With safer product design and the module designwhich makes the detection faster, and the compact ergonomic design makes the device easy carrying; The instrument is mainly working in suction mode. When the air pump fails or in special emergency situations , it can automatically switch to the diffusion sampling method, thereby improving the protection to a new Level.
The explosion-proof Grade of the SKY3000 series is Ex ia IIC T4 Ga,which is applicable to the explosive gas mixture zone 0, zone 1, and zone 2 of the factory with grades ⅡA, ⅡB, and ⅡC and temperature group T1~T4.

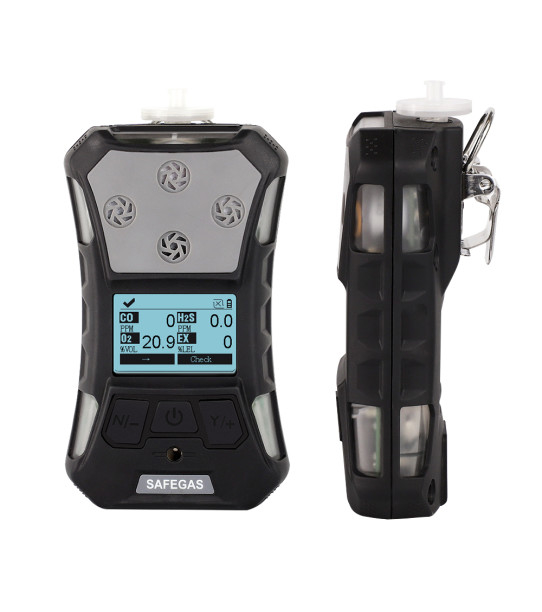

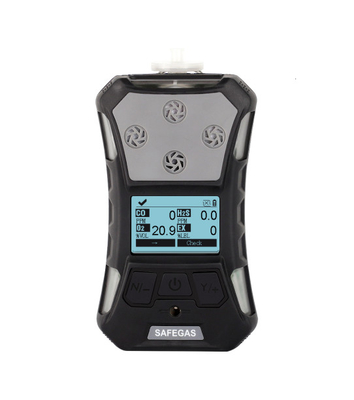

Product Picture
Rugged and durable
●IP67, the instrument can effectively resist a three-meter drop,has passed the EMC anti-static interference test and can work in the walkie-talkie environment
Explosion-proof circuit design, safe and reliable
●The instrument has got IECEX, ATEX, Chinese explosion-proof certificates and the explosion-proof level reaches Exia IICT4 Ga
Multiple security protection
●With man down alarm function, the safety of underground operators can be improved
●Password protection function, can prevent non-operators from modifying menu parameters
●With safety reminder function, sound and light vibration alarm function, set alarm to remind users
Large screen display, flexible detection system, multiple filtering devices
●The instrument can detect 1-4 gases at the same time, display real-time value, TWA, STEL, MAX, MIN multiple numerical display
●The screen can be automatically turned 180°, which is convenient for viewing in special operating environments
●With built-in powerful sampling pump, fast detection speed
●Can be connected 20m sampling tube externally, which is convenient for long-distance or confined space detection
●Pump suction and diffusion dual use
●With a water trap filter, it can effectively filter water, oil, dust and other impurities. It can also be used in harsh industrial environments such as coal mines and petroleum fields
Powerful function, more user-friendly operation
●Beautiful and friendly user interface, reasonable and easy-to-use interactive mode
●Optional Bluetooth wireless transmit function, data can be transmitted to the mobile phone or PC in real time
●Standard storage function, one-click data export, convenient for users to analyze
●Unique modifiable ID identification function, convenient for users to allocate and manage the instrument
●A full range of automatic detection functions, automatic prompts for voltage, pump failure alarms, etc.
●One-key security detection
●Support PPM and mg/m3 gas unit switch, the concentration value is automatically converted by the system
●Support each channel sensor to restore the factory setting separately
●Support multi-language including English.Chinese and etc.
Specifications
Sampling method | Pump suction or diffusion suction |
Gas type | Can be customized, up to 6 gases |
Measure range | Can be customized |
Resolution | Can be customized |
Response time | ≤10 seconds |
Precsiion | ≤±1%F.S |
Language | English(Other languages can be customized) |
Automatically test and calibrate after power-on | Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value |
Unit | PPM and mg/m³ can be switched |
Disaply | monochrome graphics (160 x96) ,screen can be automatically flipped |
Backlight | The backlight time can be manually set, and will be turned on automatically when an alarm is issued |
Data record | Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported |
Alarm | 95dB buzzer (@30cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man down alarm, with early warning and optional real-time remote Bluetooth notification function |
Battery | 3.7V rechargeable lithium battery, battery capacity 2200mA |
Working hours | More than 15 hours in continuous pumping mode |
Charger | Travel charger with DC interface, charging time ≥ 4 hours |
Explosion-proof grade | IECEX/ATEX(II IG Ex ia IIC T4 CNEX:Ex ia IIC T4 Ga |
Certification (EU regulations) |
2004/108/EC(EMC) 1995/5/EC(Radio) 94/9/EC(ATEX) |
Protection grade | IP67/IP68 |
Working temperature | -20ºC~+50ºC |
Humidity | 0~90%RH(no condensation) |
Environmental pressure | 86~106Kpa |
Size | 157*84.5*59.5mm (including back clip/water trap filter) (length * width * height) |
Weight | 365g (including battery, belt clip and filter) |
Bluetooth function(Optional) | Gas Concentration Meter O2 LEL H2S CO CO2 data can be transmitted to the mobile phone or PC in real time |

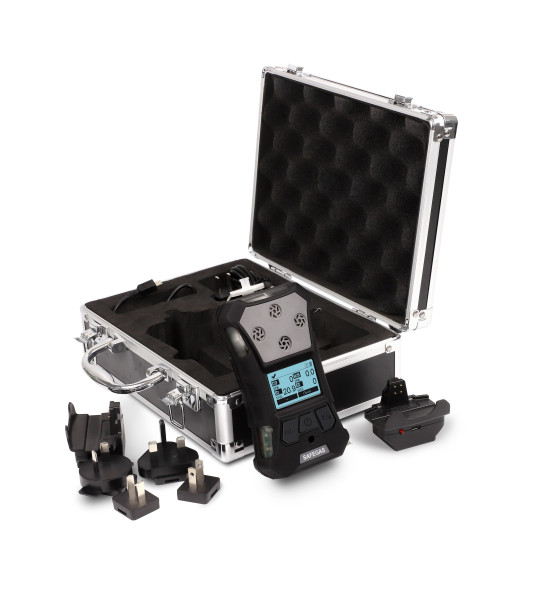

Product configuration
Standard accessories:
●Gas detector 1 piece
●12V/1A DC power adapter 1 piece
●USB cable 1 piece
●User manual 1 piece
●Warranty card 1 piece
●Filter 1 piece
●Aluminum suitcase 1 piece
Other gases we can detect:
Why choose us?
1) R&D team experience: over 25 years.
2) Company certification: ISO9001, ISO45001
3) Product certification: IECEx (the only one in China), ATEX, CE
4) Delivery: 5-7 days
5) Yearly capacity: 80,000 units
6) Service: Professional sales staff provide 7*24 hours service
