Safegas Wall Mounted Single Gas Detector with IECEX Certification IP66/IP68 Protection and Wireless LORA or 4G

Safegas Wall Mounted Single Gas Detector with IECEX Certification IP66/IP68 Protection and Wireless LORA or 4G
Safegas Wall Mounted Single Gas Detector with IECEX Certification IP66/IP68 Protection and Wireless LORA or 4G Safegas Wall Mounted Single Gas Detector with IECEX Certification IP66/IP68 Protection and Wireless LORA or 4G Safegas Wall Mounted Single Gas Detector with IECEX Certification IP66/IP68 Protection and Wireless LORA or 4G Safegas Wall Mounted Single Gas Detector with IECEX Certification IP66/IP68 Protection and Wireless LORA or 4G Safegas Wall Mounted Single Gas Detector with IECEX Certification IP66/IP68 Protection and Wireless LORA or 4G
Basic Information
Place of Origin: China
Brand Name: SAFEGAS
Certification: ATEX/IECEX
Model Number: SG100
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Aluminum Suitcase Packing
Delivery Time: 3 work days
Payment Terms: T/T,Western Union
Supply Ability: 100 pieces/day
Get Best Price Contact Now
Detail Information
Gas Detected: Can Be Customized Measure Range And Resolution: Can Be Customized
Accuracy: ≤±2-5%FS (Depending On The Specific Sensor) Explosion-proof Grade：: IECEX：Ex Db IIC T6 Gb，Ex Db Ia IIC T6 Gb ； ATEX：Ex Db IIC T6 Gb，Ex Db Ia IIC T6 Gb
Protection Grade: IP66/68 Communication Mode: 4-20mA(3-wires)、RS485 1～5V，Hart(Optional)
Wireless(Optional): Support LORA Or 4G Relay: 3 Relays, Including Low/high/fault Alarm Relay（Optional）
Working Temperature: 0℃～70℃（Catalytic Sensor）， -20℃～50℃（Electrochemistry Sensor） Size: 157.8x128.8x69.6mm
Weight: 1.0Kg
Highlight:

IECEX Certification Single Gas Detector

,

Wall Mounted Single Gas Detector

,

IP68 Protection Single Gas Detector

Product Description

SG100 Fixed Gas Detector
The SG100 series is a cost-effective gas detector designed for continuous monitoring of toxic gases, oxygen, flammable gases, and VOC gases. Certified by IECEx and ATEX with intrinsically safe explosion grade, it features 2-wire or 3-wire 4-20 mA analog output, RS485 Modbus output, and optional HART output for compatibility with most control systems. With optional wireless data transmission, users can remotely review and download data. The detector supports both magnetic and remote control for flexible configuration.
Product Images

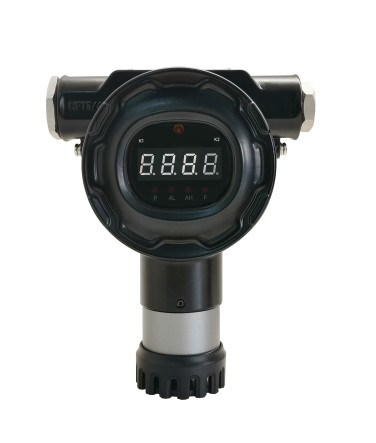

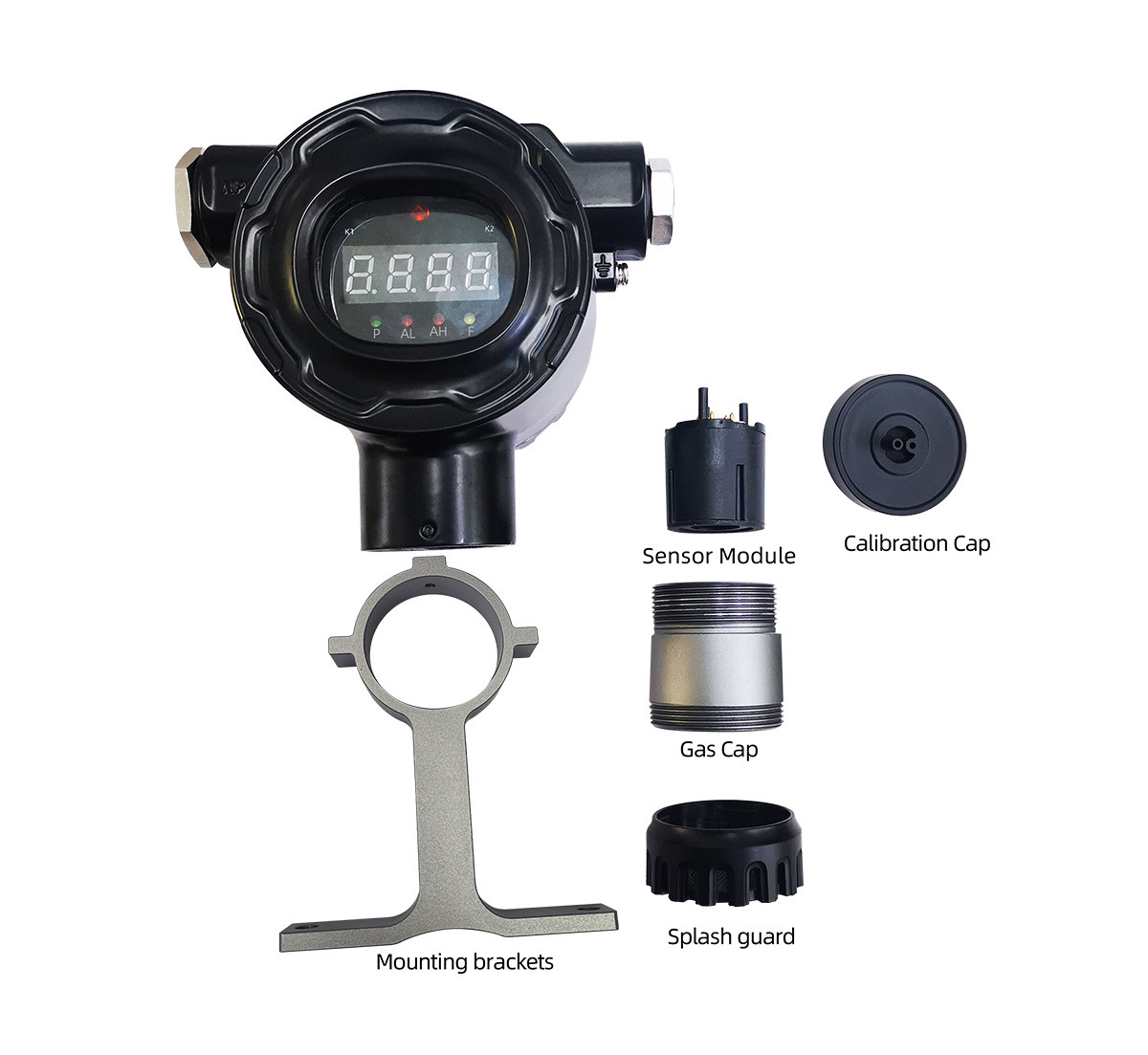

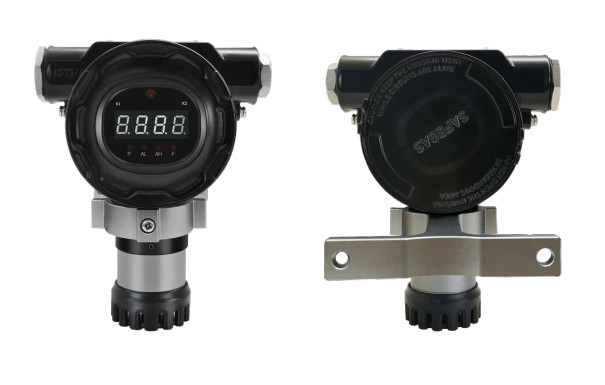

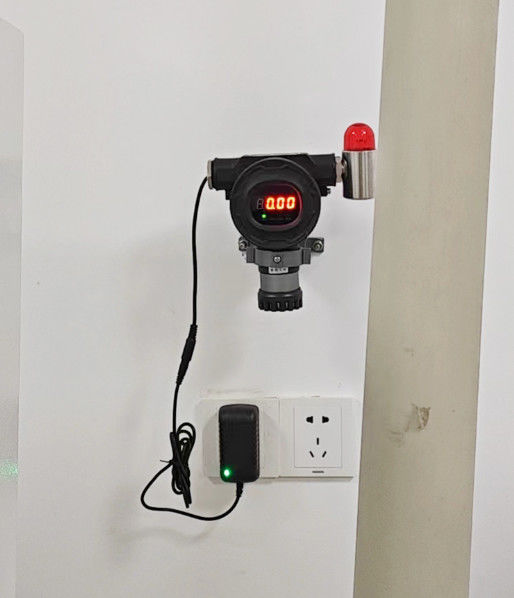

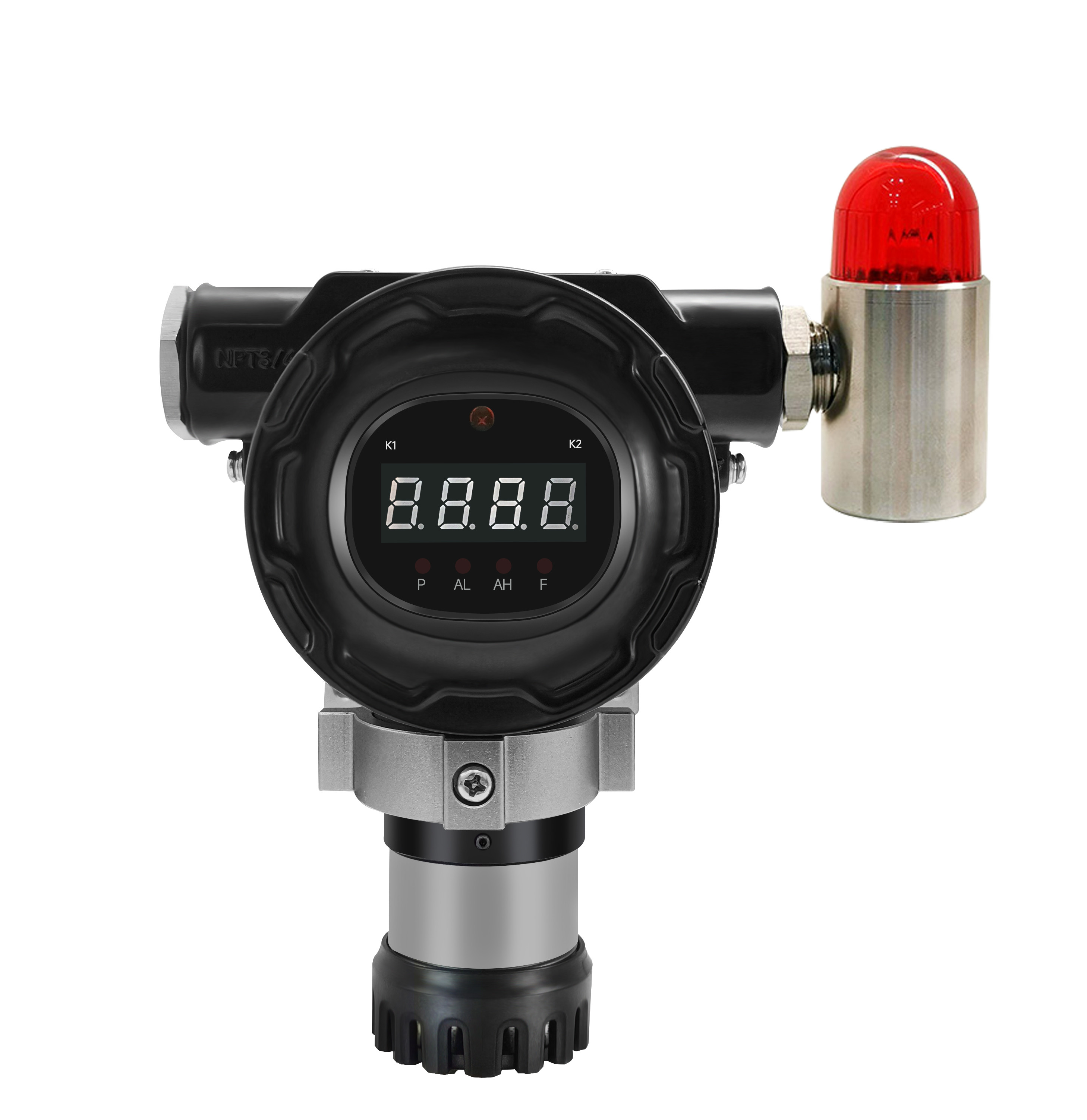

SG100 Gas Detector front view SG100 Gas Detector side view SG100 Gas Detector installation view SG100 Gas Detector close-up SG100 Gas Detector display SG100 Gas Detector components SG100 Gas Detector mounting bracket
Key Features
  • IP66/IP68 water and dust resistant protection
  • Intelligent plug-and-play sensor module with PC software calibration support
  • Standard splash guard for outdoor installation and water splash environments
  • Compact and lightweight design (1 kg) with standard mounting bracket
  • Standard 4-20 mA analog signal output and RS485 Modbus signal output
  • Optional HART output and 2-wire output configuration
  • Three relays included (low/high/fault alarm relay - optional)
  • Magnetic and remote control support for flexible settings
Technical Specifications
Parameter Specification
Detected Gas Customizable single gas detection
Measurement Range Customizable
Installation Method Wall-mounted, piping type, flow-type
Output Signal 4-20mA, 1-5V, 2-10V, RS485, RS232, relays (optional)
Precision ≤±1% F.S. (to be specialized)
Zero Shift ≤±1% (F.S./year)
Display 4-digit Nixie tube display
Connection Mode G3/4 external thread explosion-proof flexible pipe
Thread Size Standard M20*1.5, 3/4NPT
Temperature Range -20℃～50℃ (electrochemical), -40℃～70℃ (catalytic combustion)
Humidity Range 10-95% RH (non-condensing)
Explosion-Proof Rating Ex db ⅡC T6/ Ex db ia IIC T6 Gb/ Ex da db ia IIC T6 Gb
Protection Degree IP66/IP68
Material Sensor housing: aluminum alloy or 316 stainless steel
Power Supply 12-24V DC
Dimensions 158×129×70mm
Weight ≤1kg
Certifications CE, CNEX, CMC, IECEx, ATEX
Warranty 12 months
Detectable Gases
The SG100 model is designed for single gas detection with customizable gas options.
Gas detection capabilities chart 1 Gas detection capabilities chart 2 Gas detection capabilities chart 3
Standard Configuration
  • Gas detector, 1 set
  • Magnetic wand, 1 set
  • User manual, 1 piece
  • Conformity Certificate/warranty card, 1 piece
  • Installation bracket, 1 set
  • Infrared Ray Controller, 1 piece
Optional Accessories
Calibration cap, power adapter, external pump, explosion-proof gland, adapter NPT3/4, adapter M20 * 1.5, sound and light alarm, etc. Please contact us for details.
Applications
Chemical Industry Environmental Monitoring Healthcare Applications Automotive Industry Industrial Safety Wastewater Treatment Greenhouse Gas Monitoring Oil and Gas Exploration Food and Beverage Production Mining Operations
Gas detector in industrial application 1 Gas detector in industrial application 2 Gas detector in industrial application 3
Why Choose Safegas?
  • R&D team experience: over 25 years
  • Company certifications: ISO9001, ISO45001
  • Product certifications: IECEx (the only one in China), ATEX, CE
  • Delivery time: 5-7 days
  • Annual production capacity: 80,000 units
  • Professional sales staff providing 7*24 hours service
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of experience and "gas detector" as our core product, we provide complete production lines and solutions for various industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, Forestry, and Household Appliances.
Product Line
Our comprehensive product range includes portable types, fixed types, and controller panels:
Portable: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed Types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller Panels: YT-1100H, YT-1600H
Safegas product line overview
Certifications
IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001
Safegas certifications and quality standards
Our Partners
Huawei, Coca-Cola, Samsung, Nestlé and more
Companies that partner with Safegas
Frequently Asked Questions
Q1: What is a gas detector?
A1: A gas detector is an instrument for detecting gas leakage concentration, including portable gas detectors and fixed gas detectors.
Q2: What does a gas detector detect?
A2: Combustible gases: Natural gas (methane), liquefied gas, coal gas, acetylene, pentane, alkynes, toluene, etc. Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.
Q3: What is the ppm unit of the gas detector?
A3: ppm represents the volume concentration of the gas, meaning the volume of pollutants contained in one million volumes of air. For example, if the concentration of ammonia is 30ppm, it means that the volume of ammonia in one million volumes of air is 30.
Gas detection measurement explanation 1 Gas detection measurement explanation 2
