Name: Fixed Gas Detector with Alarm Function Wireless Transmit Support Lora 4G IP65 for Industrial Use
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: YT-95H
Price: 1,037.00 USD
Availability: InStock

Detail Information

Response Time(T90):	15 To 30s	Repeatability:	≤±1%
Zero Shift（F.S./year）:	≤±1%	Display:	Display 4 Digits
Connection Mode:	G1/2 External Thread Explosion-proof Flexible Pipe	Thread Size:	M45*2mm
Explosion-proof Grade:	Ex D IIC T6 Gb	Dimensions:	18cm15cm9cm
Weight:	Less Than 1.6kg	H.S Code:	9027100090
Highlight:	Lora 4G Single Gas Detector , IP65 Single Gas Detector , Industrial Use Single Gas Detector

Product Description

YT-95H/YT-95H-A Fixed Gas Detector

The YT-95H/YT-95H-A series is a cost-effective explosion-proof transmitter designed for detecting flammable and toxic gases. Featuring a 3-wire 4 to 20 mA analog output with relays and RS485 Modbus protocol, it ensures compatibility with most control systems. Third-party components such as horns, warning lights, and fans can be integrated into the system. With optional wireless functionality, operators can remotely monitor data on laptops, mobile phones, or cloud systems.

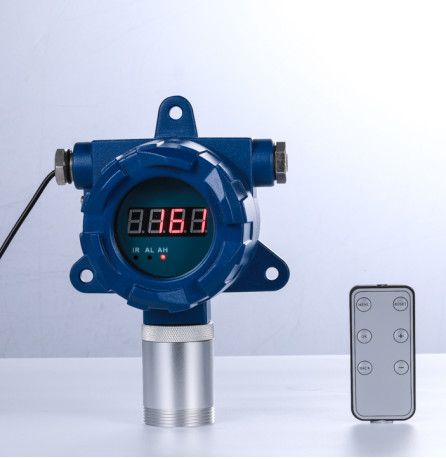

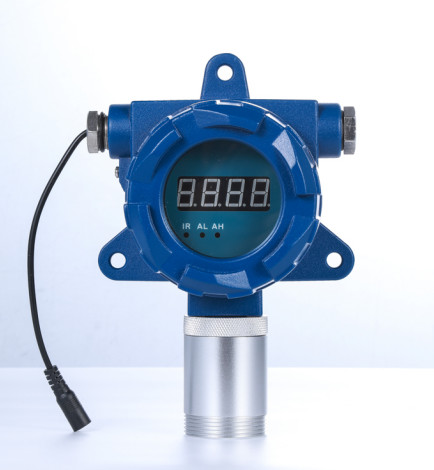

YT-95H Product Images

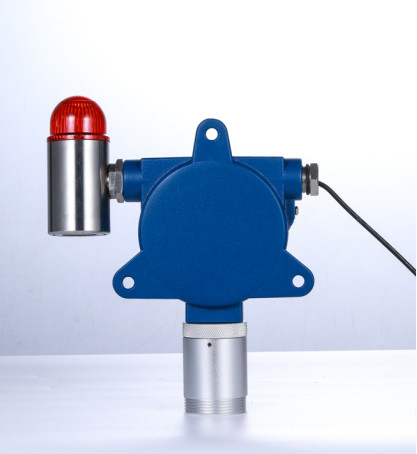

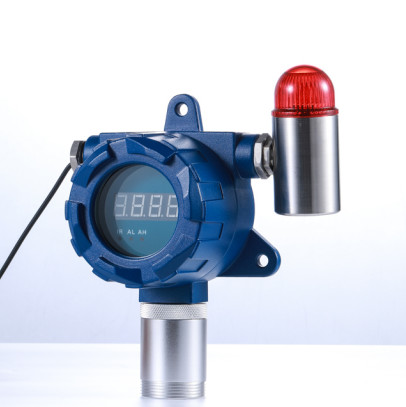

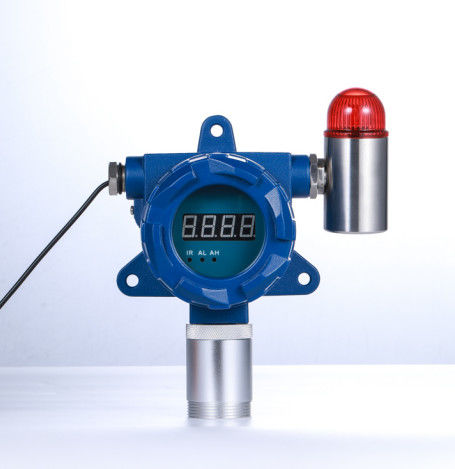

YT-95H-A Product Images

Product Advantages

Online Monitoring with Sound/Light Alarm (Optional)

24-hour continuous monitoring with real-time data display. High/low alarm with sound and light, sound >90dB, with settable alarm points.

Non-Contact Device Control

Infrared ray controller enables remote control of alarm point settings, zero calibration, and address modification.

Variety of Installation Methods

4-20mA current signal output compatible with various controllers. RS485 MODBUS signal output. Relay signal output for controlling ventilators, generators, or other external devices.

Data Transmission

PC software installation enables data transmission to computers for remote monitoring. Optional wireless data transmission including Lora and 4G.

High Quality Case

Die-cast aluminum case, strong and durable; optional stainless steel case for different situations. IP65 protection degree, water-proof, dust-proof, explosion-proof.

Technical Specifications

Parameter	Specification
Gas detected	Can be customized
Install method	Wall-mounted, piping type, flow-type
Measure range	Can be customized
Resolution	Can be customized
Precision	± 2-5% FS
Signal output	4-20mA, 0-5V, RS485, relay (optional)
Response time	≤10S
Recovery time	≤10S
Repeatability	≤±1%
Linearity error	≤±1%
Zero shift	≤±1%(FS/year)
Display	High-light nixie tube display
Connection mode	G1/2 external thread explosion-proof flexible pipe
Unit	ppm, mg/m³, %vol
Temperature	-20 to 50°C
Humidity	0-95%RH
Explosion-proof	Ex dⅡCT6
Degree of protection	IP65
Alarm	Sound, light
Operating time	24H
Dimensions	18015090mm
Weight	≤2kg

Detectable Gases

YT-95H is a single gas detector capable of detecting various gases including:

Applications

Chemical Industry
Environmental Monitoring
Healthcare Applications
Automotive Industry
Industrial Safety
Wastewater Treatment
Greenhouse Gas Monitoring
Oil and Gas Exploration
Food and Beverage Production
Mining and Mining Operations

Standard Configuration

Gas detector: 1 piece
Instruction Manual: 1 piece
Product certificate: 1 piece
Remote controller: 1 piece
Label: 1 piece
Packing box: 1 piece

Why Choose Us?

R&D team experience: over 25 years
Company certification: ISO9001, ISO45001
Product certification: IECEx (the only one in China), ATEX, CE
Delivery: 5-7 days
Yearly capacity: 80,000 units
Service: Professional sales staff provide 7*24 hours service

Company Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) is a company that focuses on the design, production and sales of gas detection equipment and systems for 16 years. With "gas detector" as the core product, we have completed production lines and solutions for different industries including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, and Household Appliances.

Product Line

Our products include portable types, fixed types and controller panels:

Portable types: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000
Fixed types: YT-95H, YT-98H, YT-96H, SG100, SG200
Controller panels: YT-1100H, YT-1600H

Certifications

IECEX, ATEX, CE, TEST Report, ISO 9001, ISO 45001

Corporate Partners

Huawei, Coca-Cola, Samsung, Nestlé and more.

Frequently Asked Questions

Q1: Are you a manufacturer or trading company?

A1: We are a professional manufacturer specializing in gas detectors for more than 10 years.

Q2: What is the MOQ?

A2: Usually it is 1 piece.

Q3: How about the quality of your products?

A3: Our products are made of imported sensors and components, and are certified.

Q4: How long is the warranty time of the products?

A4: The warranty period is 1 year from the factory, and we also provide lifetime maintenance.
