Product Description
YT-98H/YT-98H-A Fixed Gas Detector
YT-98H is a built-in pump-suction single & multi gas detector,with IECEx, ATEX certificate and non-contact magnetic wand design, it can be installed and operated in explosion proof areas, Oil & Gas industry. In addition to a 3-wire 4 to 20-mA output with relays, it also offers HART, Modbus protocols, making it compatible with most control systems. With optional wireless function, operator can view data on laptop, mobile phone or cloud system remotely.
Built-in high-suction long-life vacuum pump, the normal continuous working time of the pump is more than 12,000 hours. Compared with the traditional diffusion sampling method, the response detection speed is faster. It can be installed in a normal open area or underground restricted confined space to detect the gas concentration in the high altitude , effectively protecting the personal safety of maintenance personnel.
2.4-inch high-definition color screen, simulated menu icon, Chinese and English interface can be switched. Up to six gases can be detected at the same time, the higt and low alarm values are settable, and the unit can be switched.
Infrared remote control without opening the cover operation, three-wire 4-20mA, RS485, 1 group of relay output (up to 2 groups are optional), external sound and light alarm does not occupy relays.Optional 0-10V, 0-5V, 1-5V output.
Explosion-proof, lightning protection, anti-static, surge protection, waterproof, protection level IP65 Optional: sound and light alarm (integrated or external), water vapor filter cartridge, normal temperature automatic dehumidification drainage system, normal temperature dehumidification filtration manual drainage system, high temperature flue gas pretreatment system.
Wireless transmission transmitter and receiver (2km, 5km, 8km unobstructed), 2G, 4G wireless signal transmission (unlimited distance, can choose mobile phone card or data card, mobile phone card needs to be recharged). Data monitoring cloud platform: After the data is uploaded to the server, the user can read it remotely from the server, and multiple people can manage and read it at the same time, realizing record storage, real-time viewing, and other functions.
Product Picture--YT-98H(with display)

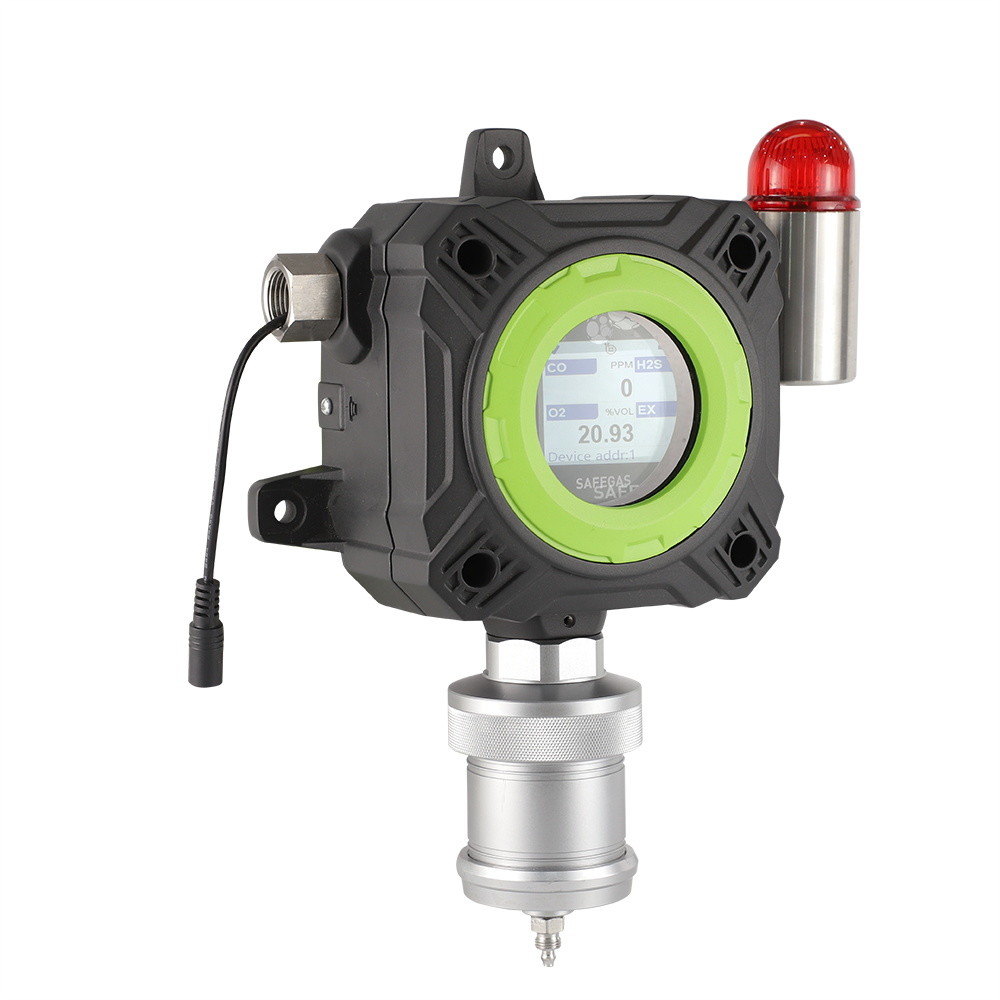

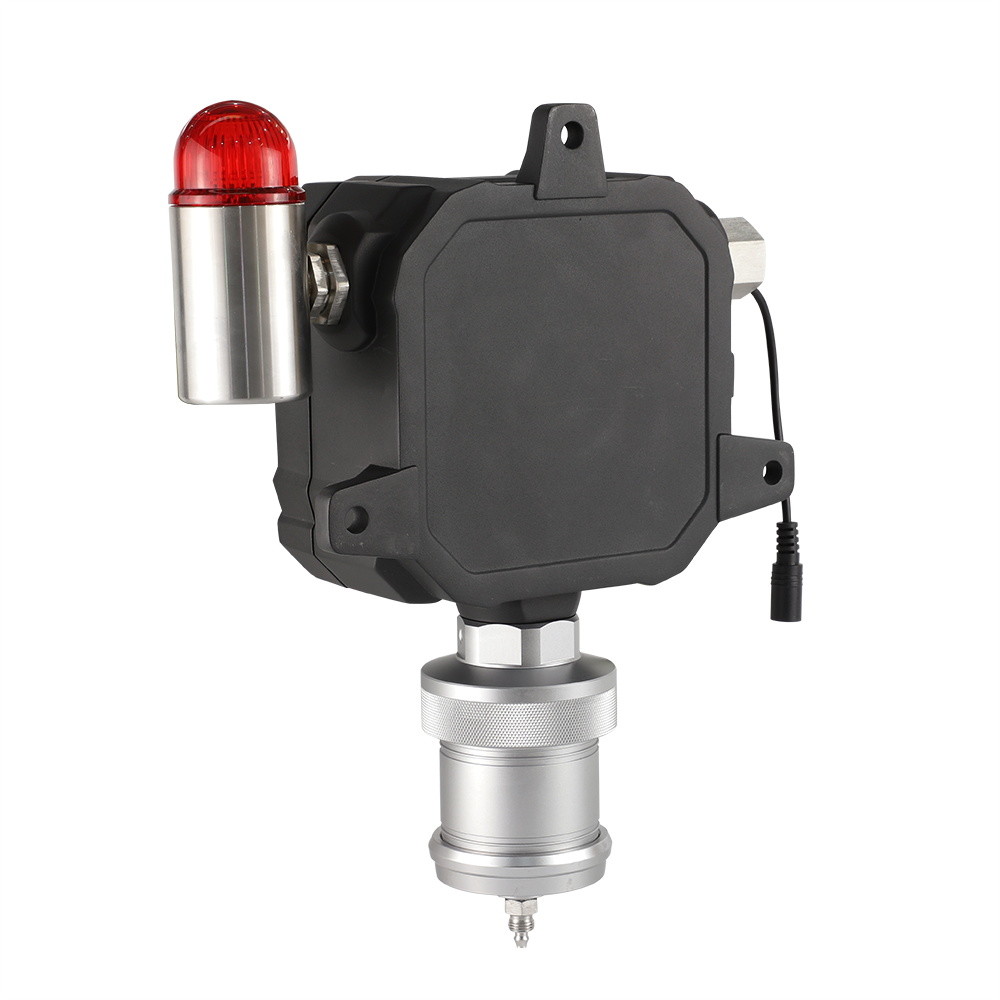

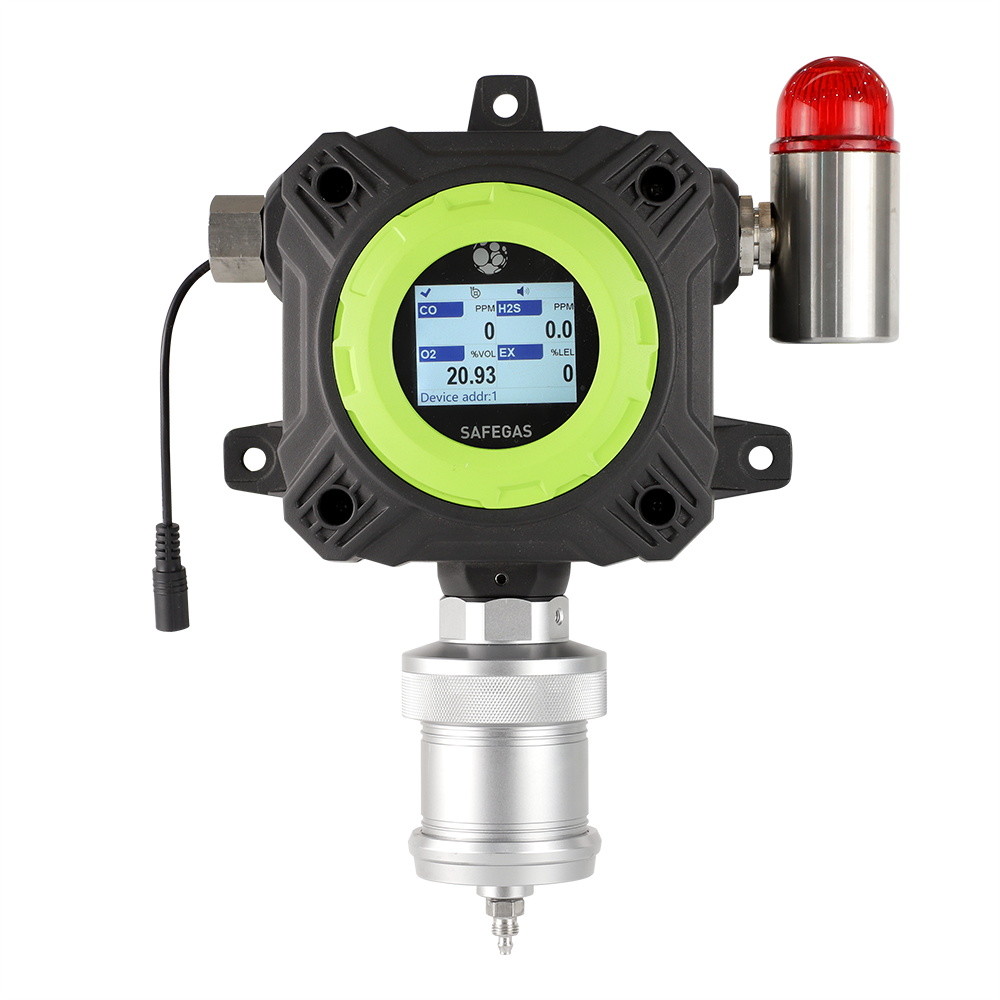

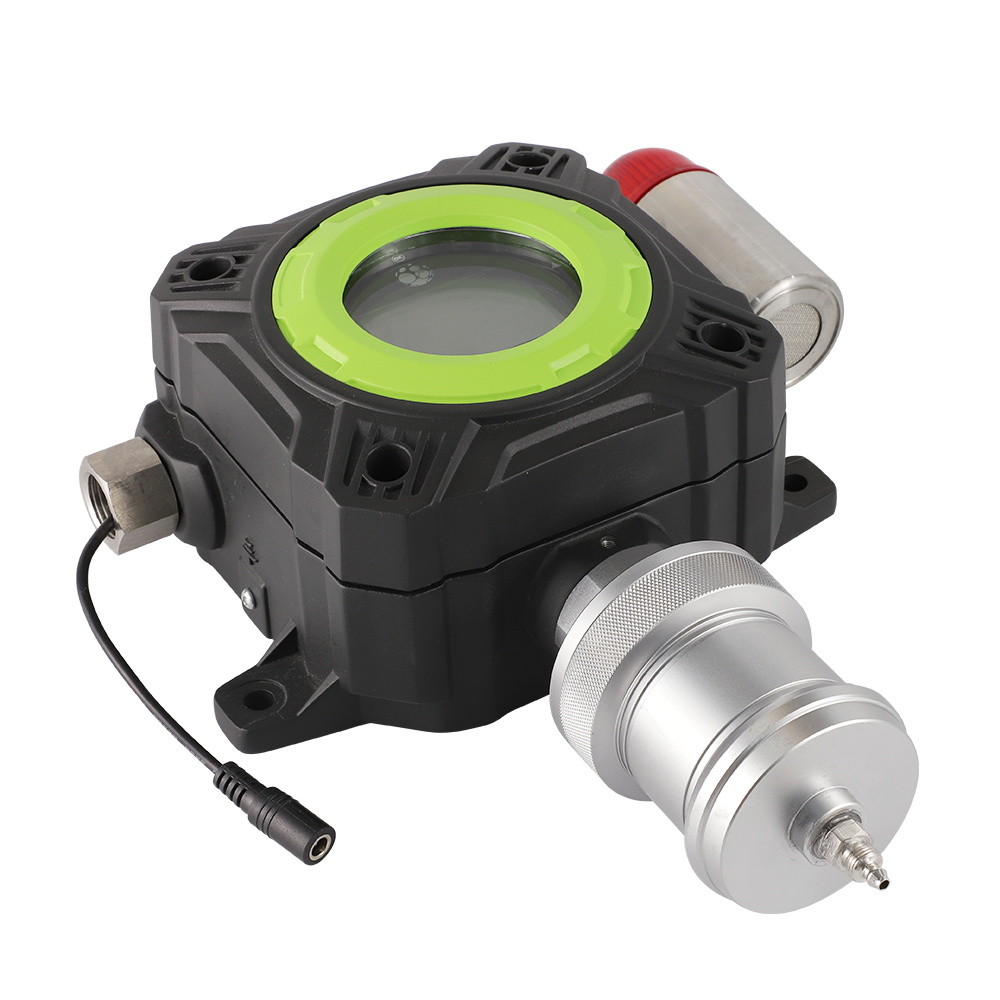

Product Picture--YT-98H-A(with display and alarm light)
Product Advantage
1.Up to 6 kinds of gases can be detected at the same time.
2.In complex and multi-gas environments, multiple installations can be reduced, saving time and effort 2.4-inch industrial-grade high-definition color screen
with a resolution of 320*240 and a wide viewing angle of 120 degrees
3.With wireless module, data can be uploaded to the cloud platform, environmental protection bureau or other platforms, providing SMS reminder function, the transmission signal is not limited by distance, and can be viewed in real time on mobile phones and computers.(optional)
4.With internal suction pump, fast response
5.With full software automatic verification function and zero calibration function, making gas monitoring more accurate and more reliable
6.Standard 4-20mA current signal, RS485 modbus signal, 1 set of relay signal output
7.Standard infrared remote control, which can remotely control the detector and modify the detector settings
8.With sound and light alarm function, there is sound and light alarm when reaching the alarm point.(optional)
Specificiation
| Gas Detected |
Hydrogen (H2) |
| Detection principle |
Electrochemical |
| Install methode |
Wall-mounted, piping type, flow-type(according to the detected environment) |
| Measure Range |
0-1000PPM, 0-40000PPM |
| Resolution |
1PPM |
| Accuracy |
≤±2-5%FS |
| Signal Output |
4-20MA, RS485, relay |
| Response Time(T90) |
15-30s(depending on the specific sensor) |
Recovery Time |
≤10S |
| Repeatability |
≤±1% |
Display |
2.4-inch color display, resolution 320*240 |
| Operating language |
English/Chinese |
Display content |
gas molecular formula, concentration, unit, pump
status, etc |
| Temperature |
-20ºC~55ºC |
Humidity |
0-95%RH |
| Explosion-Proof |
IECEX:
Ex db IIC T6 Gb
ATEX :
Ex db IIC T6 Gb |
Degree of protection |
IP66 |
| Alarm mode |
Sound, light |
Operating time |
24h |
| Dimensions |
43*27*15cm |
Weight |
4.6kg |
Why choose us?
1. R&D team experience: over 25 years.
2. Company certification: ISO9001, ISO45001
3. Product certification: IECEx (the only one in China), ATEX, CE
4. Delivery: 5-7 days
5. Yearly capacity: 80,000 units
6. Service: Professional sales staff provide 7*24 hours service
As a professional gas detector manufacturer, we control the entire process from design-R&D-production-sales to ensure the consistency of product quality. We have more than 100 independent intellectual property patents in design and development;In production, we have skilled technical workers and a complete industrial line, which can grasp the production and quality of products throughout the process;and our company has rich overseas sales experience and a professional sales team, can provide customers with 7*24h considerate service.
We have professional R&D department, thet have been engaged in gas detect industrial for about 25 years.They have professional knowledge and rich experience,can provide customers with professional technical after-sales service.
We carry out a strict quality management system and take the principle of quality first as the core to produce gas detector,Therefore, we have been recognized by authoritative organizations and obtained ISO9001 and ISO14001 certifications to provide customers with safe and environmentally friendly products.
Our products have obtained IECEx and ATEX explosion-proof certification, so our detectors can be used in hazardous areas such as mines, underground and oil plants. We are the first and currently the only manufacturer in China who obtain this certification, products without explosion-proof certification are prohibited from being used in dangerous areas.
Our core components, such as ICs or sensors, use imported brands like Honeywell, CITY and Alpha, which improving the accuracy of our product,stabilizing the product's service life, ensuring the accuracy of detection and protecting the safety of customers' lives.
Our complete product line and stable inventory provide customers with fast delivery. If the order quantity is less than 10 pcs, we usually deliver them within 3 days. If the quantity exceeds 100 pcs, under normal circumstances,we can deliver it within half a month.
FAQ
Q1:Are you manufacture or trading company?
A1:We are a professional manufacture specialize in the gas detector for more than 10 years.
Q2:What is the MOQ?
A2:Usually it is 1 piece.
Q3:How about the quality of your products?
A3:Our product is made of imported sensors and components, the products are certified.
Q4:How long is the warranty time of the products?
A4:The warranty period is 1 years from the factory, we also provide lifetime maintenance.
