| Place of Origin: | China |
|---|---|
| Brand Name: | SAFEGAS |
| Certification: | Chinese EX certificate |
| Model Number: | YT-95H |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 3 work days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 300 pieces per month |
| Gas Detected: | Oxygen | Response Time(T90): | 15 To 30s |
|---|---|---|---|
| Repeatability: | ≤±1% | Zero Shift（F.S./year）: | ≤±1% |
| Display: | Display 4 Digits | Connection Mode: | G1/2 External Thread Explosion-proof Flexible Pipe |
| Thread Size: | M45*2mm | Explosion-proof Grade: | Ex D IIC T6 Gb |
| Dimensions: | 180mm×150mm×90mm | Weight: | Less Than 1.6kg |
| H.S Code: | 9027100090 | ||
| Highlight: | Industrial Use Fixed Oxygen Gas Detector,24h Detect Fixed Oxygen Gas Detector |
||
Product Description
YT-95H/YT-95H-A Fixed Gas Detector
YT-95H/YT-95H-A series is a cost effective explosion proof transmitter for the detection of flammable gases and toxic gases. A 3 wire 4 to 20 mA analog output with relays and RS485 Modbus protocol, makes it compatible with most control systems. Third party products such as horns, warning lights and fans are compatible with our components and integrated by us into the system. With optional wireless function, operator can view data on laptop, mobile phone or cloud system remotely.

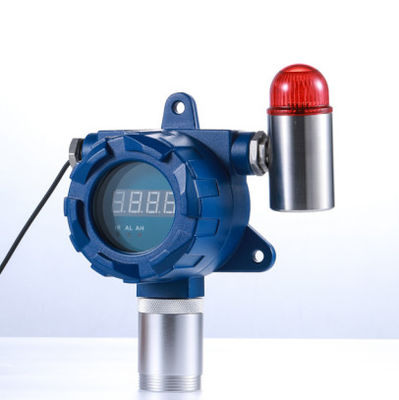

Product Picture Of YT-95H

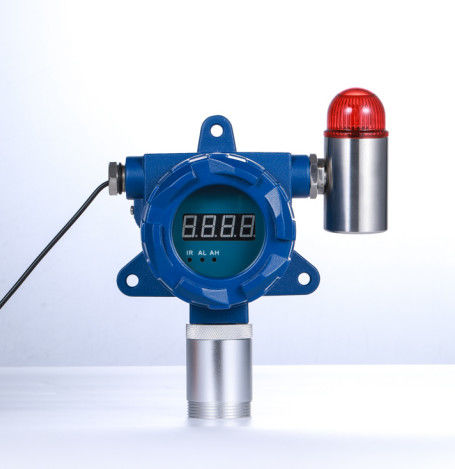

Product Picture Of YT-95H-A
Product Advantage
Online monitoring with sound/light alarm(Optional)
24h continuously monitoring, data will real-time display
High/low alarm with sound and light, sound >90dB, alarm point is settable
Non-contacted control the device
With infrared ray controller, which can remote control alarm point settings, zero calibration, and address modification
Variety of installation methods
4-20mA current signal output, compatible with different kinds of controllers. RS485 MODBUS signal output. Relay signal output, to turn on/off ventilator, generators or other external devices
Data transmission
Can be installed with PC software, to transmit the data to computer, workers can remote monitor the data
Wireless data transmission including Lora, 4G (Optional)
High quality case
Die-cast aluminum case, strong and durable; Stainless steel case is optional, meeting the demand of different situations
IP65 protection degree, water-proof, dust-proof, explosion-proof
Specifications:
| Gas detected | O2 | ||
| Install method | Wall-mounted, piping type, flow-type (according to the detected environment) | ||
| Measure range | 0-25%VOL, 0-30%VOL | ||
| Resolution | 0.1%VOL | ||
| Precision | ± 2-5% FS | ||
| Signal output | 4-20mA, 0-5V, RS485, relay(optional) | ||
| Response time | ≤10S | Recovery time | ≤10S |
| Repeatability | ≤±1% | Linearity error | ≤±1% |
| Zero shift | ≤±1%(FS/year) | Display | High-light nixie tube display |
| Connection mode | G1/2 external thread explosion-proof flexible pipe | Unit | ppm, mg/m³, %vol |
| Temperature | -20 to 50°C | Humidity | 0-95%RH |
| Explosion-proof | Ex dⅡCT6 | Degree of protection | IP65 |
| Alarm | Sound, light | Operating time | 24H |
| Dimensions | 180*150*90mm | Weight | ≤2kg |
Product configuration
Standard accessories:
1, Gas detector 1 piece
2, Instruction Manual 1 piece
3, Product certificate 1 piece
4, Remote controller 1 piece
5, Label 1 piece 1 piece
6, packing box 1 piece
Why choose us?
1. R&D team experience: over 25 years.
2. Company certification: ISO9001, ISO45001
3. Product certification: IECEx (the only one in China), ATEX, CE
4. Delivery: 5-7 days
5. Yearly capacity: 80,000 units
6. Service: Professional sales staff provide 7*24 hours service
As a professional gas detector manufacturer, we control the entire process from design-R&D-production-sales to ensure the consistency of product quality. We have more than 100 independent intellectual property patents in design and development;In production, we have skilled technical workers and a complete industrial line, which can grasp the production and quality of products throughout the process;and our company has rich overseas sales experience and a professional sales team, can provide customers with 7*24h considerate service.
We have professional R&D department, thet have been engaged in gas detect industrial for about 25 years.They have professional knowledge and rich experience,can provide customers with professional technical after-sales service.
We carry out a strict quality management system and take the principle of quality first as the core to produce gas detector,Therefore, we have been recognized by authoritative organizations and obtained ISO9001 and ISO14001 certifications to provide customers with safe and environmentally friendly products.
Our products have obtained IECEx and ATEX explosion-proof certification, so our detectors can be used in hazardous areas such as mines, underground and oil plants. We are the first and currently the only manufacturer in China who obtain this certification, products without explosion-proof certification are prohibited from being used in dangerous areas.
Our core components, such as ICs or sensors, use imported brands like Honeywell, CITY and Alpha, which improving the accuracy of our product,stabilizing the product's service life, ensuring the accuracy of detection and protecting the safety of customers' lives.
Our complete product line and stable inventory provide customers with fast delivery. If the order quantity is less than 10 pcs, we usually deliver them within 3 days. If the quantity exceeds 100 pcs, under normal circumstances,we can deliver it within half a month.
FAQ
Q1:Are you manufacture or trading company?
A1:We are a professional manufacture specialize in the gas detector for more than 10 years.
Q2:What is the MOQ?
A2:Usually it is 1 piece.
Q3:How about the quality of your products?
A3:Our product is made of imported sensors and components, the products are certified.
Q4:How long is the warranty time of the products?
A4:The warranty period is 1 years from the factory, we also provide lifetime maintenance.
