Product Overview
SKY2000 series gas detector is a kind of gas measuring equipment with high precision and quick response. The built-in sampling pump has fast sampling speed and large flow rate, which ensures the response time of the detector. Unique design, small size and convenient transportation. High-strength special engineering plastic shell is suitable for various occasions and environments. We are committed to providing you with the most reliable, accurate and safe gas detection solution.
SKY2000 detector is a gas measuring device with fast response speed and high precision. SKY2000 detector is equipped with a built-in sampling pump, fast sampling speed, 10-level adjustable pump suction, high flow rate, up to 800ml/min, ensuring the response time of the detector.
Product Advantage
1) Employing original imported first-class brand sensor.
2) (optional) High speed data transmission by USB, which can download and print data.
3) LCD dot matrix display, the gas type, unit, concentration, local time can be showed on the screen.
4) Support Chinese and English operation, easy to shift.
5) Built-in micro sampling pump, 10 grades of suction are available, when turn off the pump, the suction way is diffusion
6) Explosion-proof certification, explosion-proof grade: Ex ia IIC T4 Ga, the protection level is IP66, waterproof, dustproof and explosion-proof.
7) One key restore the factory settings, zero calibration
8) Large capacity lithium polymer rechargeable battery.
9) Texture: High-strength engineering plastic shell, non-slip, Elegant and exquisite aluminum alloy suitcase.

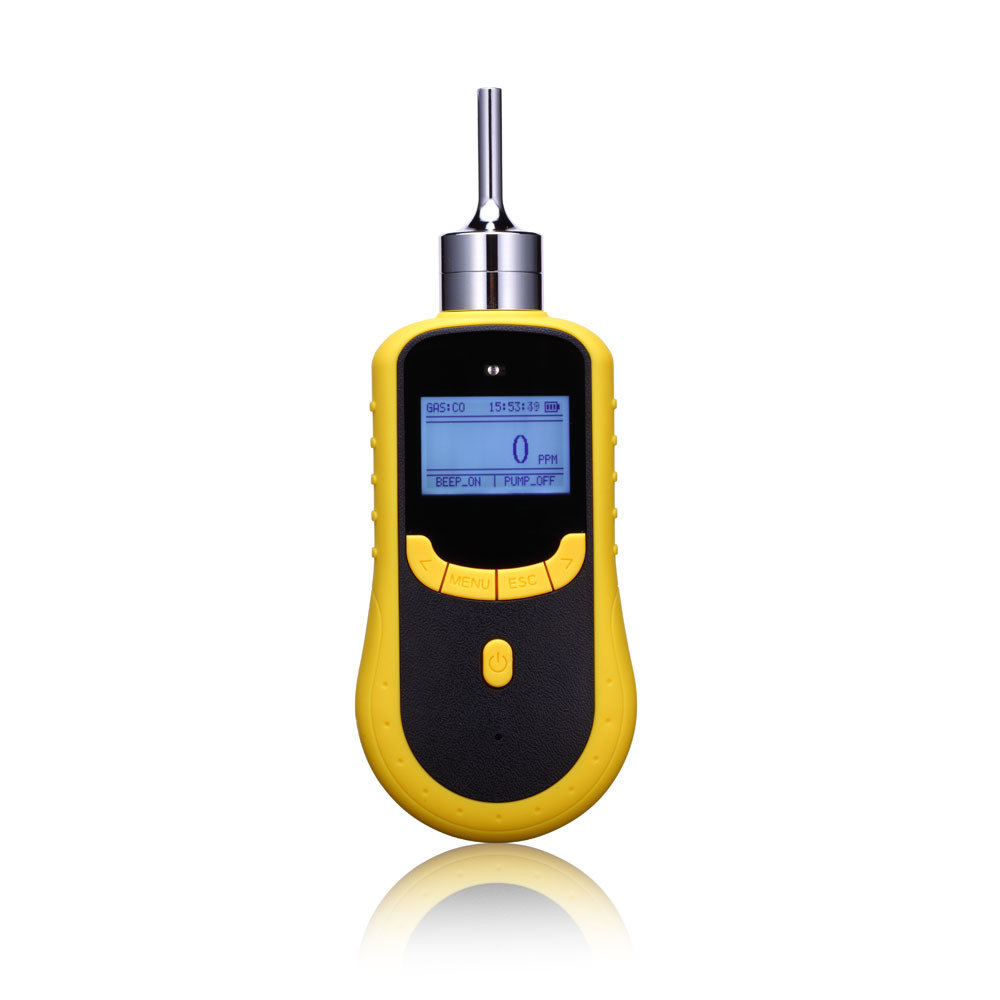

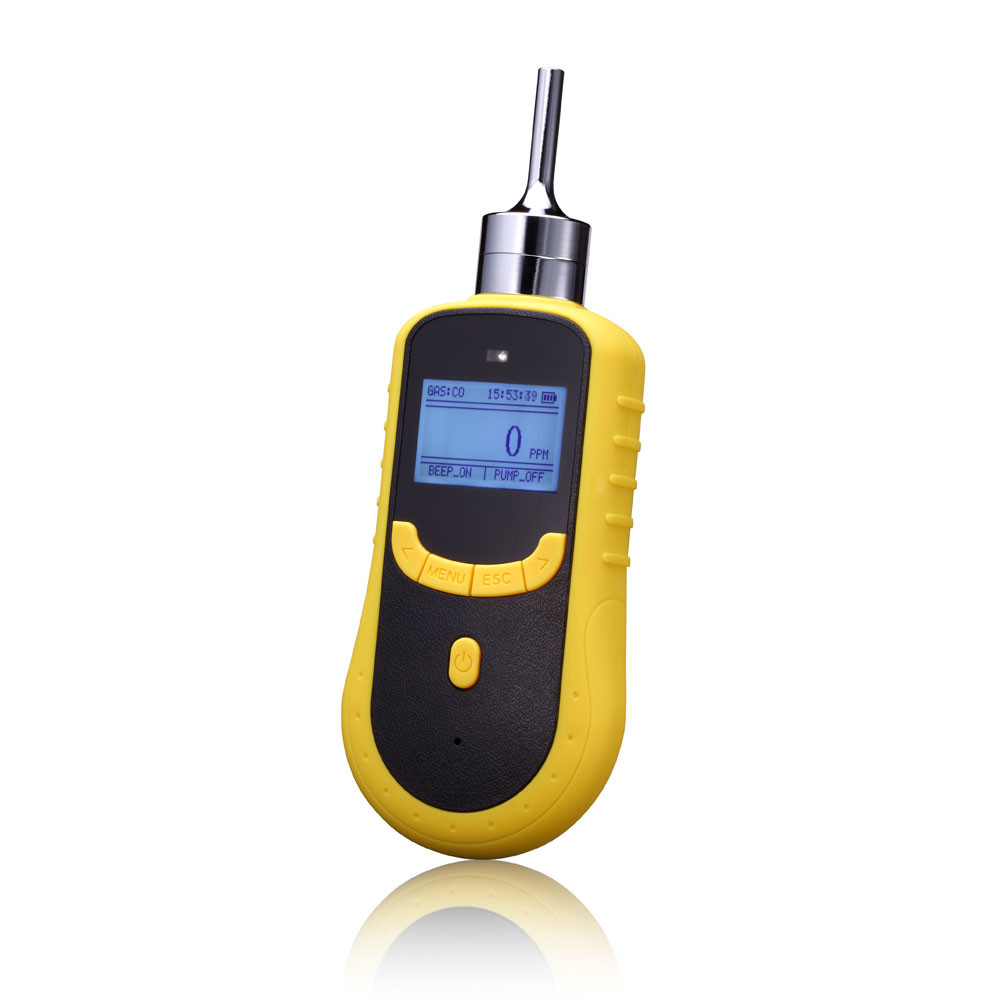

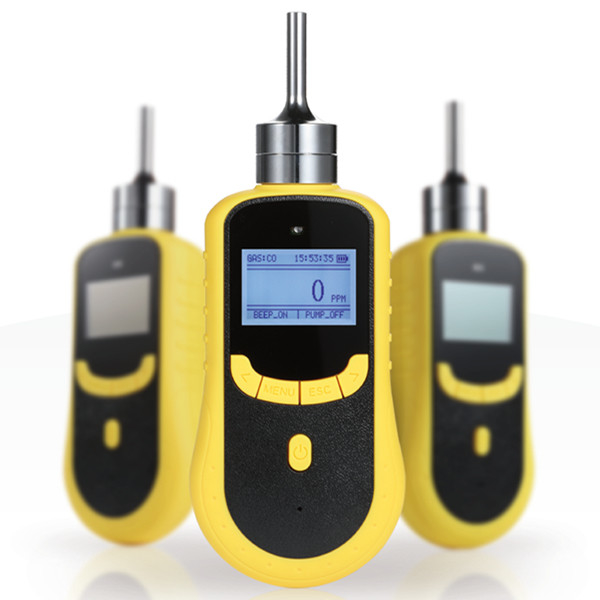

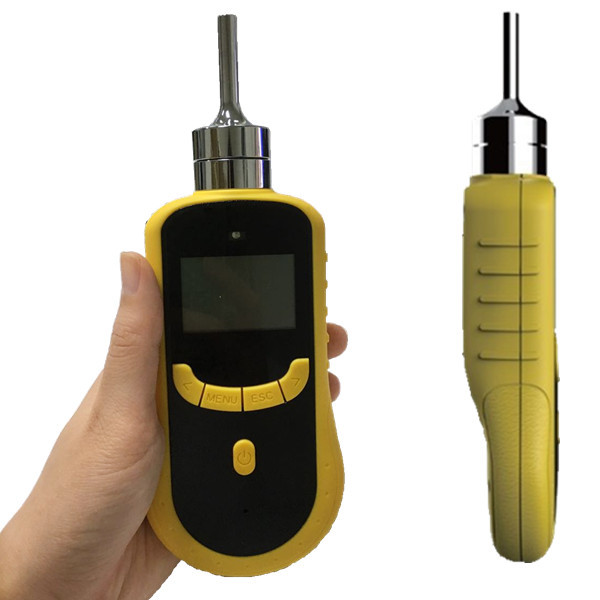

Product Picture
Product specifications
| Gas Detected |
Phosphine (PH3) |
| Measure range |
0-5, 20, 50,100, 500, 1000, 2000,3000ppm |
| Detection principle |
Electrochemical |
| Instrument lifespan |
Sensors for 2-3 years, instruments for no less than 5 years |
| Linearity error |
±2%FS |
| Response time |
T90<30S(25℃) |
| Sampling Method |
Pumping suction |
| Resolution |
0.01PPM/ 0.1PPM/ 1PPM |
| Signal Output (optional function) |
High-speed data transmission by USB, available for data downloading and printing |
| Response Time |
T90<30S(25℃) |
| Operating language |
Chinese/English |
| Temperature |
-20℃～50℃ |
| Explosion-Proof |
Ex ia II CT4 |
| Alarm mode |
Sound, light, vibration |
| Dimensions |
205*75*32mm |
| Recovery Time |
≤10S |
| Display |
LCD dot matrix display |
| Gas unit |
Units are switchable |
| Humidity |
0-90%RH |
| Degree of protection |
IP66 |
| Operating time |
100h(pump off) |
| Weight |
300g |
Applications
This device is widely used in these filed:
●Petrochemical & Chemcial Industry
●Municipal Engineering & Utilities
●Agricultral & Environmental Protection
●Electronic
●Food & Pharmaceutical Industry
Standard configuration list
Standard accessories:
1) SKY2000 1 set
2) Aluminum suitcase 1 set
3) A charging adapter 1 set
4) User manual 1 set
5) Qualification certificate 1 set
