Specifications:
| Gas detected |
Hydrogen(H2) |
| Install method |
Wall-mounted, piping type, flow-type (according to the detected environment) |
| Measure range |
0-1000, 2000, 5000, 10000, 20000, 40000ppm |
| Resolution |
1PPM |
| Precision |
± 2-5% FS |
| Signal output |
4-20mA, 0-5V, RS485, relay(optional) |
| Response time |
≤10S |
Recovery time |
≤10S |
| Repeatability |
≤±1% |
Linearity error |
≤±1% |
| Zero shift |
≤±1%(FS/year) |
Display |
High-light nixie tube display |
| Connection mode |
G1/2 external thread explosion-proof flexible pipe |
Unit |
ppm, mg/m³, %vol |
| Temperature |
-20 to 50°C |
Humidity |
0-95%RH |
| Explosion-proof |
Ex dⅡCT6 |
Degree of protection |
IP65 |
| Alarm |
Sound, light |
Operating time |
24H |
| Dimensions |
180*150*90mm |
Weight |
≤2kg |
Product Description
YT-95H/YT-95H-A Fixed Gas Detector
YT-95H/YT-95H-A series is a cost effective explosion proof transmitter for the detection of flammable gases and toxic gases. A 3 wire 4 to 20 mA analog output with relays and RS485 Modbus protocol, makes it compatible with most control systems. Third party products such as horns, warning lights and fans are compatible with our components and integrated by us into the system. With optional wireless function, operator can view data on laptop, mobile phone or cloud system remotely.
Product Advantage
Online monitoring with sound/light alarm(Optional)
24h continuously monitoring, data will real-time display
High/low alarm with sound and light, sound >90dB, alarm point is settable
Non-contacted control the device
With infrared ray controller, which can remote control alarm point settings, zero calibration, and address modification
Variety of installation methods
4-20mA current signal output, compatible with different kinds of controllers. RS485 MODBUS signal output. Relay signal output, to turn on/off ventilator, generators or other external devices
Data transmission
Can be installed with PC software, to transmit the data to computer, workers can remote monitor the data
Wireless data transmission including Lora, 4G (Optional)
High quality case
Die-cast aluminum case, strong and durable; Stainless steel case is optional, meeting the demand of different situations
IP65 protection degree, water-proof, dust-proof, explosion-proof

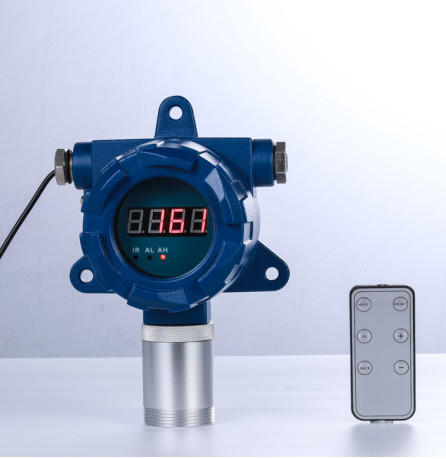

Product Picture Of YT-95H

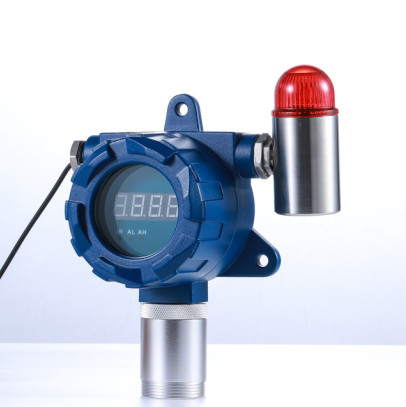

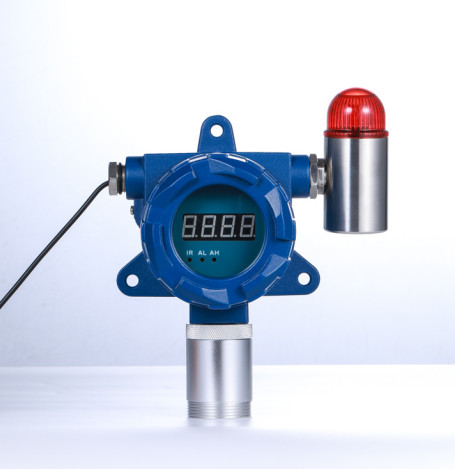

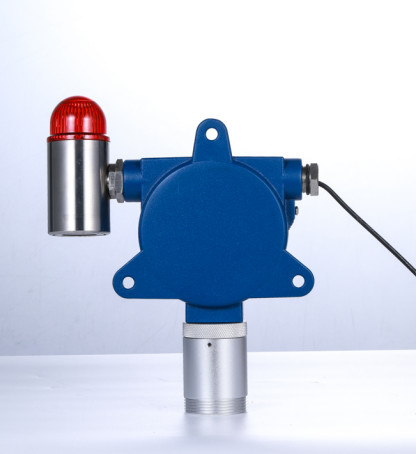

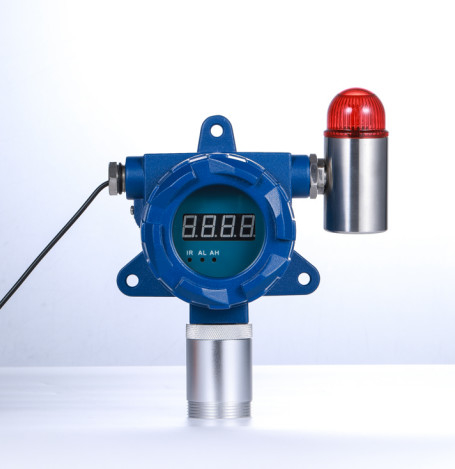

Product Picture Of YT-95H-A
Product configuration
Standard accessories:
1, Gas detector 1 piece
2, Instruction Manual 1 piece
3, Product certificate 1 piece
4, Remote controller 1 piece
5, Label 1 piece 1 piece
6, packing box 1 piece
Why choose us?
1. R&D team experience: over 25 years.
2. Company certification: ISO9001, ISO45001
3. Product certification: IECEx (the only one in China), ATEX, CE
4. Delivery: 5-7 days
5. Yearly capacity: 80,000 units
6. Service: Professional sales staff provide 7*24 hours service
