H2 0-1000ppm Leak Detection Gas Detector with Light Sound Vibration Alarm IECEX ATEX Certificated

Basic Information
Place of Origin: China
Brand Name: safegas
Certification: ATEX/IECEX
Model Number: SG100
Minimum Order Quantity: 1 piece
Price: 1010USD
Delivery Time: 3-5days
Payment Terms: T/T
Supply Ability: 8000 pcs per month
Detail Information
Product Name: Fixed Gas Detector Measure Range: Specified According To Application
Gas: H2 Sensor Type: Specified According To Application
Language: Chinese/English Alarm Type: Light+Sound+Vibration
Detection Principle: Electrochemical, NDIR, Catalytic, PID, Etc Weight: 1KG
Size: 157.8x128.8x69.6mm Power Dissipation: Toxic Gas<2.5W,flammable Gas<4W
Communication Mode: 4-20mA(3-wires),RS485 1~5V,Hart(Optional)
Highlight:

H2 Leak Detection Gas Detector

,

0-1000ppm H2 Gas Detector


Product Description

Product video



H2 0-1000ppm Leak Detection Gas Detector with Light Sound Vibration Alarm IECEX ATEX Certificated 0




Our advantages

H2 0-1000ppm Leak Detection Gas Detector with Light Sound Vibration Alarm IECEX ATEX Certificated 1

Product description

SG100 series is a cost-effective gas detector for continuous monitoring of toxic gases, oxygen,flammable, VOC gases.It is IECEx, ATEX certified,with intrinsically safe explosion grade. Havinga 2 wireor 3 wire4 to 20 mA analog output, RS485 modbus output, optional HART output, making it to be compatible with most control systems. With optional wireless data transmission, customer is able to review, download thedata remotely. Support both magnetic andremote control,flexibleforsetting.

H2 0-1000ppm Leak Detection Gas Detector with Light Sound Vibration Alarm IECEX ATEX Certificated 2
H2 0-1000ppm Leak Detection Gas Detector with Light Sound Vibration Alarm IECEX ATEX Certificated 3H2 0-1000ppm Leak Detection Gas Detector with Light Sound Vibration Alarm IECEX ATEX Certificated 4


Product advantage
  • IP66/IP68 water & dust resistant

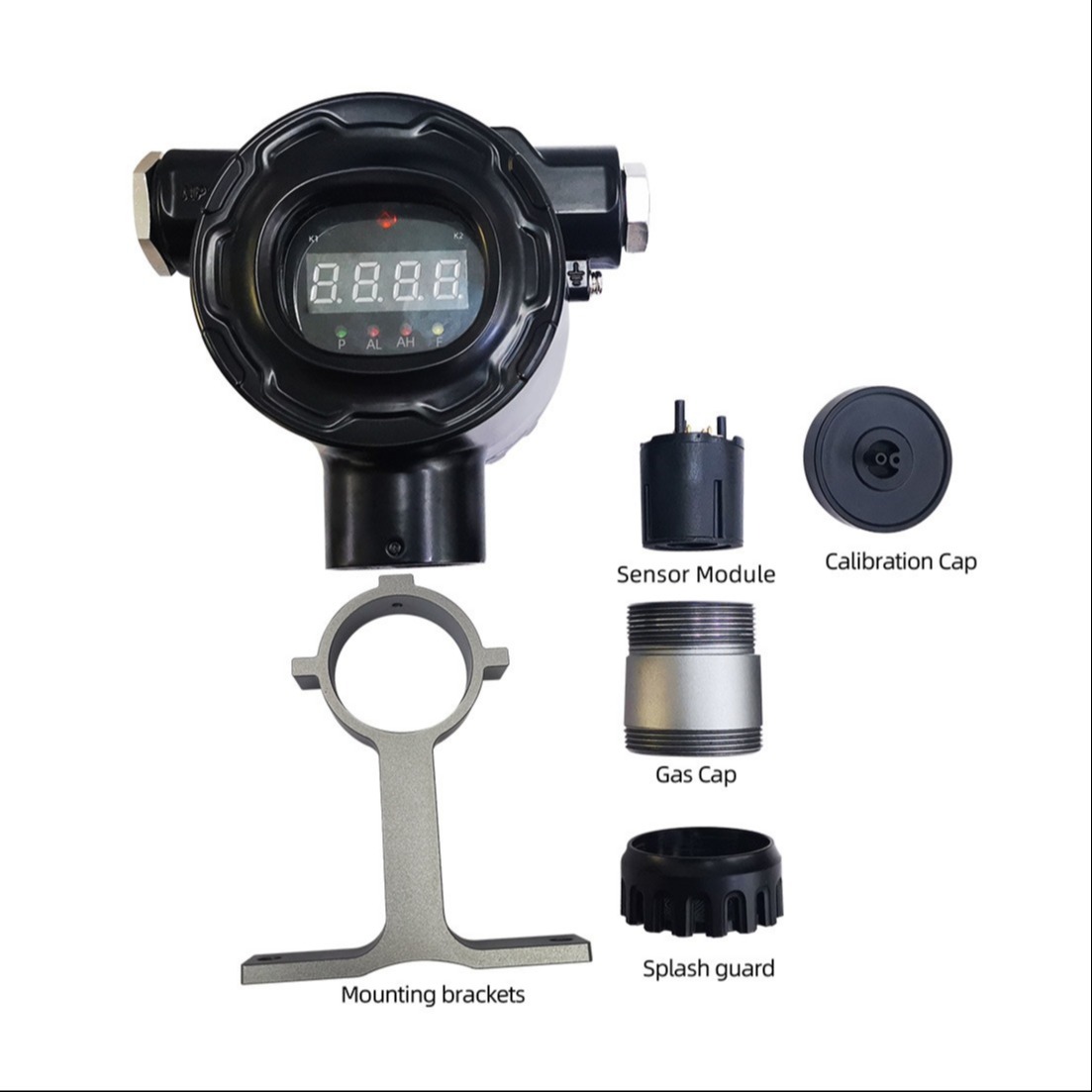

  • Intelligent plug and play sensor module. the module support calibration by Safegas PC software, making replacement and maintenance easier.
  • With standard splash guard to protect sensor for
  • outdoor installation or environment with water splash.
  • Small and light, weight is only 1 kg,and the detector
  • comes with standard mounting bracket, easy for installation
  • Standard 4-20 mAanalogsignal output andRS485
    modbus signal output, optionalHart output, 2 wire output.
    Compatible with most of control systems.
  • The detector comes with 3 relays, including low/high/fault
    alarm relay(Optional)


H2 0-1000ppm Leak Detection Gas Detector with Light Sound Vibration Alarm IECEX ATEX Certificated 5H2 0-1000ppm Leak Detection Gas Detector with Light Sound Vibration Alarm IECEX ATEX Certificated 6H2 0-1000ppm Leak Detection Gas Detector with Light Sound Vibration Alarm IECEX ATEX Certificated 7H2 0-1000ppm Leak Detection Gas Detector with Light Sound Vibration Alarm IECEX ATEX Certificated 8H2 0-1000ppm Leak Detection Gas Detector with Light Sound Vibration Alarm IECEX ATEX Certificated 9


company profile

Established in 2010, Shenzhen Yuante Technology Co., Limited has dedicated sixteen years to the design, production, and sales of high - end gas detection equipment and systems. With gas detectors at the core, it has built production lines and solutions that span multiple industries including Oil, Chemical, Medicine, Energy, and more. After nearly a decade of swift growth, Yuante has become a dominant player in the industry, exerting significant influence.

Yuante adheres to an operation philosophy that emphasizes market orientation, innovation impetus, quality - based survival, and development - based growth. The company's corporate culture, characterized by friendliness, openness, and strictness, along with its standardized management, has enabled it to assemble a remarkable pool of talent, resulting in a capable management and R & D team. In all aspects of product development, production, and after - sales service, the entire staff works in harmony. Their profound understanding of the customer - first principle and strong sense of service have solidified customer loyalty.

Accuracy and quick response are the essence of gas detectors. Yuante, leveraging its years of accumulated knowledge in measurement.


H2 0-1000ppm Leak Detection Gas Detector with Light Sound Vibration Alarm IECEX ATEX Certificated 10H2 0-1000ppm Leak Detection Gas Detector with Light Sound Vibration Alarm IECEX ATEX Certificated 11H2 0-1000ppm Leak Detection Gas Detector with Light Sound Vibration Alarm IECEX ATEX Certificated 12H2 0-1000ppm Leak Detection Gas Detector with Light Sound Vibration Alarm IECEX ATEX Certificated 13H2 0-1000ppm Leak Detection Gas Detector with Light Sound Vibration Alarm IECEX ATEX Certificated 14H2 0-1000ppm Leak Detection Gas Detector with Light Sound Vibration Alarm IECEX ATEX Certificated 15H2 0-1000ppm Leak Detection Gas Detector with Light Sound Vibration Alarm IECEX ATEX Certificated 16

certifications

H2 0-1000ppm Leak Detection Gas Detector with Light Sound Vibration Alarm IECEX ATEX Certificated 17

FAQ

H2 0-1000ppm Leak Detection Gas Detector with Light Sound Vibration Alarm IECEX ATEX Certificated 18H2 0-1000ppm Leak Detection Gas Detector with Light Sound Vibration Alarm IECEX ATEX Certificated 19

specification

Gas type Specified according to application
Sensor type Specified according to application
Accuracy ≤±2-5%FS (Depending on the specific sensor)
Measure Range Specified according to application
Resolution Specified according to application
Display:
LED display
Explosion-proof
grade
IECEX:Ex db IIC T6 Gb,Ex db ia IIC T6 Gb ;
ATEX:Ex db IIC T6 Gb,Ex db ia IIC T6 Gb
Protection grade
IP66/68
Power dissipation
Toxic gas<2.5W,flammable gas<4W
Communication
mode
4-20mA(3-wires),RS485 1~5V,Hart(Optional)
Working voltage 12-24VDC
Size 157.8x128.8x69.6mm
Weight LORA, 4G(Optional)
Wireless

≤±1%
