| Place of Origin: | China |
|---|---|
| Brand Name: | safegas |
| Certification: | CE/ISO |
| Model Number: | YT-95H |
| Minimum Order Quantity: | 1 piece |
| Price: | 780USD |
| Delivery Time: | 3-5days |
| Payment Terms: | T/T |
| Supply Ability: | 8000 pcs per month |

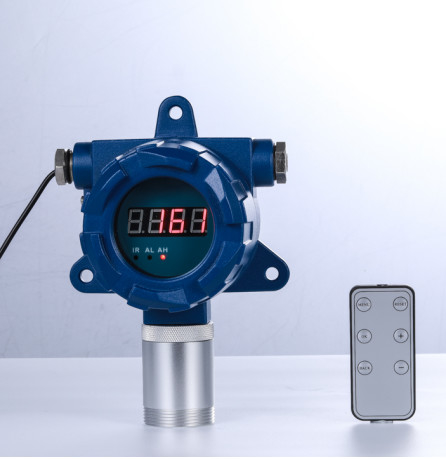

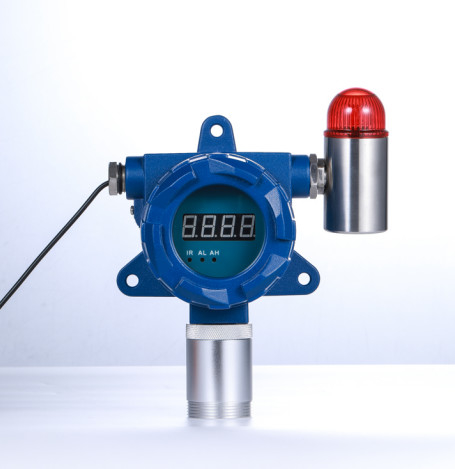

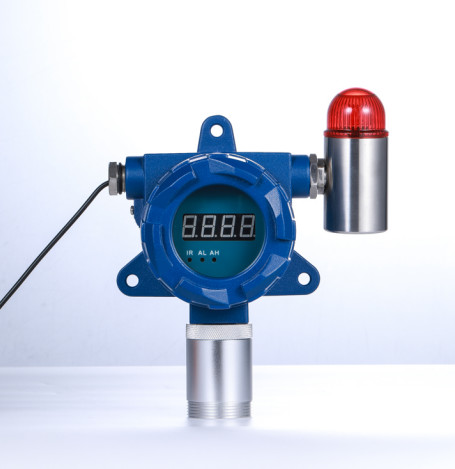

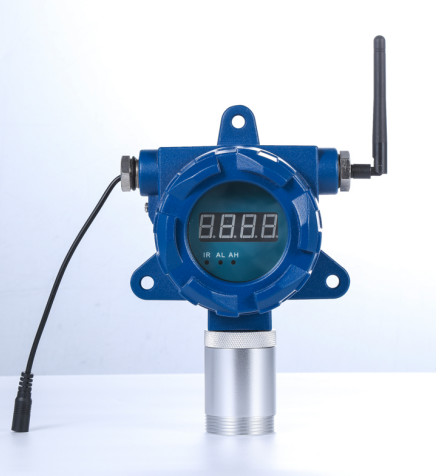

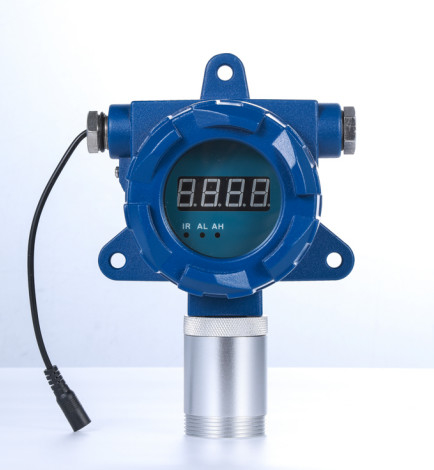

| Product Name: | Fixed Gas Detector | Measure Range: | Specified According To Application |
|---|---|---|---|
| Gas: | CO/H2S/Customized | Sensor Type: | Specified According To Application |
| Language: | Chinese/English | Alarm Type: | Light+Sound+Vibration |
| Detection Principle: | Electrochemical, NDIR, Catalytic, PID, Etc | Weight: | ≤1.6kg |
| Size: | 180×150×90mm | Power: | 12-36V DC |
| Communication Mode: | G1/2 External Thread Explosion-proof Flexible Pipe | Thread Size: | M45*2mm |
| Temperature: | –20℃～50℃ | Humidity: | 0-95%RH(nocondensation) |
| Explosionproof Grade: | Ex D IIC T6 Gb | ||
| Highlight: | Fixed Type CO Gas Detector,Relay Control CO Gas Detector,0-2000PPM CO Gas Detector |
||
24h continuously monitoring, data will real-time display.High/low alarm with sound and light, sound >90dB, alarm point is settable.
It integrate 3 wire 4-20 mA analog, RS485 Modbus and relay out. To be compatible with different control systems.
The relay output supports control external devices such as horns, alarm lights, fans etc.
Die-cast aluminum housing, strong and durable;IP65 protection degree,water-proof, dust-proof,explosion-proof；
| Gas type | Specified according to application |
| Sensor type | Specified according to application |
| Accuracy |
≤±2%FS(Specified according to different sensor)
|
| Measure Range | Specified according to application |
| Resolution | Specified according to application |
|
Display:
|
4 digits Nixie tube display.
|
| Explosion-proof grade |
Ex d IIC T6 Gb
|
|
Temperature
|
–20℃～50℃
|
|
Power
|
12-36V DC
|
|
Thread Size
|
M45*2mm
|
|
Zero shift
|
≤±1%(F.S./year)
|
|
Dimensions
|
180×150×90mm
|
| Weight |
≤1.6kg
|
|
Humidity
|
0-95%RH(nocondensation) |
